Peterson Fluid 08-0785-BLK - Systems Tank Drag 2.3 Gallon -16AN Single Return - Black

Peterson Fluid 08-0785-BLK - Systems Tank Drag 2.3 Gallon -16AN Single Return - Black

Oil Tank - Drag - Dry Sump - 2.3 gal - 16.625 in Tall - 7 in OD - 16 AN Male Inlet - 16 AN Male Outlet - Two 12 AN Male Breather Ports - Heater Port - Aluminum - Black Anodized - Each

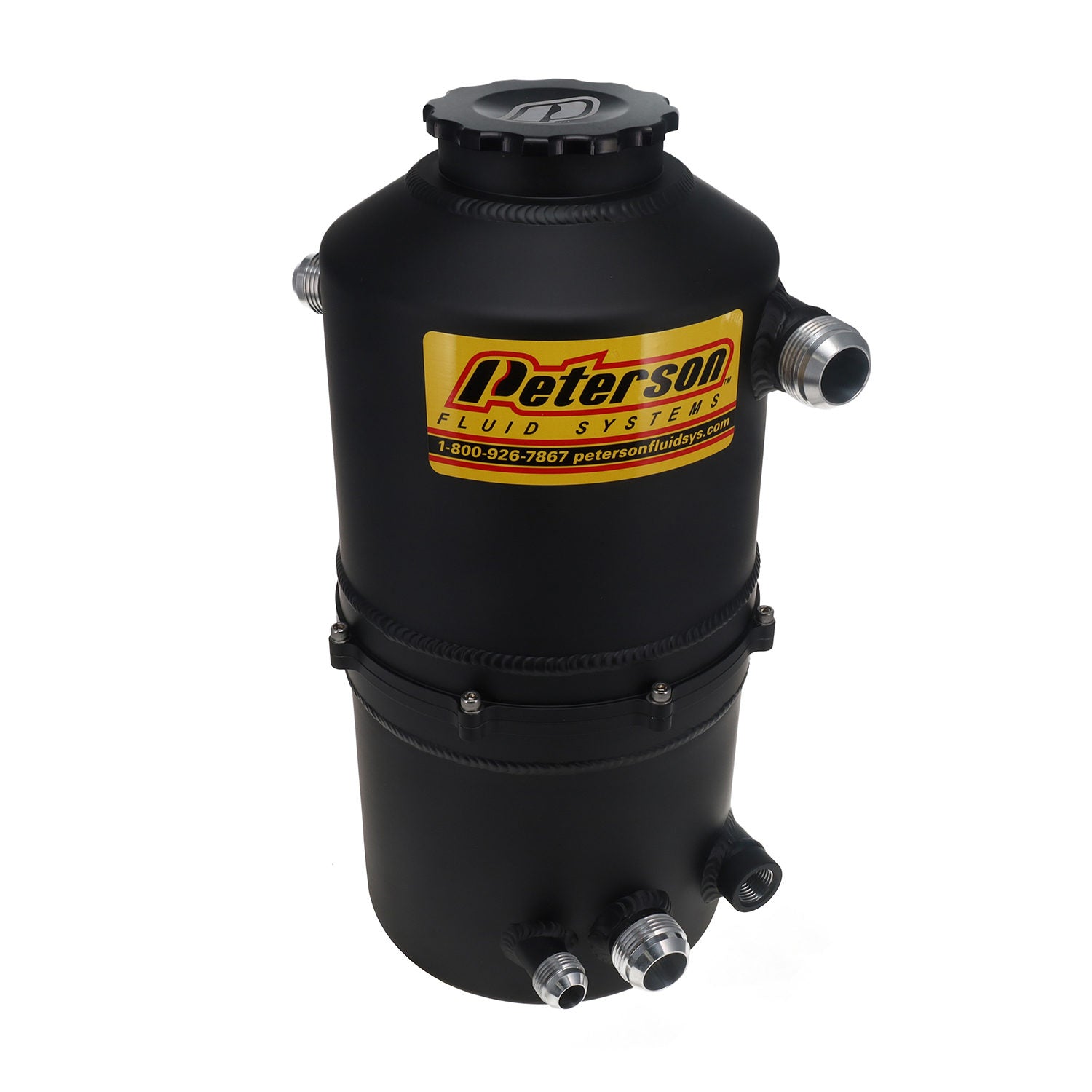

Black 2.3-gallon oil tank with single scavenge return. Fittings include -16AN male scavenge, -16AN male pickup, -10AN male for primer, 1/2" npt for heater, two (2) -12AN male vents and -6 drain. Diameter 7" Height 16.5" weight 5.1 lbs

100% hand TIG welded by Peterson's welding artisans, these dry-sump system oil tanks are as beautiful as they are functional. With years of continuous development, working with the most successful race teams in the most demanding environments, Peterson Oil Tanks are built to outperform. Manufactured using formed aluminum bodies with CNC machined aluminum flanges and fittings, keep weight to an absolute minimum. The race proven tank geometry, plumbing, and baffle design provide excellent deaeration of the scavenged oil while maintaining a tall column of oil over the pickup tube, ensuring your engine never misses a beat. With capacities on standard tanks ranging from 1.5 to 5 gallons along with many fitting layouts, there is a Peterson tank available to benefit any race program. All tanks disassemble quickly for cleaning and tops rotate separately from bottom sections for easy plumbing configuration. Peterson stock tanks meet most application needs, but in those rare cases where special requirements dictate a special tank, the Peterson Custom Tank Shop can accommodate any need. Start the process at https://www.petersonfluidsys.com/customshop.html
