Pertronix - D300711
Distributor - Flame-Thrower Plug N Play Billet - Magnetic Pickup - Mechanical Advance - HEI Style Terminal - Red - Chevy V8 - Each

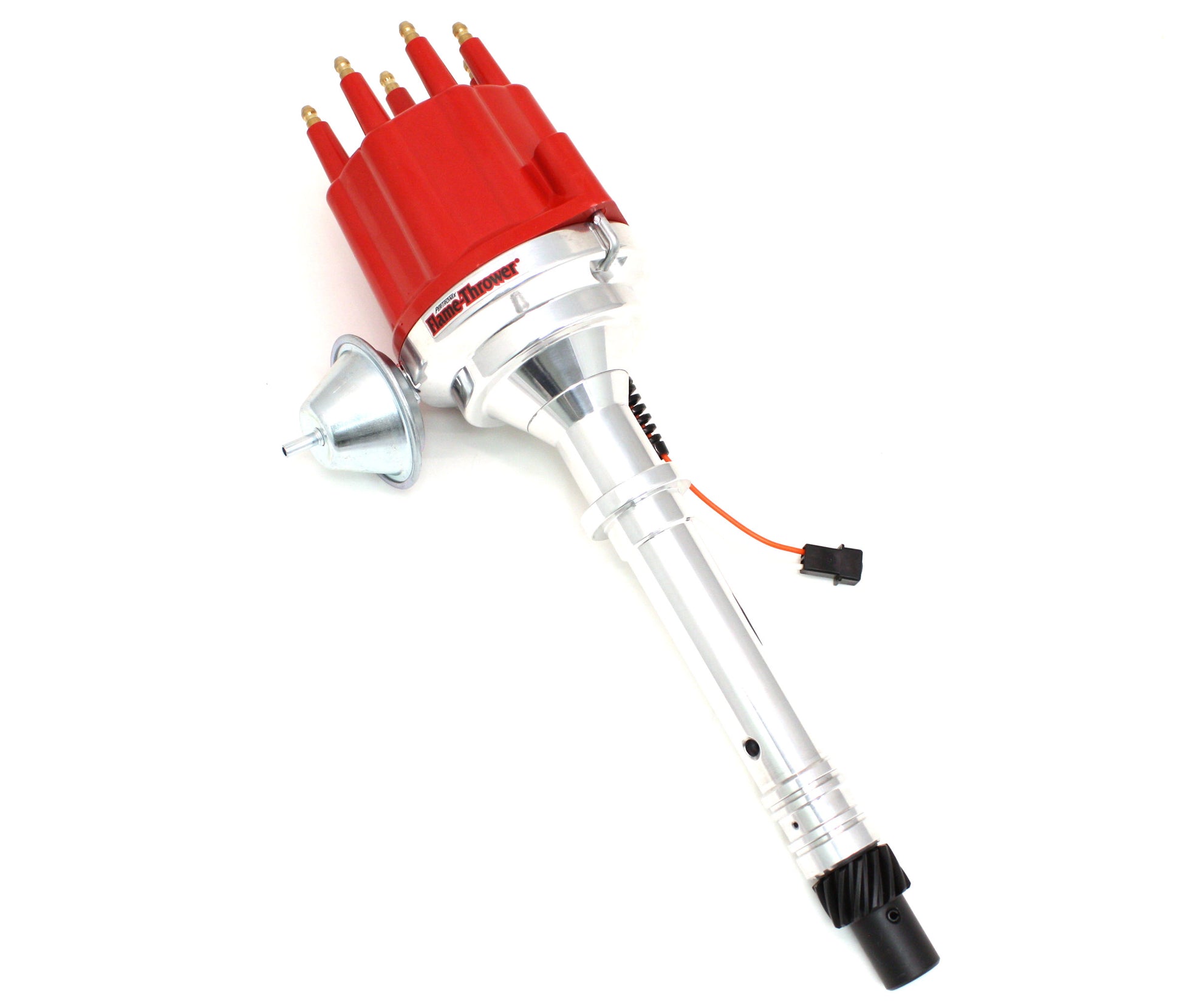

PerTronix D300711 Flame-Thrower Electronic Distributor Billet Magnetic Trigger Chevy SB/BB Red Male Cap Vacuum Advance
Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.
- Precision magnetic pickup coil and reluctor offer extremely accurate signaling at low and high RPM.
- Specially engineered reluctor made from lightweight FC-0208 alloy offers superior dimensional stability for symmetrical spark separation.
- Overmolded magnetic pickup coil supports windings while providing excellent resistance to corrosion.
- Easy wiring with standard Tyco Mate-N-Lok? connector works with most ignition system harnesses.
- Compatible with most capacitive discharge ignition boxes.
Adjustable Collar: No
Advance Type: Vacuum and mechanical
Cap Color: Red
Cap Diameter: 5
Cap Terminal Gender: Male
Clamp Hardware Included: No
Clamp Included: No
Coil Wire Included: No
Computer Controlled Compatible: No
Connector Type: Unsealed
Distributor Cap Included: Yes
Distributor Gear Included: Yes
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Gear Material: Steel
Grade Type: Performance
Housing Color: Natural
Housing Finish: Polished
Housing Material: Aluminum
Ignition Box Required: Yes
Ignition Coil Included: No
Ignition Module Included: Yes
Ignition Rotor Included: Yes
Marine Approved: No
Mechanical Tach Drive Provision: No
Quantity: Sold individually.
Rotor Rotation: Clockwise (Right)
Shaft Color: Natural
Shaft Diameter: 0.5
Shaft Material: Steel
Trigger Type: Magnetic
