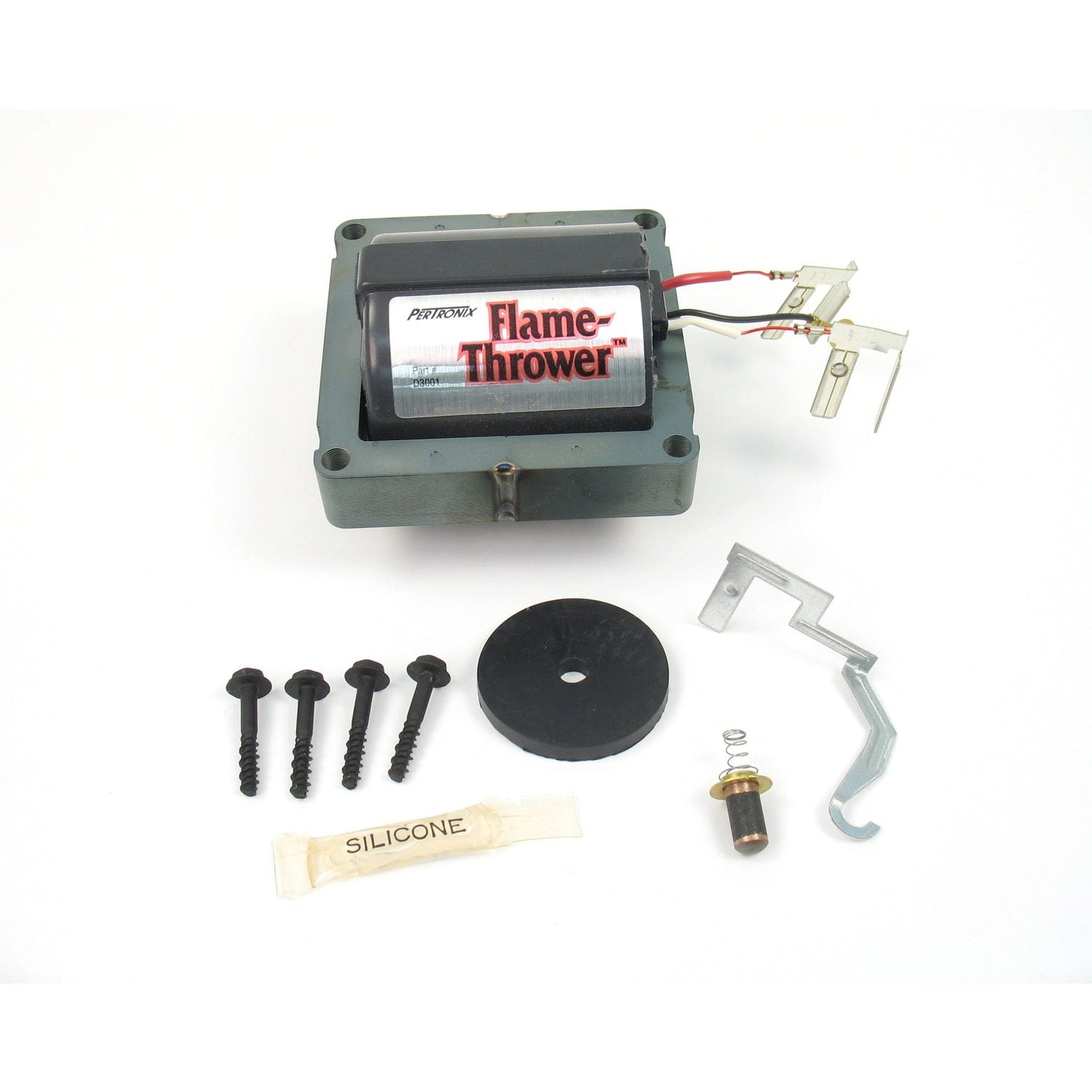

Pertronix - D3001
Ignition Coil - Flame Thrower - E-Core - Coil in Cap - 50000V - Black - GM HEI - Each
FLAME-THROWER GM HEI COIL. 50,000-VOLT RATED WITH .05-OHMS OF RESISTANCE. THEY DELIVER 100% MORE ENERGY ACROSS THE SPARK PLUG GAP. REPLACES E-CORE INTERNAL GM COILS WITH RED / WHITE WIRES.
Our performance ignition modules are direct replacements for popular GM and Ford electronic distributors. These modules provide enhanced high RPM performance and when used with their corresponding Flame-Thrower coil, substantially increase spark plug voltage.
- 50,000 volts.
- Ultra low primary resistance values.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)*
- Limited 90 Day Warranty.
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Type: In-Cap
Coil Type: No
Coil Wire Attachment: HEI in-cap
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Matte
Grade Type: Performance
Ignition Type: Electronic
Maximum Voltage: 50000
Mount Type: Factory
Mounting Bracket Included: Integrated
Mounting Hardware Included: Yes
Mounting Position: Horizontal
Primary Inductance: 4.4
Primary Resistance: 0.5
Requires External Resistor: No
Secondary Resistance: 8300
Turns Ratio: 80:1
Voltage: 12
