Pertronix - D100701
Distributor - Flame-Thrower Plug N Play Billet - Magnetic Pickup - Vacuum Advance - Socket Style - Red - Chevy V8 - Each
PERTRONIX FLAME-THROWER BILLET DISTRIBUTOR WITH IGNITOR II ELECTRONICS FOR CHEVY SB/BB ENGINES. VACUUM ADVANCE WITH RED FEMALE STYLE CAP.
Billet Plug n’ Play Distributors are based on a precision CNC-machined housing with an upper ball bearing to support the steel distributor shaft accurately from idle to redline rpm. These distributors feature our maintenance-free electronic ignition module to produce a strong spark and steady ignition timing.
- Precision CNC machined 6061-T6 billet aluminum housings are lightweight yet offer maximum strength.

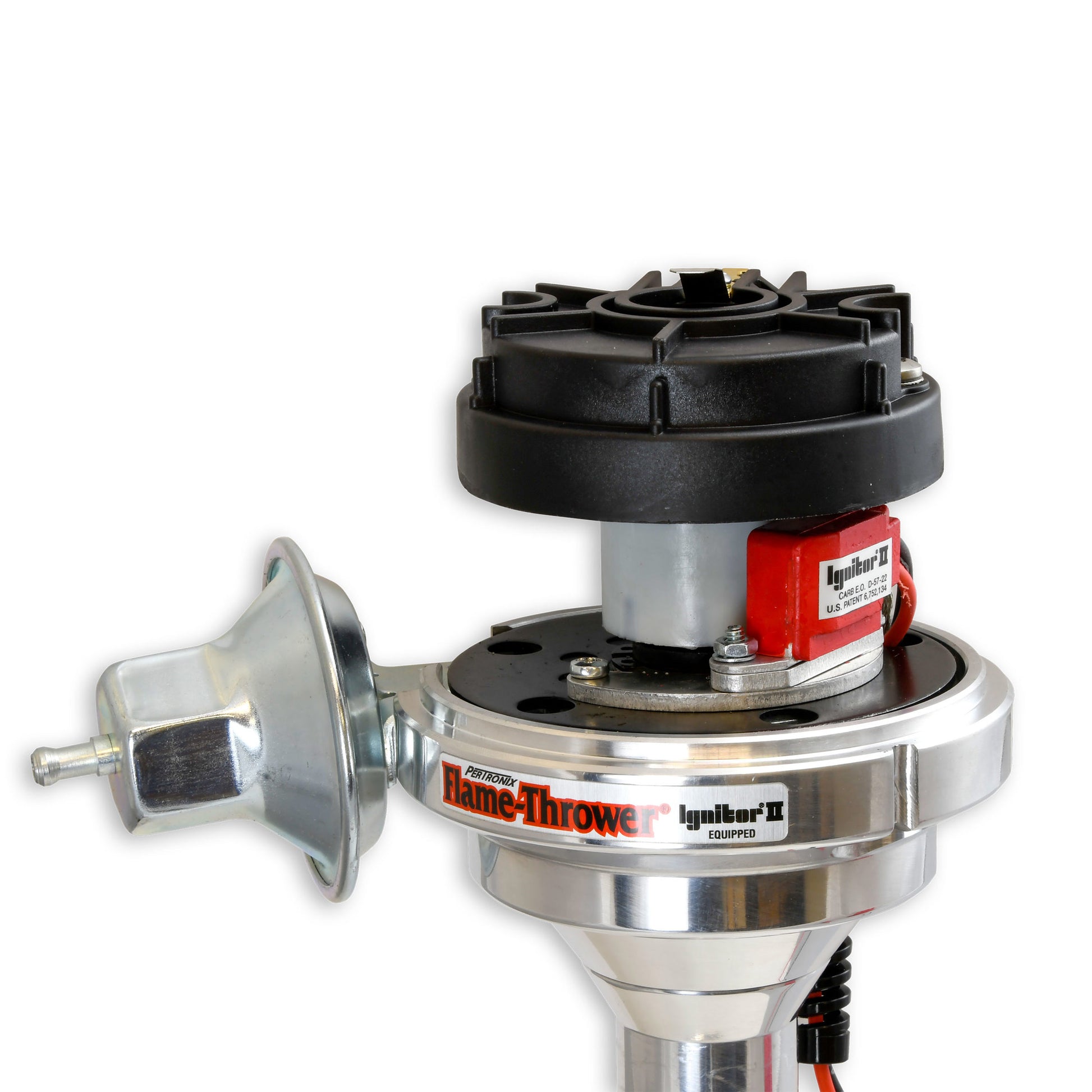

- Our Billet distributors ship with Ignitor II modules factory installed.
- Each billet distributor is hand polished and buffed to a high luster.
- Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
- Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanism stability reducing high RPM vibration.
Adjustable Collar: No
Advance Type: Vacuum and mechanical

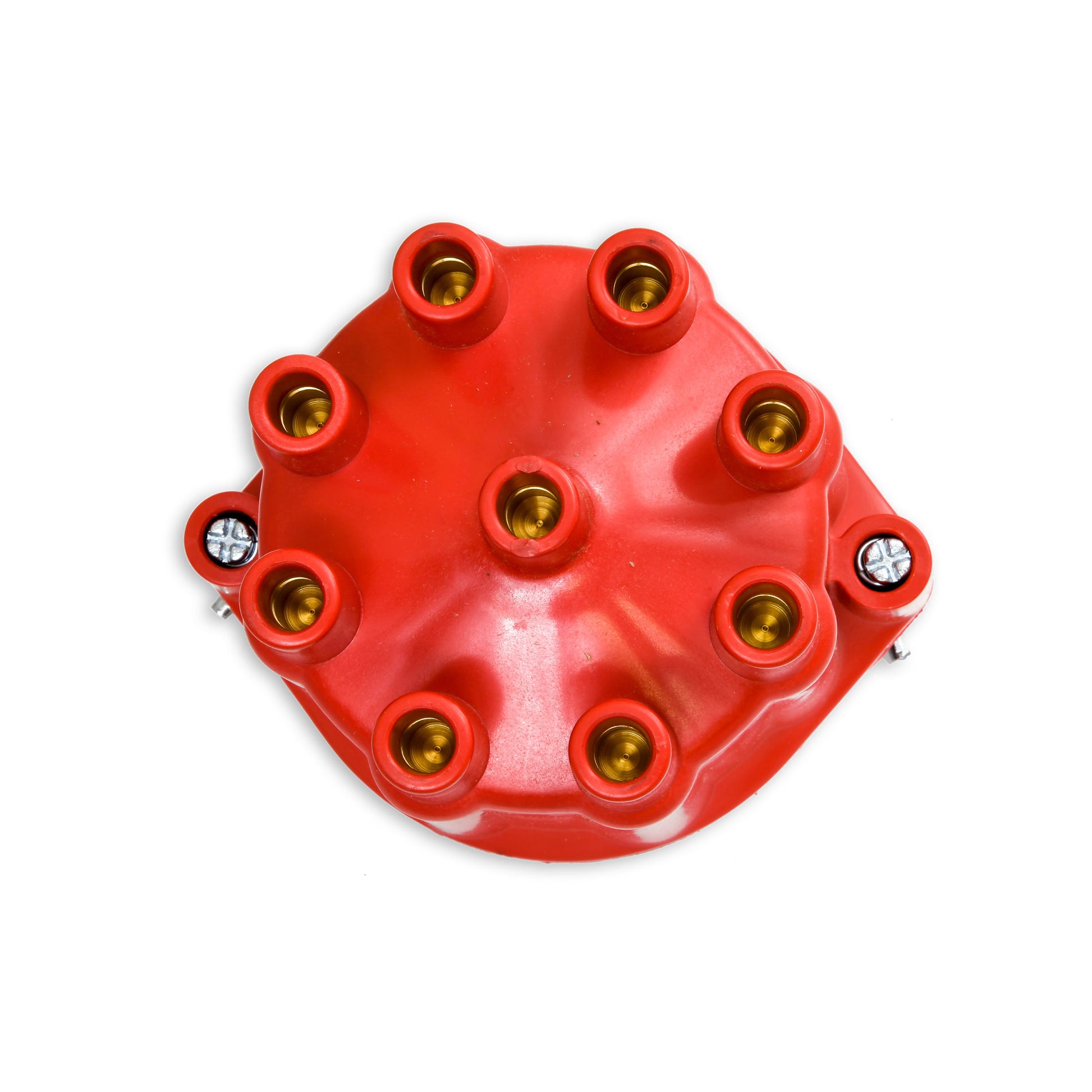

Cap Color: Red
Cap Diameter: 5
Cap Terminal Gender: Female
Clamp Hardware Included: No
Clamp Included: No
Coil Wire Included: No
Computer Controlled Compatible: No
Connector Type: Unsealed
Distributor Cap Included: Yes
Distributor Gear Included: Yes
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Gear Material: Steel
Grade Type: Performance
Housing Color: Natural
Housing Finish: Polished
Housing Material: Aluminum
Ignition Box Required: No
Ignition Coil Included: No
Ignition Module Included: Yes
Ignition Rotor Included: Yes
Marine Approved: No
Mechanical Tach Drive Provision: No
Quantity: Sold individually.
Rotor Rotation: Clockwise (Right)
Shaft Color: Natural
Shaft Diameter: 0.5
Shaft Material: Steel
Trigger Type: Hall Effect
