Pertronix - 60130

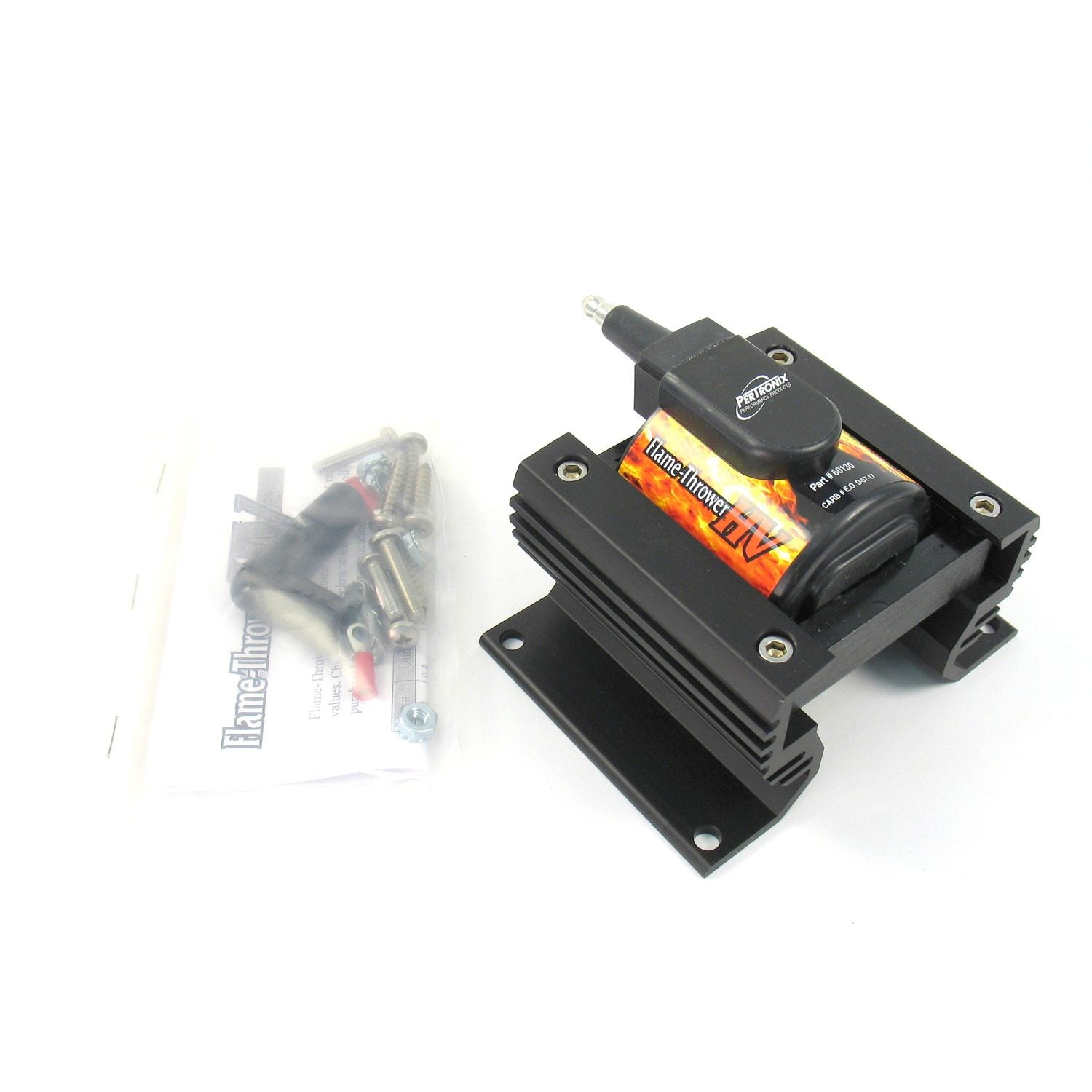

Ignition Coil - Flame Thrower HV - E-Core - 3 ohm - Male HEI - 60000V - Black - Pertronix Ignitor - Each
PERTRONIX FLAME-THROWER HV COIL. 60,000-VOLT RATED WITH 3.0-OHMS. SPECIFICALLY ENGINEERED FOR ORIGINAL IGNITOR 4 & 6-CYLINDER APPLICATIONS. E-CORE STYLE.
HV (High Voltage) E-core design yields an incredible 60,000 volts and operates with no degradation throughout temperature ranges that surpass military specifications. The special heat sink design efficiently transfer heat optimizing energy output for street/strip and off-road applications.
- 60,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Type: No
Coil Type: Remote Mount E-Core
Coil Wire Attachment: Male/HEI
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss /Matte
Grade Type: Performance
Ignition Type: Electronic
Length: 4.6
Maximum Voltage: 60000
Mount Type: Integrated Bracket
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Position: Horizontal
Overall Height: 3.15
Primary Inductance: 9
Primary Resistance: 3
Requires External Resistor: No
Secondary Resistance: 22800
Turns Ratio: 85:1
Voltage: 12
Width: 4.65
