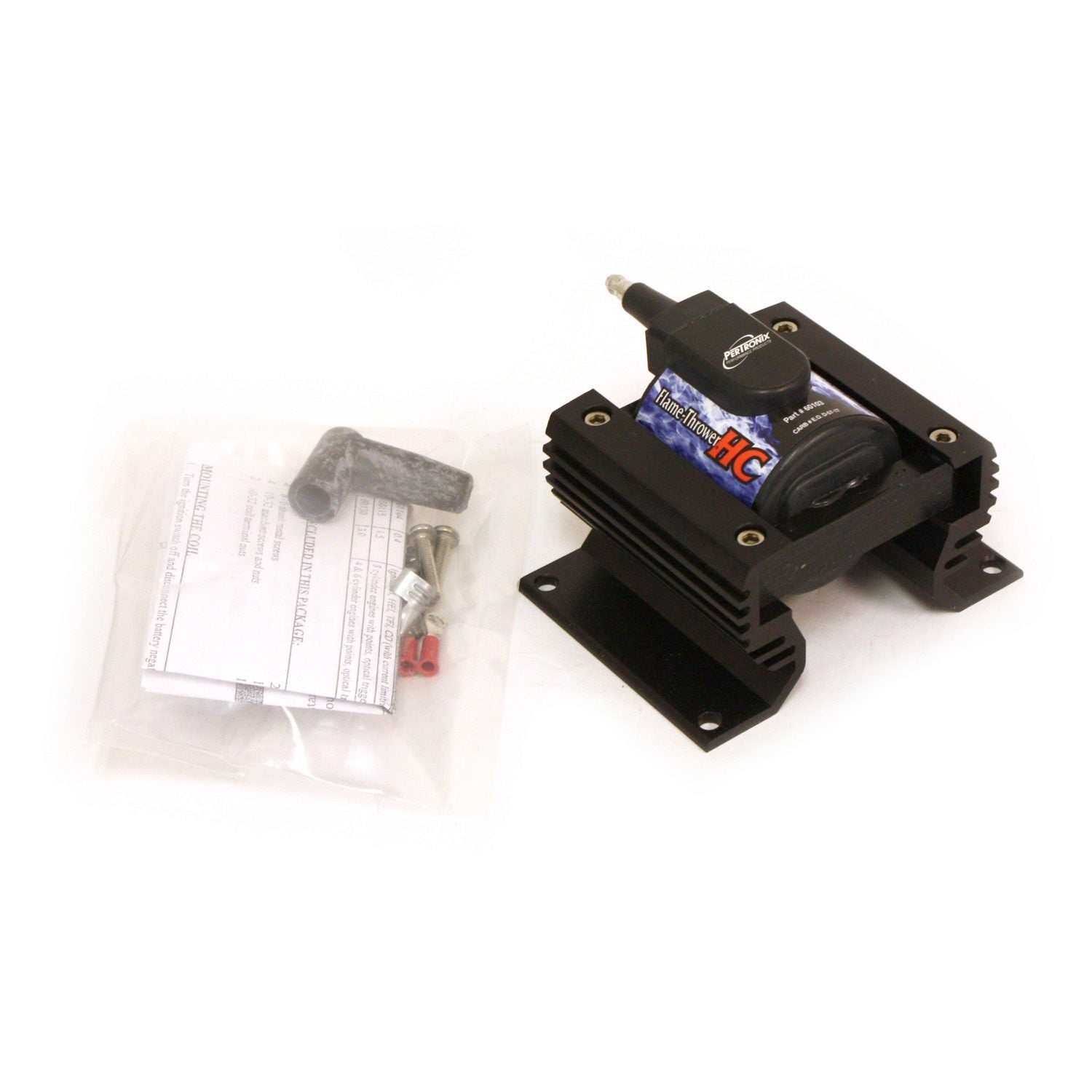

Pertronix - 60103
Ignition Coil - Flame Thrower HC - E-Core - 0.32 ohm - Male HEI - 60000V - Black - Pertronix Ignitor III - Each
PERTRONIX FLAME-THROWER HC COIL. 60,000-VOLT RATED WITH 0.32-OHMS. SPECIFICALLY ENGINEERED FOR IGNITOR III APPLICATIONS. E-CORE STYLE.
HC (High Current) E-core coils are engineered specifically for our Ignitor III Electronic Ignition Conversion kit. HC coils have a high turn ratio and ultra-low primary resistance enabling the ignition system to charge faster at high RPM's.
- 60,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Type: Remote Mount E-Core
Coil Type: No
Coil Wire Attachment: Male/HEI
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss /Matte
Grade Type: Performance
Ignition Type: Electronic
Length: 4.6
Maximum Voltage: 60000
Mount Type: Integrated Bracket
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Position: Horizontal
Overall Height: 3.15
Primary Inductance: 2.5
Primary Resistance: 0.32
Requires External Resistor: No
Secondary Resistance: 7000
Turns Ratio: 110:1
Voltage: 12
Width: 4.65
