Pertronix - 60100
Ignition Coil - Flame Thrower HP - 0.2 ohm - E-Core - 45000V - Black - HEI - Each

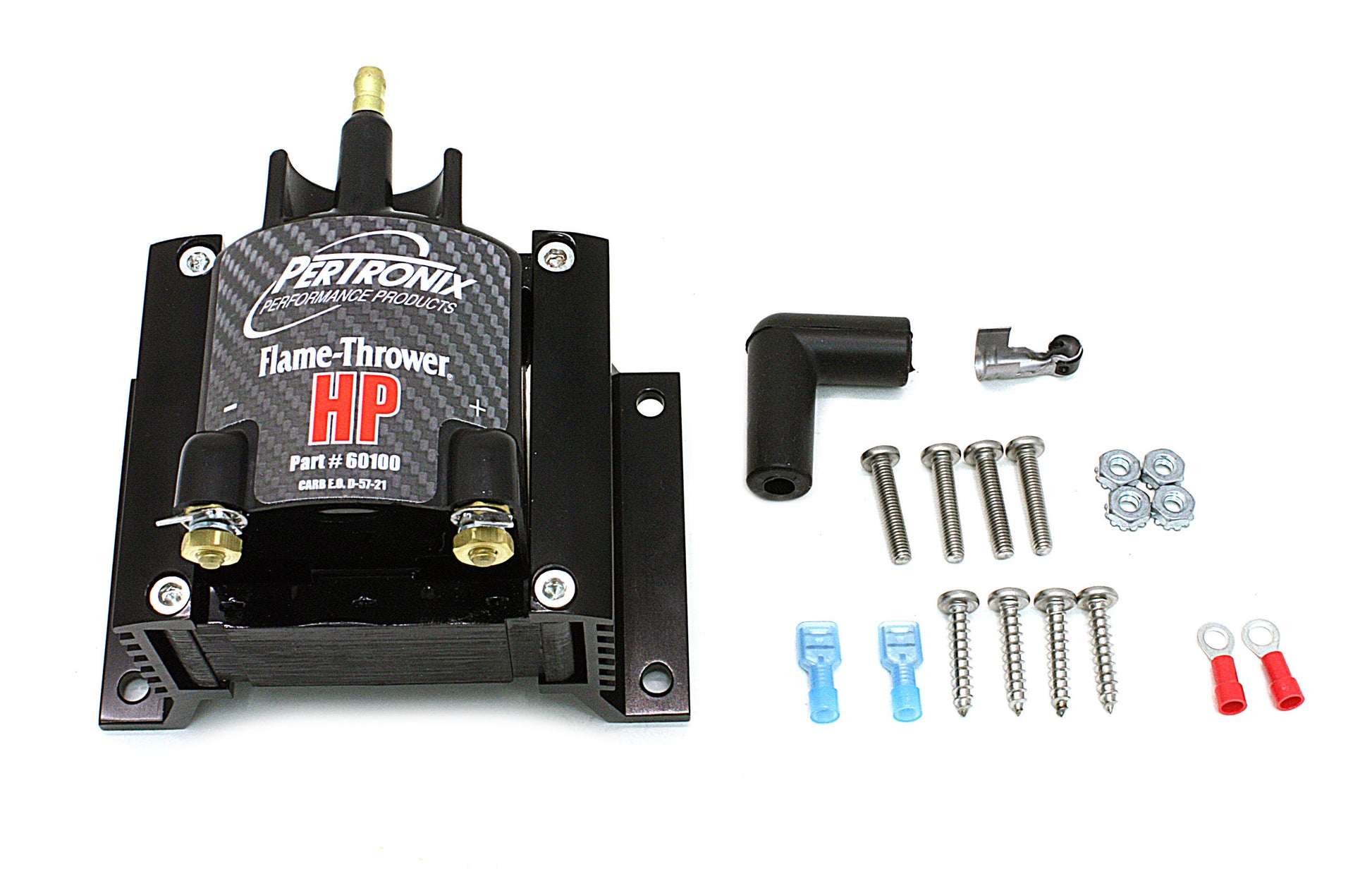

PerTronix 60100 Flame-Thrower HP Coil 45,000 Volt E-Core 0.2 ohm
HP (High Power) E-Core coils were specifically designed for use with the PerTronix Digital HP Ignition. The larger epoxy encapsulated coil body, more substantial steel E-core, and 6063 T5 aluminum heat sink, enable it to meet the demands of high RPM CD systems.
- 50,000 volts.
- Highly efficient E-core design.
- Vacuum potted coil body for longer life and increased reliability.
- 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
- Precision machined male high tension terminal and brass primary terminals.
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Square
Coil Type: No
Coil Type: Remote Mount E-Core
Coil Wire Attachment: Male/HEI
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss /Matte
Grade Type: Performance
Ignition Type: Electronic
Length: 4
Maximum Voltage: 50000
Mount Type: Integrated Bracket
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Position: Horizontal
Overall Height: 3.75
Primary Inductance: 7
Primary Resistance: 0.2
Requires External Resistor: No
Secondary Resistance: 1380
Turns Ratio: 100:1
Voltage: 12
Width: 4.75
