Pertronix - 45111

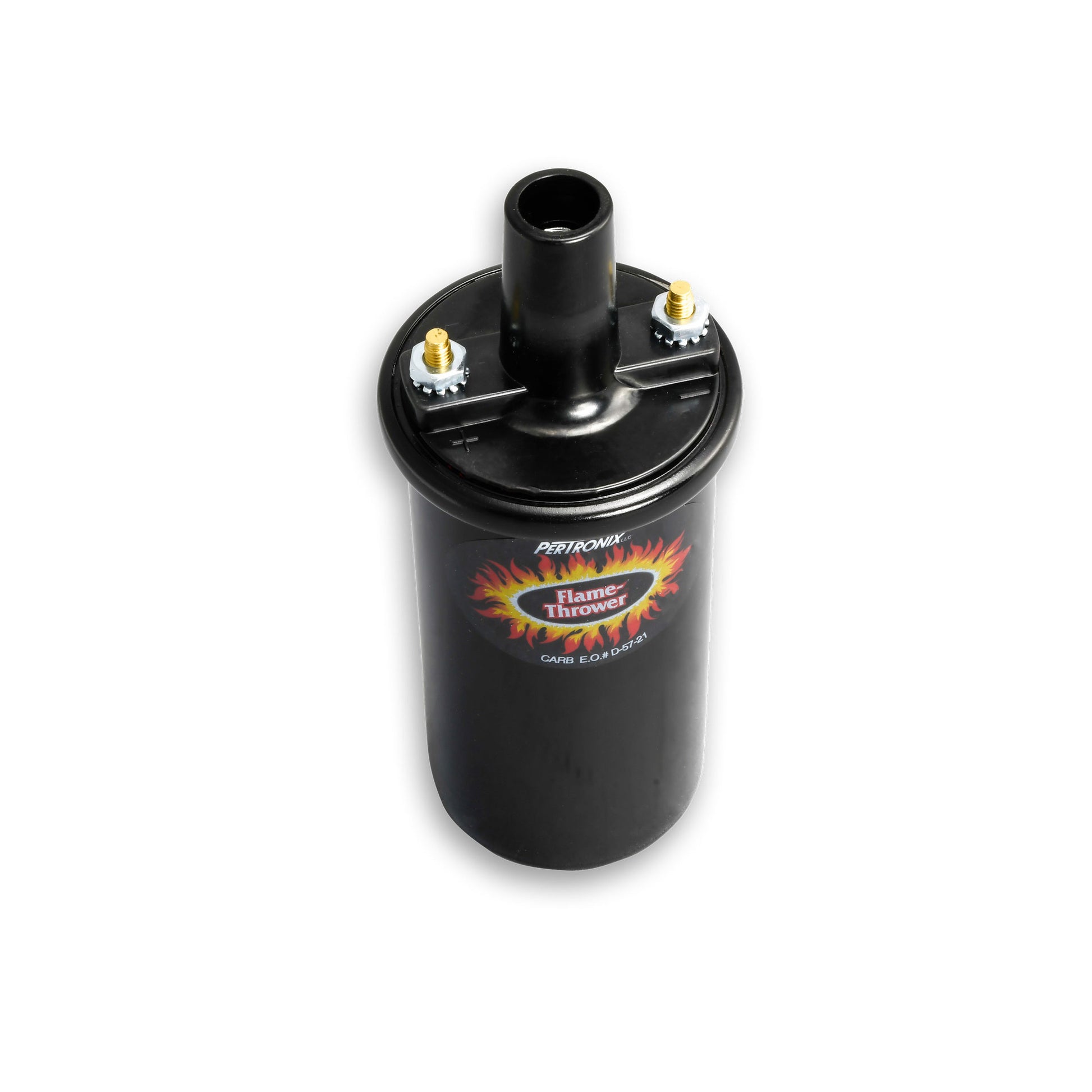

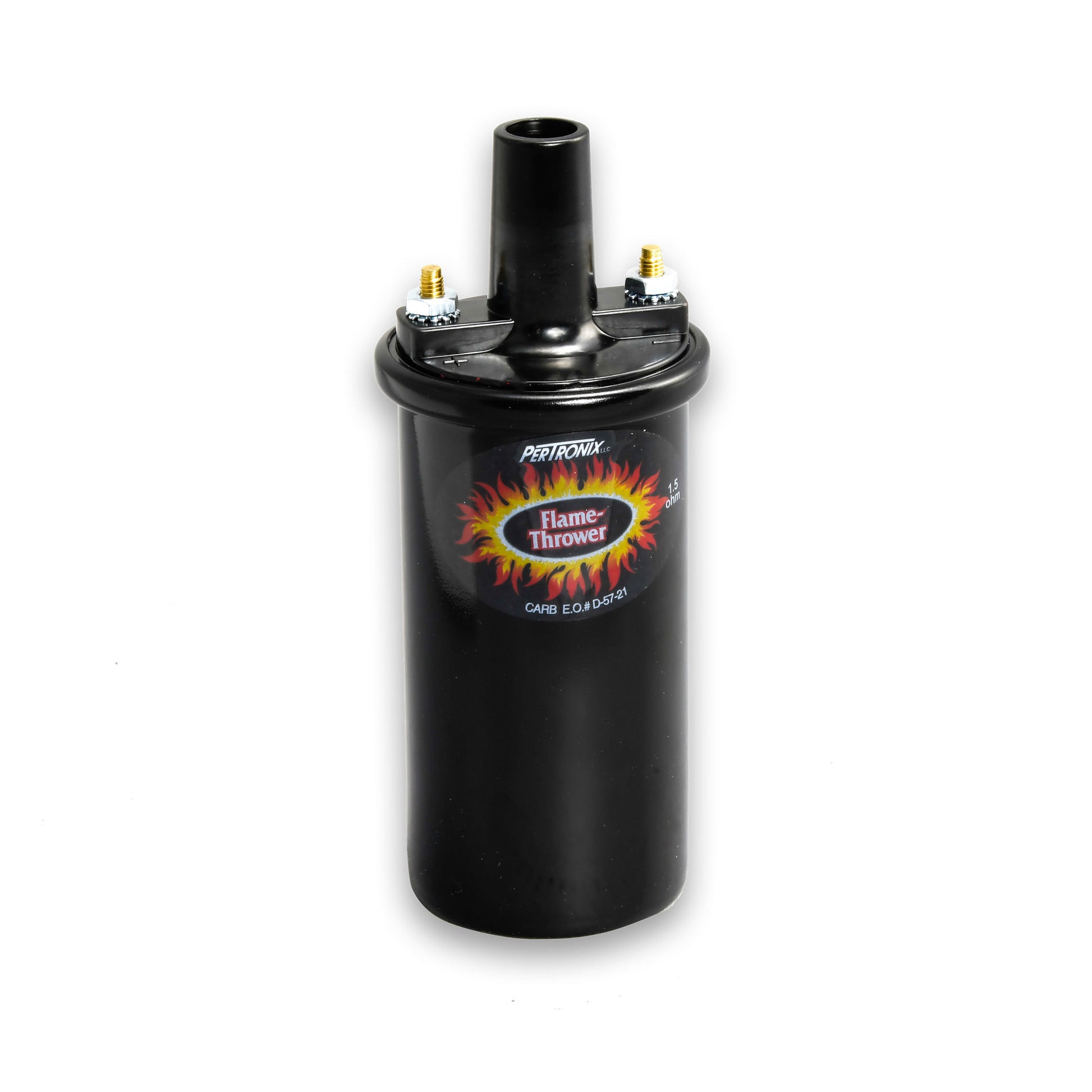

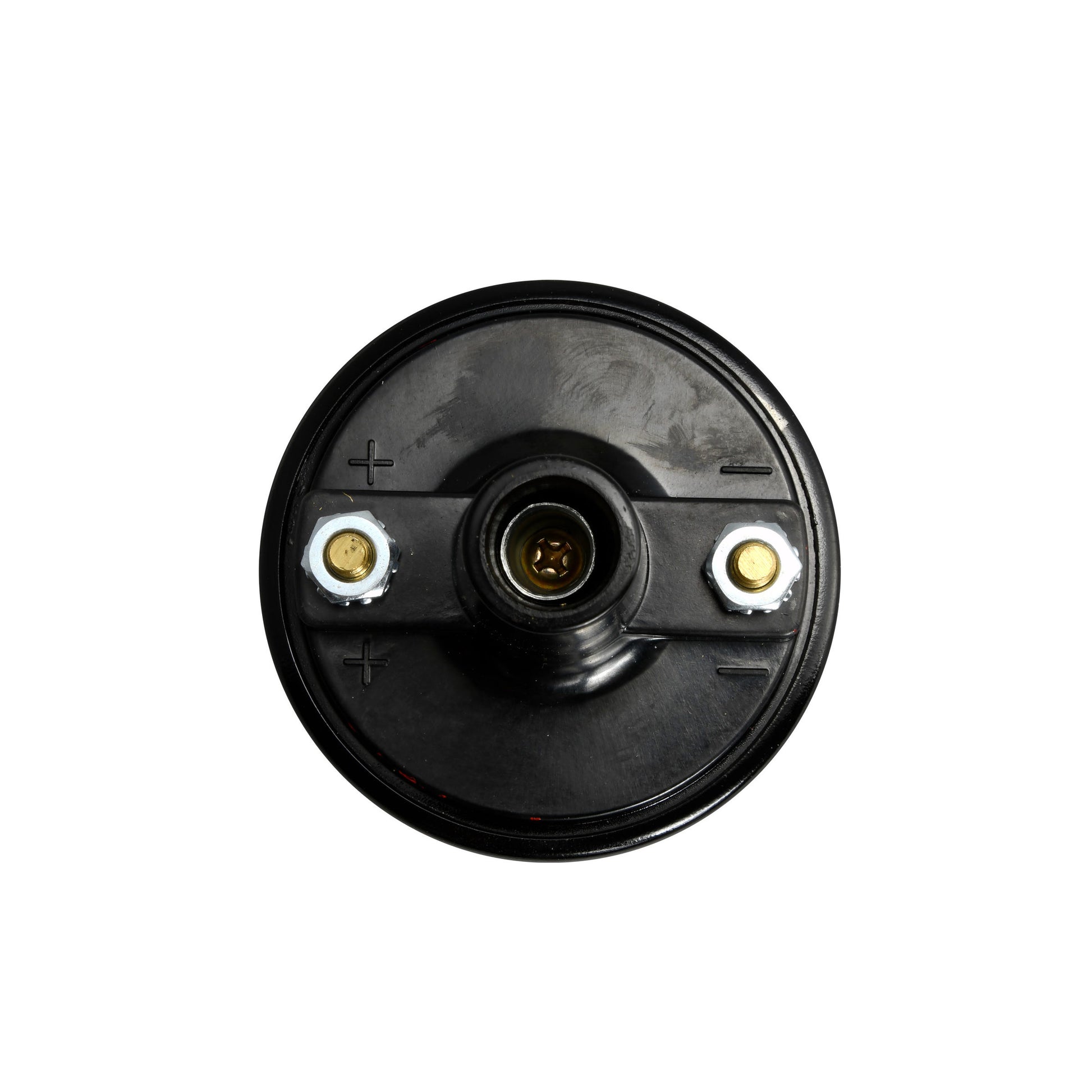

Ignition Coil - Flame Thrower II - Canister - 0.60 ohm - Female Socket - 45000V - Epoxy Filled - Black - Each
PERTRONIX FLAME-THROWER II COIL. 45,000-VOLT RATED WITH 0.6-OHMS OF RESISTANCE. BLACK EPOXY FILLED CANISTER STYLE. EPOXY FILLED COILS ARE ENGINEERED FOR HIGH VIBRATION APPLICATIONS.
Flame Thrower II Canister Coils feature a very low resistance which make the the ideal coil for Ignitor II Electronic Ignition Conversion Kit as well as many other high performance ignitions. Low resistance, higher voltage enables you to run larher spark plug gaps for added power and improved fuel economy.
- 45,000 volts.
- Available chrome plated or black for that "stock look".
- For use with inductive or CD ignition systems.
- Low 0.6 Ohm primary resistance.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Ballast Resistor Included: No
Coil Internal Construction: Epoxy
Coil Shape: Round
Coil Type: Remote Mount Canister
Coil Type: No
Coil Wire Attachment: Female/Socket
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss
Grade Type: Performance
Ignition Type: Electronic
Maximum Diameter: 2.15
Maximum Voltage: 45000
Mount Type: Circular Bracket
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Position: Vertical
Overall Height: 6
Primary Inductance: 6.25
Primary Resistance: 0.6
Requires External Resistor: No
Secondary Resistance: 9000
Turns Ratio: 100:1
Voltage: 12
