Pertronix - 44011

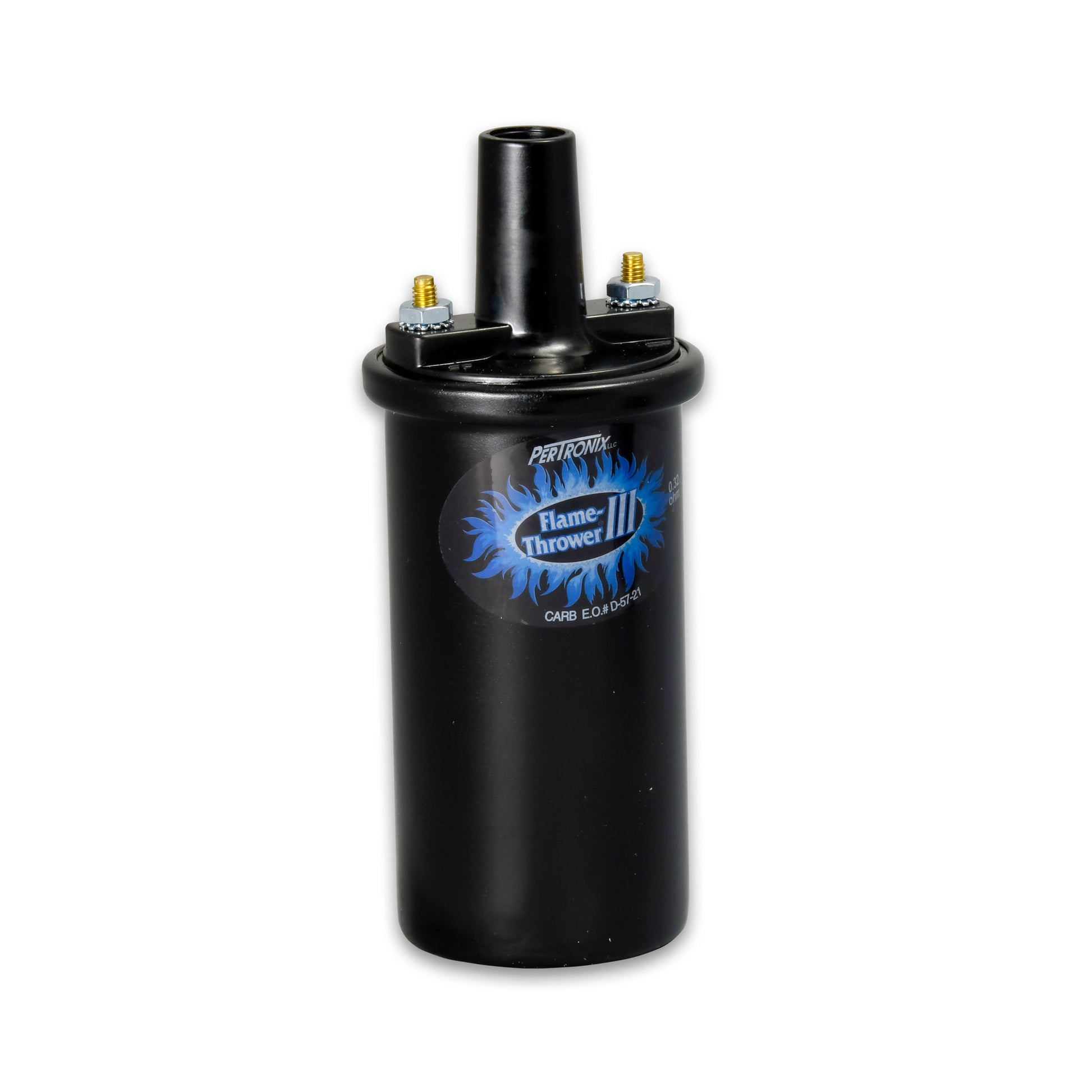

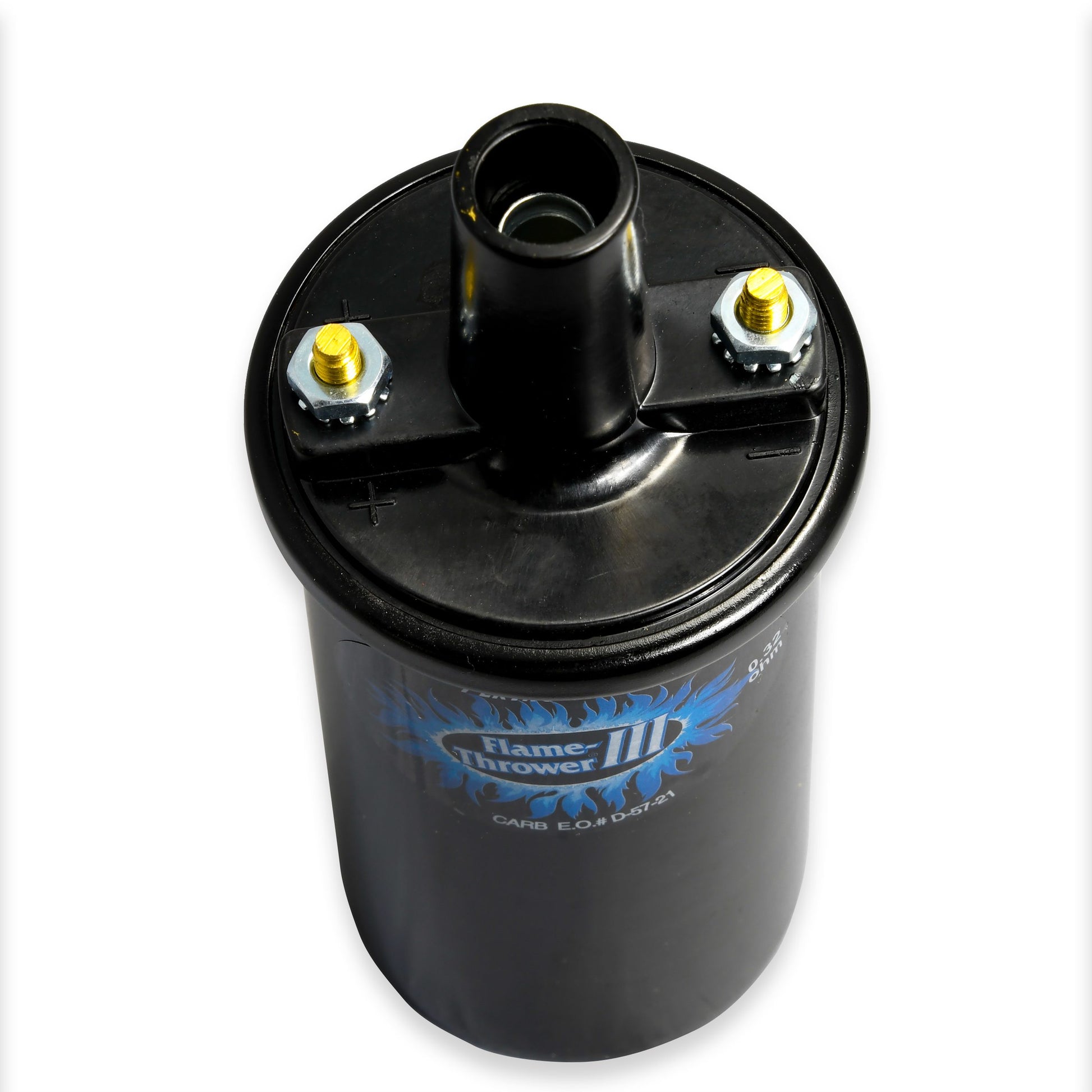

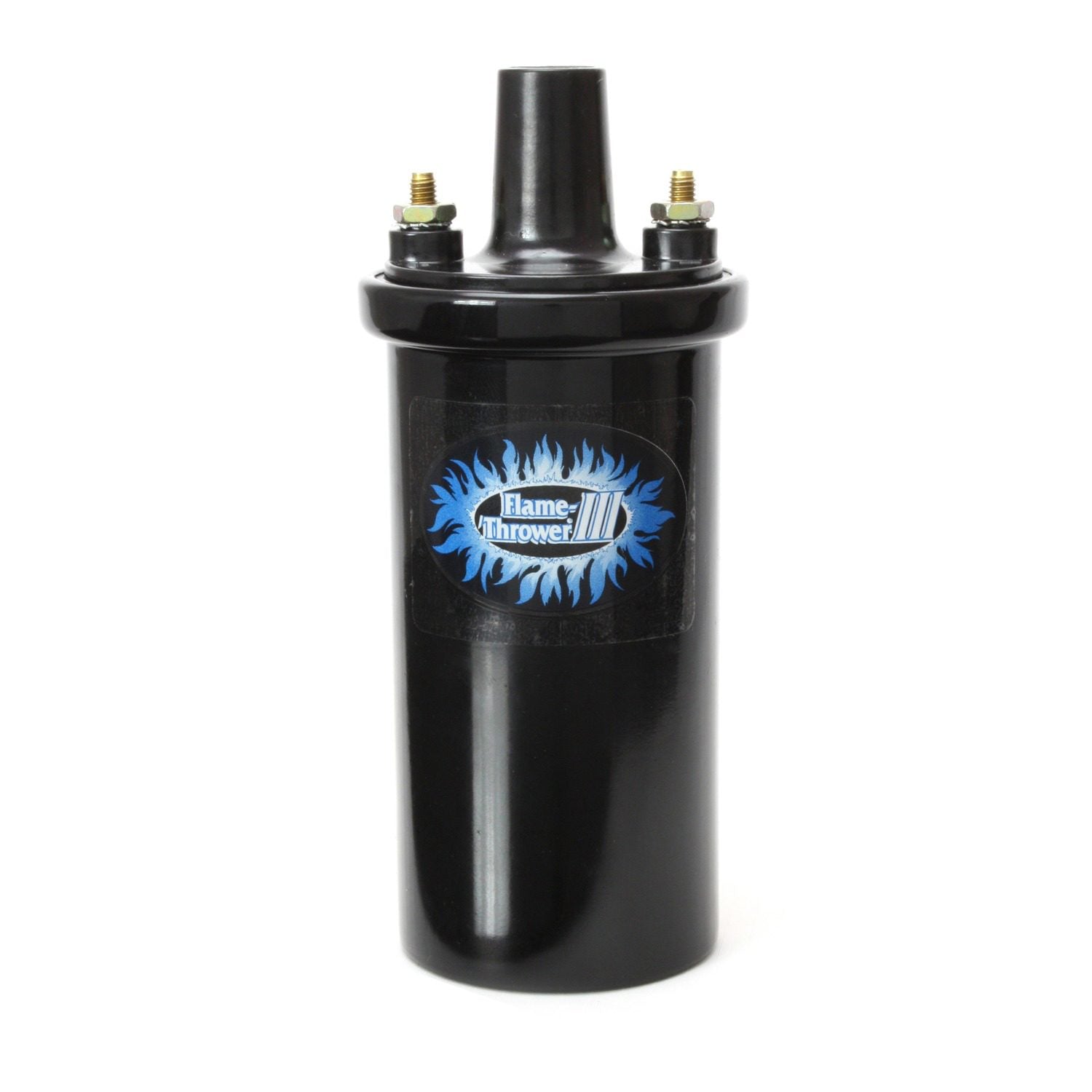

Ignition Coil - Flame Thrower III - Canister - 0.32 ohm - Female Socket - 45000V - Oil Filled - Black - Each
PERTRONIX FLAME-THROWER III COIL. 45,000-VOLT RATED WITH 0.32-OHMS OF RESISTANCE. THIS COIL IS SPECIFICALLY ENGINEERED FOR IGNITOR III APPLICATIONS. BLACK OIL FILLED CANISTER STYLE.
Flame Thrower III coils feature an ultra low resistance and are designed specifically for the Ignitor III Electronic Ignition Conversion kits. They feature a high turn ratio and ultra-low primary resistance enabling the ignition system to charge faster at high RPM's.
- 45,000 volts.
- Ultra Low 0.32 primary resistance.
- Compatible with the Ignitor III and most capacitive discharge boxes.
- Charges to peak current typically 30-70% faster than other coils.
- Rapid charge time means maximum spark energy is sustained to higher engine RPM.
Ballast Resistor Included: No
Coil Internal Construction: Oil-Filled
Coil Shape: Round
Coil Type: Remote Mount Canister
Coil Type: Yes
Coil Wire Attachment: Female/Socket
Coil Wire Included: No
Color: Black
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Finish: Semi-Gloss
Grade Type: Performance
Ignition Type: Electronic
Maximum Diameter: 2.15
Maximum Voltage: 45000
Mount Type: Circular Bracket
Mounting Bracket Included: No
Mounting Hardware Included: No
Mounting Position: Vertical
Overall Height: 6
Primary Inductance: 2.5
Primary Resistance: 0.32
Requires External Resistor: No
Secondary Resistance: 7000
Turns Ratio: 110:1
Voltage: 12
