Pertronix - 1143P6
Ignition Conversion Kit - Ignitor - Points to Electronic - Magnetic Trigger - 6 Volt Positive Ground - Delco 4-Cylinder Distributors - Kit
PERTRONIX IGNITOR KIT FOR ORIGINAL DELCO DISTRIBUTORS # 1112589 & 1112577. 4-CYLINDER, SINGLE POINT, 6-VOLT POSITIVE GROUND, COUNTER CLOCKWISE ROTATION.

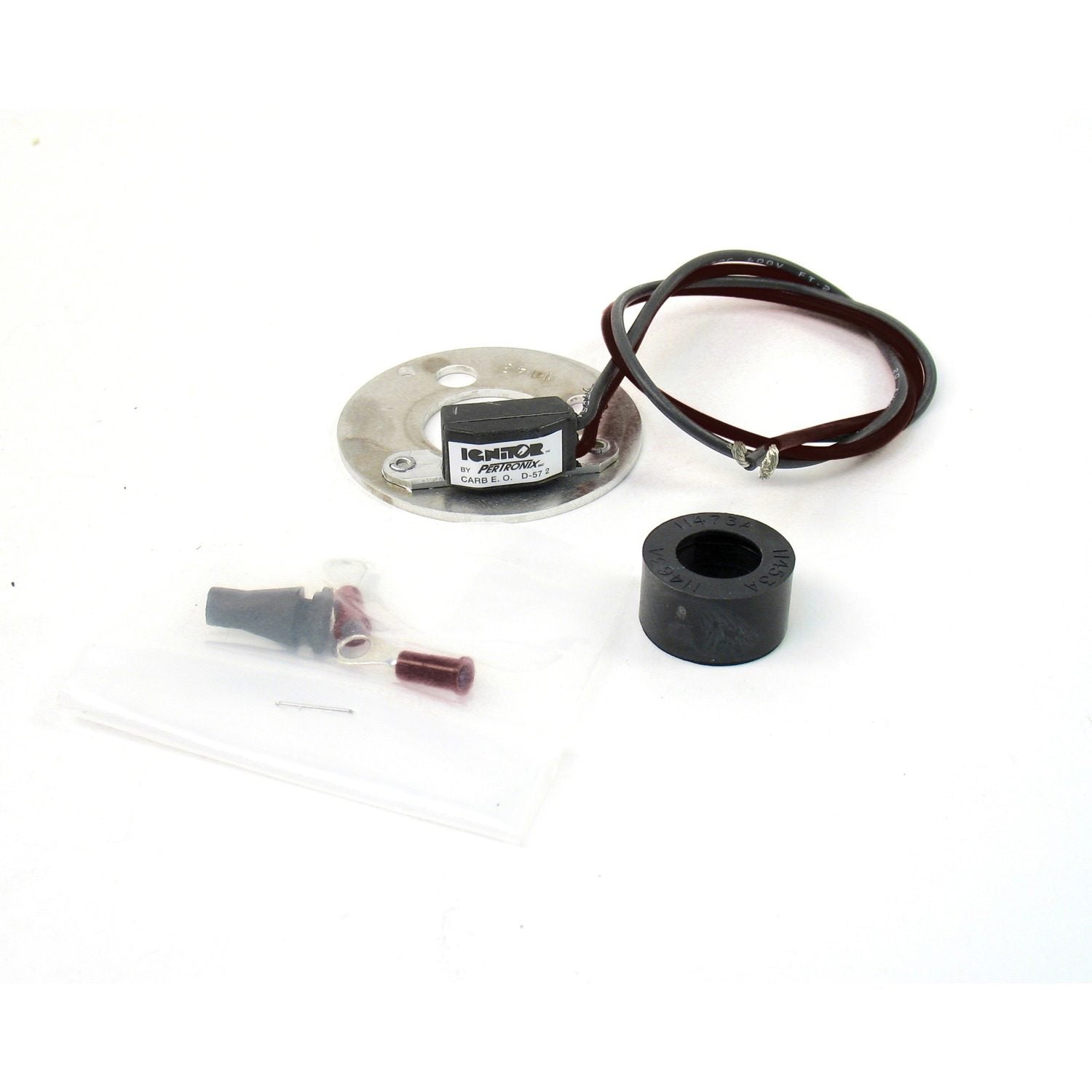

The original Ignitor module is ideal for restorations. Ignitor Module Kits are extremely easy to install and fit into your original distributor to maintain your stock look. No additional ignition box is required keeping a clean look under the hood. Ignitors are available for most distributors that came with mechanical breaker points and will cover AUTOMOTIVE, MARINE, INDUSTRIAL and AGRICULTURE applications.
- Delivers twice the voltage to the spark plugs, increasing horsepower, fuel economy, and spark plug life.
- 2:1 improvement over "points" in current fall time for increased coil output.
- Rotating cobalt magnets trigger a Hall Effect integrated circuit; no points to burn; no moving parts to wear out.
- Epoxy molding makes our module impervious to dirt, oil, grease and moisture.
- Stable timing; no need for any adjustments.
- Pair with a Flame Thrower Canister Coil for optimal performance
- Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-22)
Coil Compability: 1.5
Distributor Fitment: Delco
Dwell: Fixed
EmissionFullDES: 1 - This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the Specified vehicle per the Manufacturer’s Current Application Guide, the CARB EO, and Installation Instructions.
Grade Type: Performance
Multi-Spark: None
Polarity: Positive
Product Line: Ignitor
Rev Limiter: None
SAE Wire Gauge: 20
Start Mode: None
Terminal Quantity: 2
Terminal Type: Ring Terminal
Timing: Fixed
Trigger Type: Magnetic; Hall Effect
Voltage: 6
