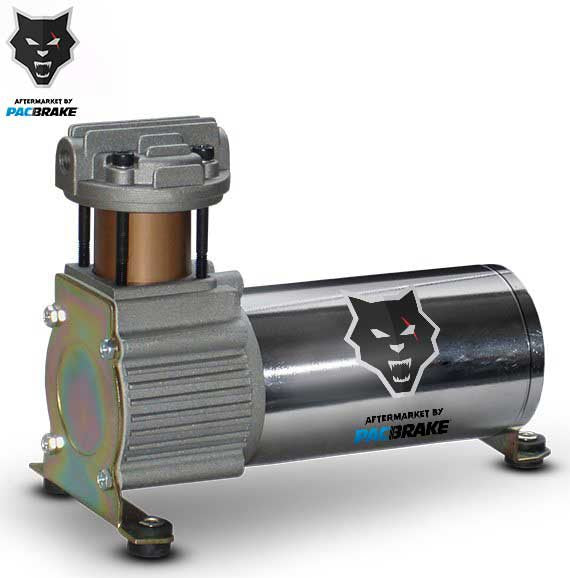

Pacbrake HP325 24V Air Compressor HP10139

Pacbrake's HP325 series Pacbrake air compressors have a 33% duty cycle (20 minutes @ 100 psi), deliver 1/4 horsepower and are offered in both 12 and 24 VDC. NOTES: Not approved for use with tanks over 2.5 gallons. COMPRESSOR FEATURES: A copper wire wound permanent magnet motor. Oil-less design. Sealed bearings. Cast aluminum cylinder head. Hard anodized aluminum sleeve. PTFE piston ring. Mountable in any orientation. COMPRESSOR SPECIFICS: Duty Cycle: 33% (20 Minutes @ 100 psi). Max Working Pressure: 150 psi (1034 kPa). Voltage: 24 VDC. Size: 8.7" x 4" x 6.2" (LxWxH). (221 mm x 102 mm x 158 mm). Weight: 5.5 lbs (2.49 kg).

• Pacbrake's HP325 series air compressors have a 33% duty cycle (20 minutes @ 100 psi), deliver 1/4 horsepower and are offered in both 12 and 24 VDC.
