ORACLE Lighting - 6923-023

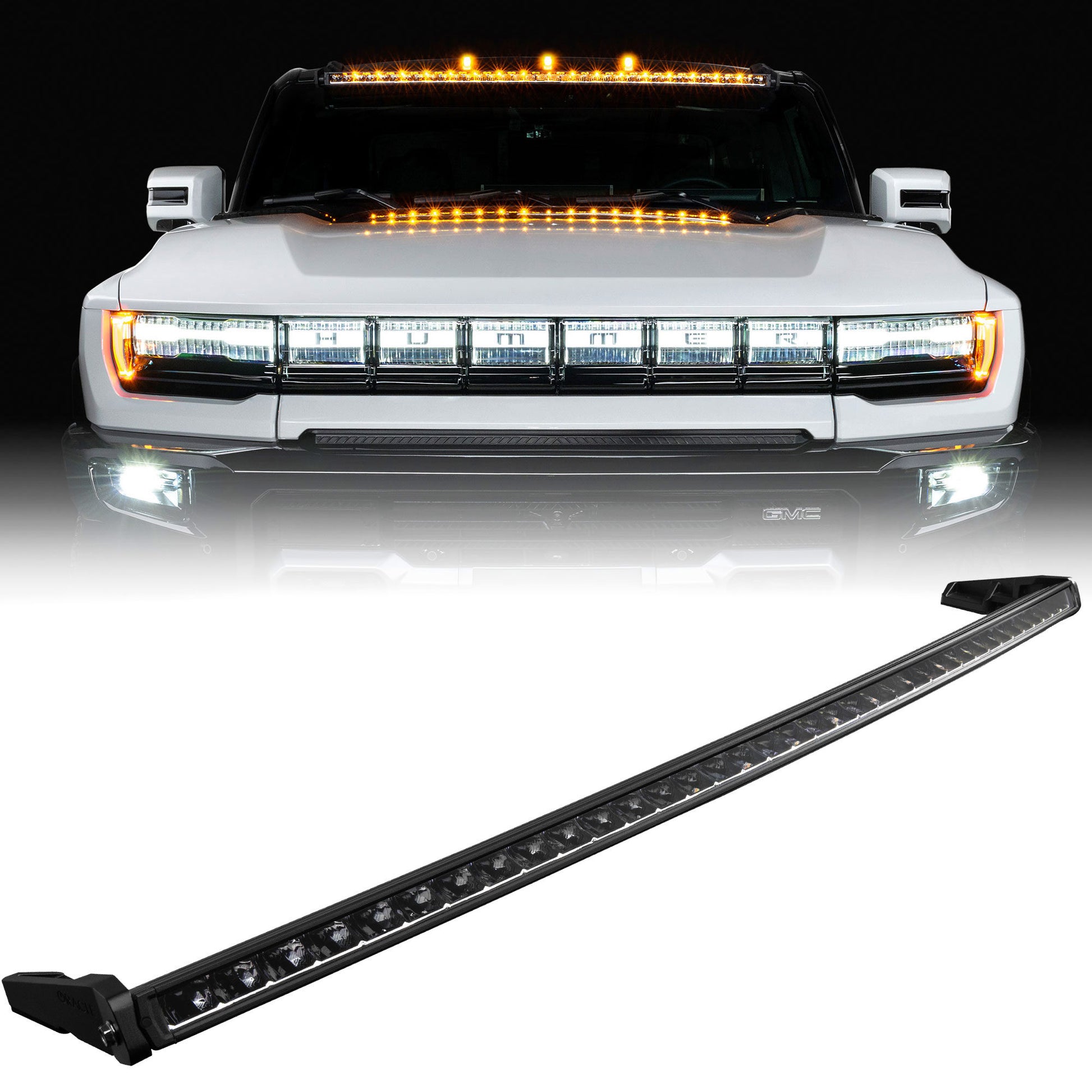

ORACLE Lighting 2022-2024 Hummer EV 50" Roof Mount Curved Light Bar w/ Brackets

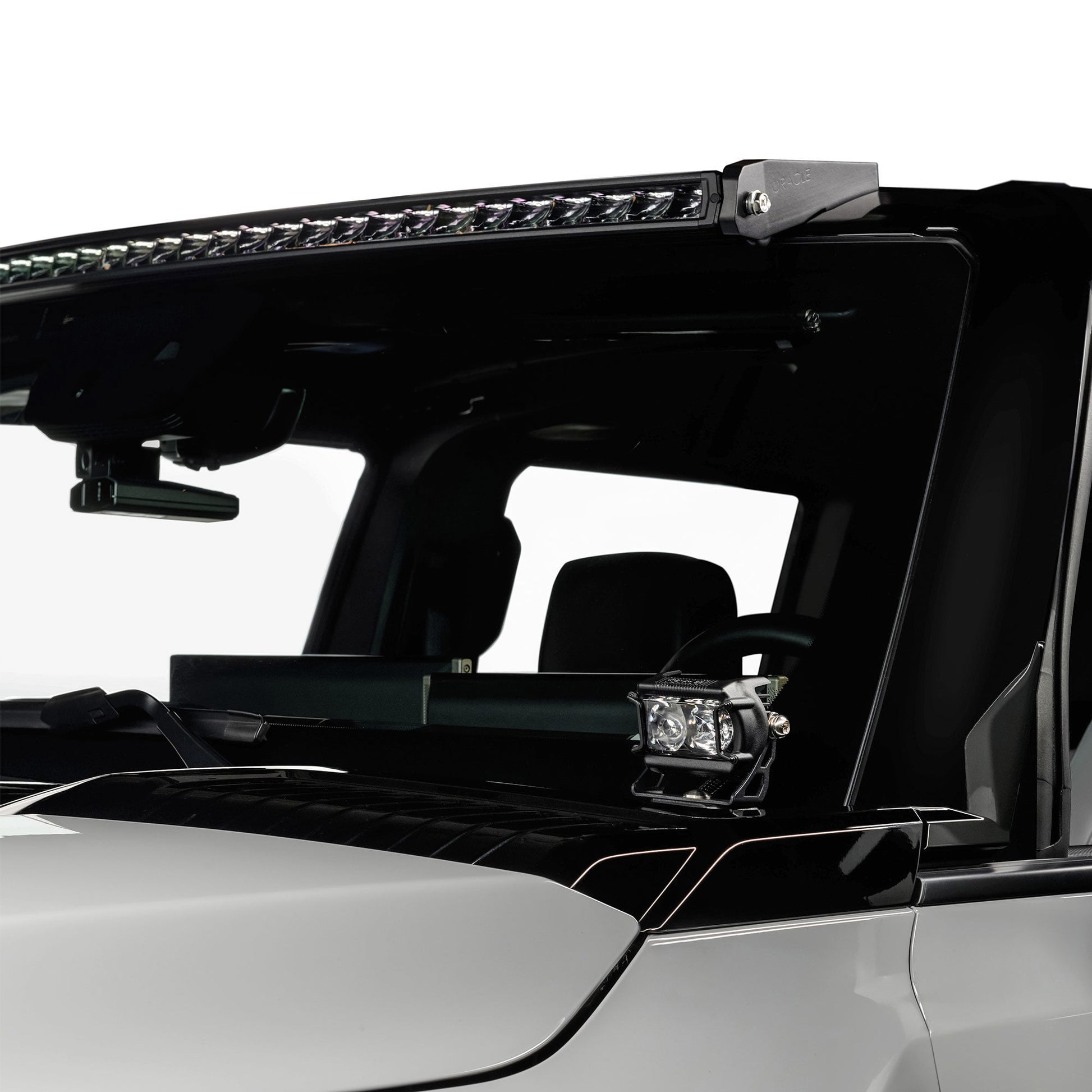

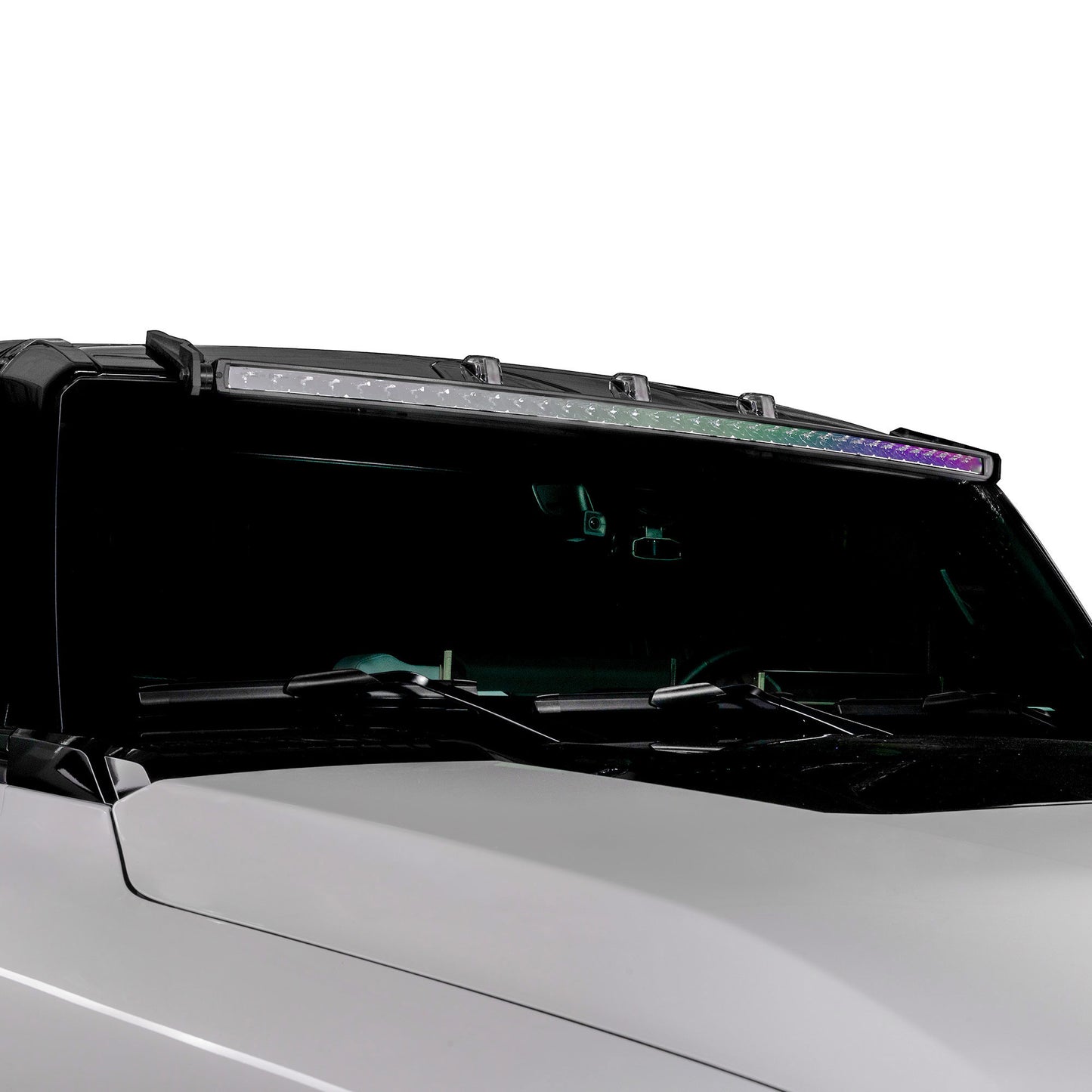

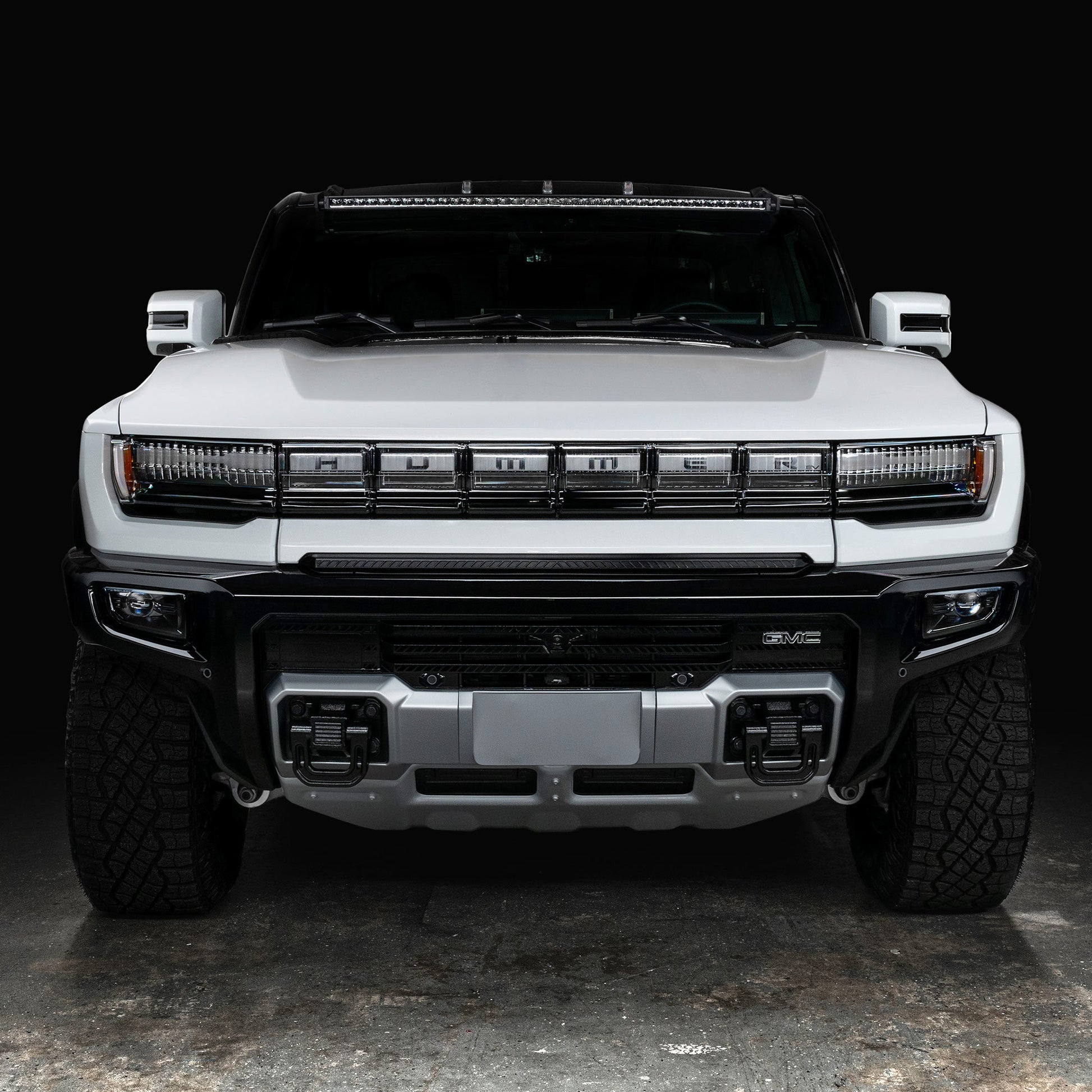

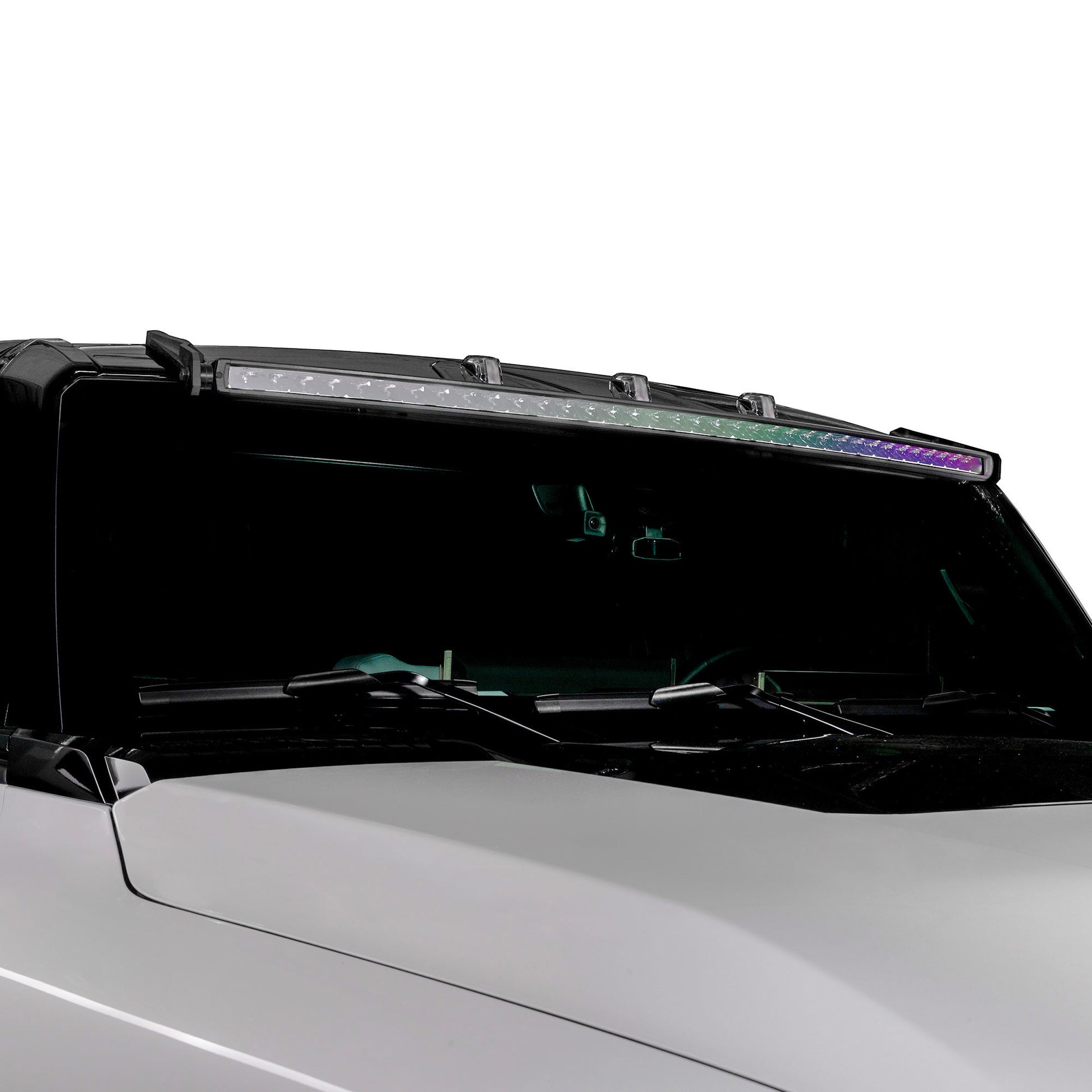

The ORACLE LED Light bar for the Hummer EV features a unique Low-Profile design which reduces wind noise and does not block the factory cab clearance lights. The brackets are CAD-designed specifically for this application for easy installation. The LED Light bar features an amazing 22,200 Lumens brightness which projects over 2,000 ft distance! Designed to match the curvature of the Hummer windshield, this light bar stands out from some of the other generic light bar options on the market in both Quality and Performance.
- Hummer Bracket Specifications: Material: Cast Aluminum, Finish: Black Powder Coat, Fitment: Hummer EV (All), Rubberized Base Gaskets
- High-Powered Lighting 36x 7W LED Main Light

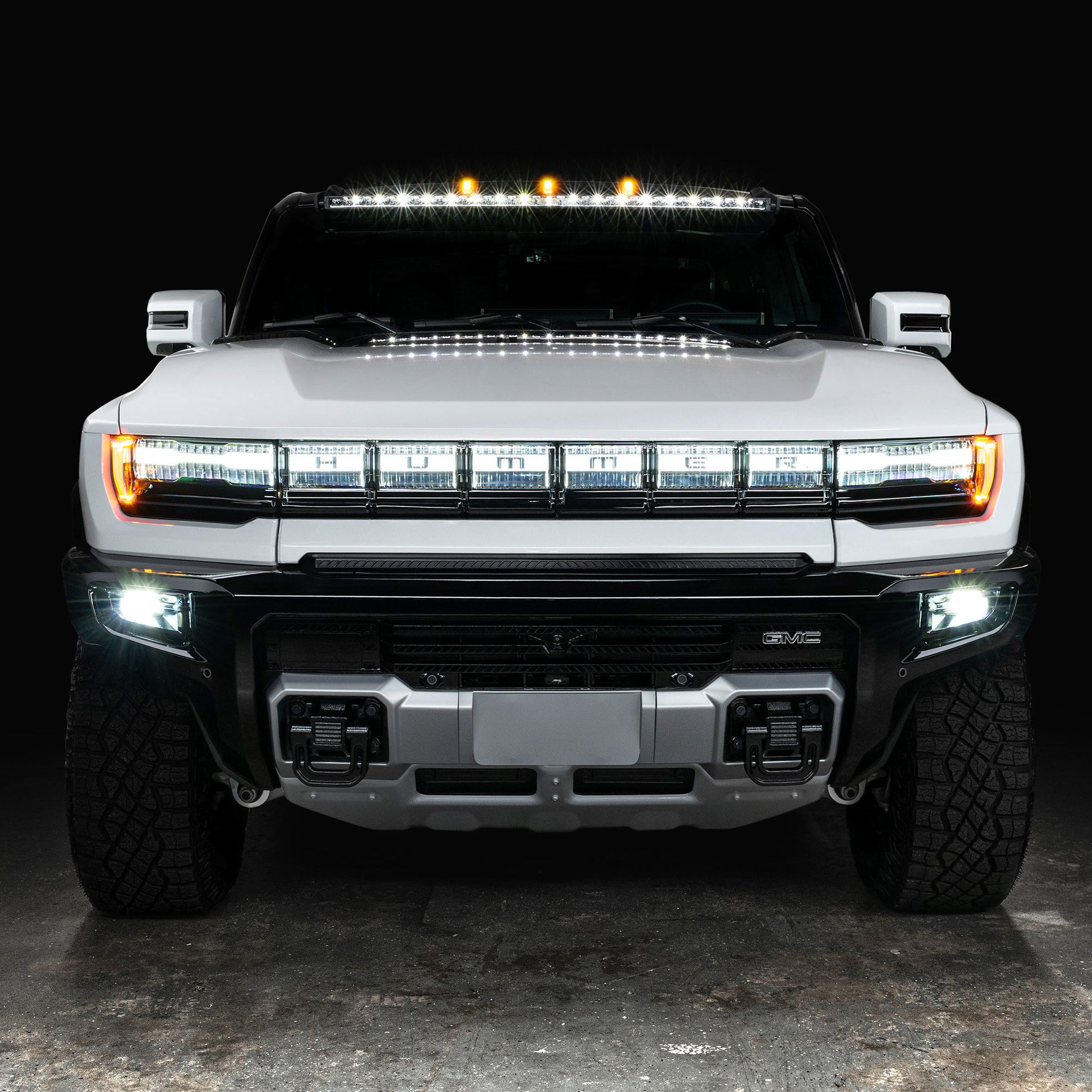

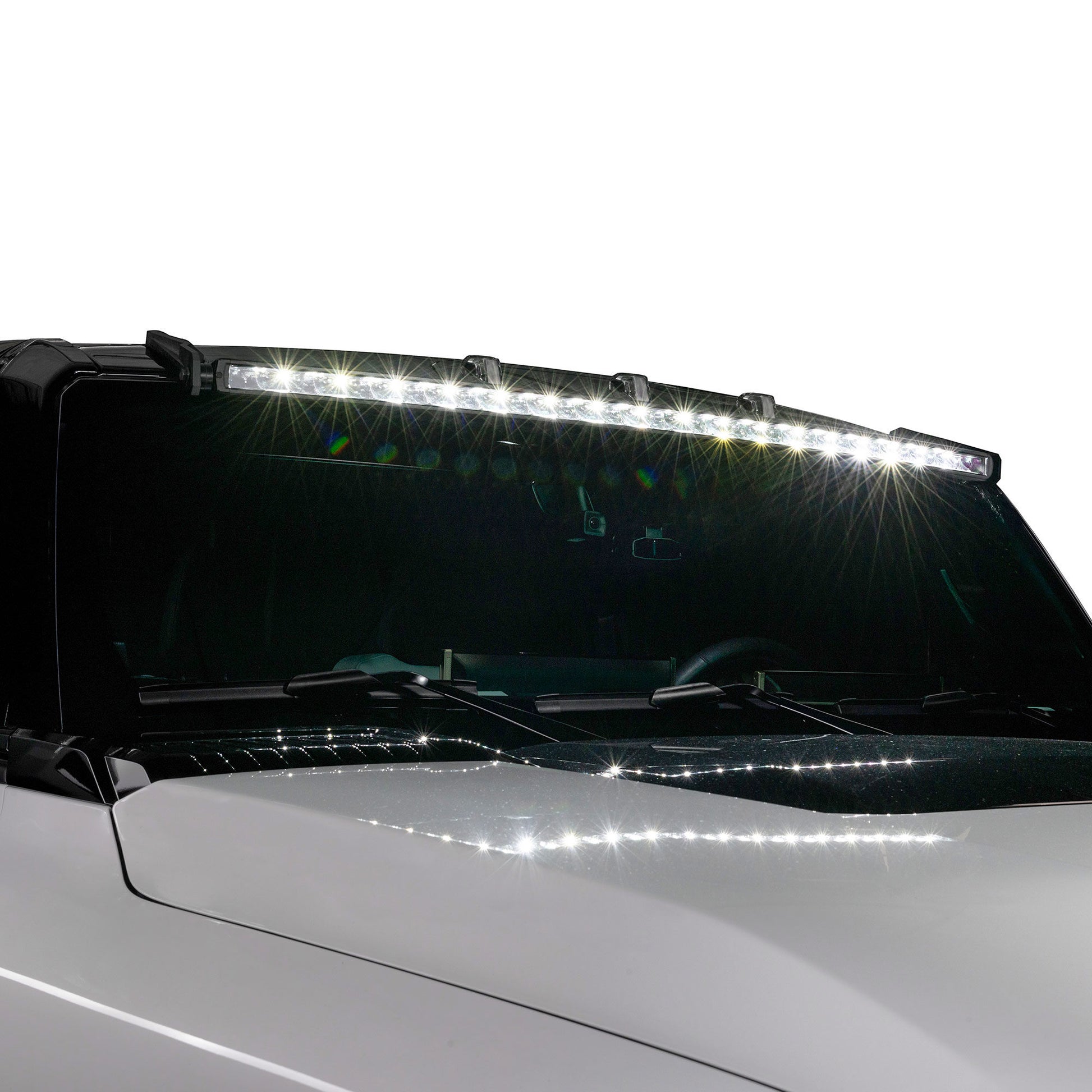

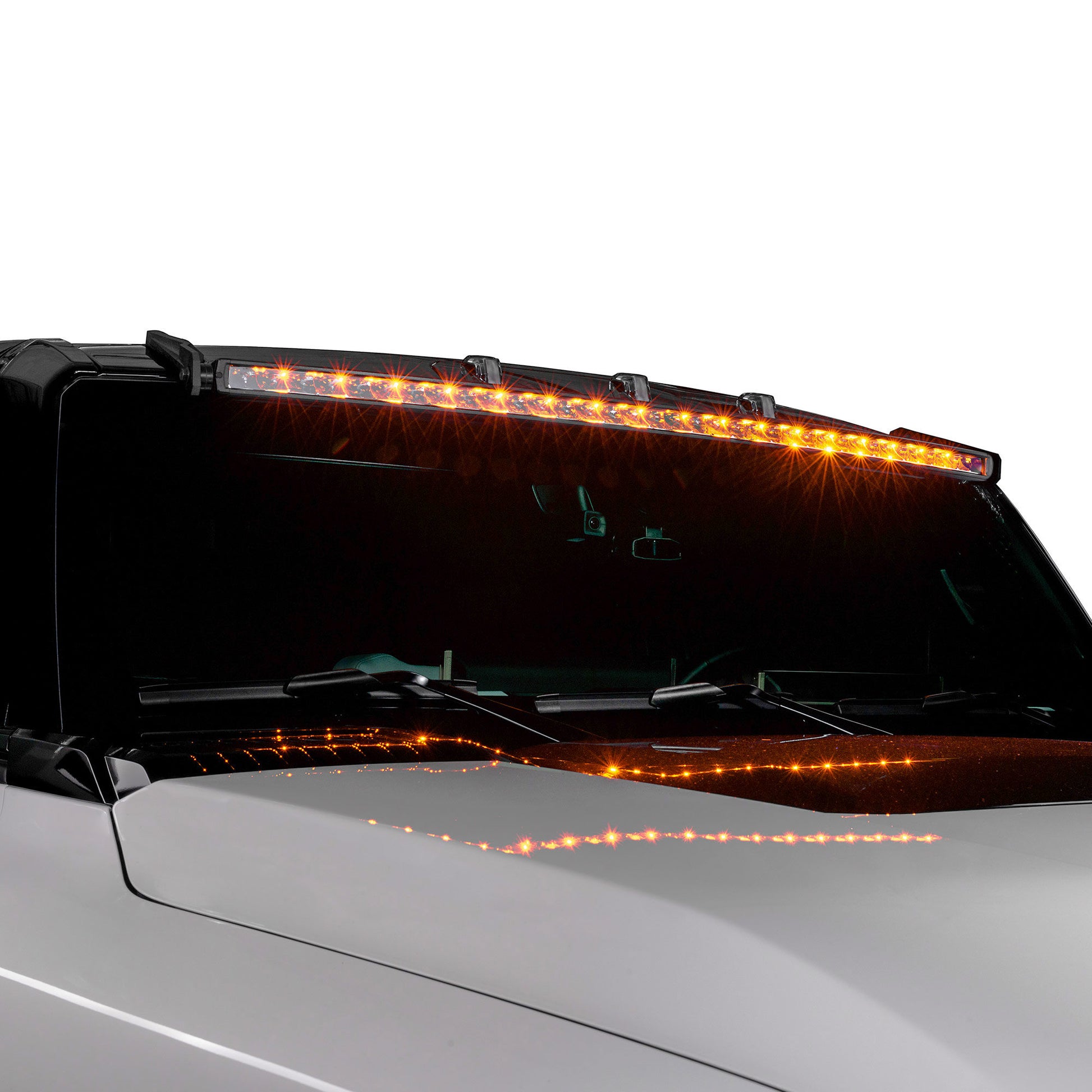

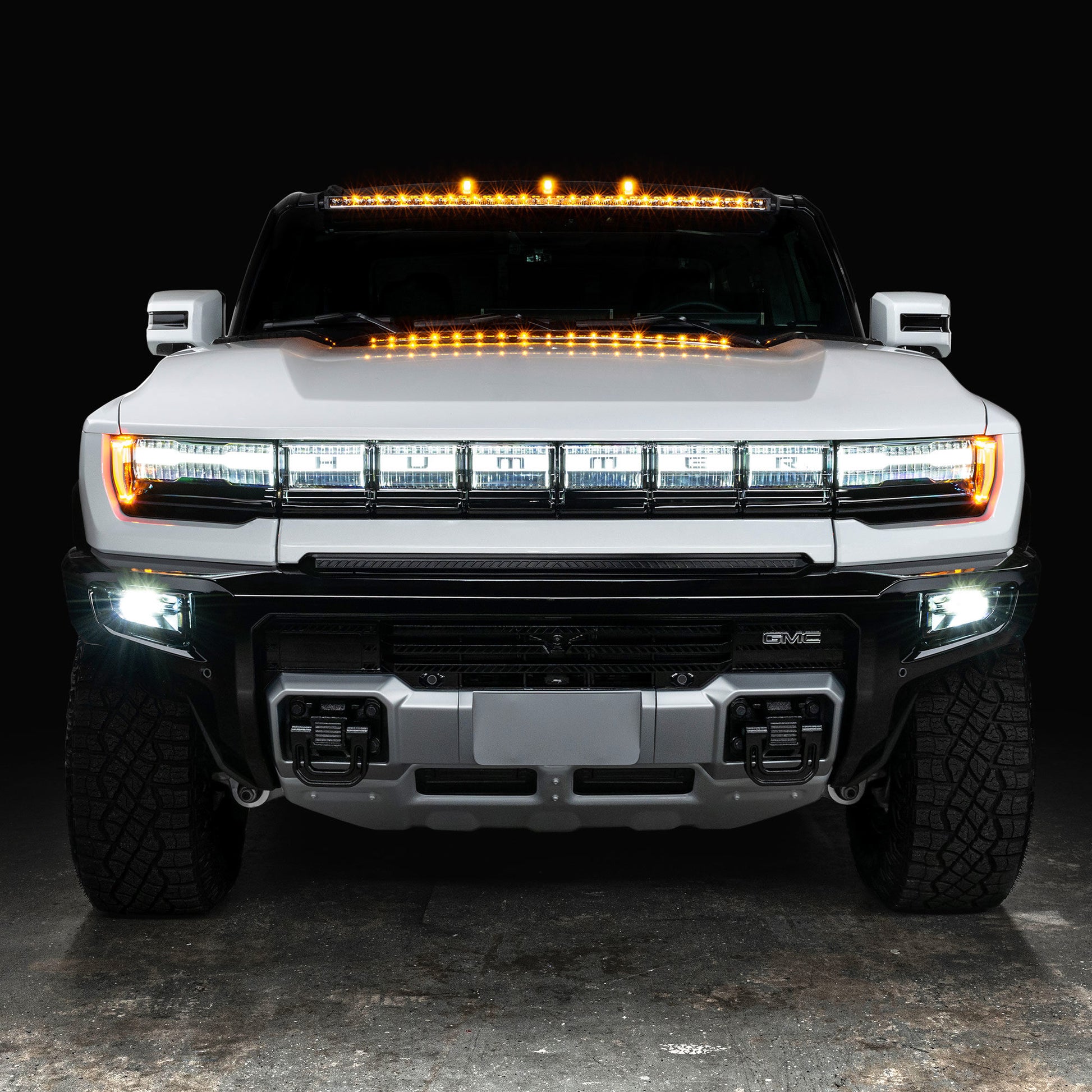

- Selectable Amber or White Clearance Lights

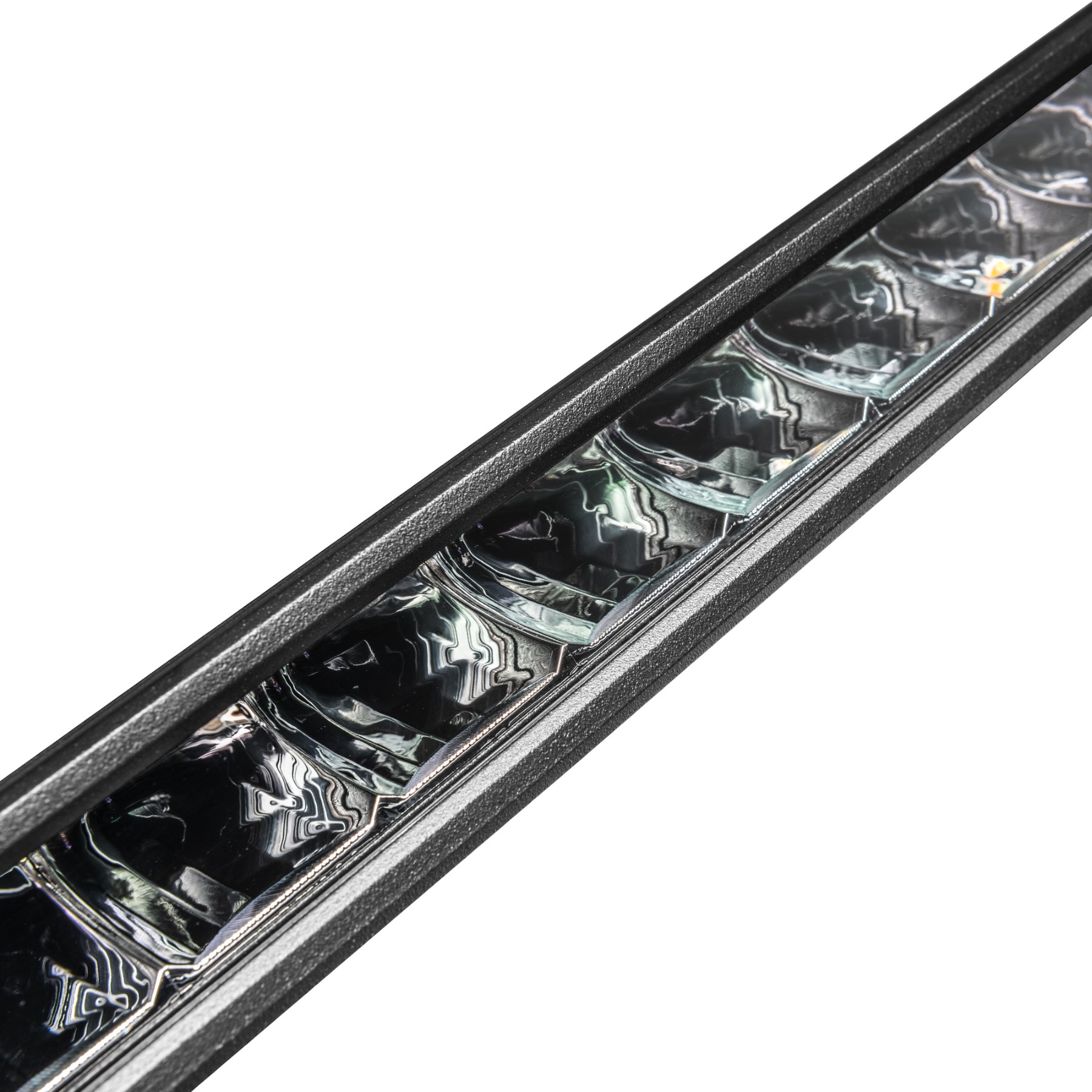

- Precision LED Reflector-Facing Technology
- Electronic Thermal Management
- Innovative Patent-Pending Design
- Designed and Engineered in the USA
- LED Lifespan 50,000+ Hours
- Raw Lumen Light Output: 22,200LM
- Effective Lumen Light Output: 18,800LM
- Total Wattage: 252 Watts
- Total Amp Draw: 16 Amps @12V DC
- Beam Angle: 50° Driving Beam
- Max Projection Distance: 1Lux@460M
- Color Temperature: 5500K-6000K
- Advanced Optic Design for Optimal Visibility
- Outer Housing Material: Polycarbonate
- Lamp Housing Material: 6030 Aluminum
- Reflector Material: Plated Polycarbonate
- Lens: Material: Lexan Polycarbonate
- Lamp Finish: Polyester Powder Coat
- Stainless Steel Anti-Fog Breather Valves
- Molded IP68 Waterproof Connectors
- Waterproof Rating: IP69 Ingress Protection
- In the Box: (1) 2022-2024 Hummer EV 50" Roof Mount Curved Light Bar, (2) Mounting Brackets, Mounting Hardware & Weather Gasket
Housing Design: 6030 Aluminum
Electronic Thermal Management: Yes
Install Note: DIY Install- No Fabrication/ Modification Required
Light Selection: Selectable Amber or White Clearance Lights
Light Type: High-Powered Lighting 36x 7W LED Main Light
Color: Black
Add-On: N/A
Technology: Precision LED Reflector-Facing Technology
Protection Type: Under/Over Voltage and Reverse Polarity Protection
Mount Type: Mounts using supplied brackets
Mounting Hardware Included: Yes
Relay Included: No
Street Legal: Yes
Terminal Quantity: 4
Switch Included: No
Wiring Harness Included: Yes
Terminal Type: Lead Wire
Voltage: 12
Wattage: 252
Wire Gauge Measurement: 16
Wire Quantity: 4
Light Beam Pattern: Driving
Light Quantity: 36
Housing Material: Aluminum
Lens Width: 40.5
Lens Material: Polycarbonate
Lens Length: 50
Lens Diameter: 48.05
Lens Color: Clear
Housing Shape: Rectangle
Housing Finish: Powder Coated
Housing Color: Black
DOT Approved: No
Brightness: 22000
Base Material: Aluminum
Base Length: 56.62
Base Diameter: 55.5
Base Color: Black
Wiring Harness Length: 36
