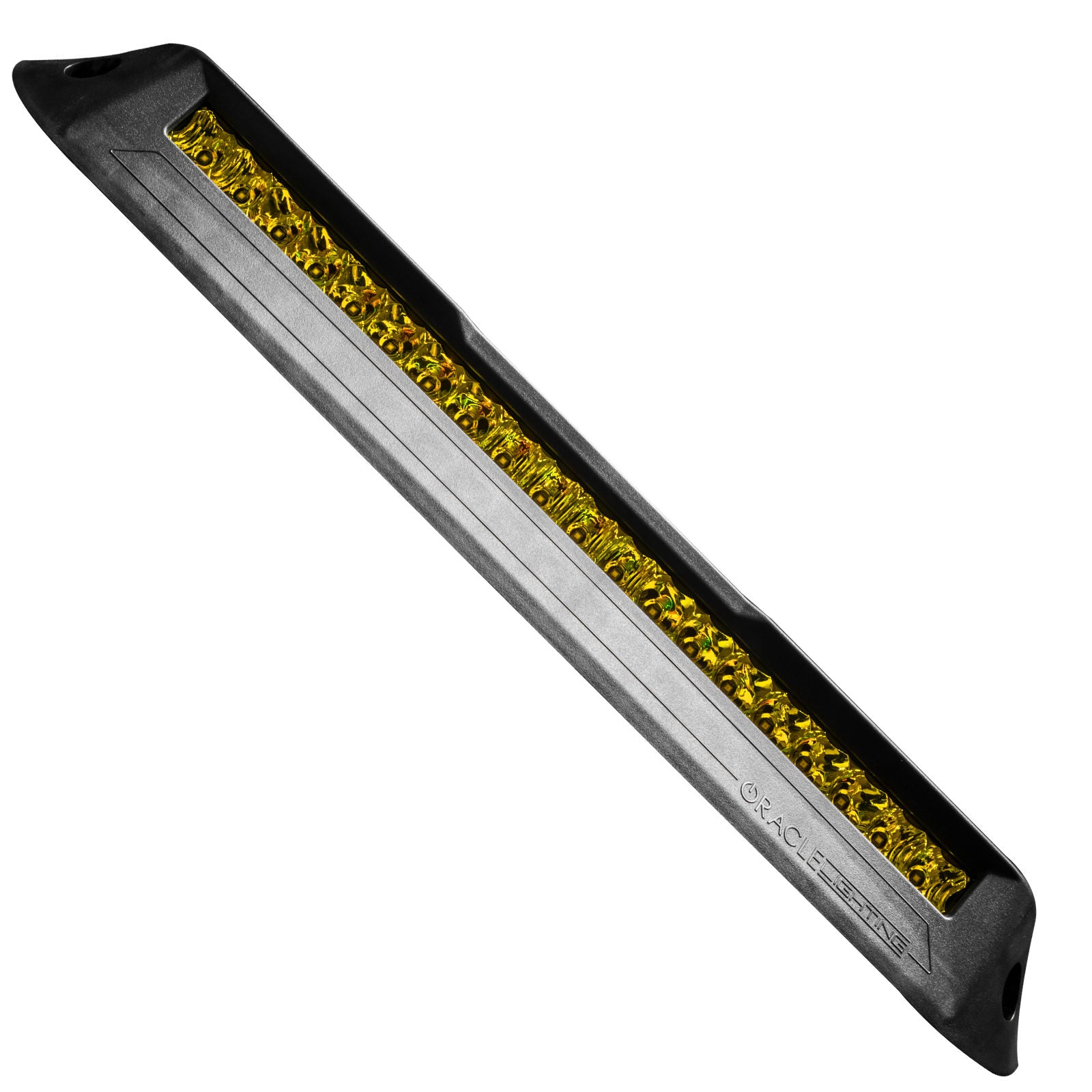

ORACLE Lighting - 5885-006

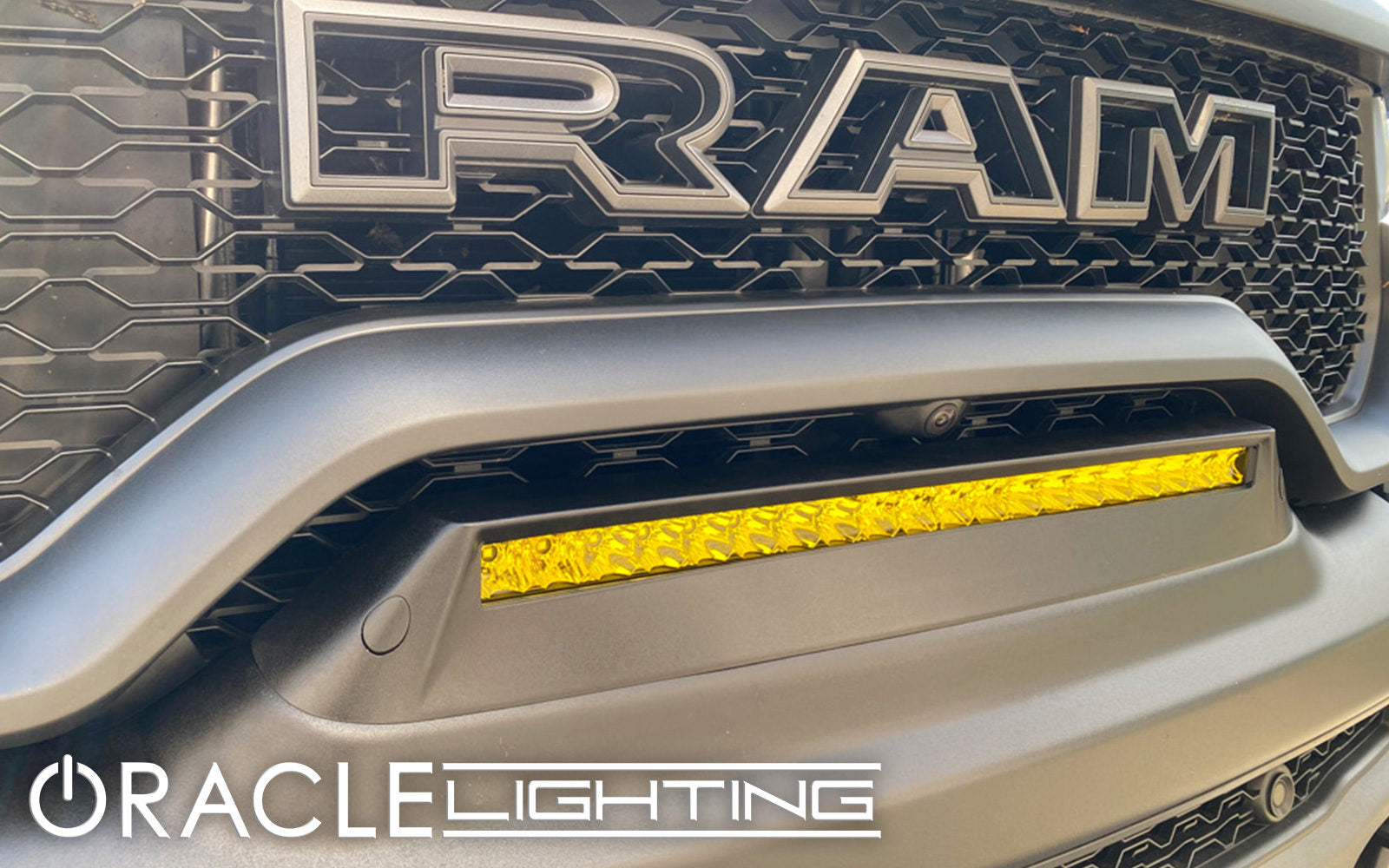

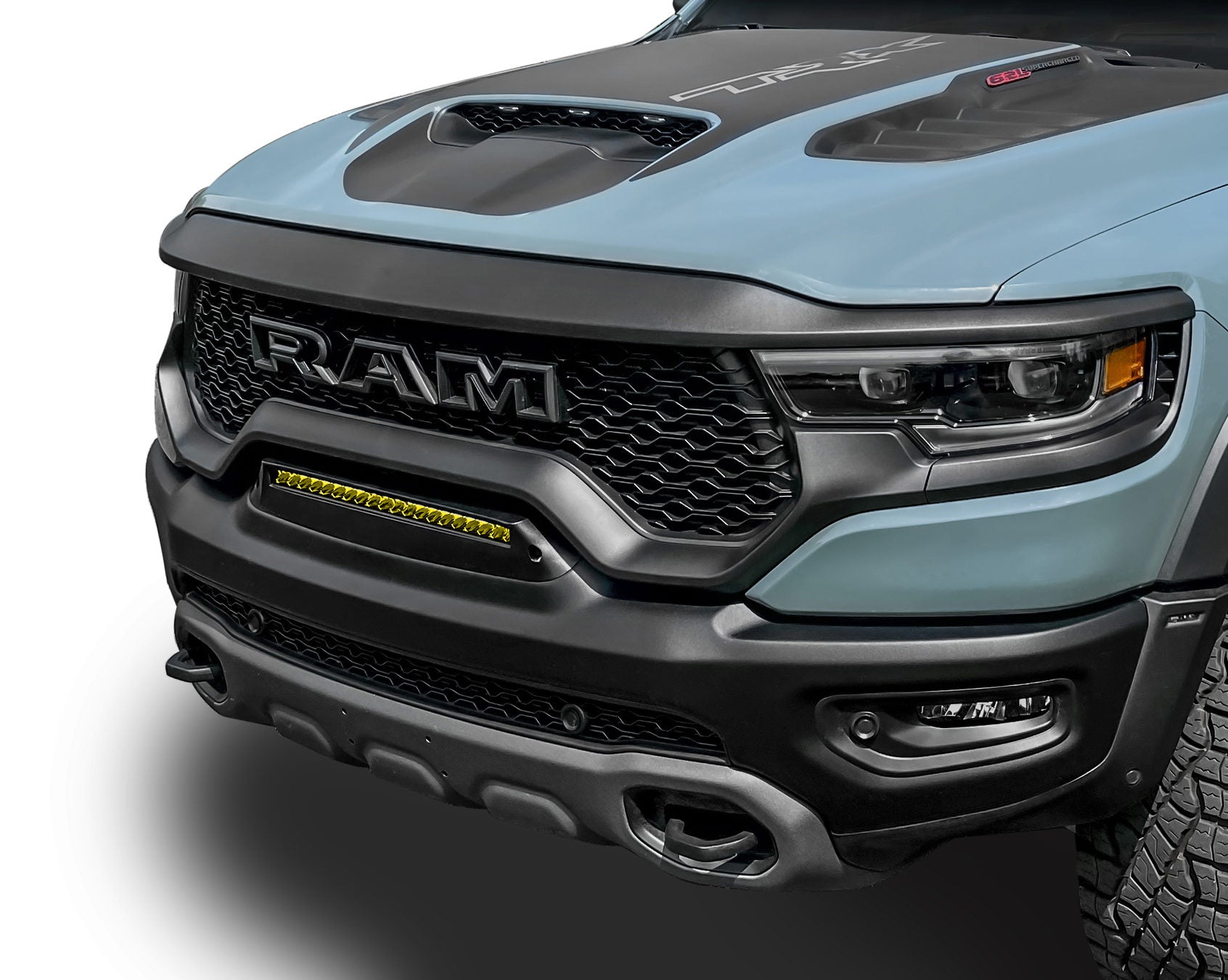

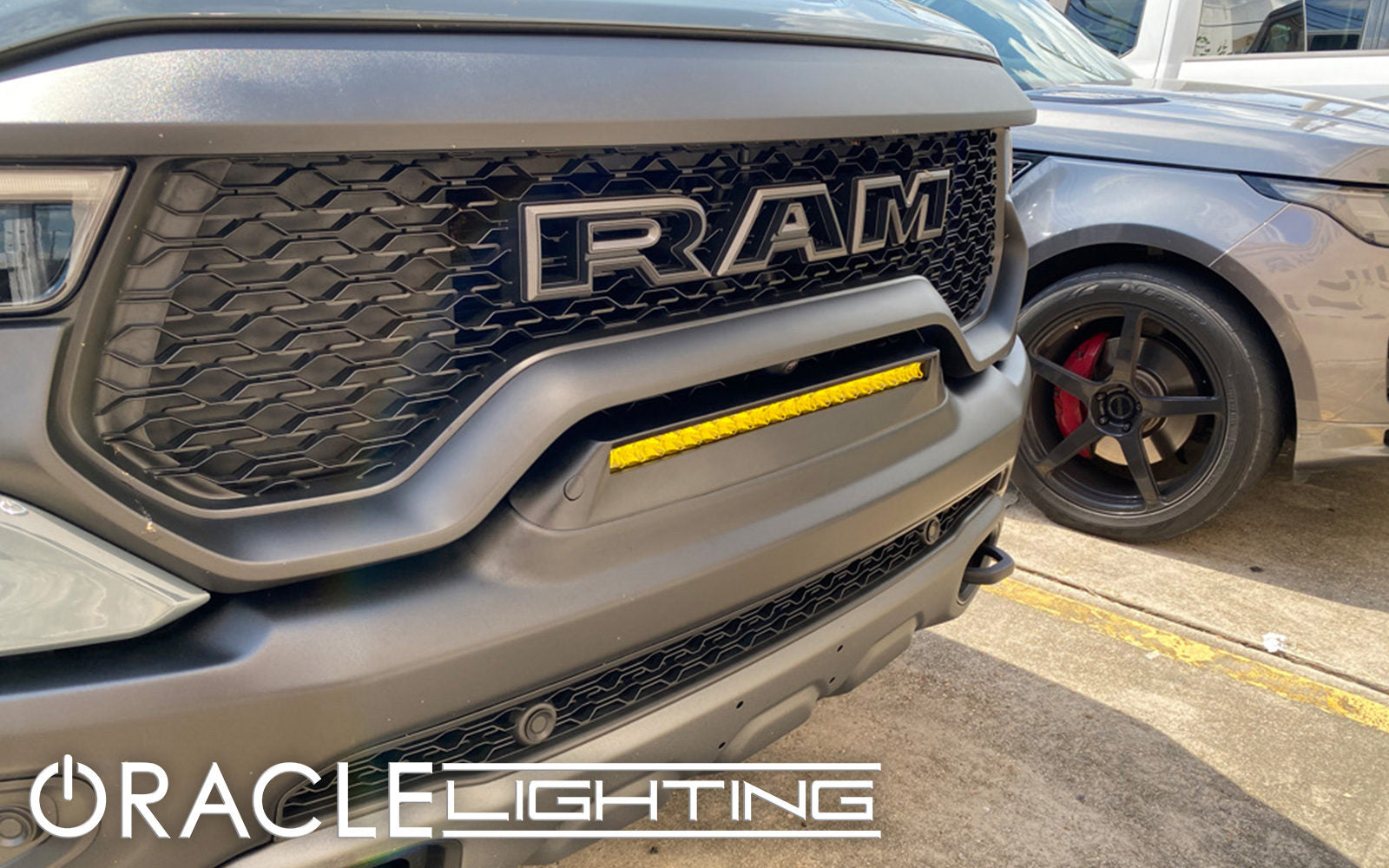

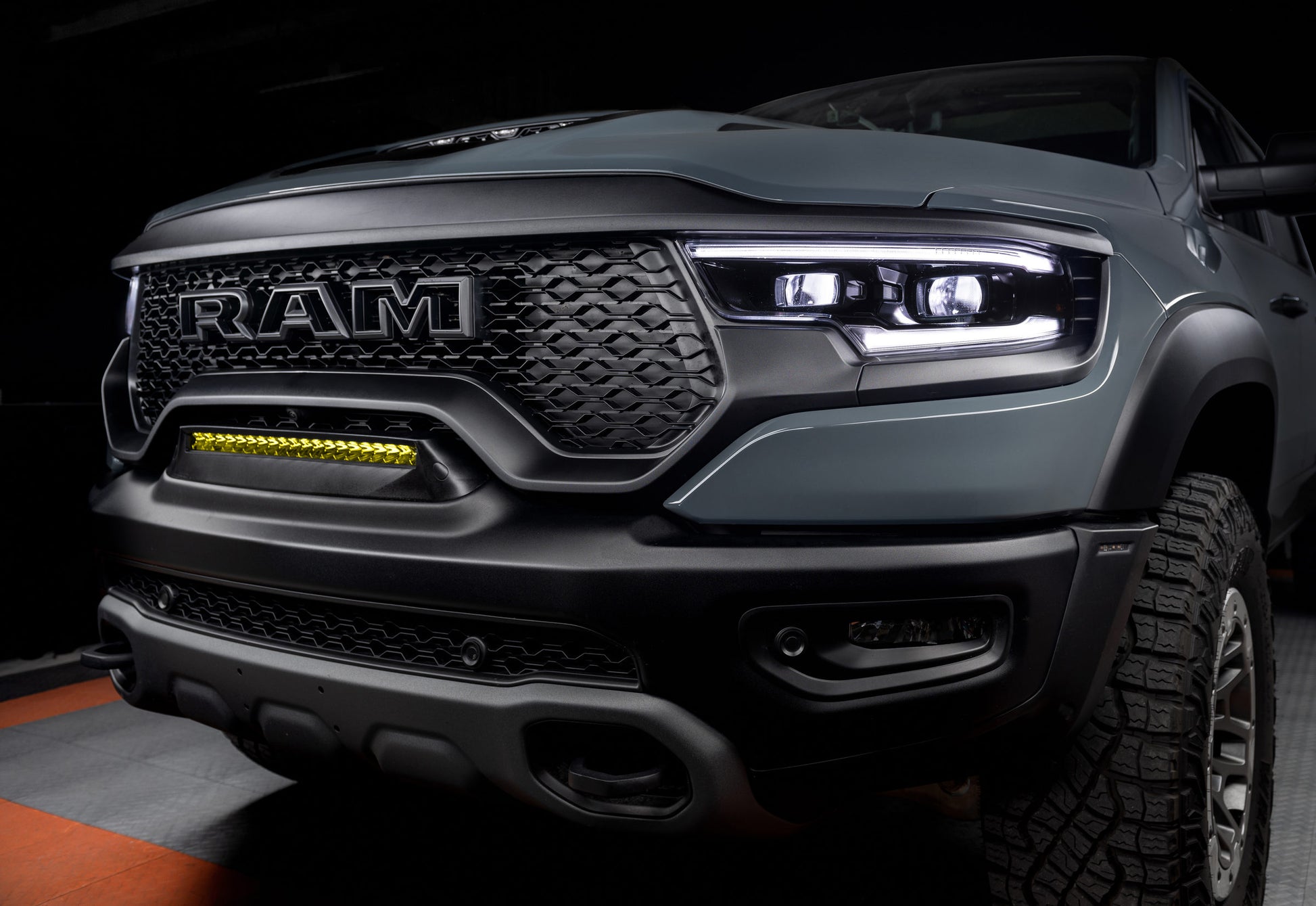

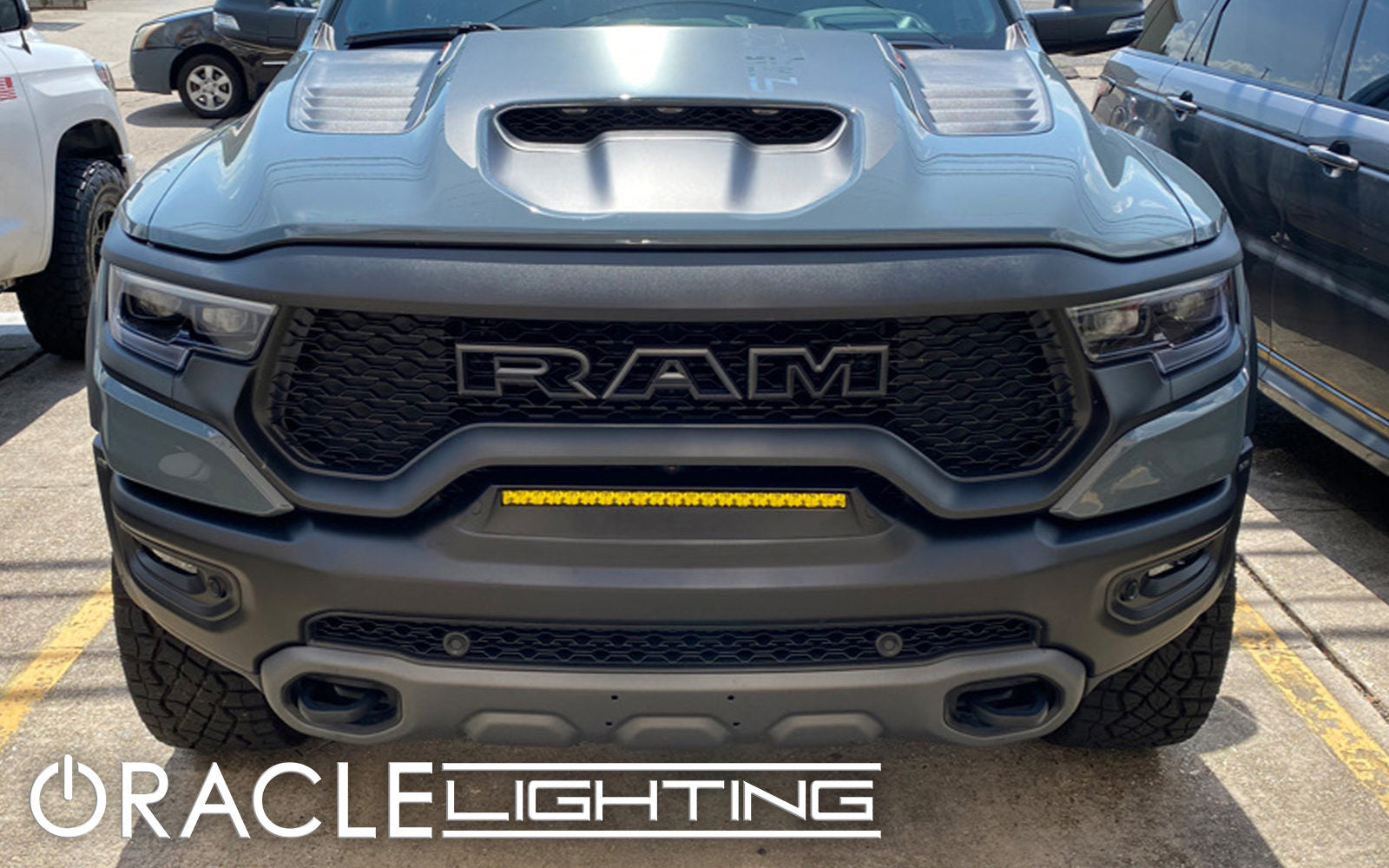

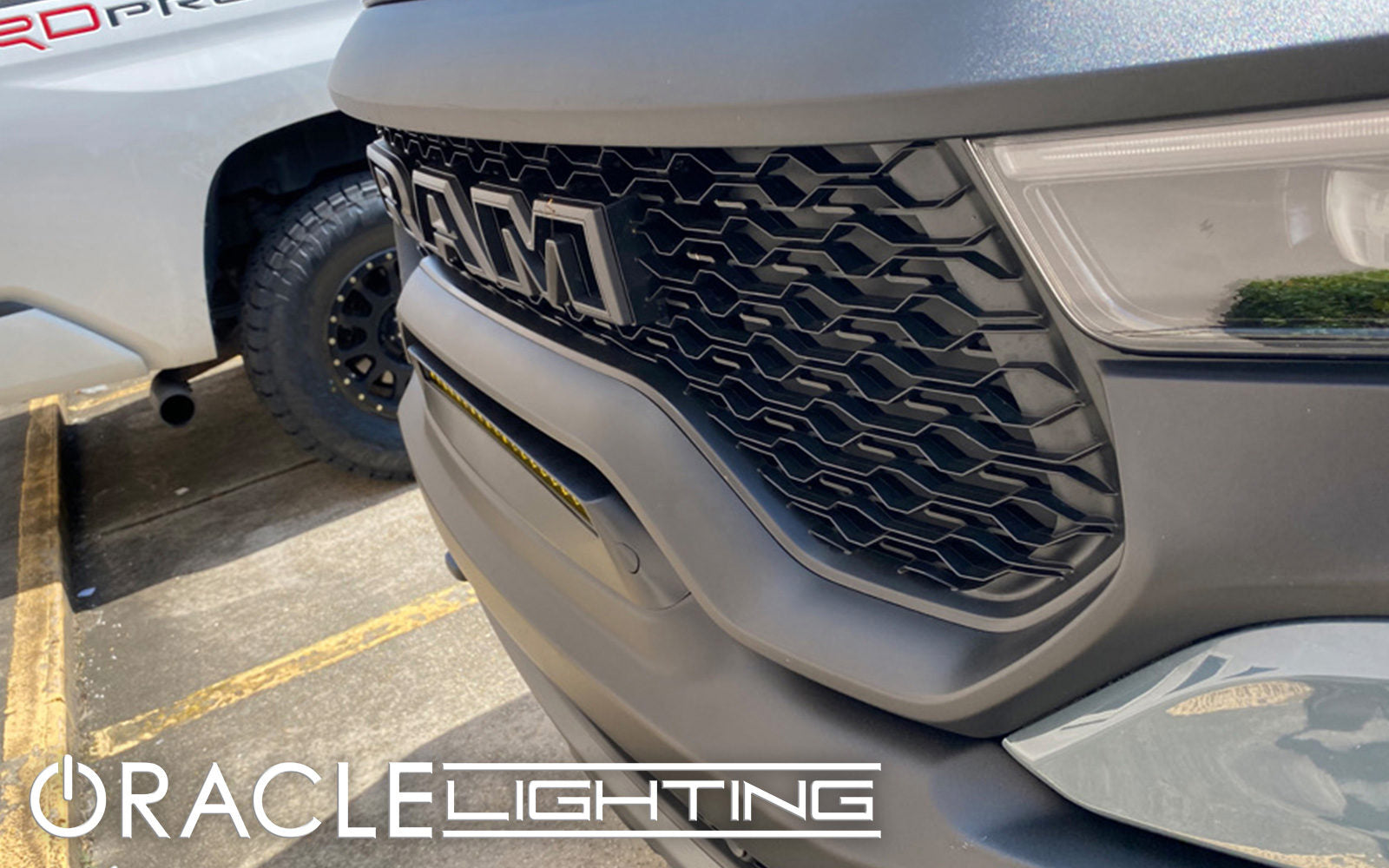

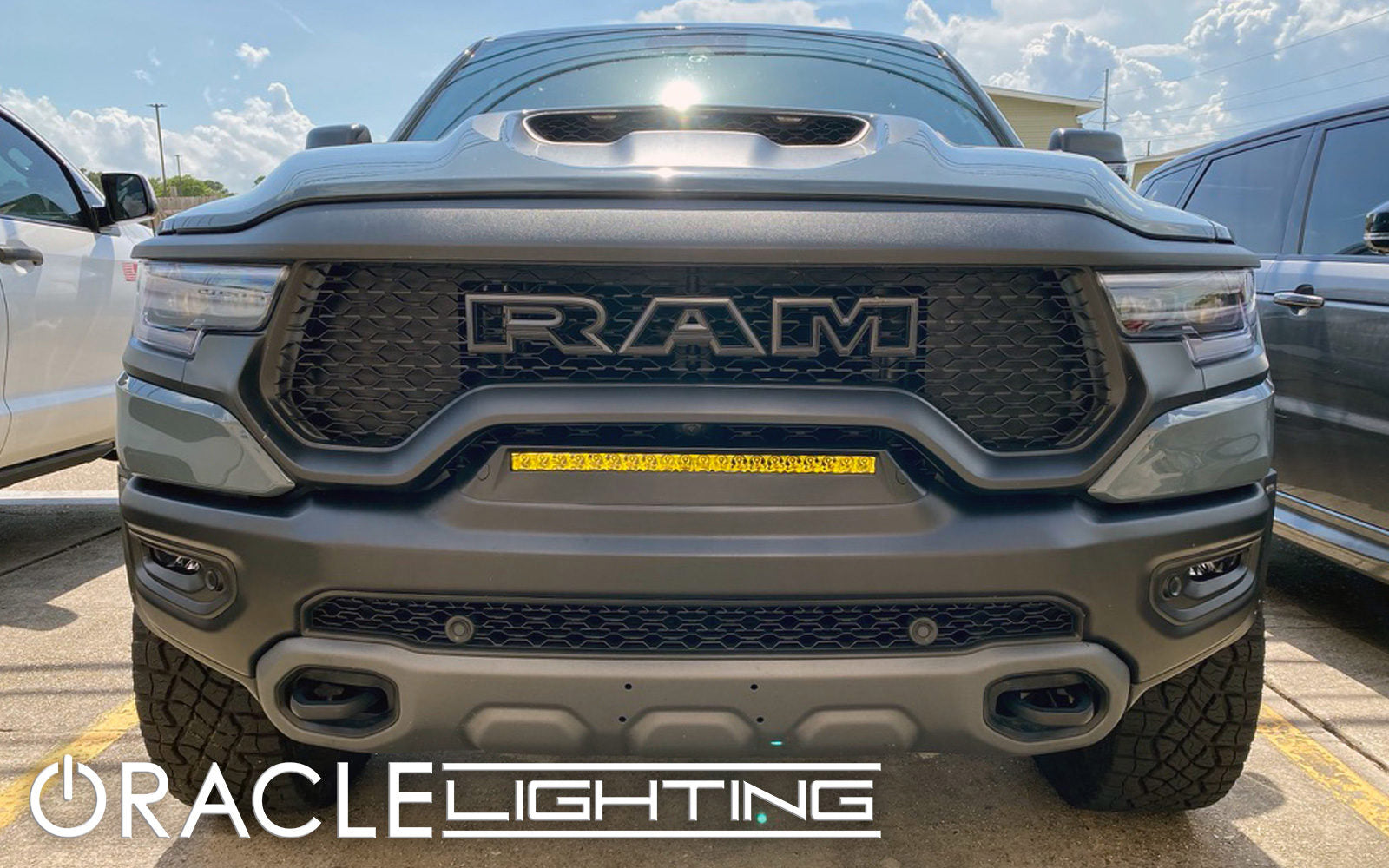

2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.
- Watts: 100W (20x 5W LED)
Wire Gauge Measurement: 16
Wattage: 100
Voltage: 12
Light Beam Pattern: Combination
Terminal Type: Lead Wire
Terminal Quantity: 2
Switch Included: No
Street Legal: No
Relay Included: No
Mounting Hardware Included: Yes
Light Quantity: 20
DOT Approved: No
Lens Width: 1.91
Lens Material: Polycarbonate
Lens Length: 18.75
Lens Diameter: 18.76
Lens Color: Clear
Housing Shape: Rectangle
Housing Material: Composite
Housing Finish: Painted
Housing Color: Black
Brightness: 12000
Base Material: 6061-T6 Billet Aluminum
Base Length: 31.84
Base Diameter: 31.98
Base Color: Black
Wiring Harness Length: 36
Kelvin Temperature: 5500K
AMP Draw: 7.5A at 12VDC
Add-On: N/A
Housing: Polycarbonate
LED Life: 50,000+ Hours
Voltage: 9V-36V DC
LED: Osram CRDP LED Chip
Lens: Optically Clear Lexan
Lumen Output: 12000
Watts: 100W (20x 5W LED)
Waterproof Rating: IP69K
Optics: Mixed Spot/ Flood
Wiring Harness Included: Yes
Wire Quantity: 2
