ORACLE Lighting - 5885-001

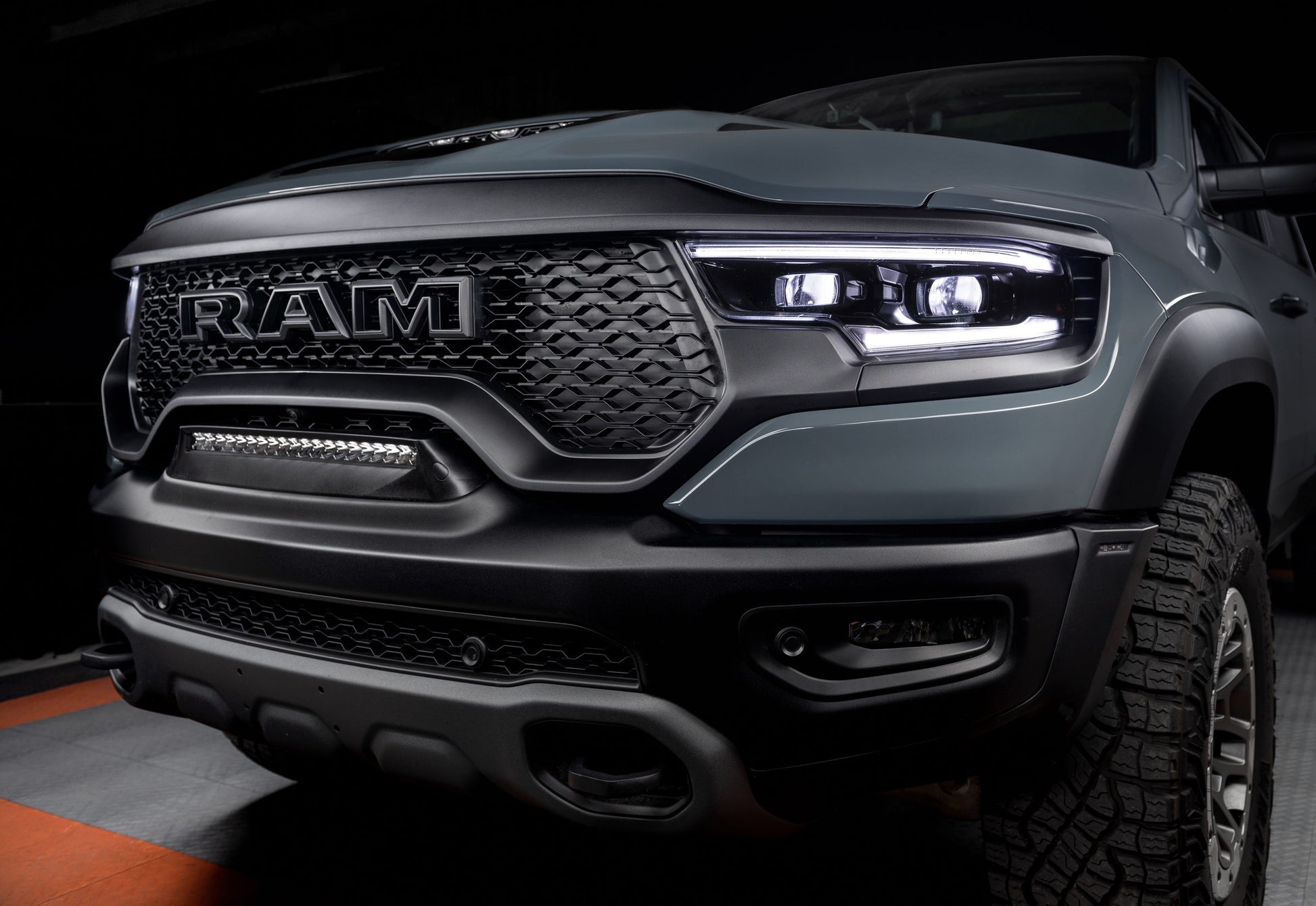

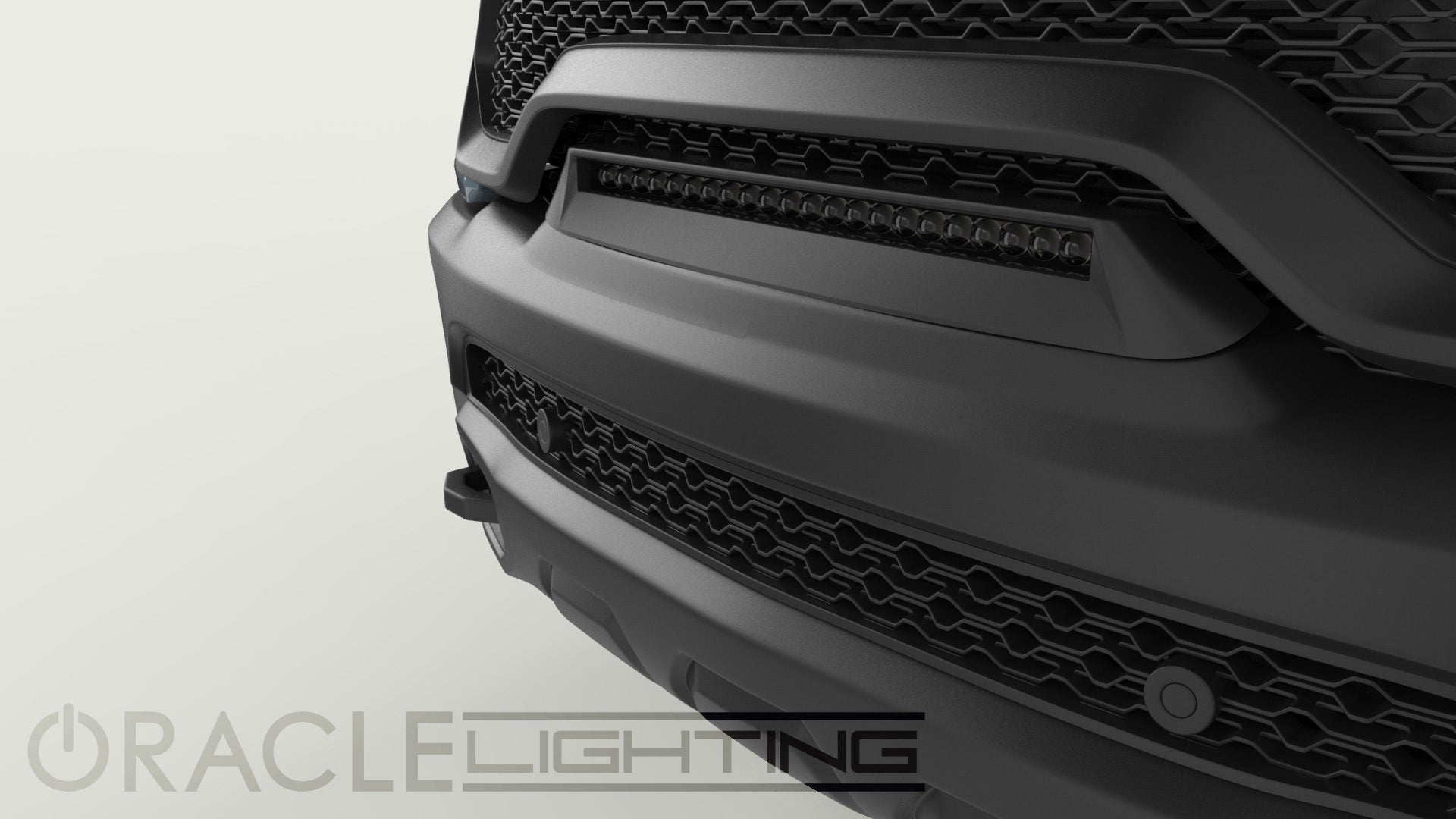

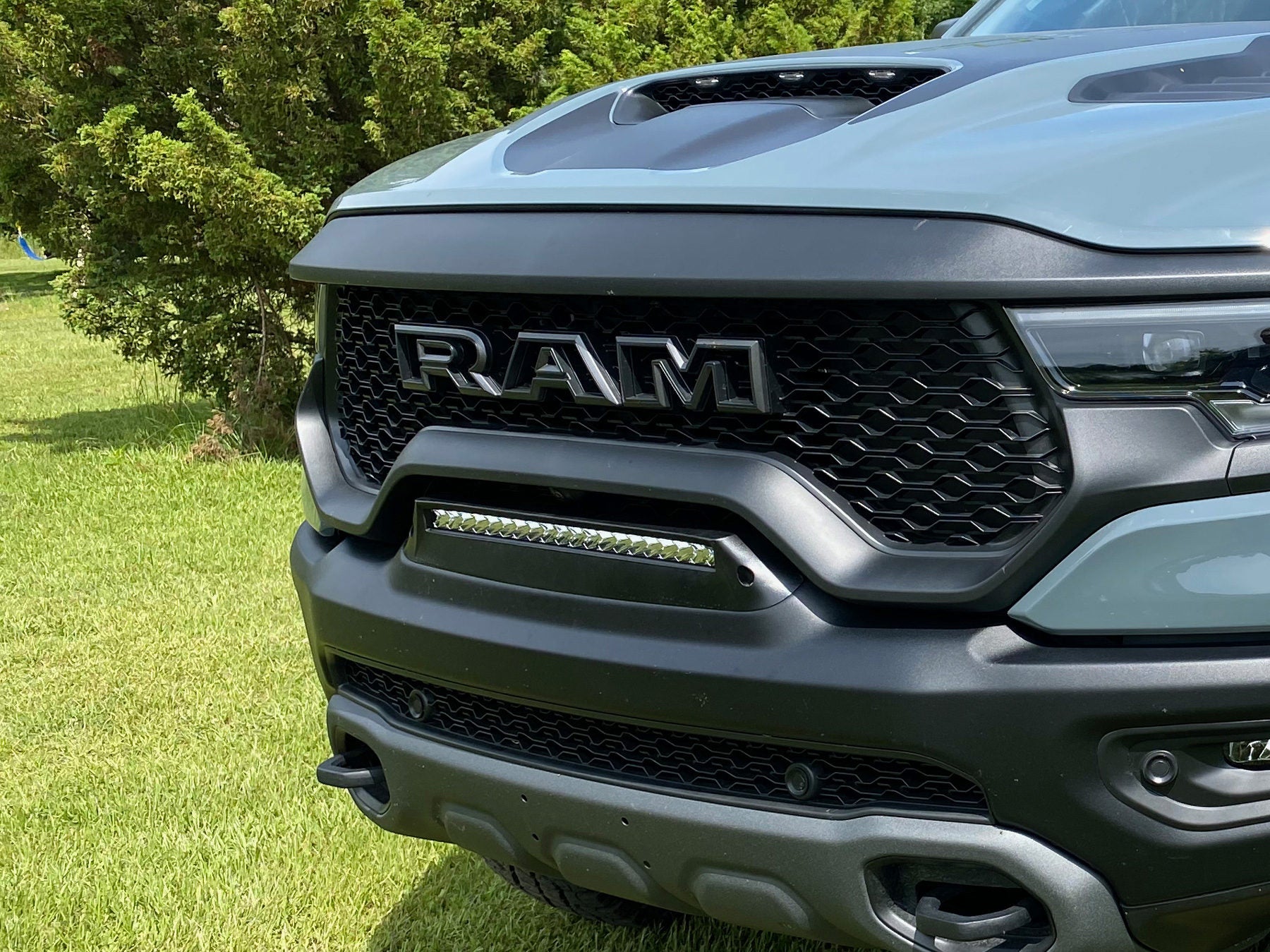

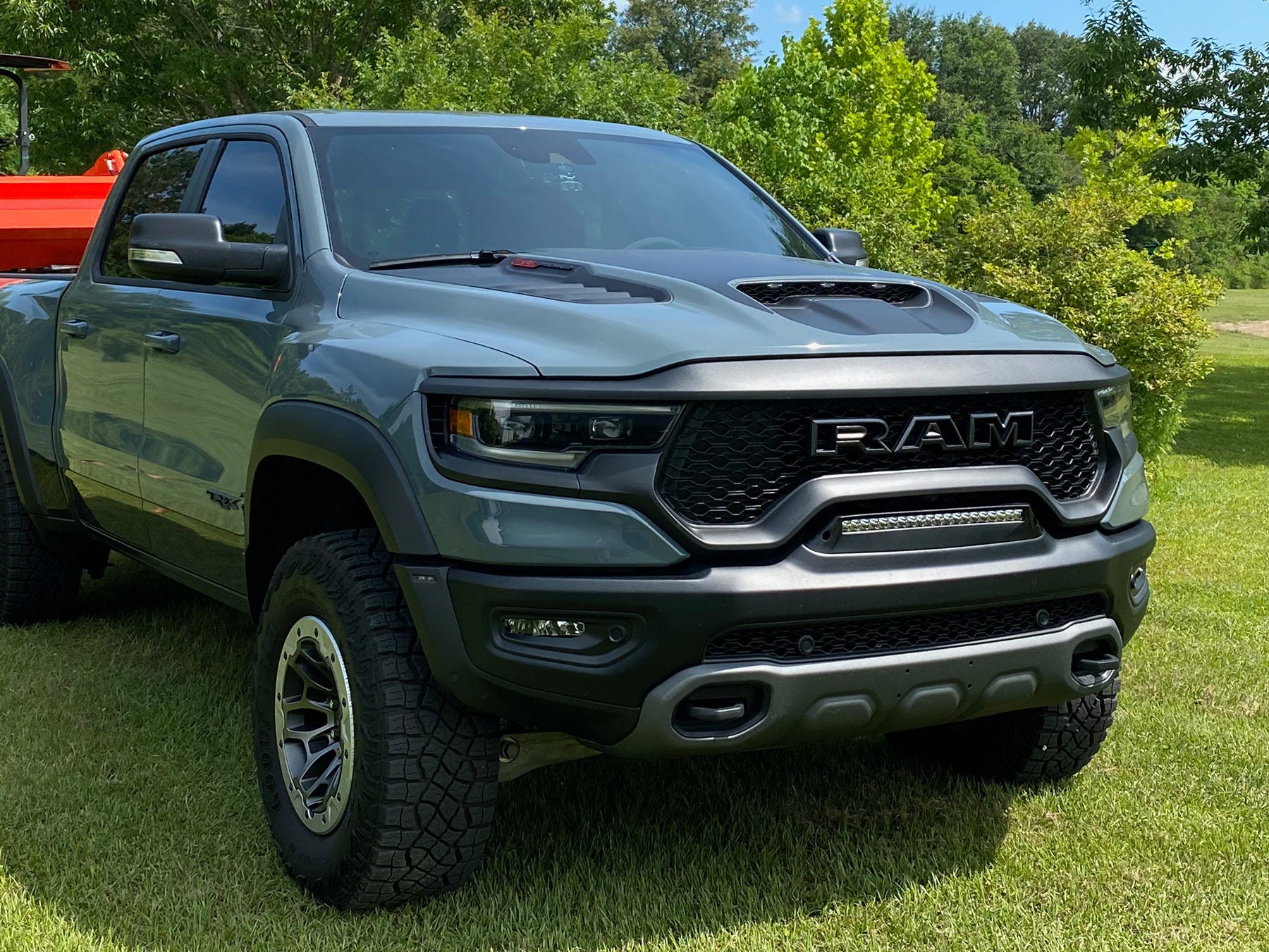

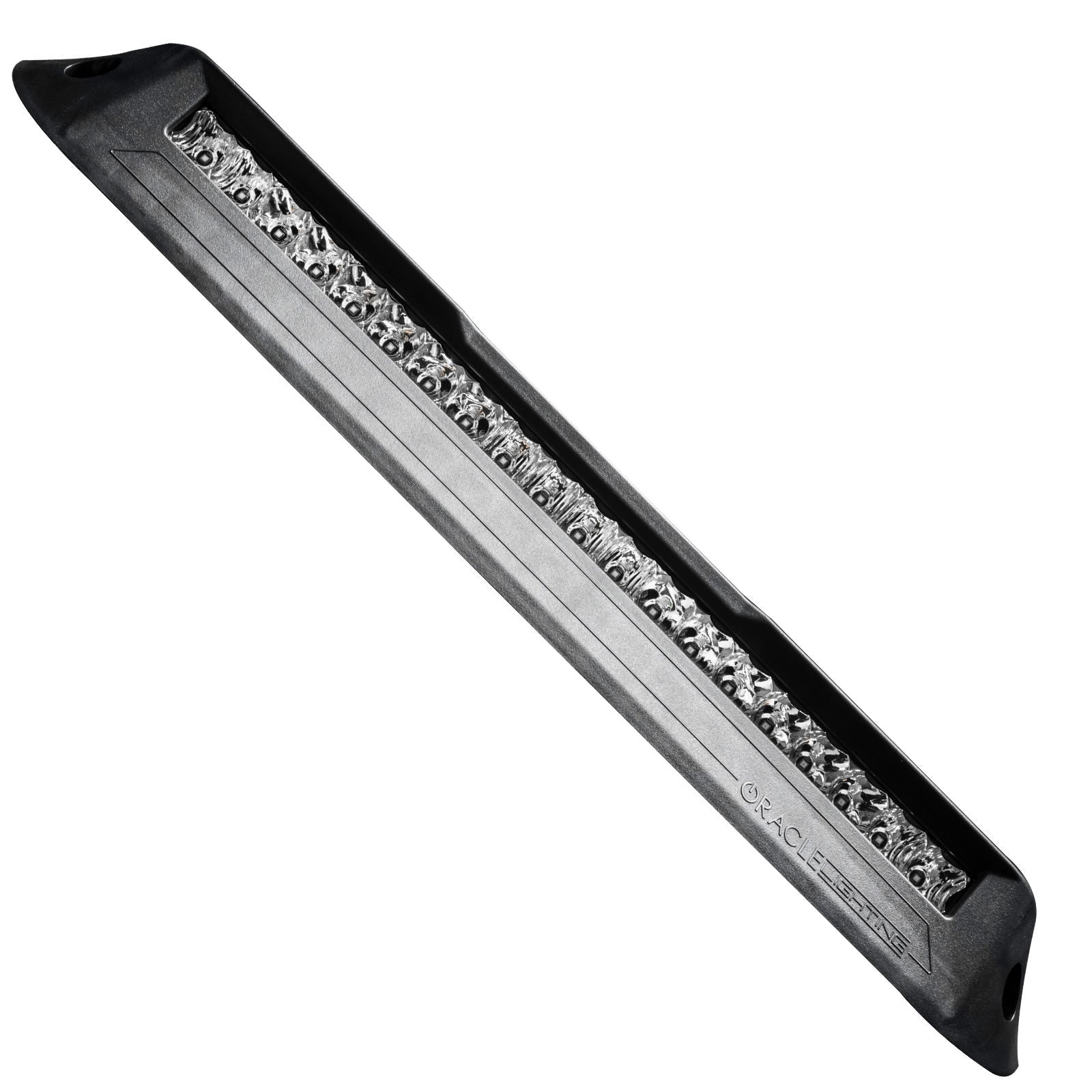

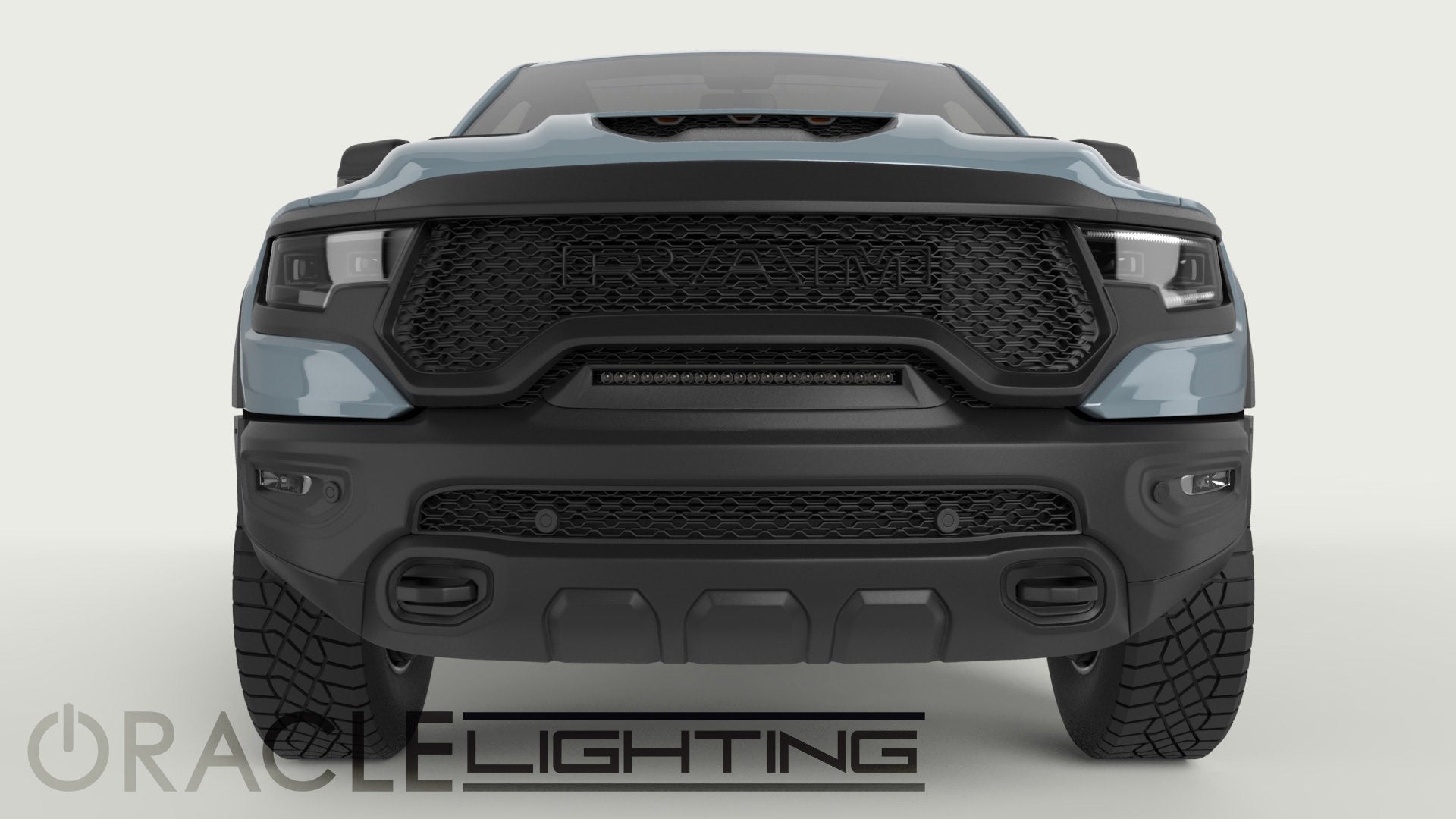

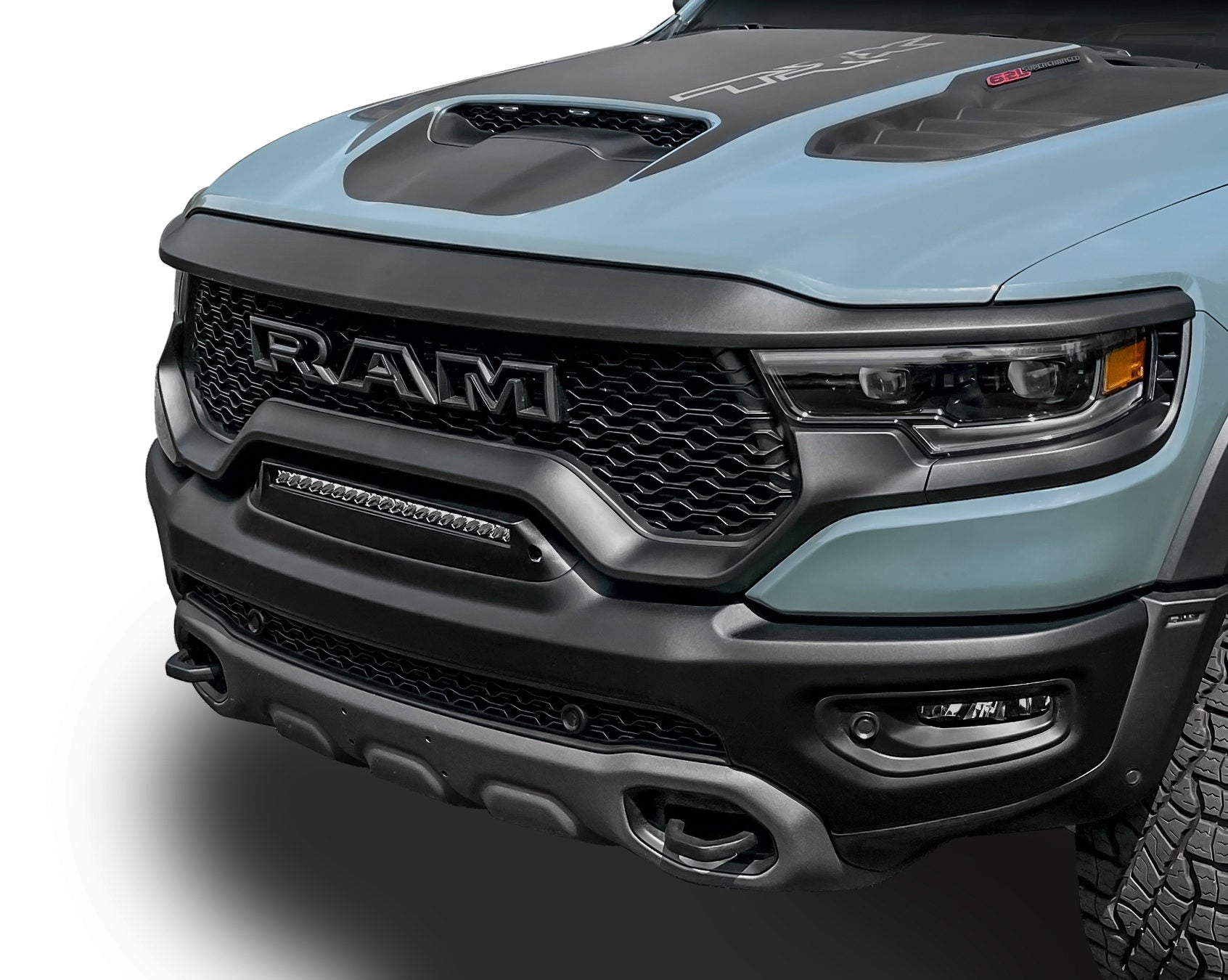

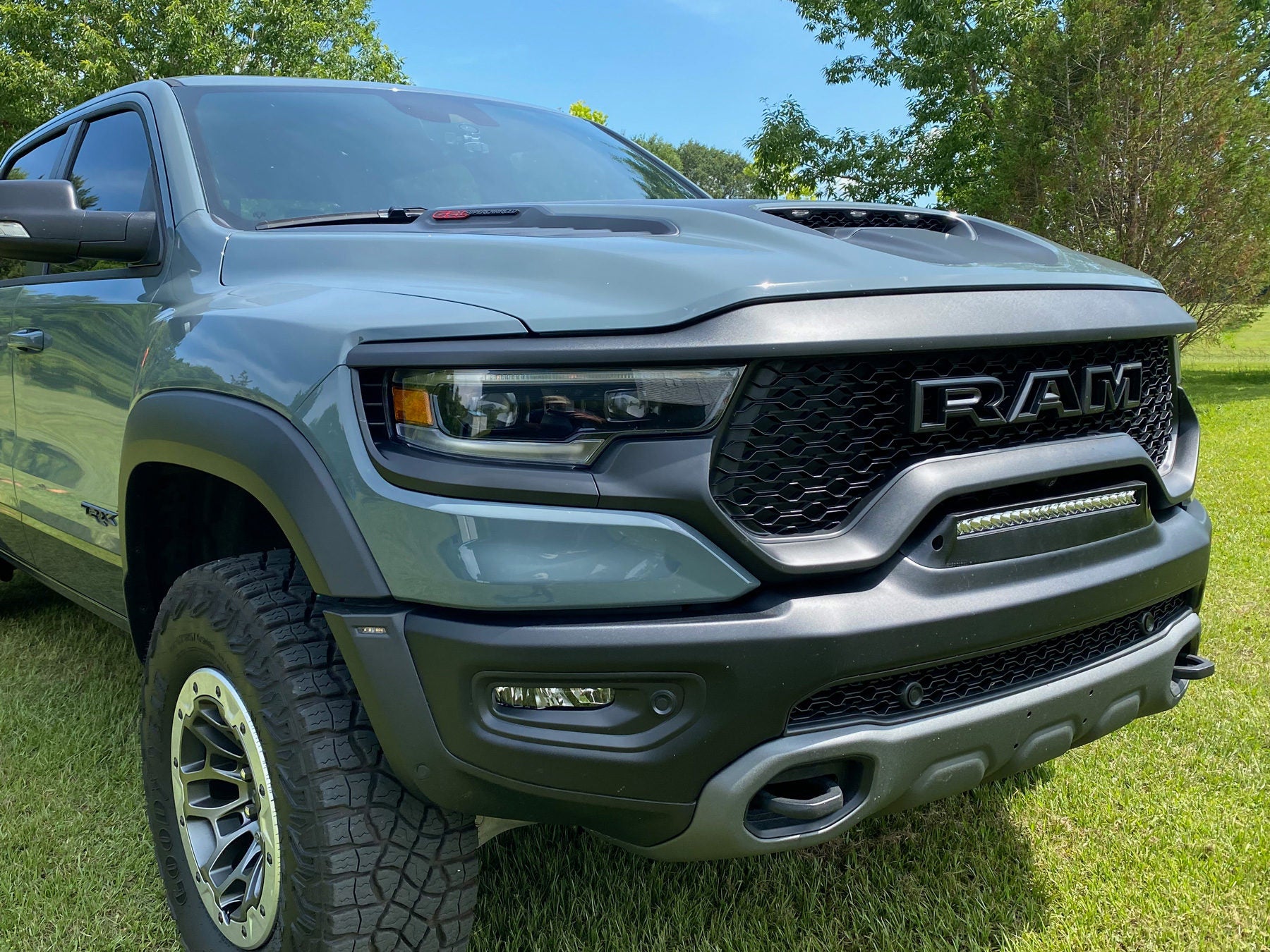

ORACLE Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

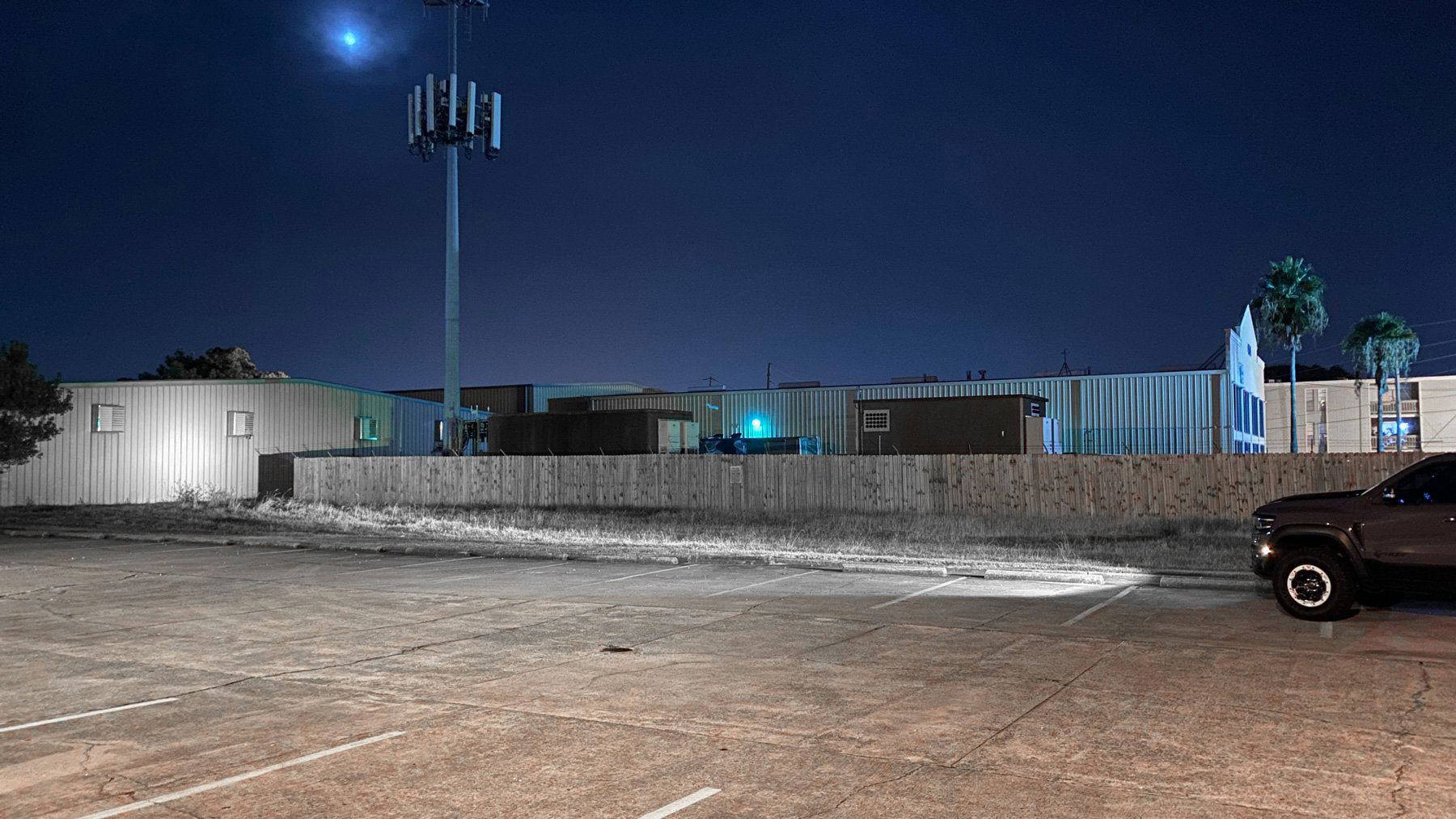

This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.
- Watts: 100W (20x 5W LED)
LED: Osram CRDP LED Chip
LED Life: 50,000+ Hours
Kelvin Temperature: 5500K
Housing: Polycarbonate
AMP Draw: 7.5A at 12VDC
Add-On: N/A
Watts: 100W (20x 5W LED)
Wiring Harness Included: Yes
Wire Quantity: 2
Wire Gauge Measurement: 16
Wattage: 100
Voltage: 12
Light Beam Pattern: Combination
Terminal Type: Lead Wire
Terminal Quantity: 2
Switch Included: No
Street Legal: No
Relay Included: No
Mounting Hardware Included: Yes
Light Quantity: 20
DOT Approved: No
Lens Width: 1.91
Lens Material: Polycarbonate
Lens Length: 18.75
Lens Diameter: 18.76
Lens Color: Clear
Housing Shape: Rectangle
Housing Material: Composite
Housing Finish: Painted
Housing Color: Black
Brightness: 12000
Base Material: 6061-T6 Billet Aluminum
Base Length: 31.84
Base Diameter: 31.98
Base Color: Black
Wiring Harness Length: 36
Waterproof Rating: IP69K
Voltage: 9V-36V DC
Lens: Optically Clear Lexan
Optics: Mixed Spot/ Flood
Lumen Output: 12000
