Old Man Emu - EL112R

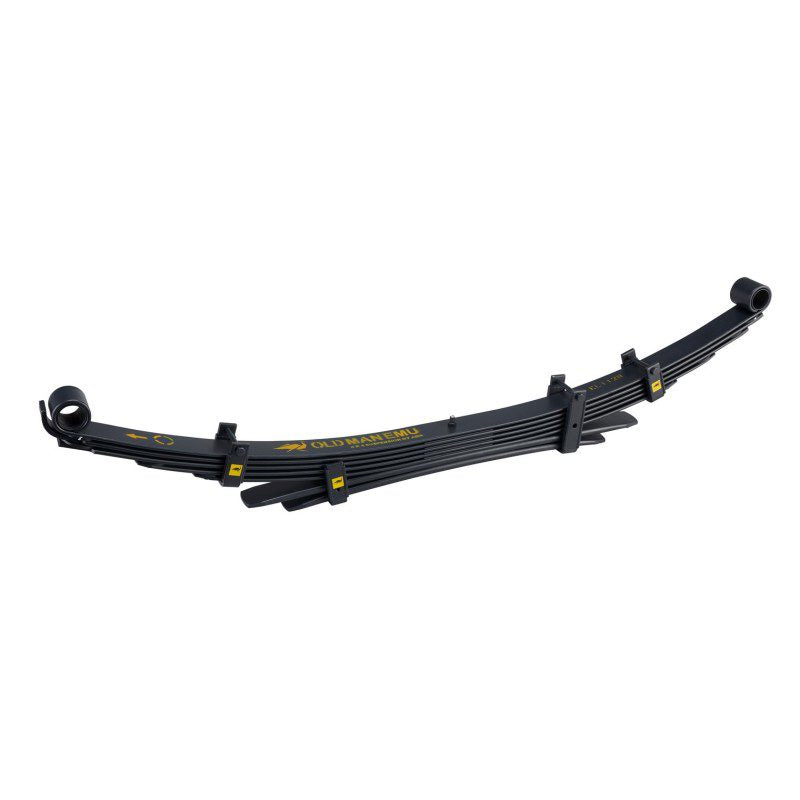

Old Man Emu Leaf Spring; Rear;
Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions in which they operate. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4?4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
- Draw-tapered and diamond cut leaves
- Bolted leaf clamps allow installation of anti-squeak nylon liners
- Fully scragged to reduce the risk of sagging
- Load tested to ensure the spring meets the required specification
- Military wrap design provides added safety
- Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
- Flat axle seat area allows a positive, safe axle mount and reduces spring stress
- Shot peened to reduce spring stress and increase spring life
- Two-stage leaf pack featured on most rear springs for optimum comfort
Add-On: N/A
Stack Height: 76 mm
Number of Leaves: 5+2
Eye Diameter: 40 mm (F) / 40 mm (R)
Weight: 32 kg
Primary Free Camber: 202 mm
Spring Rate: 193 / 506 lbf/in
Color: Black
Material: Steel
