Nolathane REV039.0082 - Front control arm - upper arm

Nolathane REV039.0082 - Front control arm - upper arm

Front control arm - upper arm

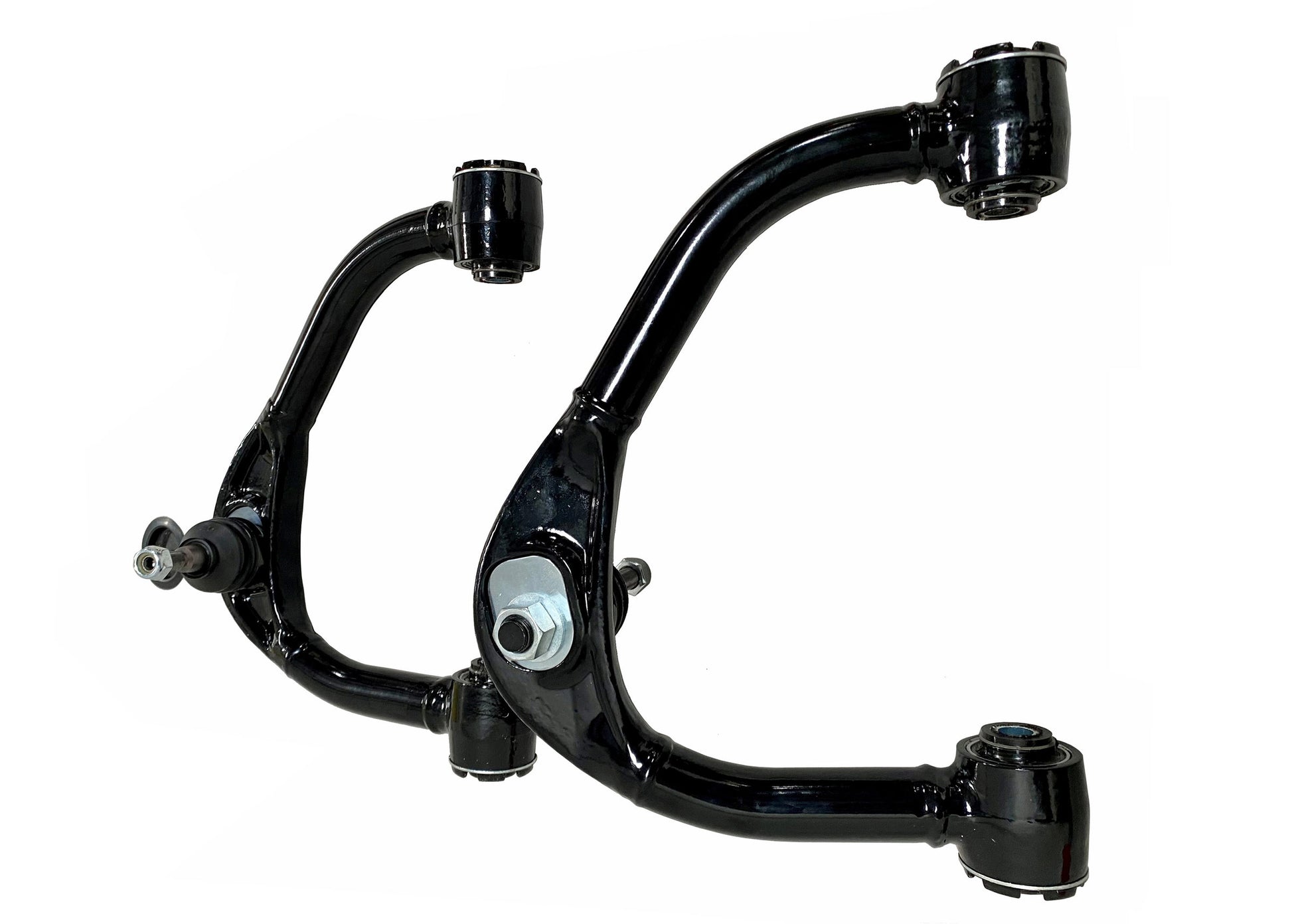

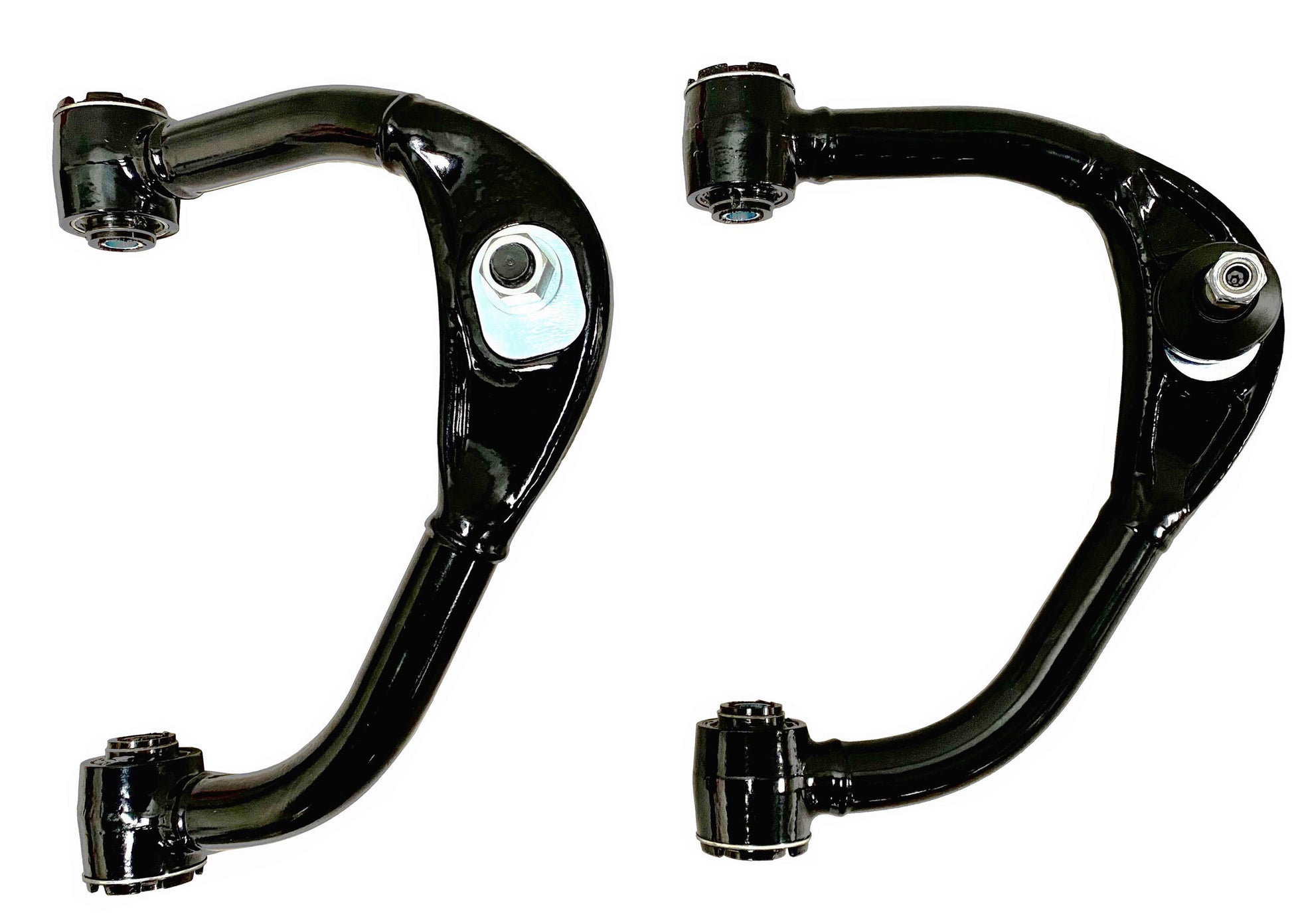

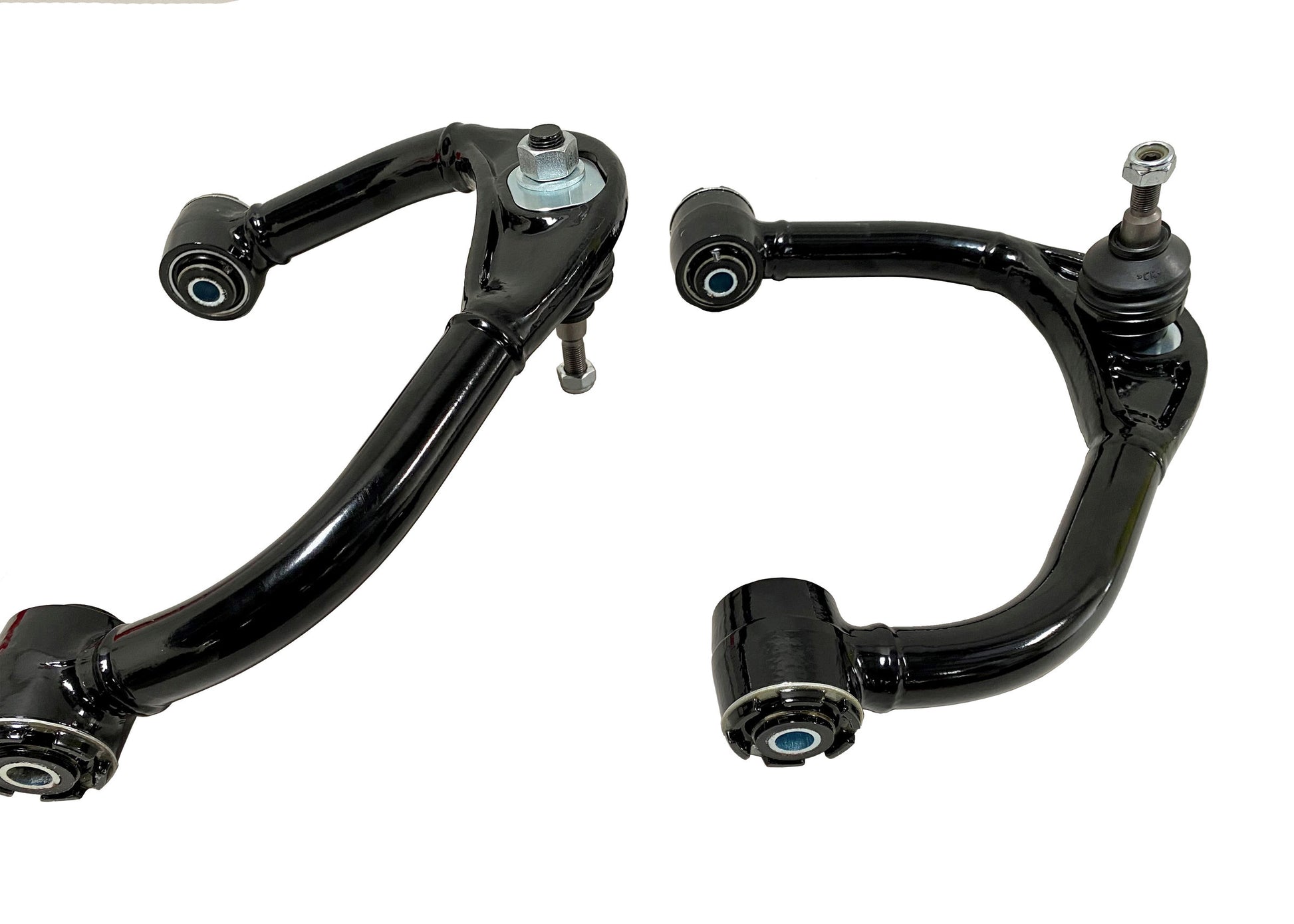

Nolathane Front Upper Control Arm - Adjustable

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Nolathane offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.

• Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
• Nolathane formulation technology boasts resistance to oil, grease, ozone and weathering.
• Provides 2.0 degree of caster and up to 1.0 degree camber adjustment.
• Specially bonded design for optimised strength typically required in high load bearing applications.
• Suits 1 to 2.5 Inch Lifts.
