MSD 89612 - Solid State N/O Relay w/Socket Harness

MSD 89612 - Solid State N/O Relay w/Socket Harness

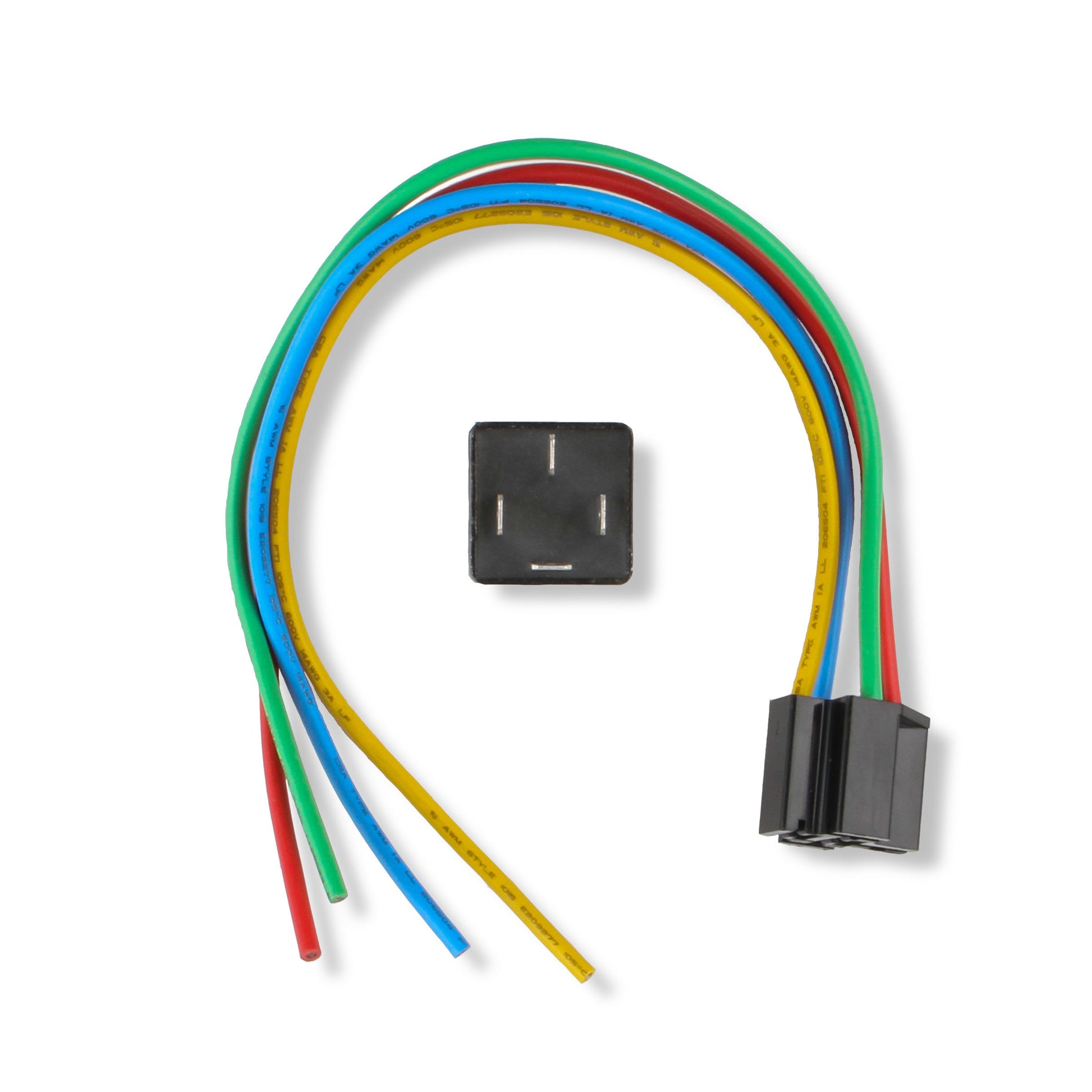

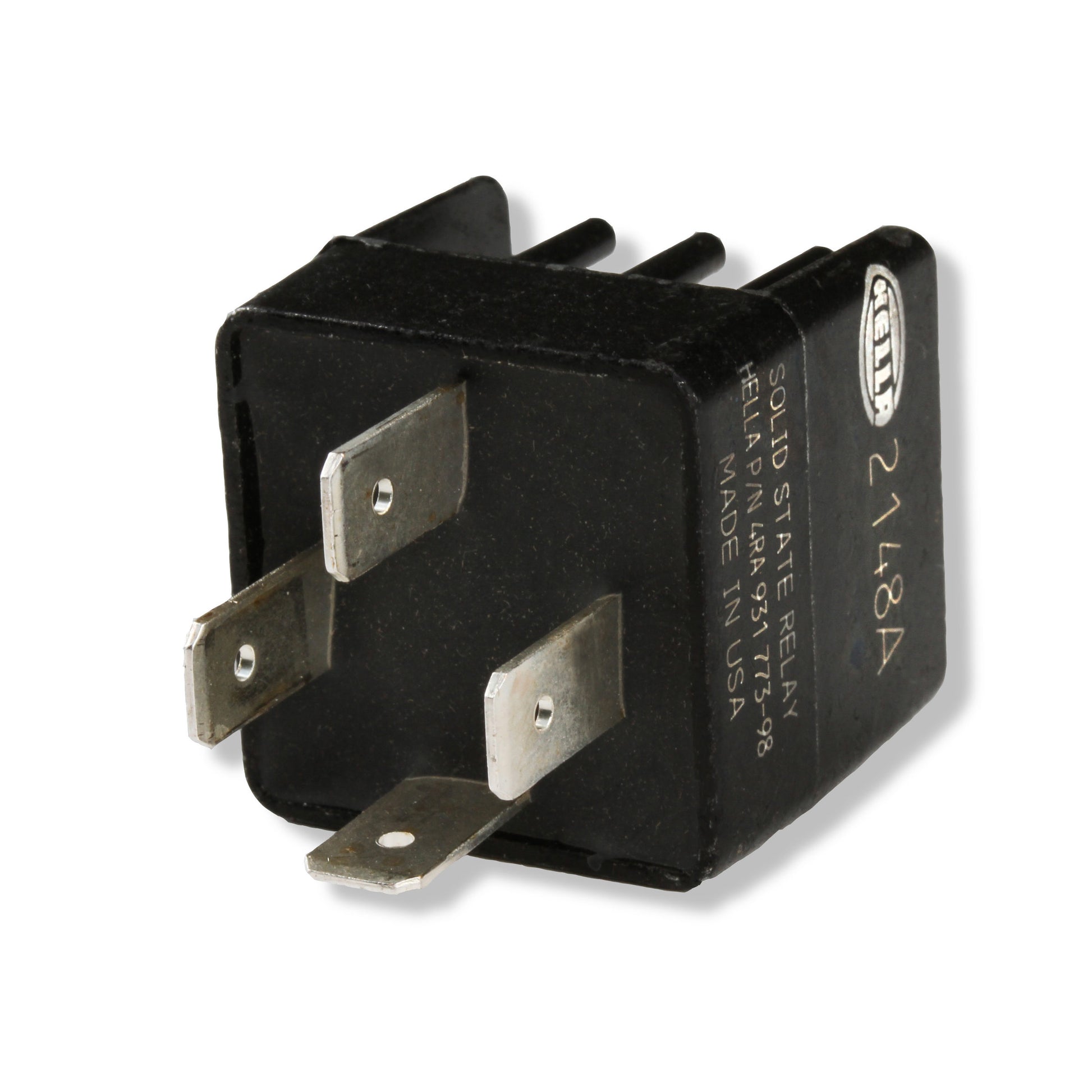

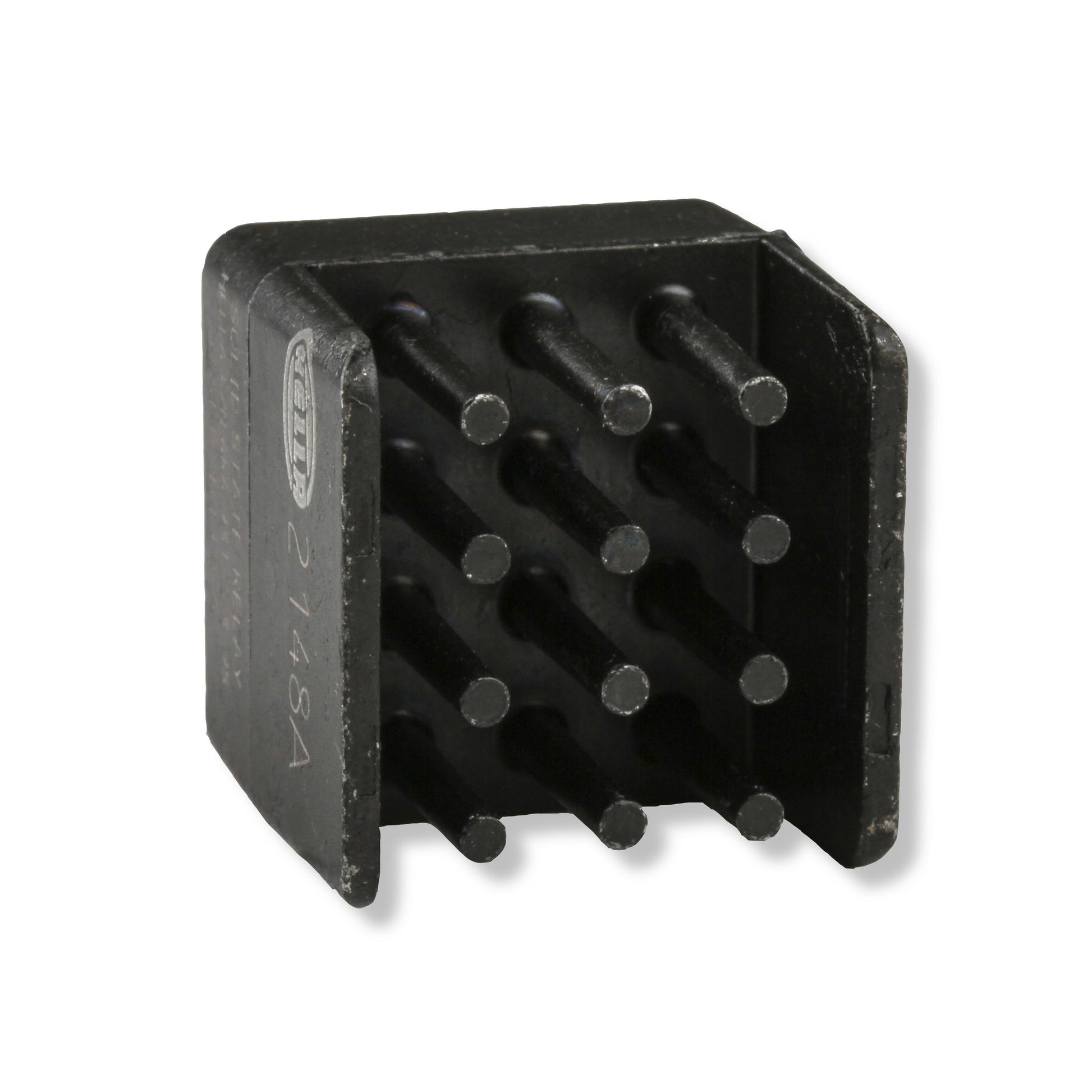

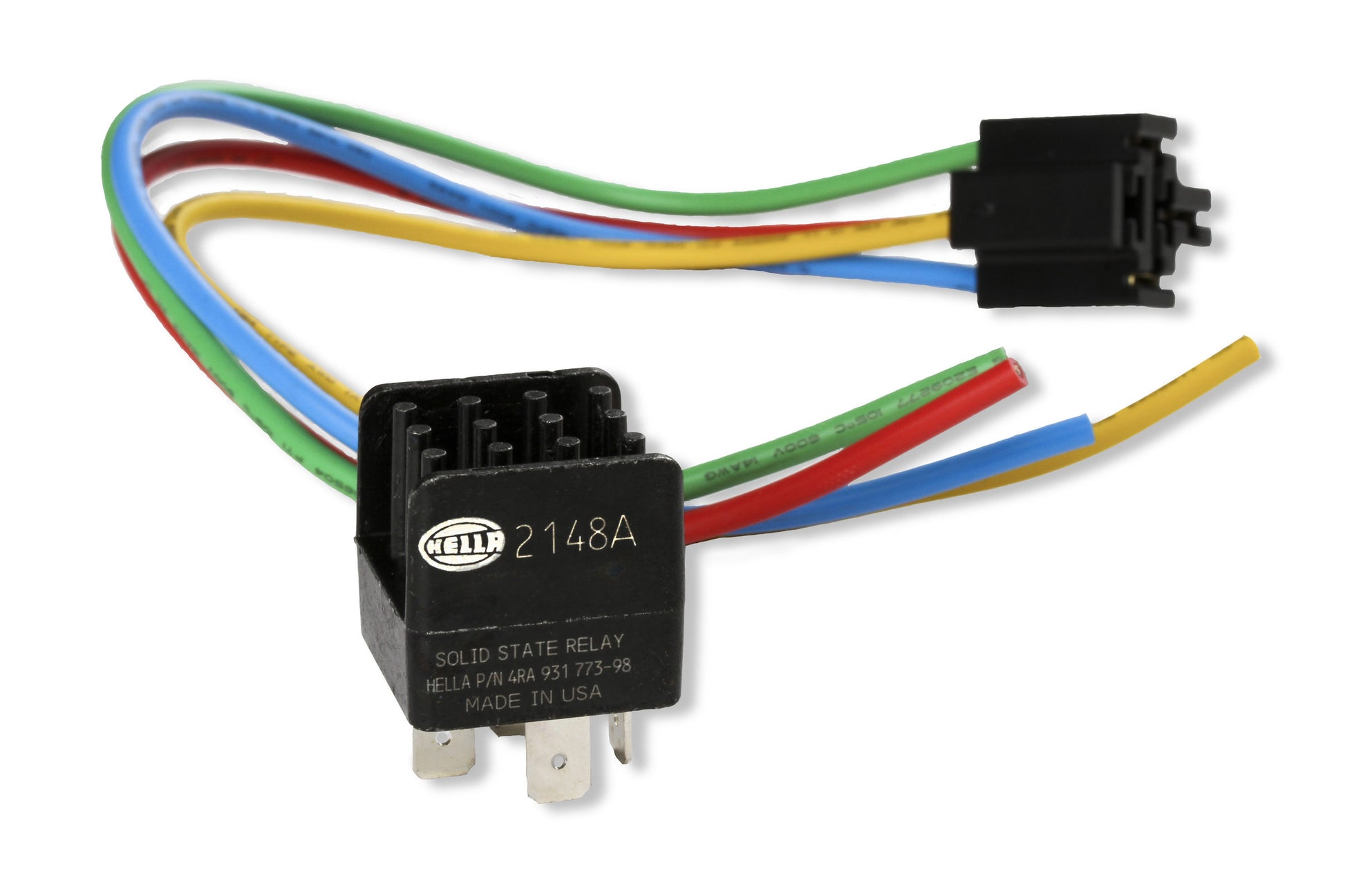

MSD Solid State N/O Relay w/Socket Harness

Universal Relay; SPST Normally Open; High-Powered Controlled Circuit; 30 Amp Momentary/20 Amp Continuous At 12VDC; Pigtail w/11 in. L Leads; HD 14 Ga. Wire;

MSD's Solid-State Relay w/harness are ideal for use on electric fuel pumps, water pumps, and cooling fans. The high-power controlled circuit handles 30 amps momentary and 20 amps for continuous use @ 12VDC and is energized by the low-power activation circuit. The pigtail harness has 11 in. long leads w/ heavy-duty 14-gauge wire. The benefit of a solid-state relay is that it has a faster activation circuit and no moving parts that wear, which increases the life of the relay. The absence of moving parts makes the solid-state relay less sensitive to mechanical shock, vibration and moisture.

• Mini Solid State Relay
• Max Inrush Load- Overload Protected At 80A
• Continuous Load- 20A
• Nominal Voltage 12V
• Max Coil Voltage 16V
• SPST Normally Open

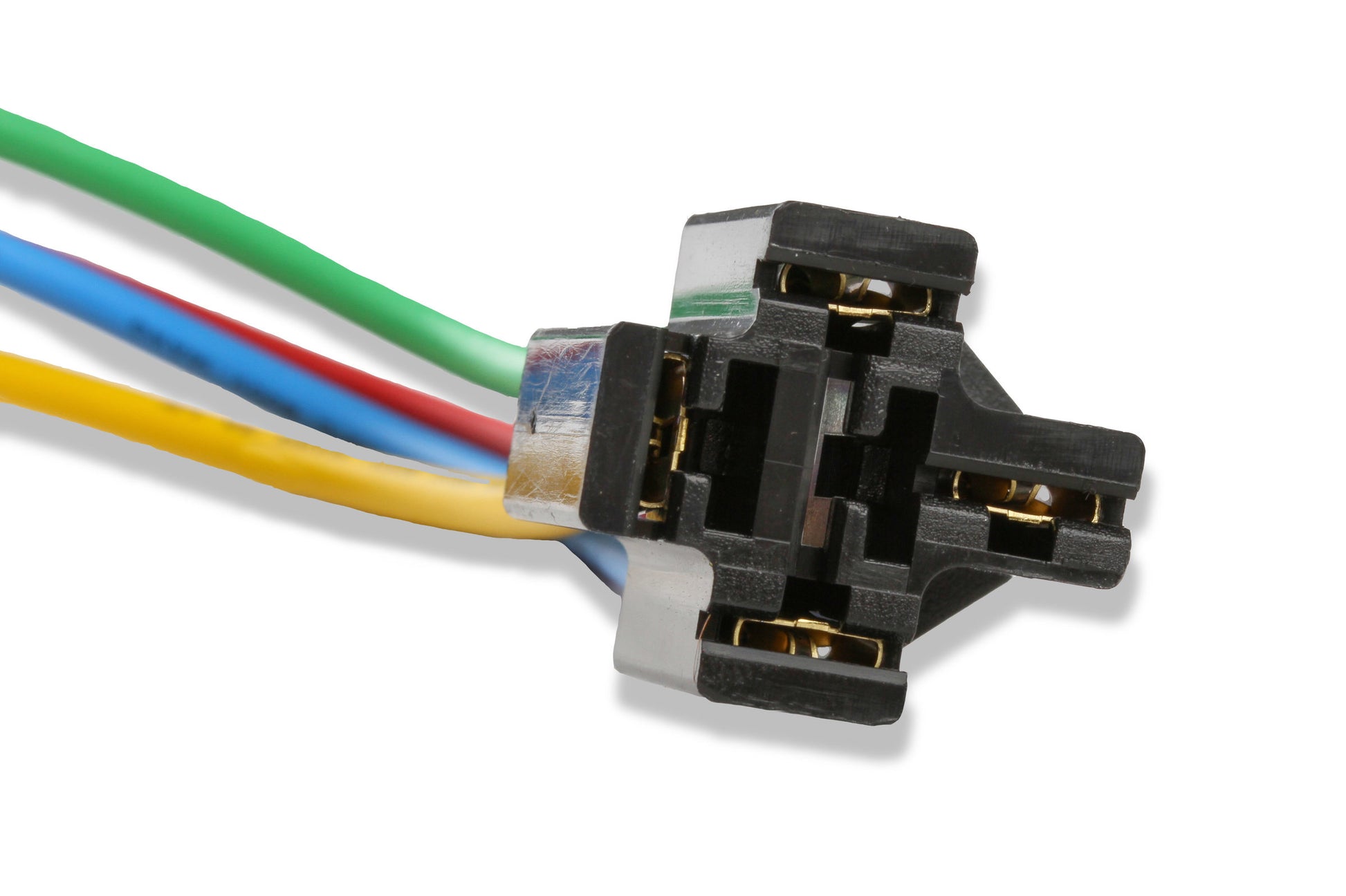

• Pigtail Harness 14 AWG Wires; 11 in. Long
