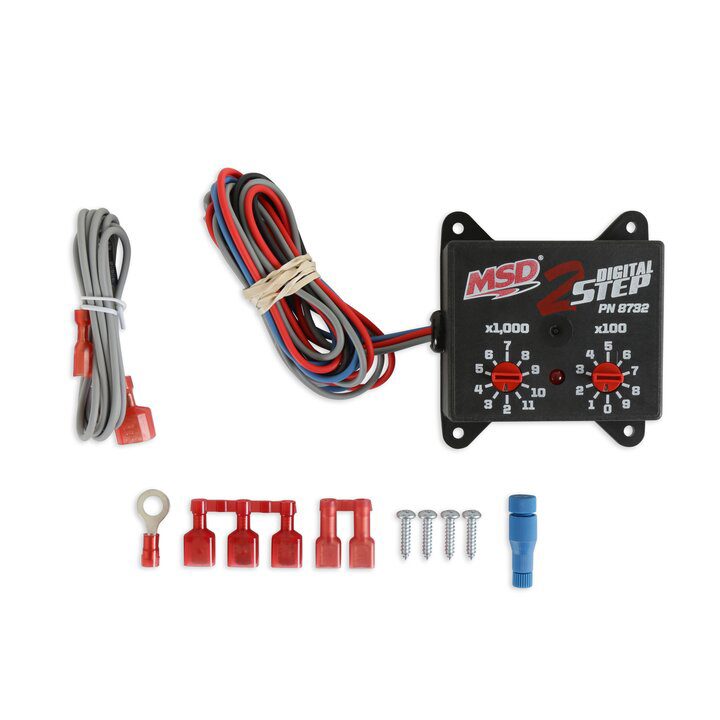

MSD 8732 - Digital 2-Step Rev Control

MSD 8732 - Digital 2-Step Rev Control

Rev Limiter - 2-Step - Launch Control - Adjustable - 2000-11800 RPM - 100 RPM Increments - MSD Digital 6AL Controller - Each

Digital 2-Step Rev Control; For PN[6425];

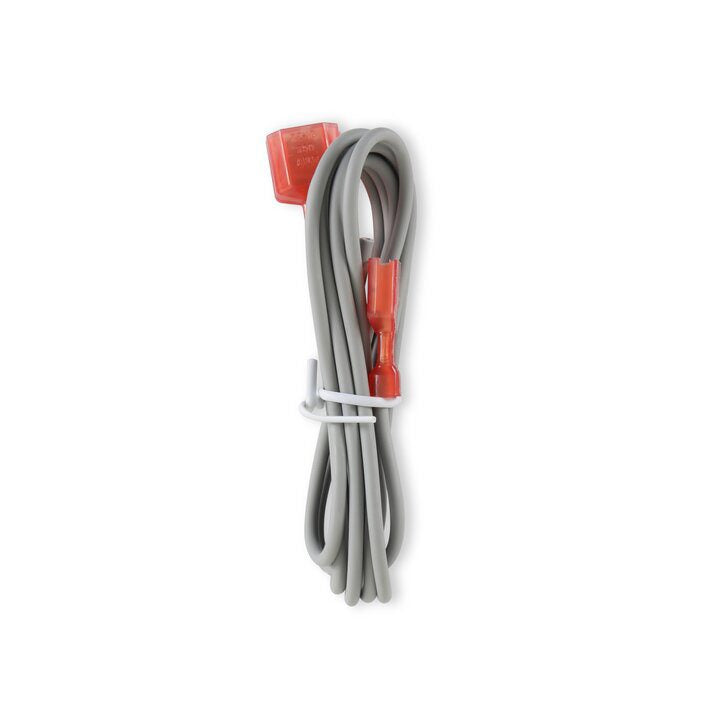

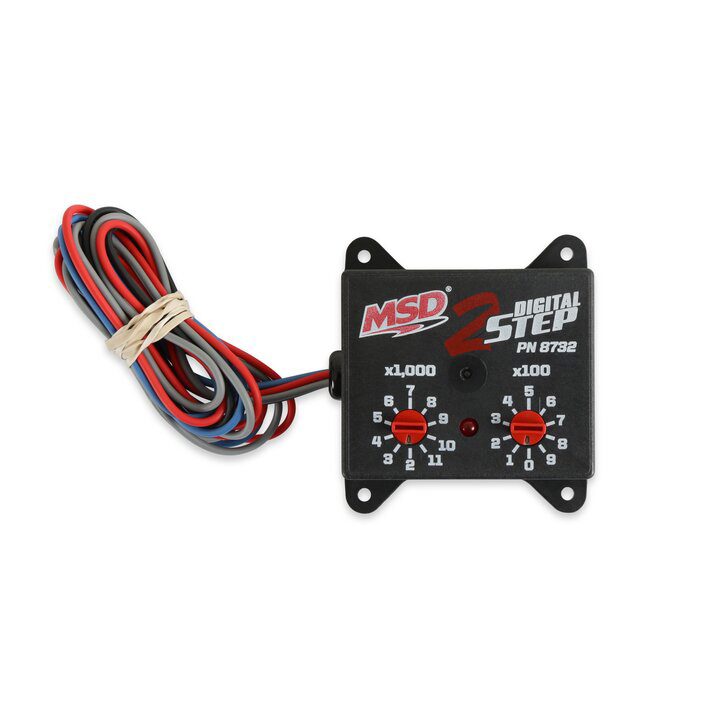

Since the new Digital 6AL Ignition uses rotary dials to adjust the rev limiter, our engineers were tasked with developing a 2-Step Rev Control that could be added to give racers the ability to switch to a low rpm limit to use on the starting line. There are two easy to read rotary dials that let you set the launch rpm in 100 rpm increments. There is an activation wire that connects to the transbrake, a clutch switch or to the line-lock to activate the low rpm limit. When that switch is released, the low rpm limit is turned off and the car launches hard! The 2-Step is also digitally controlled and connects to the Digital 6AL's gray tach output wire.

• For Use w/Digital 6AL PN[6425 Or 64253] Only
