MSD 86243 - Crank Trigger Wheel Kit - Flying Magnet - BBC - 7 IN. - BLACK
MSD 86243 - Crank Trigger Wheel Kit - Flying Magnet - BBC - 7 IN. - BLACK
SKU: MSD-86243
26 in stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
MSD 86243 - Crank Trigger Wheel Kit - Flying Magnet - BBC - 7 IN. - BLACK
MSD Crank Trigger Wheel Kit - Flying Magnet - BBC - 7 IN. - BLACK

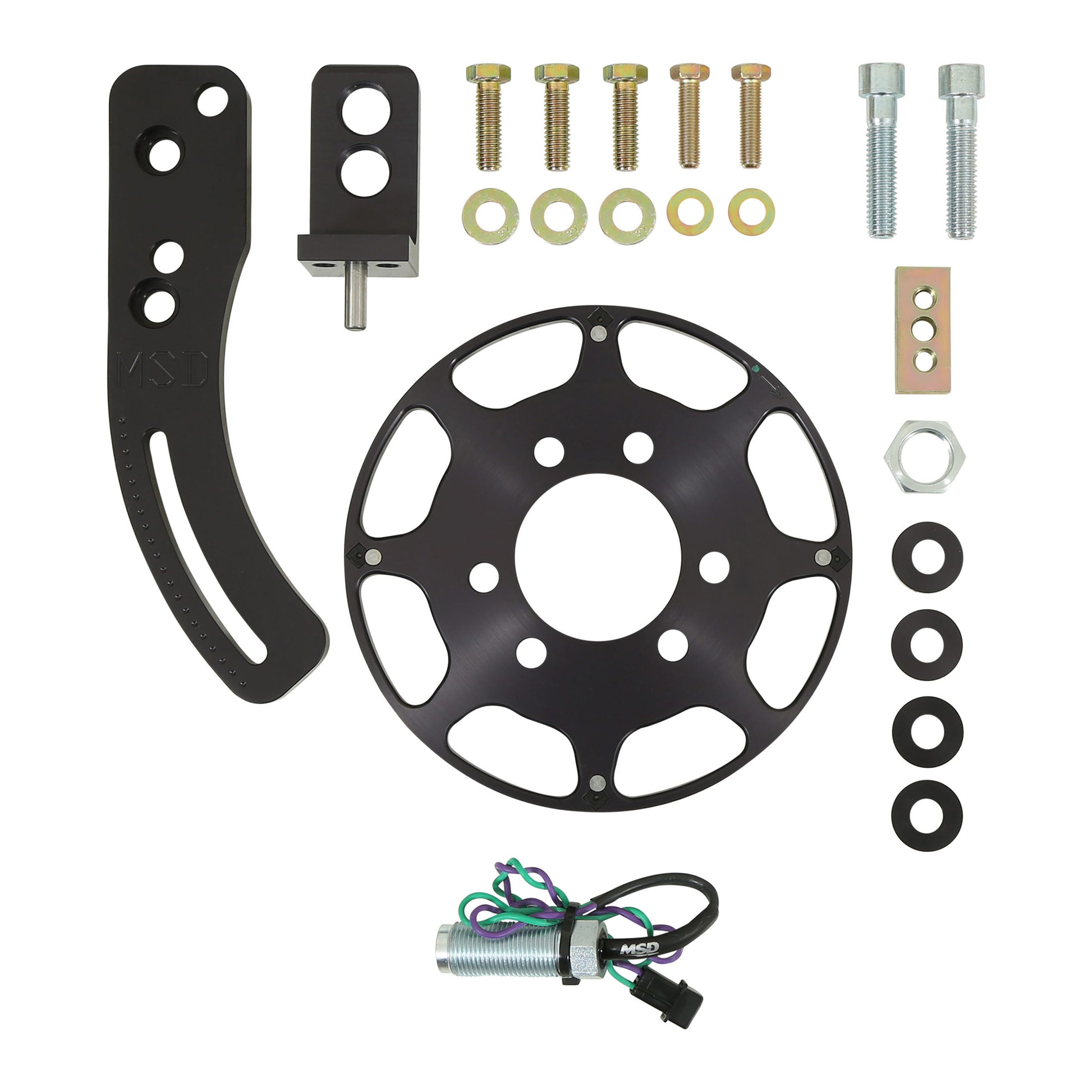

Trigger Wheel Kit

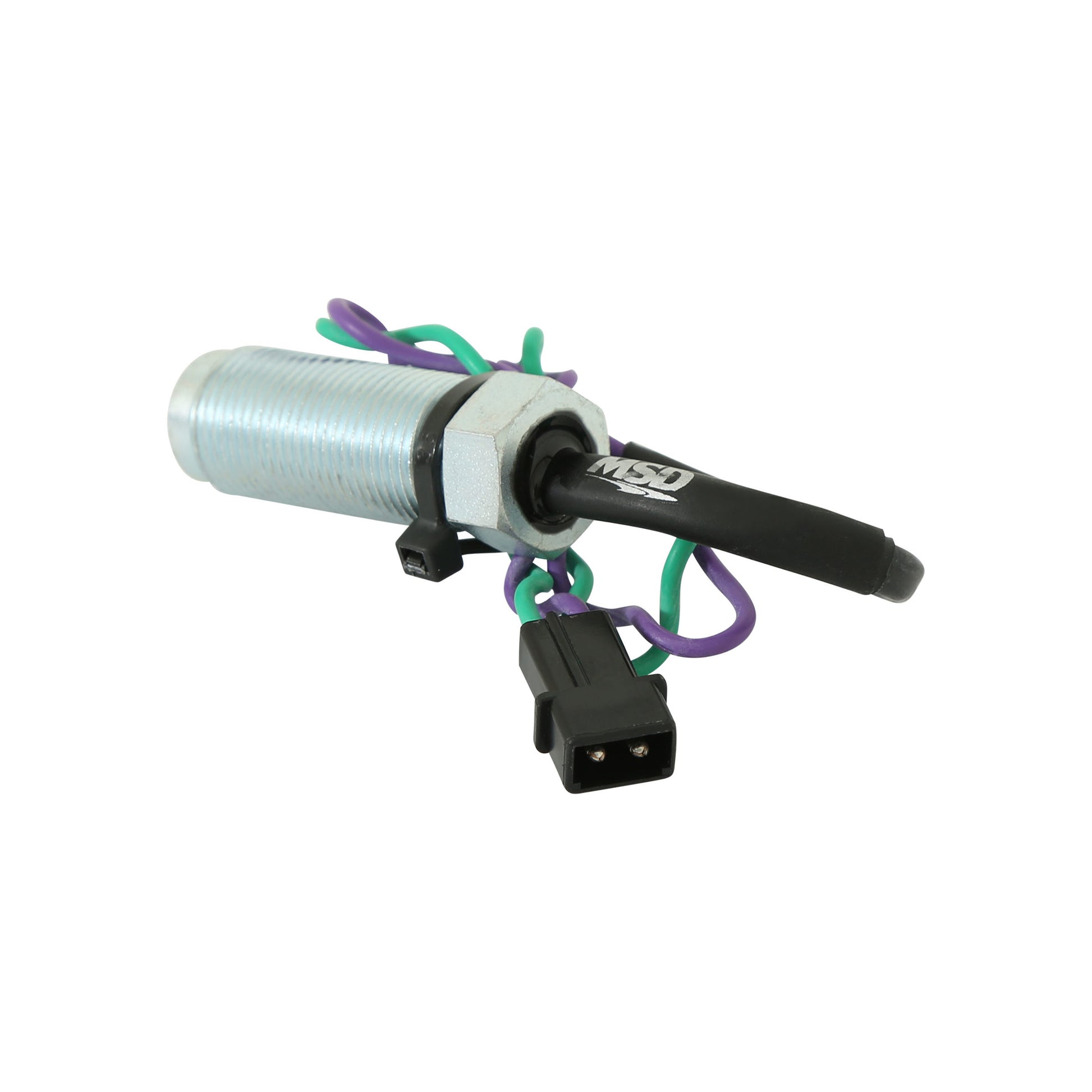

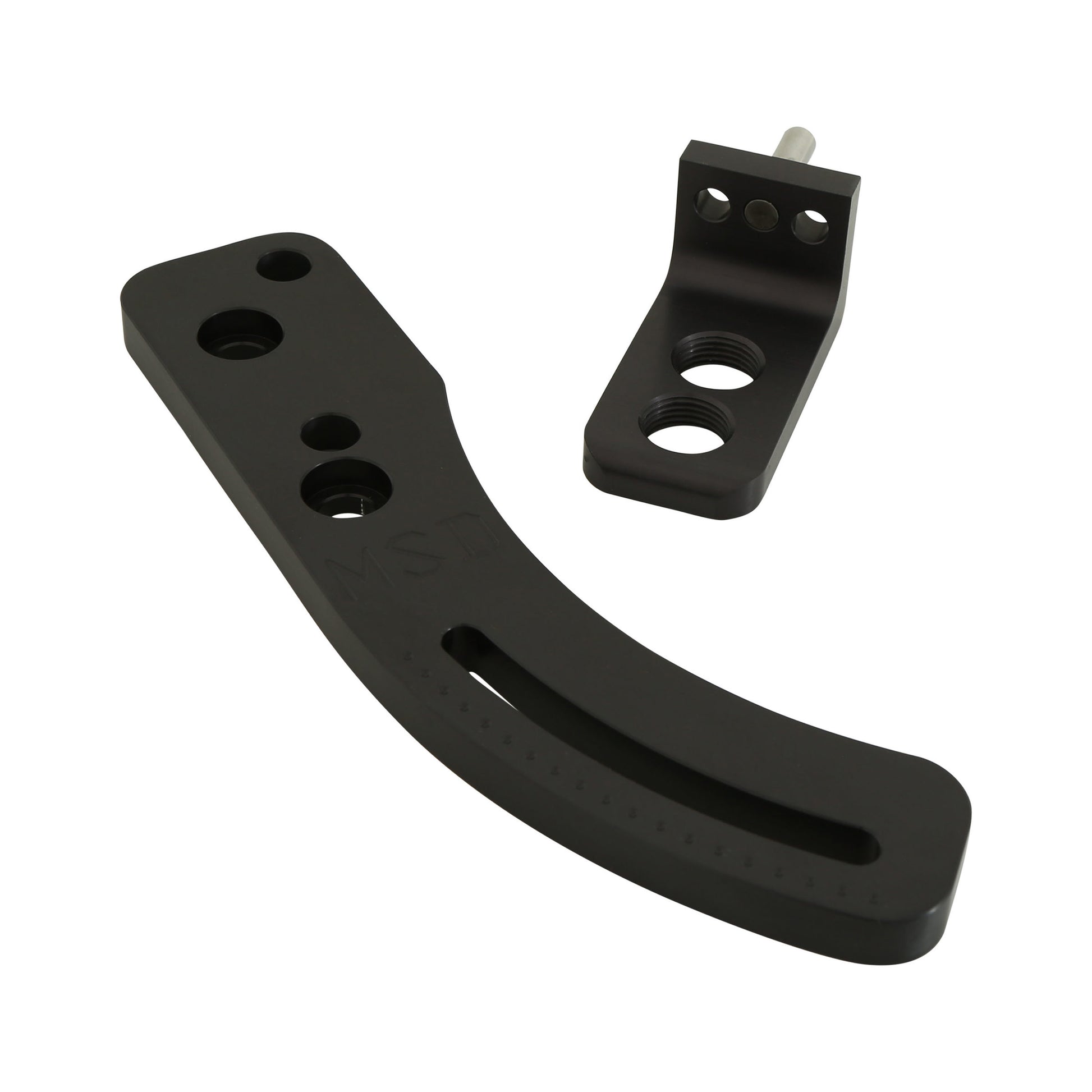

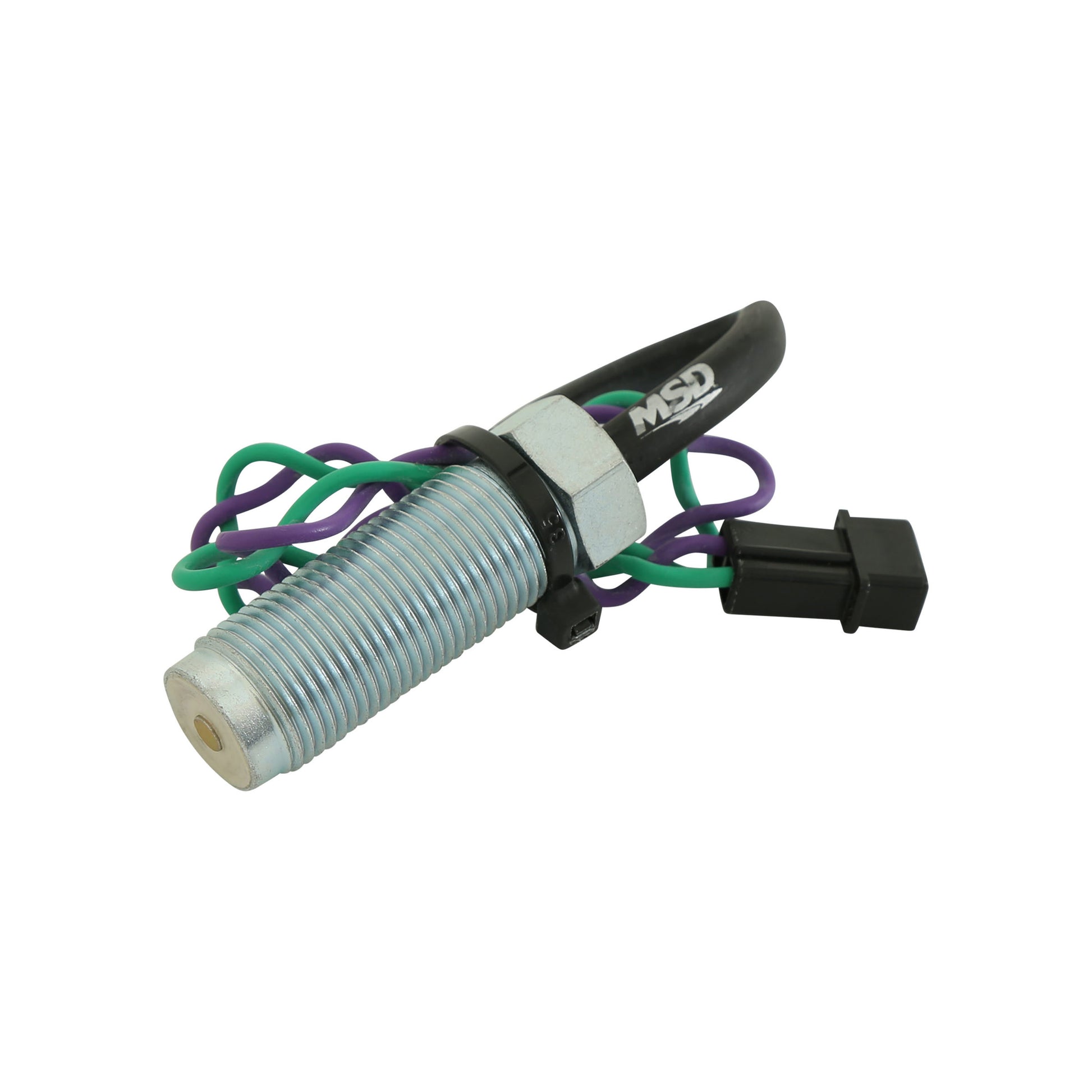

The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine. The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories. For a long time, racers have known that one of the best things to do to an engine to improve performance is to stabilize the ignition timing. The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle. Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage.

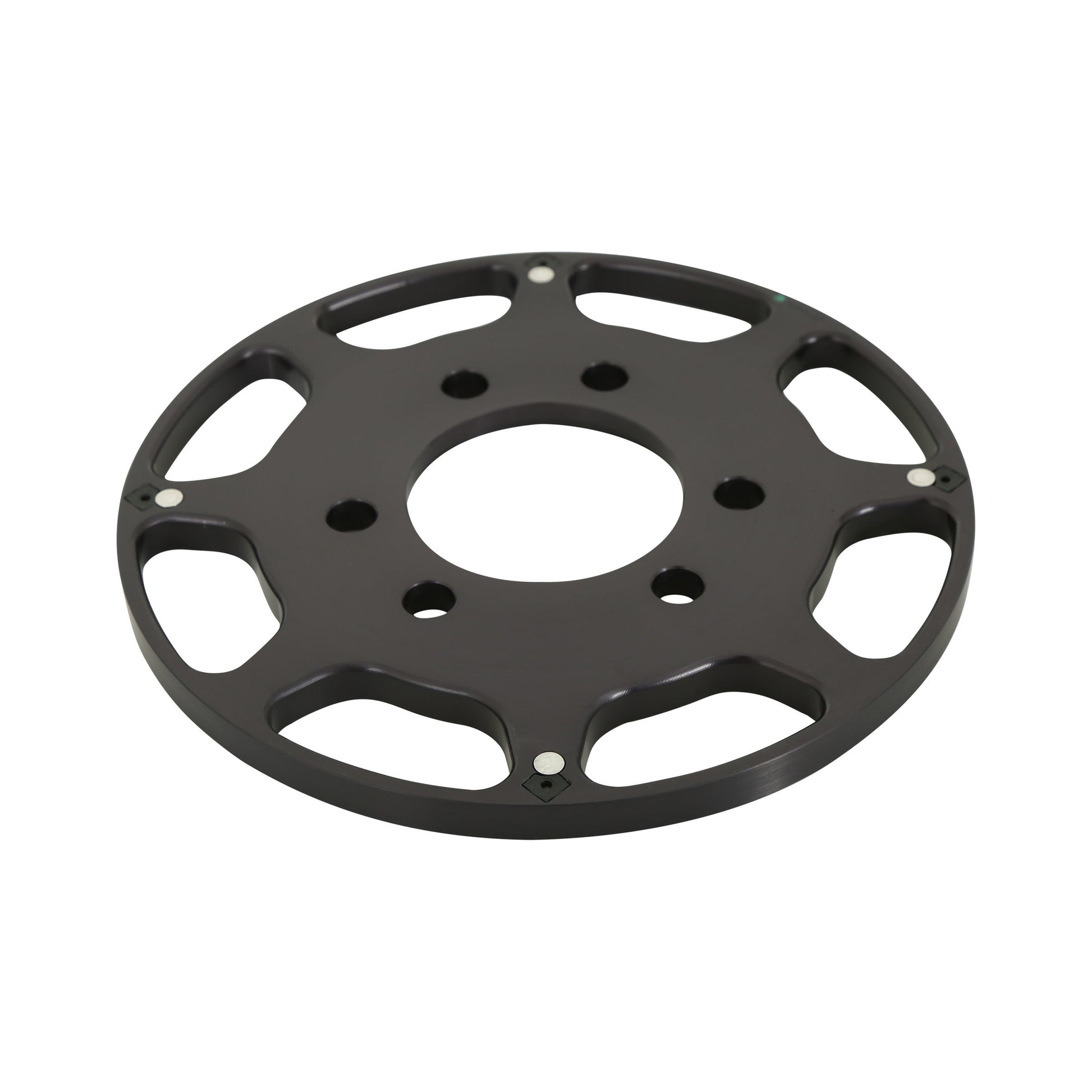

- Powerful magnets are embedded in a billet aluminum trigger wheel.
- The non-magnetic pickup cannot be false triggered.

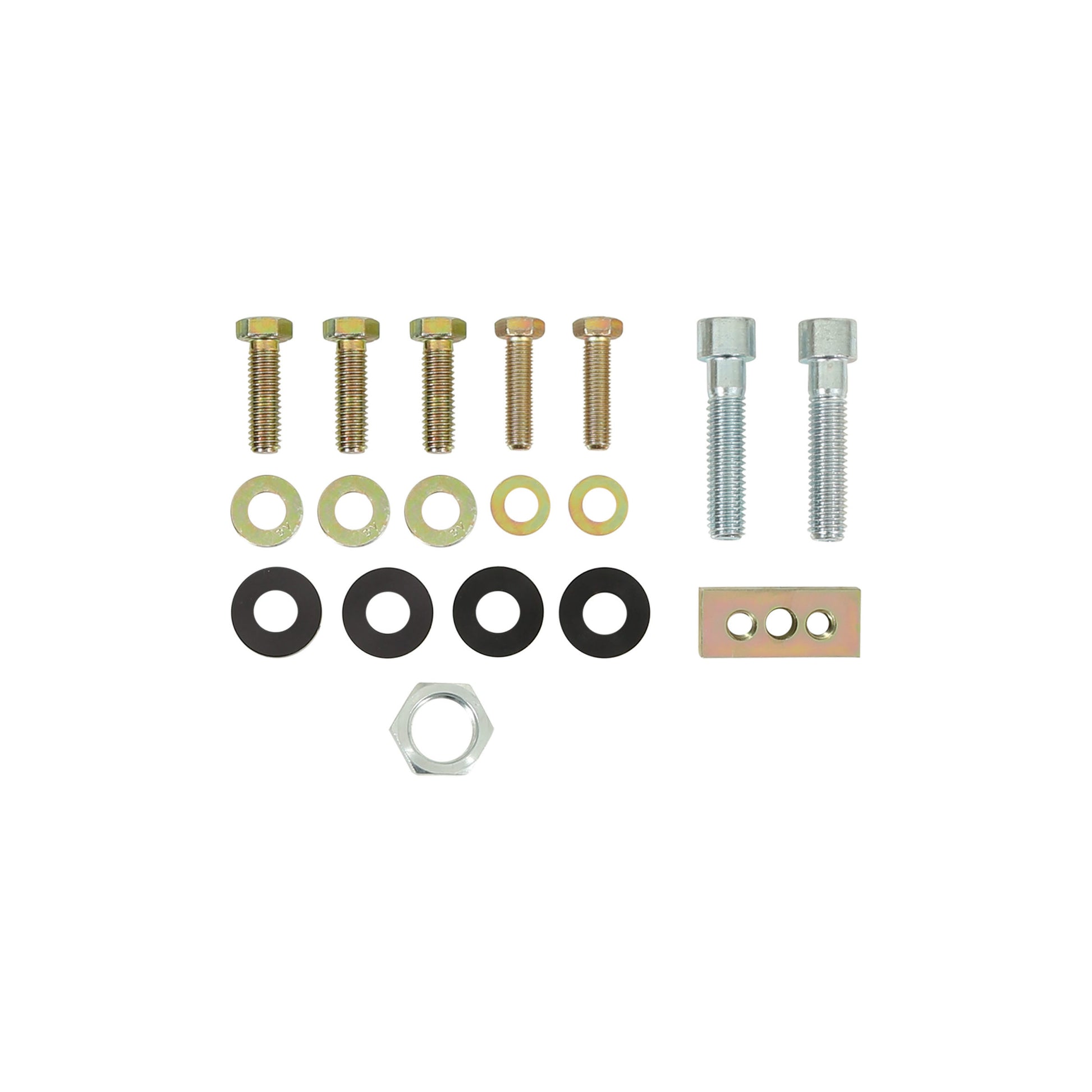

- Kits feature special brackets and mounting hardware for a variety of engines.
- Absolutely the most accurate way to trigger the ignition.
- Fits Big Block Chevrolet V8 (BBC) with 7" diameter balancer
