MSD - 8547

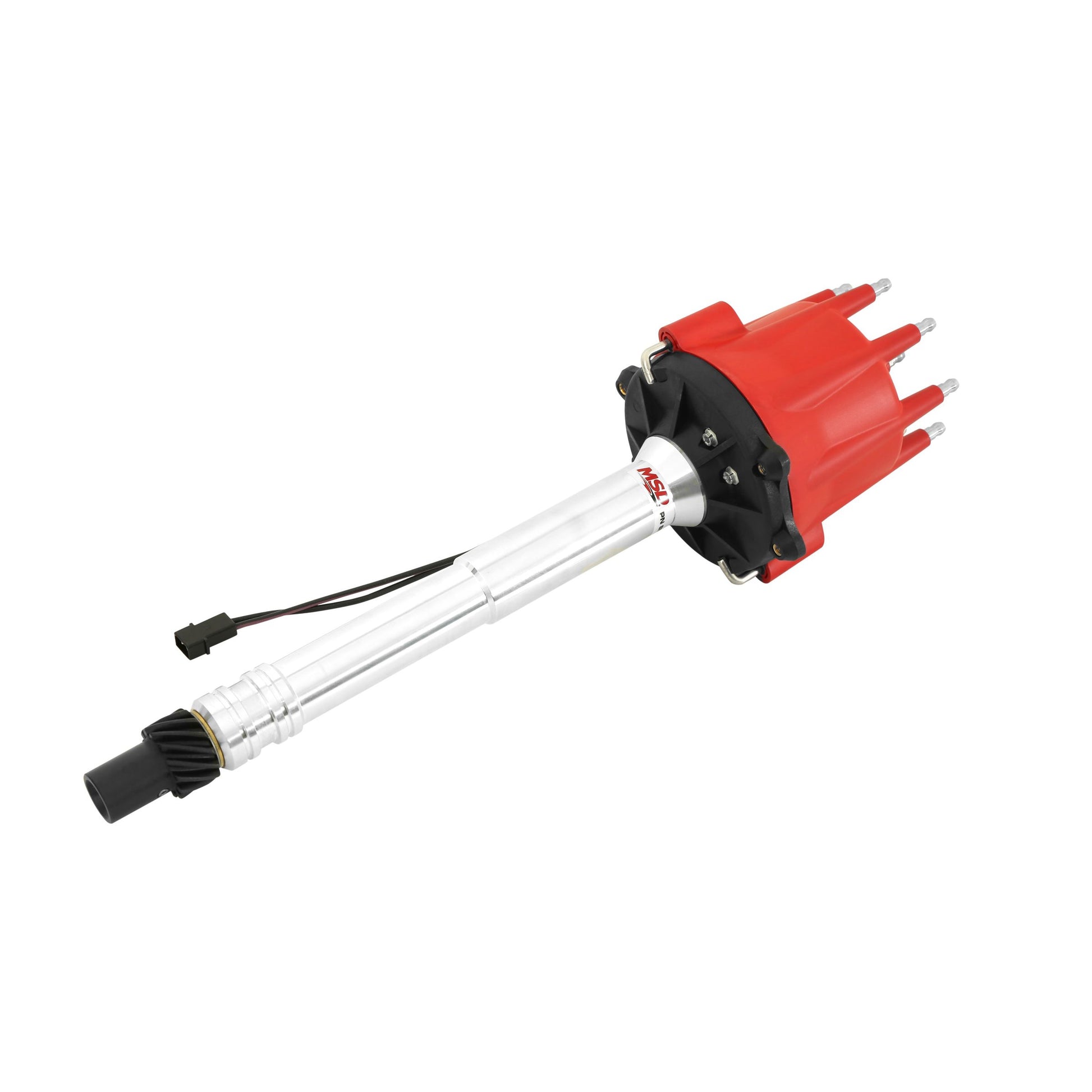

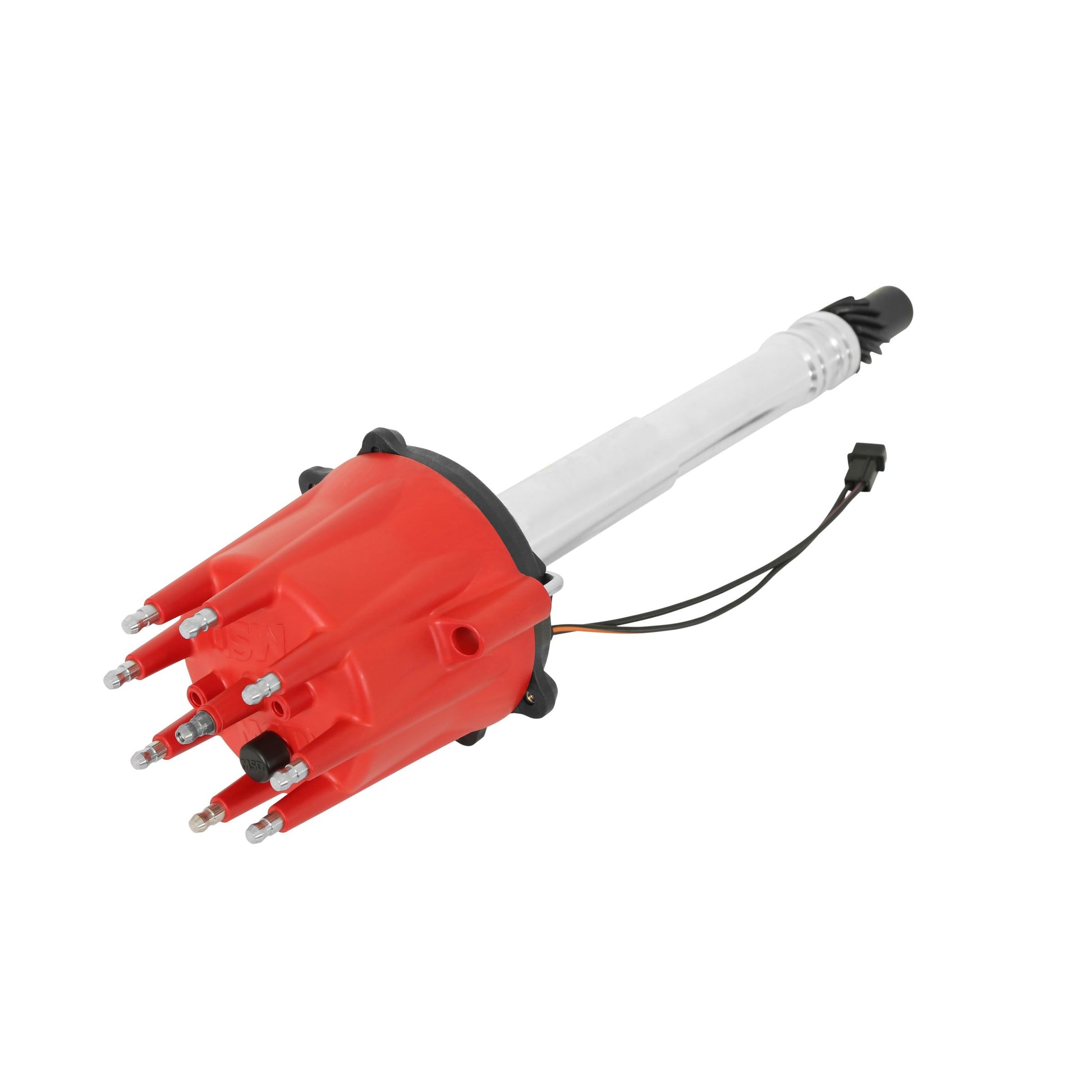

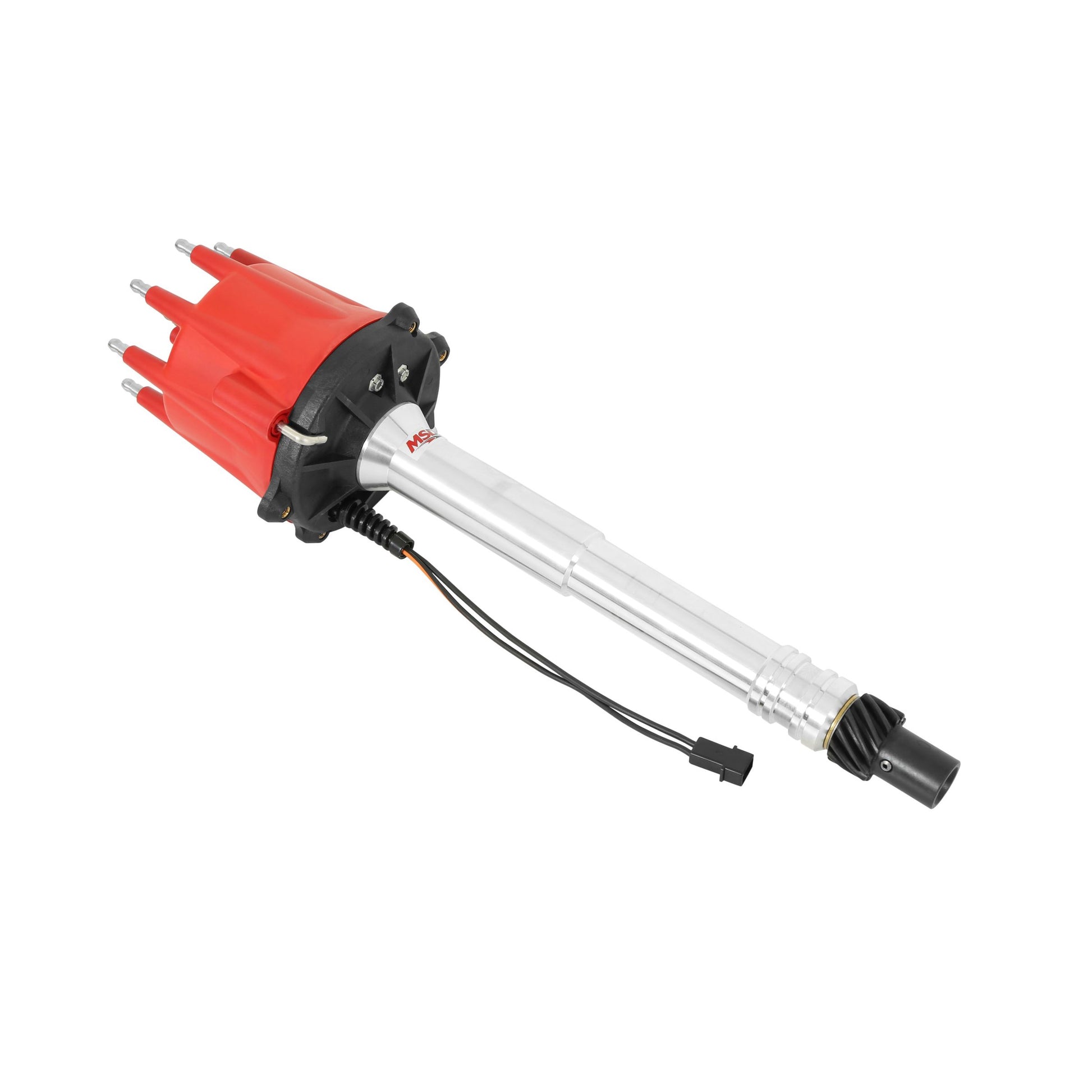

Distributor - Pro-Billet - Magnetic Pickup - Mechanical Advance - HEI Style Terminal - Slip Collar - Red - Extra Tall Deck - Chevy V8 - Each
Billet Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Extra Tall w/Slip-Collar; Chevy Big Block/Small Block Engines; Iron Gear;
MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001 in.. The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines.
- Extra tall housing is designed for use with Alan Root, Donovan, Merlin and Rocket racing blocks
- Must be used with an MSD Ignition Control

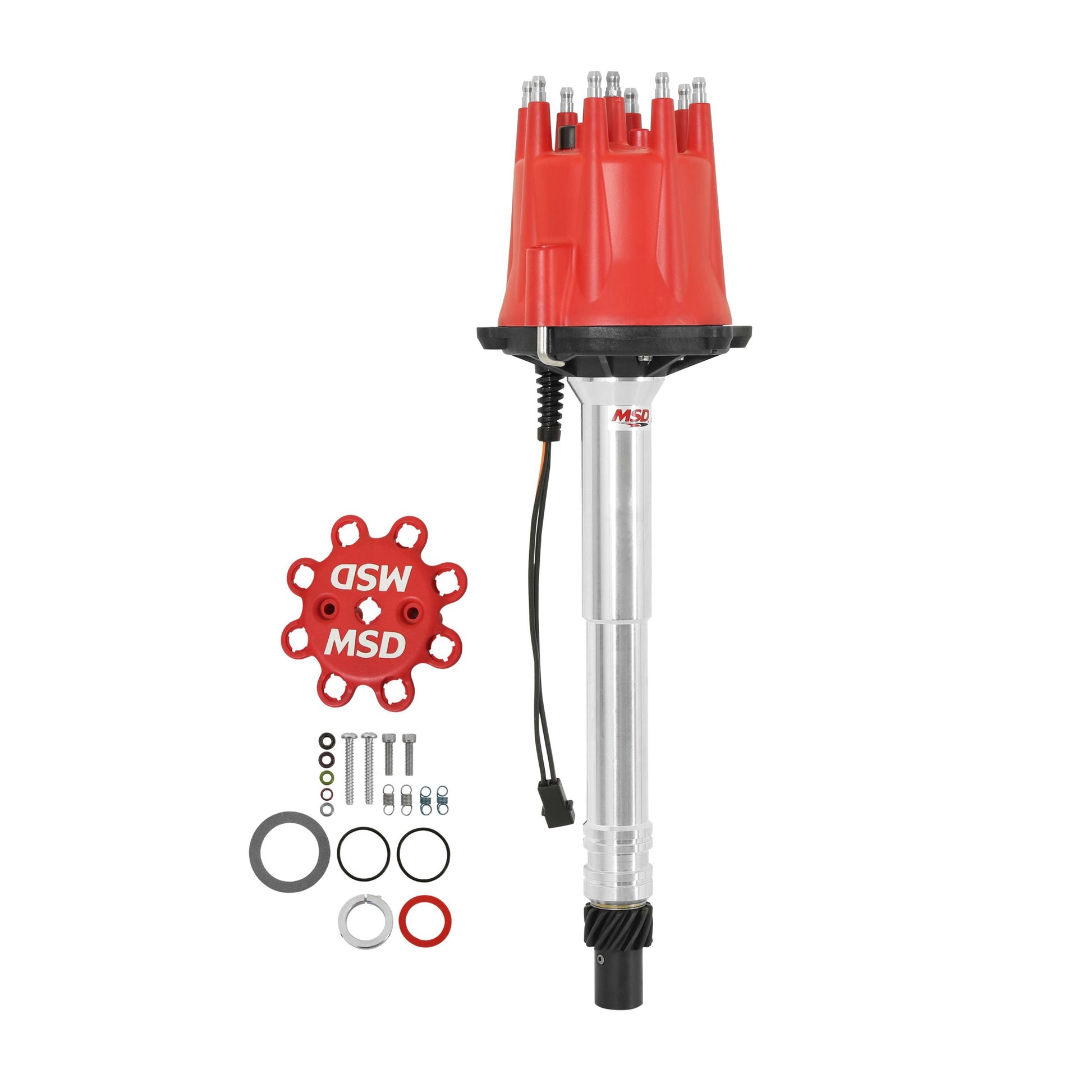

- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

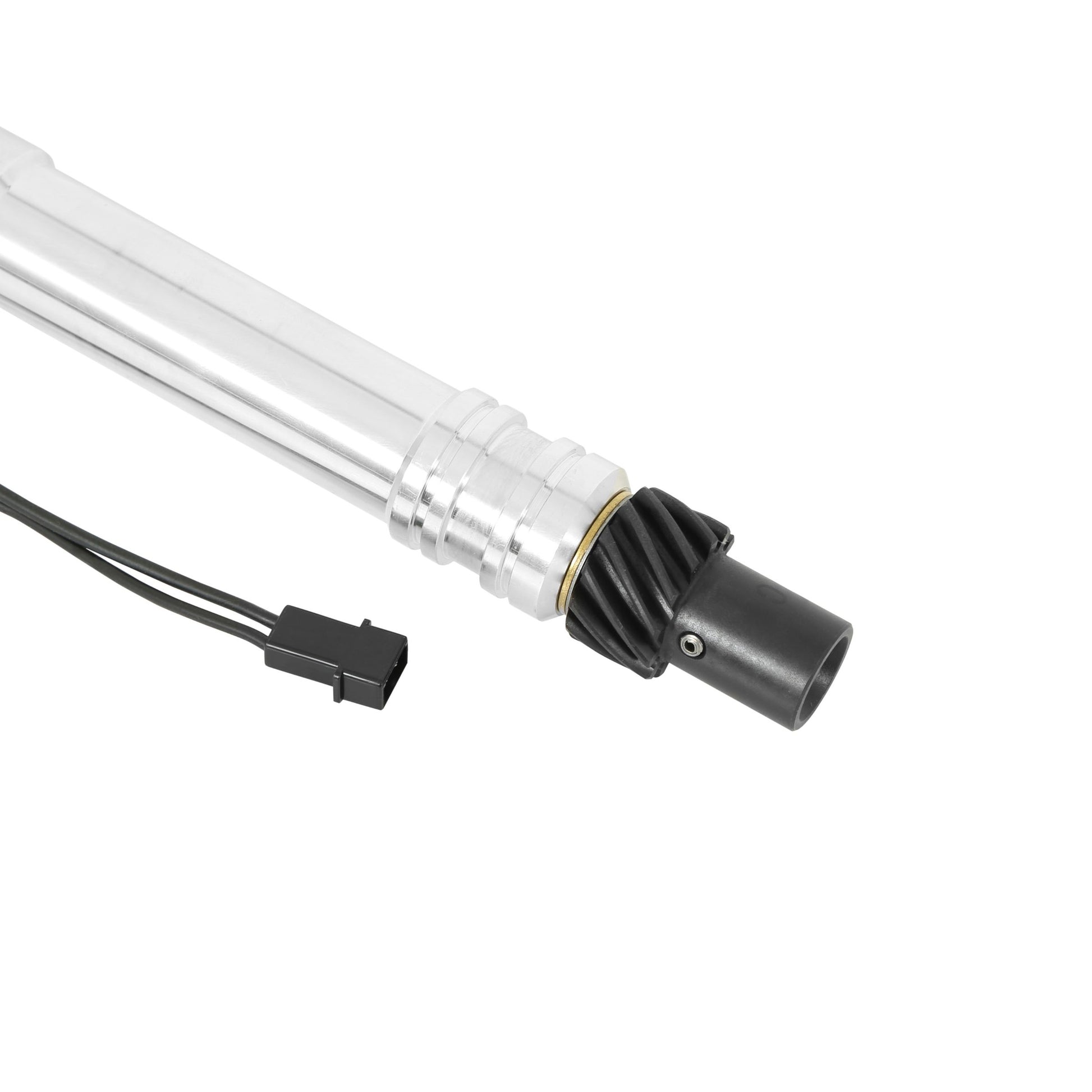

- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Adjustable slip collar mounting flange provides up to 3” of adjustment
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
