MSD 8520 - Pro-Billet™ Front Drive Distributor

MSRP: $1,293.95
$1,149.95
( saved $144.00 )
Write a Review

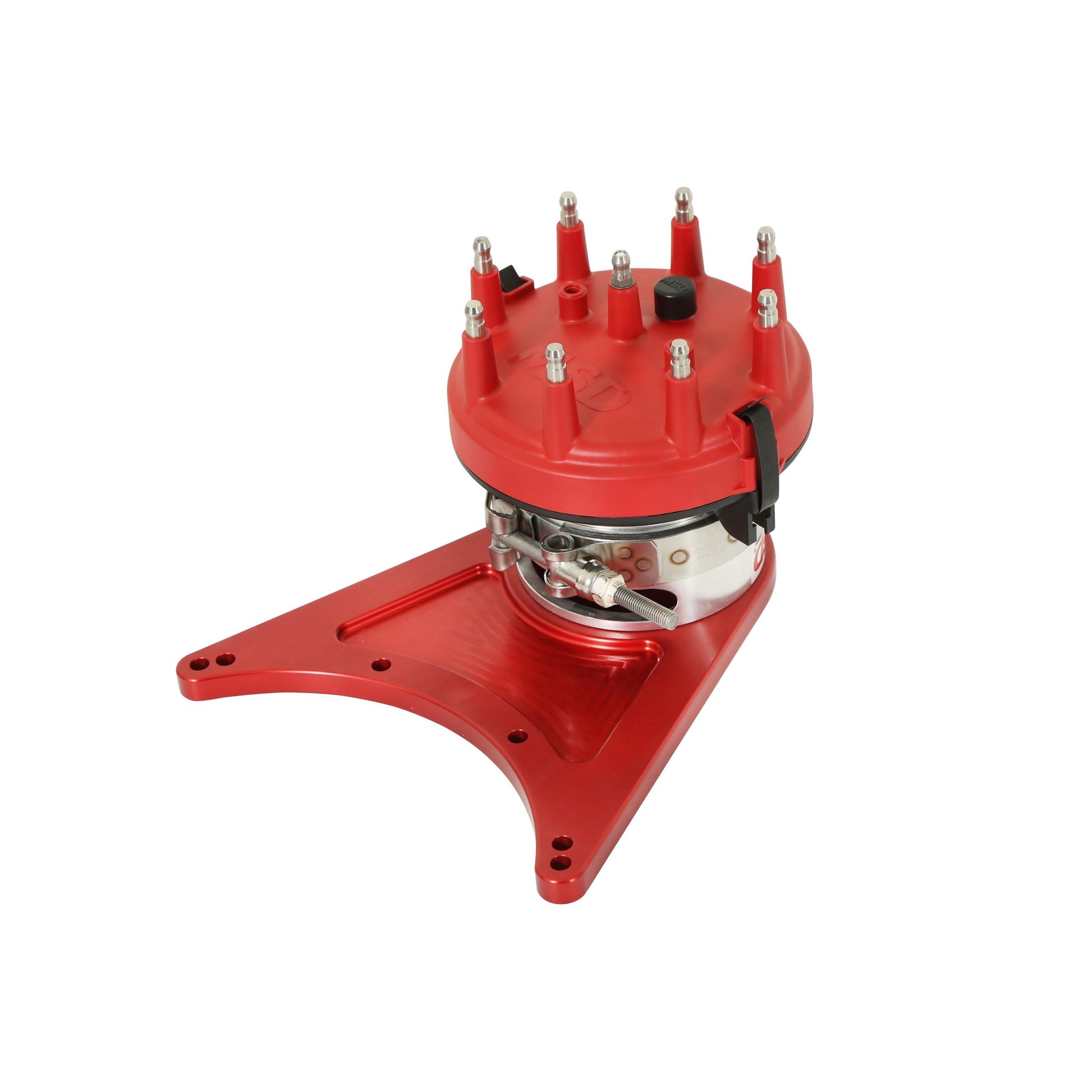

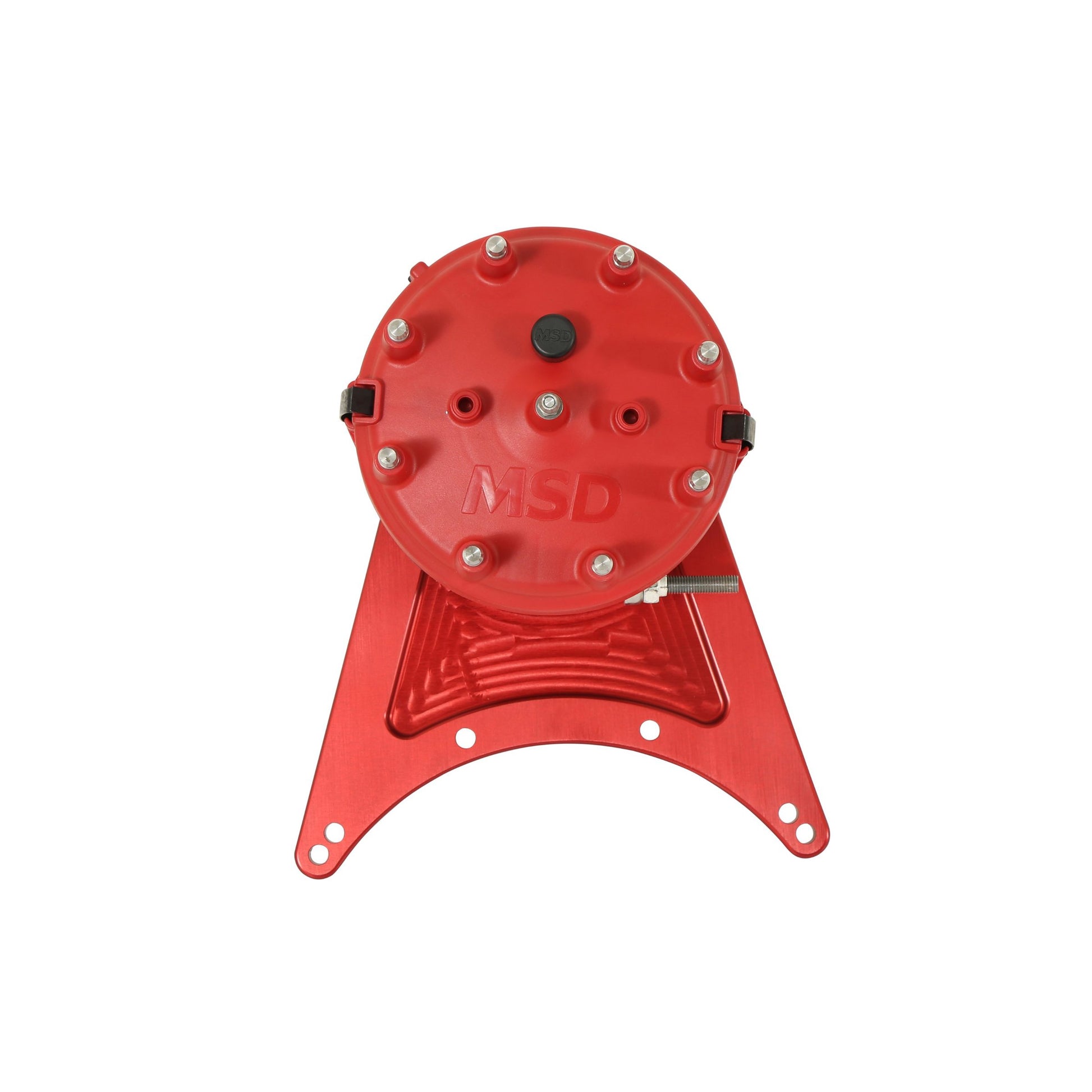

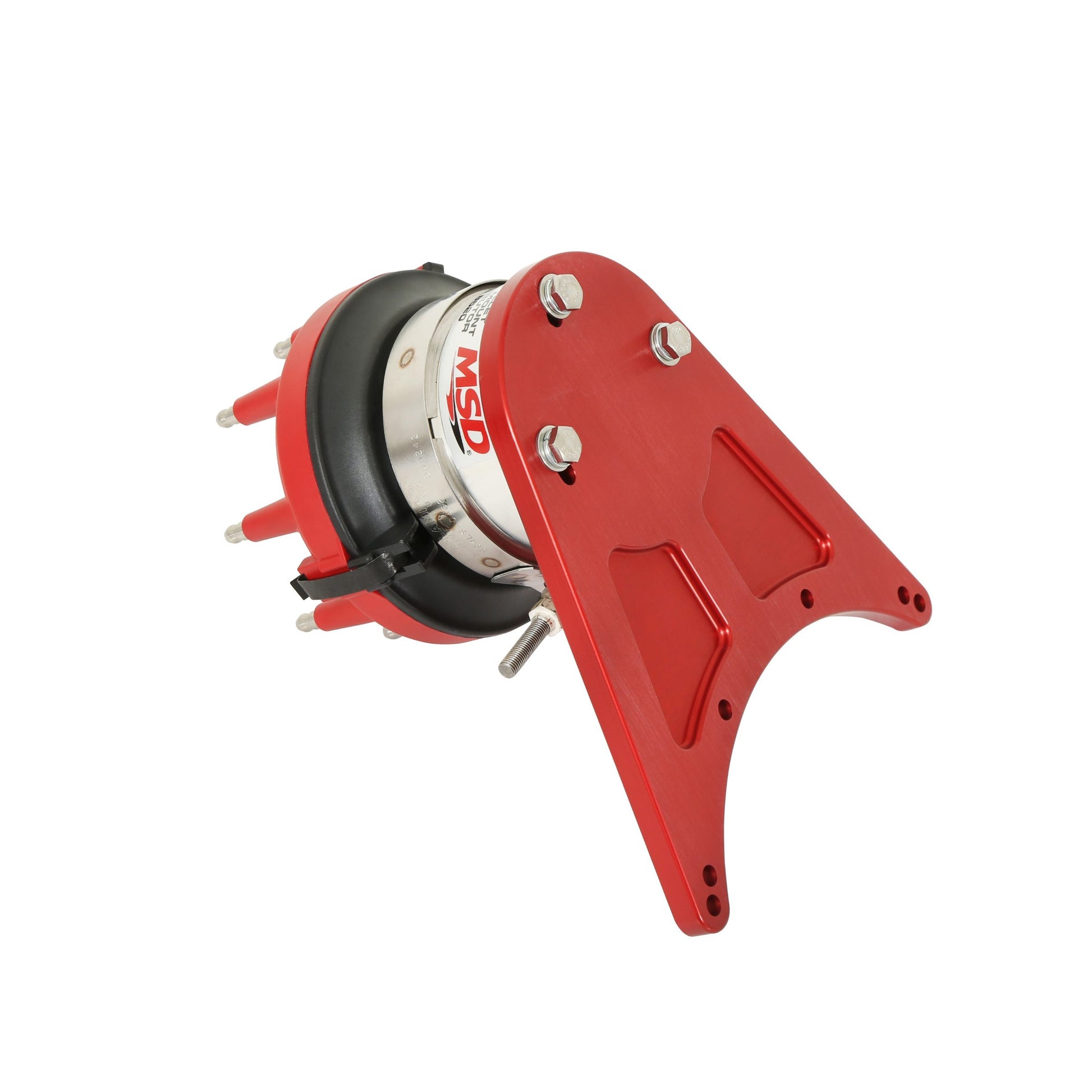

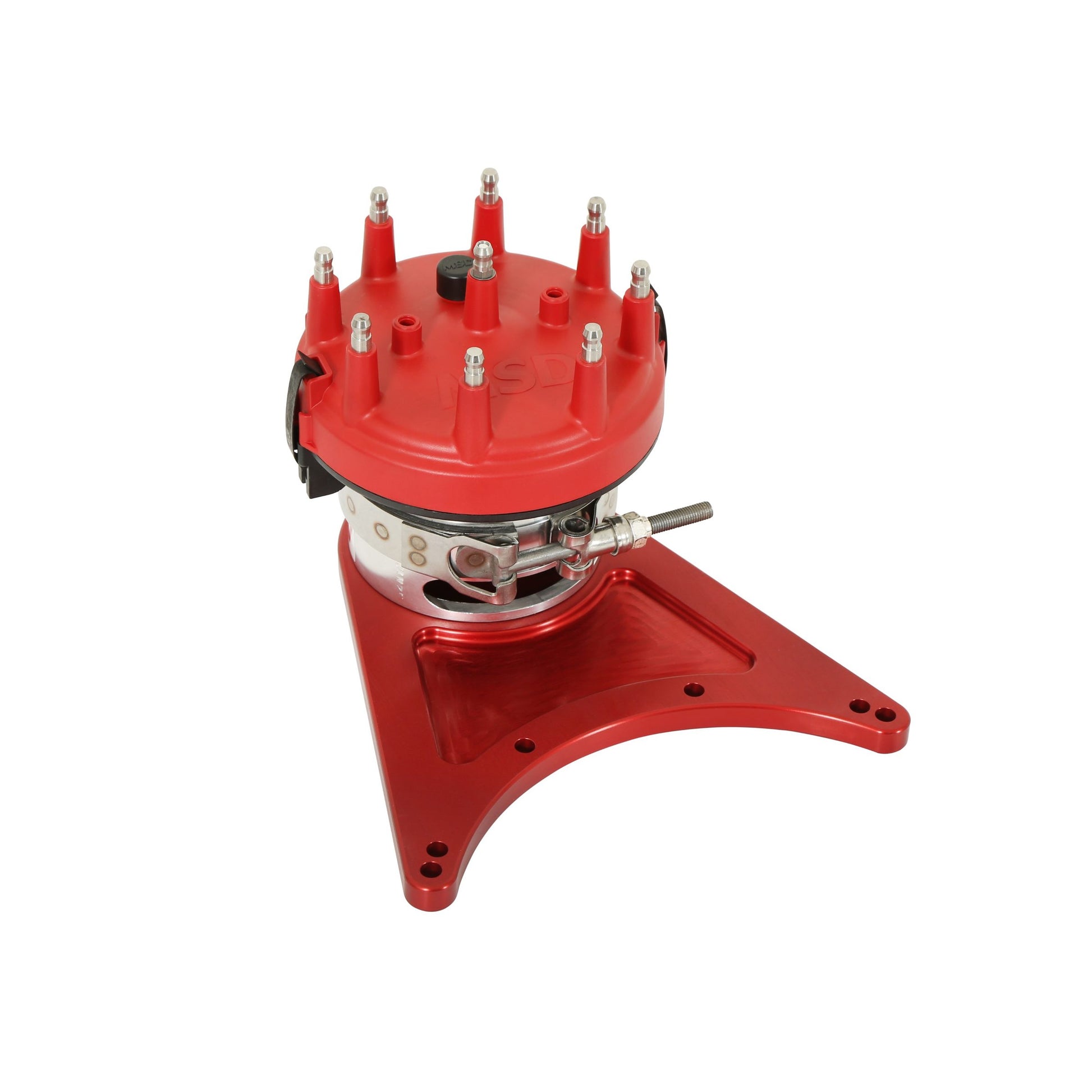

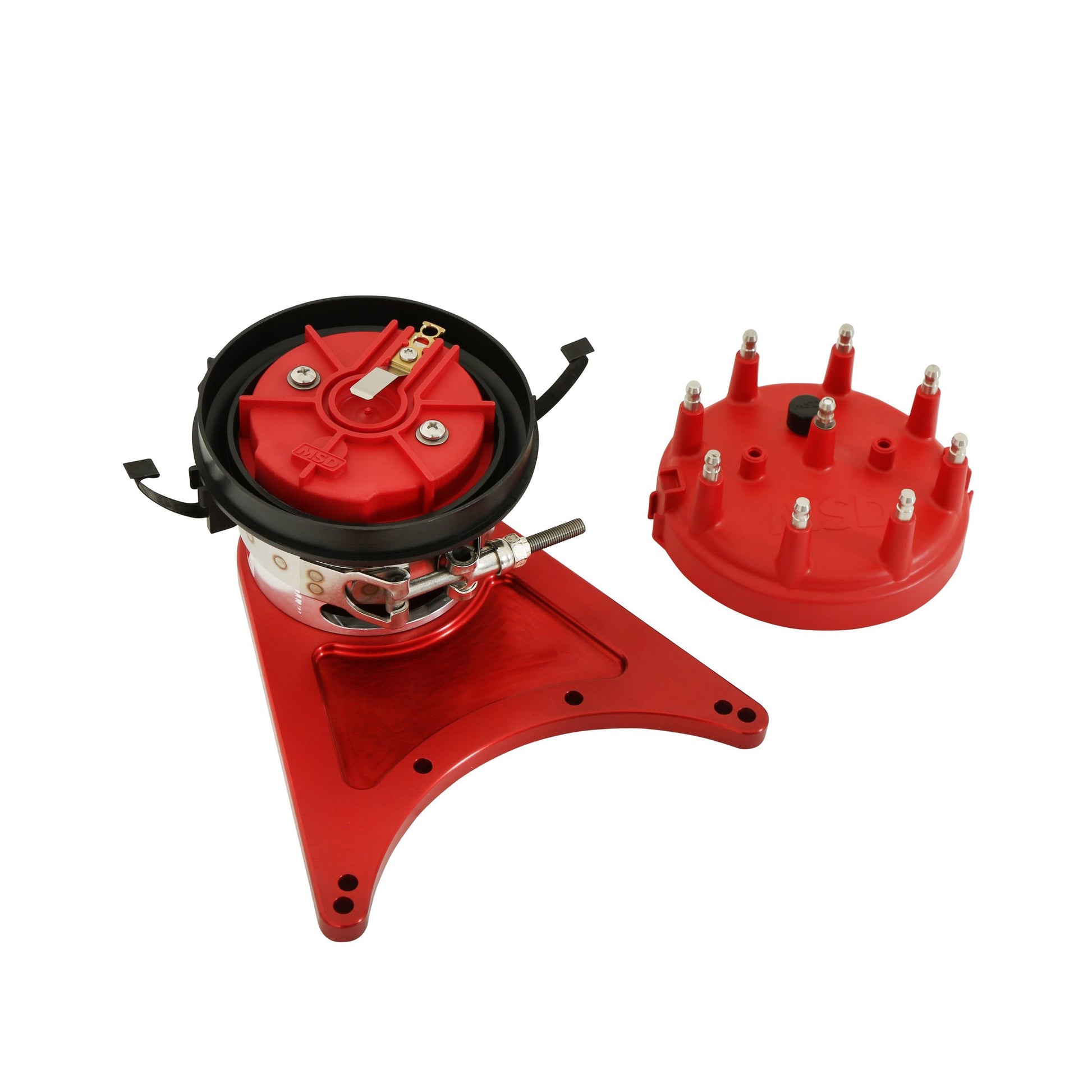

  • MSD 8520 - Pro-Billet™ Front Drive Distributor
  • MSD 8520 - Pro-Billet™ Front Drive Distributor
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Adding to cart… The item has been added
SKU:
MSD-8520
UPC:
085132085200
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

MSD - 8520

Distributor - Pro-Billet Front Drive - Magnetic Crank Trigger Pickup - Mechanical Advance - HEI Style Terminal - Red - Big Block Chevy - Each

Pro-Billet™ Front Drive Distributor; w/Standard Size Ford Style Distributor Cap/Rotor; Incl. Belt/Cam Pulley; Chevy Big Block;

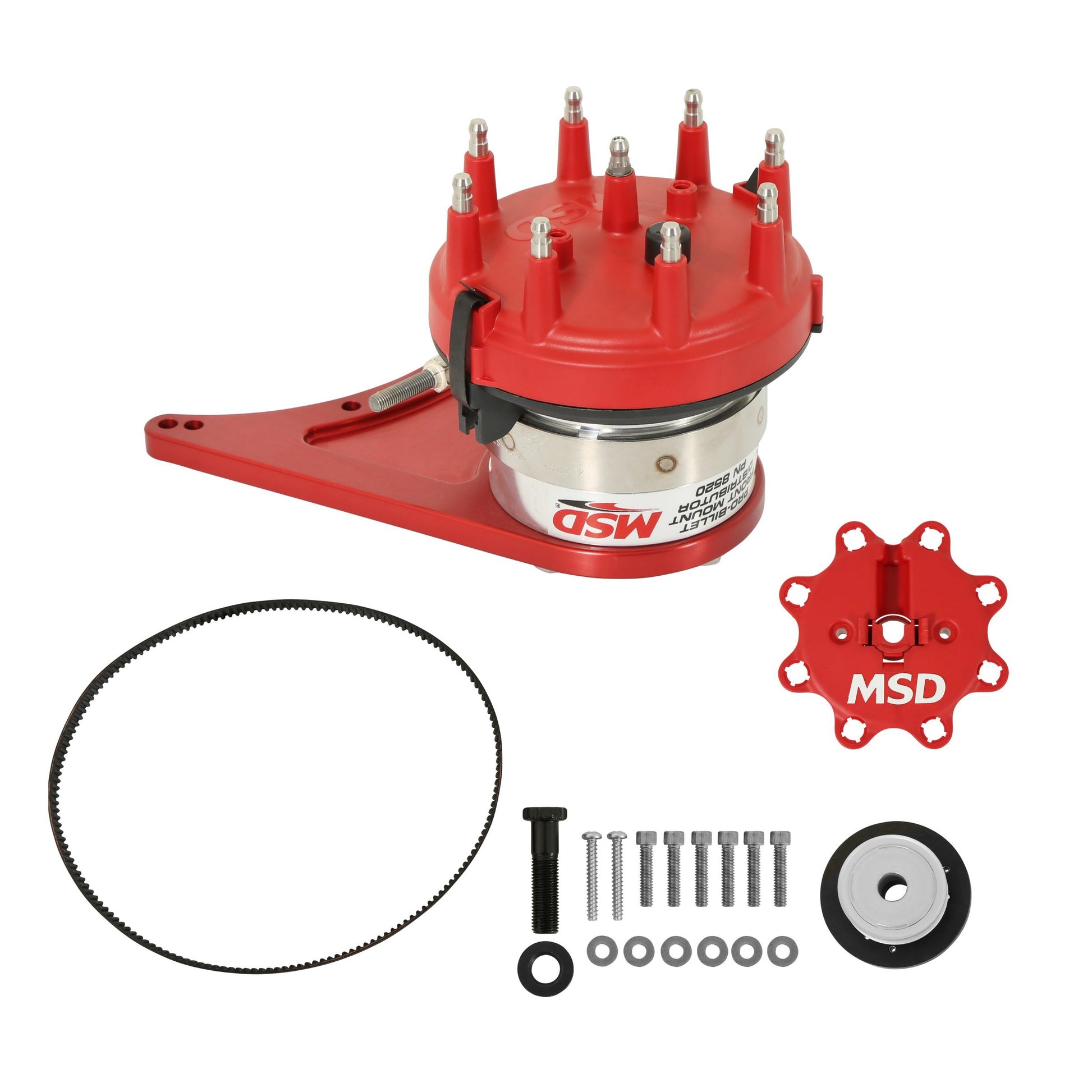

MSD's Pro-Billet front drive distributor is the solution for race engines that don't have room for a standard distributor due to firewall clearance or intake combinations. The MSD front drive distributor is belt-driven from a pulley installed on the camshaft. For increased strength and durability a 9 mm belt is used which is wider than any other drive assembly. The distributor head is CNC-machined from a billet of aluminum and is secured to a strong precision bracket. This system is an extremely accurate way to distribute the spark energy from your MSD Ignition! We revised the front drive with our standard ford-style cap and rotor. This creates a downsized package for an easier fit in tight engine compartments. The front drive distributor is supplied with mounting bolts, cam pulley and drive belt. Note: must be used with a jewel or Comp Cams camshaft belt drive kit and an MSD flying magnet crank trigger.

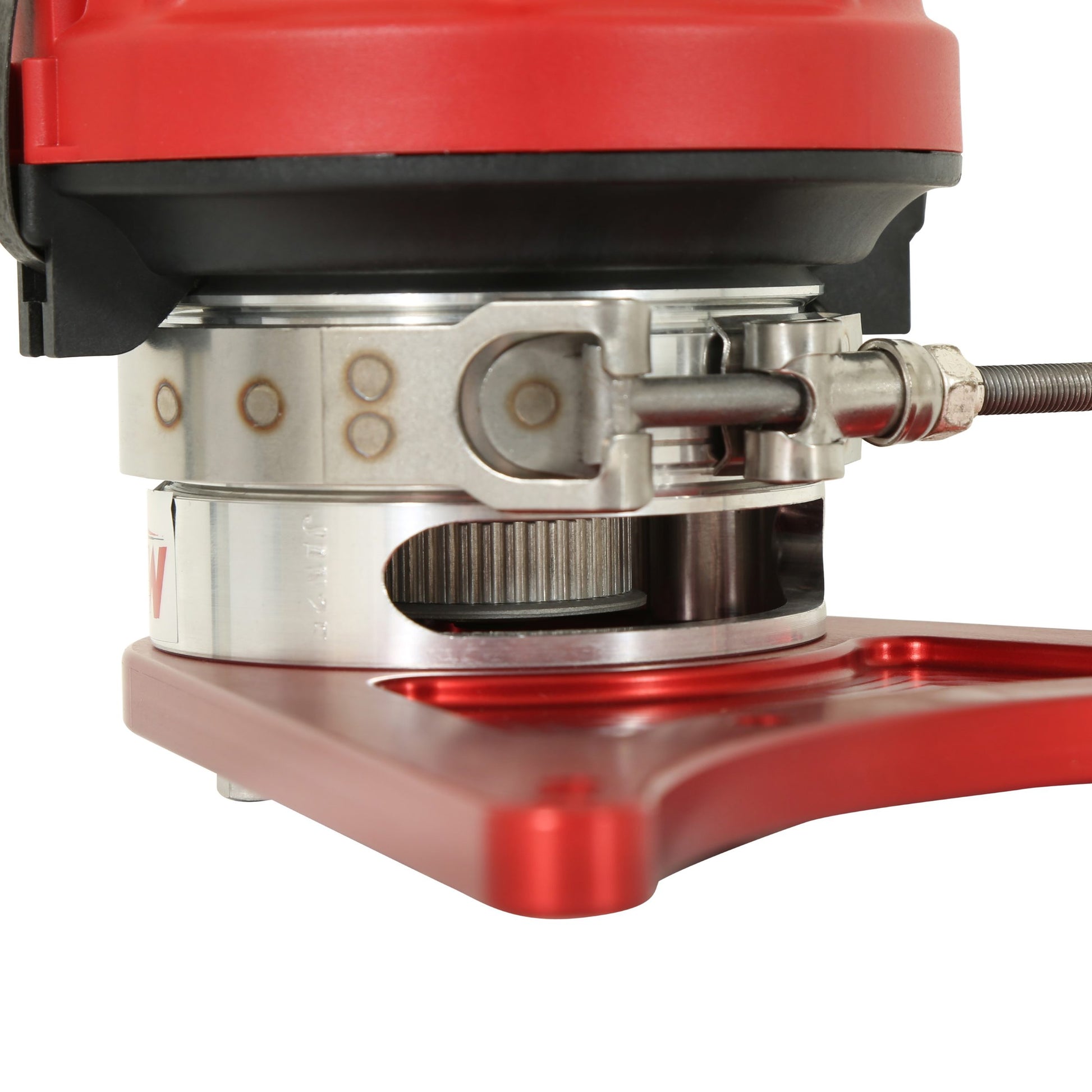

  • Band clamp mount allows easy rotor phasing adjustment
  • The Only Front Drive Distributor w/Adjustable Belt Tension
  • Cap and Rotor are injection molded from DuPont Rynite material
  • Billet aluminum bracket and lower housing for strength
  • Supplied w/Cam Gear; Hardware And Extra Wide 9mm Belt

Brand: MSD
Category: Ignition
Color: Red
Distributor Type: Crank Trigger
Emission Code: 4
part type: Distributor
Product Type: Distributor
Qty: 1
Sub Category: Distributor and Magneto
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
