MSD

MSD 83603 - Black Chevy V8 w/Internal Module Distributor

MSRP: $618.95
$549.95
( saved $69.00 )
Write a Review

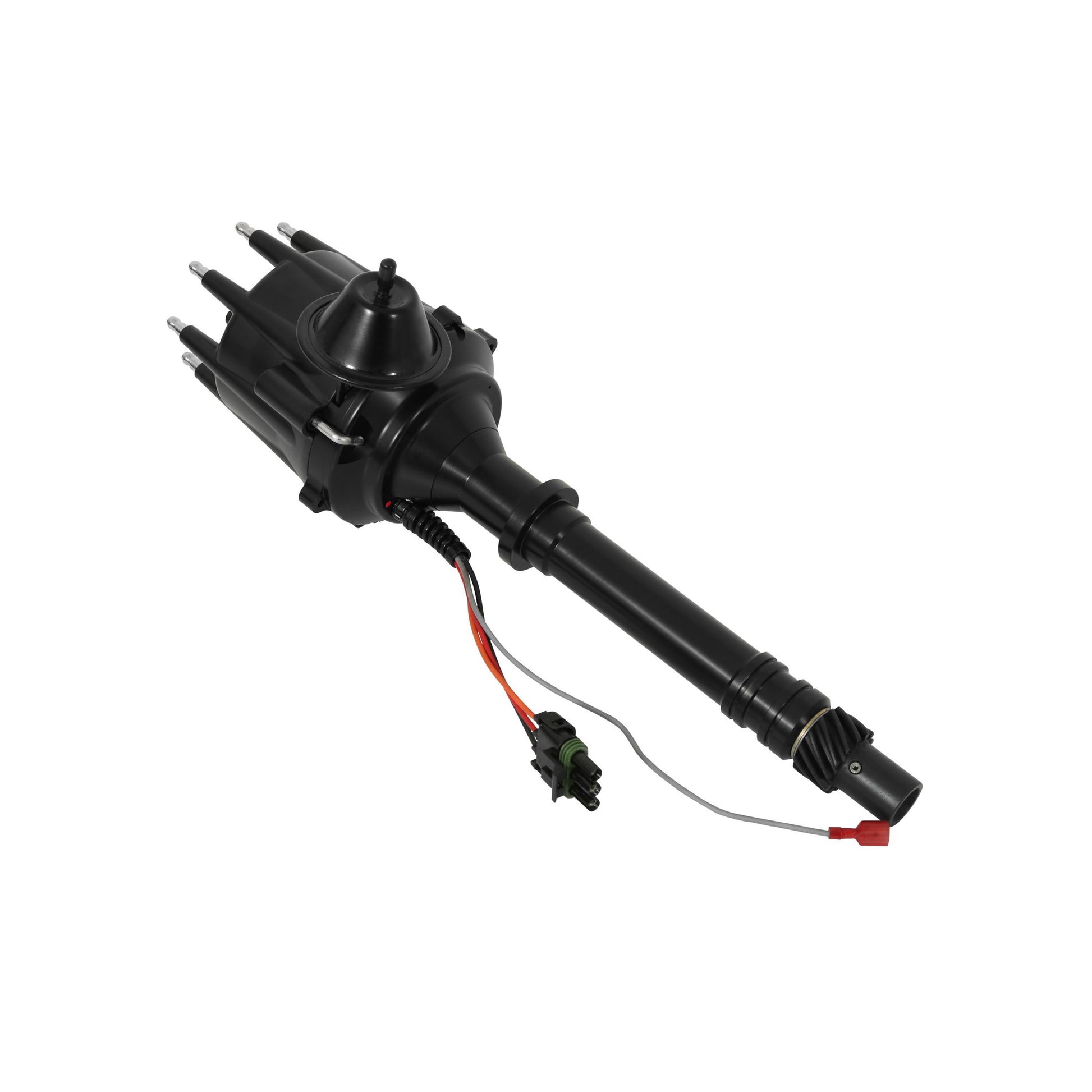

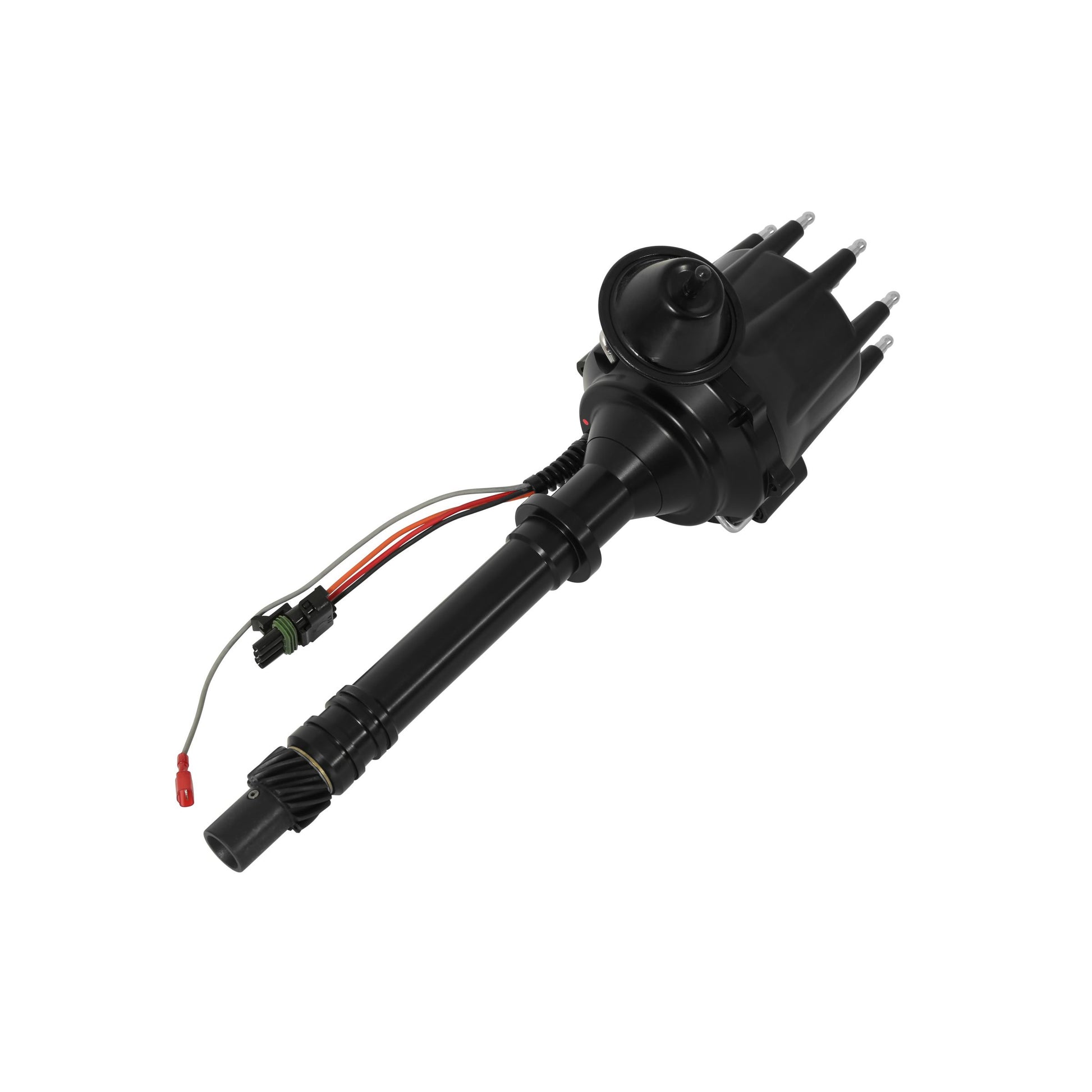

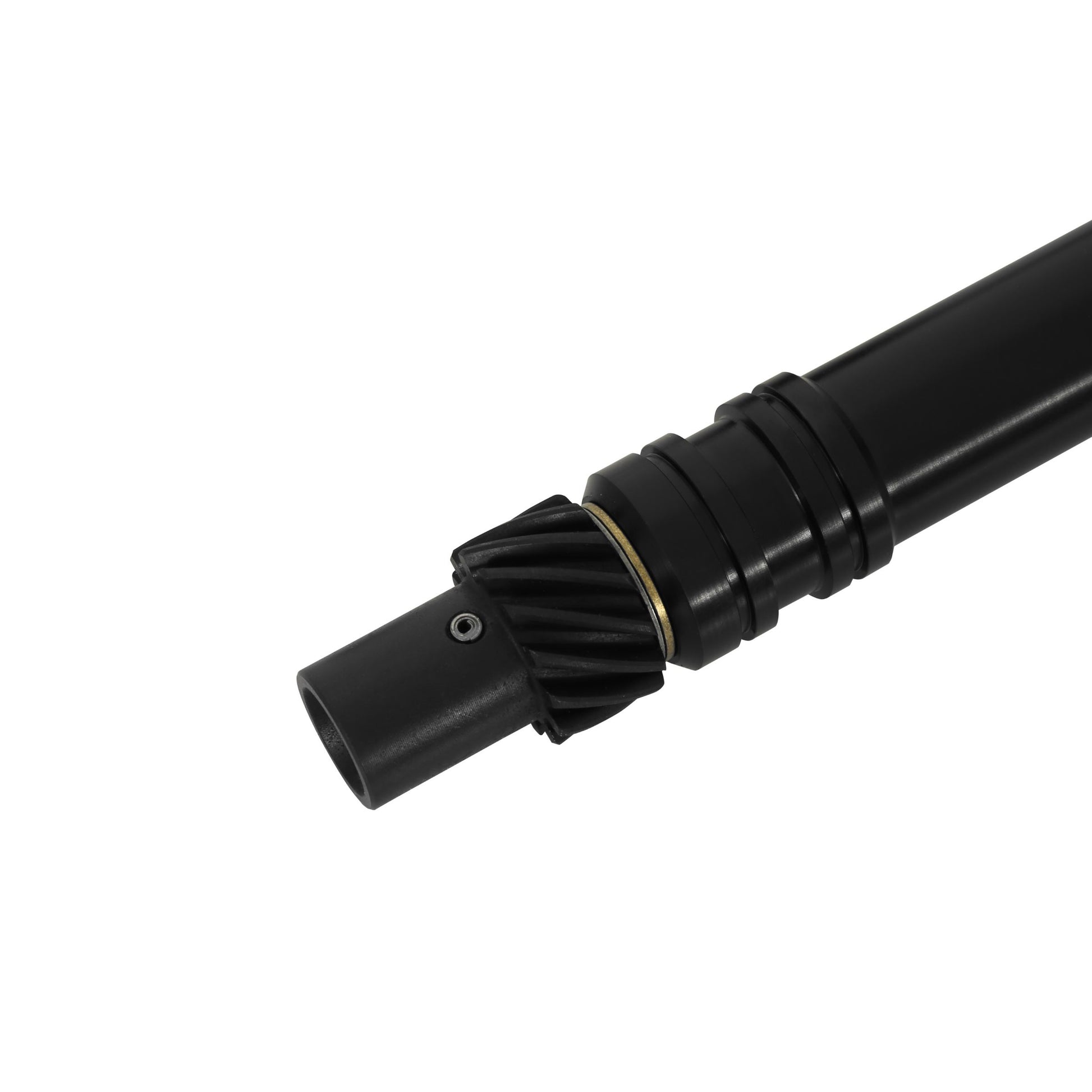

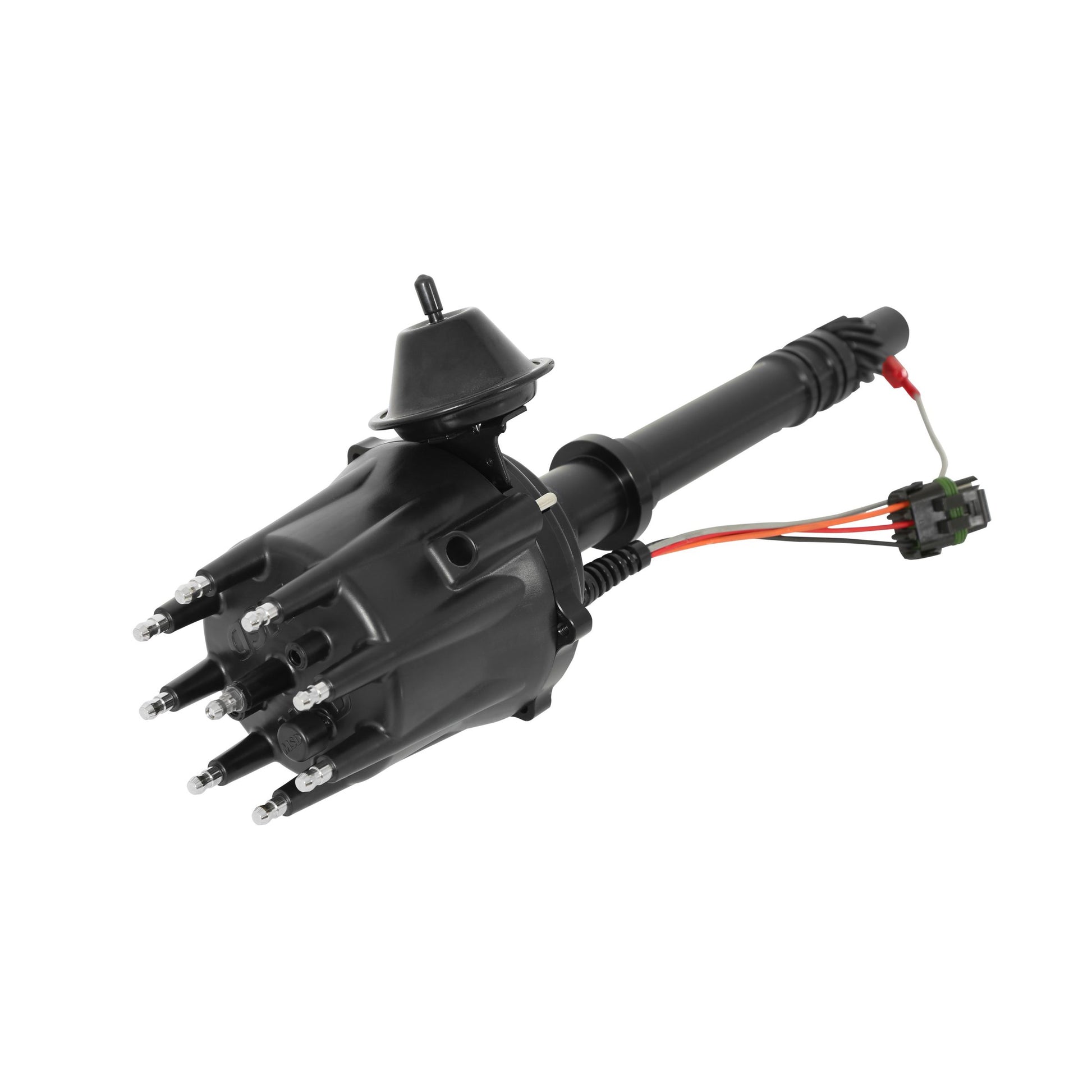

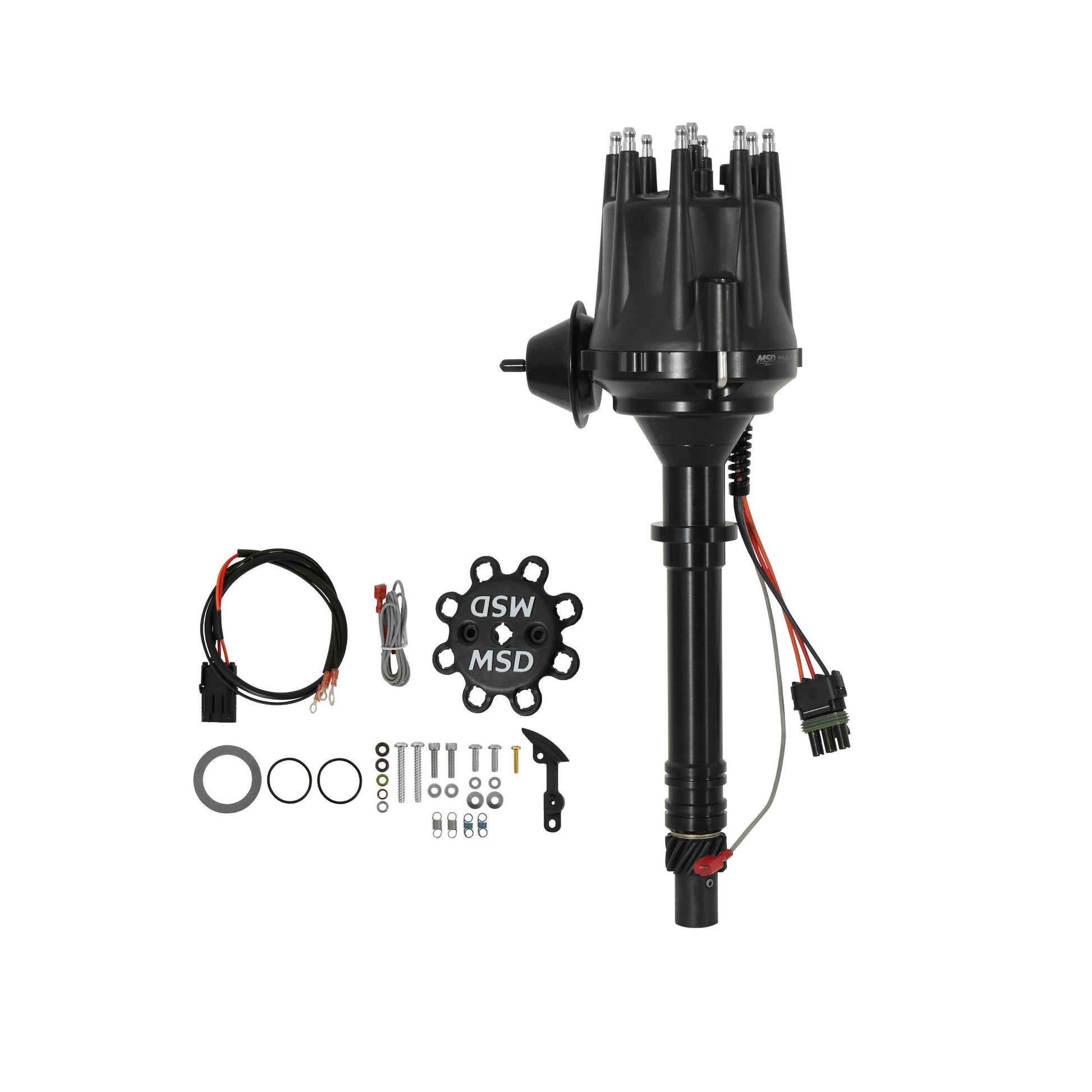

MSD 83603 - Black Chevy V8 w/Internal Module Distributor
  • MSD 83603 - Black Chevy V8 w/Internal Module Distributor
  • MSD 83603 - Black Chevy V8 w/Internal Module Distributor
    • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Verify fitment with your vehicle
GO
Clear
Adding to cart… The item has been added
SKU:
MSD-83603
UPC:
085132836031

  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

MSD - 83603

Distributor - Pro-Billet - Ready-To-Run - Magnetic Pickup - Vacuum Advance - HEI Style Terminal - Black - Chevy V8 - Each

Black Ready-to-run distributors include a built-in ignition module-no MSD Ignition control required.

This Black Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up! A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engines idle, improve starting and provide a much higher rpm range. The Ready-to-Run features MSDs adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engines needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice. Includes a separate tach circuit that is ideal to trigger an aftermarket EFI such as an Atomic EFI system.

  • Simple and clean installation with only three wires to connect
  • Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
  • Does not require an MSD Ignition Control
  • CARB E.O. Approved
  • Now includes build-in rev limiter!
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Nylon pads ensure smooth operation of the advance weights
  • Powerful built-in module produces a 7.5 amp single spark through high rpm
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Vacuum advance canister for improved economy (can be locked out)
  • CNC machined billet aluminum housing and billet aluminum base
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate

Advance Type: Mechanical and Vacuum
Brand: MSD
C.A.R.B. EO #: D-40-39
Cap Color: Black
Category: Ignition
Color: Black Anodized
Distributor Cap Included: Yes
Distributor Gear Included: Yes
Distributor Type: Ready To Run
Emission Code: 1
Engine: Chevy Small and Big Block
Engine Make: Chevrolet
Grade Type: Performance
Housing Color: Black
Housing Finish: Anodized
Housing Material: Aluminum
Ignition Box Required: No
Ignition Coil Included: No
Ignition Module Included: Yes
Ignition Rotor Included: Yes
Make: Chevrolet
part type: Distributor
Product Type: Distributor
Sub Category: Distributor and Magneto
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty

Currently displaying 1000 fitments, yet the product has additional fitments.
Year
Make
Model
Submodel
Engine
1978 - 1980
Chevrolet
C10
Big Ten
5.0L
1978 - 1980
Chevrolet
C10
Big Ten
5.7L
1980
Chevrolet
C10
Big Ten
6.6L
1978 - 1980
Chevrolet
C10
Big Ten
7.4L
1977 - 1981
Chevrolet
C10
Cheyenne
5.0L
1975 - 1981
Chevrolet
C10
Cheyenne
5.7L
1976 - 1980
Chevrolet
C10
Cheyenne
6.6L
1975 - 1980
Chevrolet
C10
Cheyenne
7.4L
1981 - 1986
Chevrolet
C10
Custom
5.0L
1976 - 1986
Chevrolet
C10
Custom
5.7L
1977 - 1980
Chevrolet
C10
Custom Deluxe
5.0L
1975 - 1980
Chevrolet
C10
Custom Deluxe
5.7L
1976 - 1980
Chevrolet
C10
Custom Deluxe
6.6L
1975 - 1980
Chevrolet
C10
Custom Deluxe
7.4L
1981
Chevrolet
C10
Deluxe
5.0L
1981
Chevrolet
C10
Deluxe
5.7L
1977 - 1986
Chevrolet
C10
Scottsdale
5.0L
1975 - 1986
Chevrolet
C10
Scottsdale
5.7L
1976 - 1980
Chevrolet
C10
Scottsdale
6.6L
1975 - 1980
Chevrolet
C10
Scottsdale
7.4L
