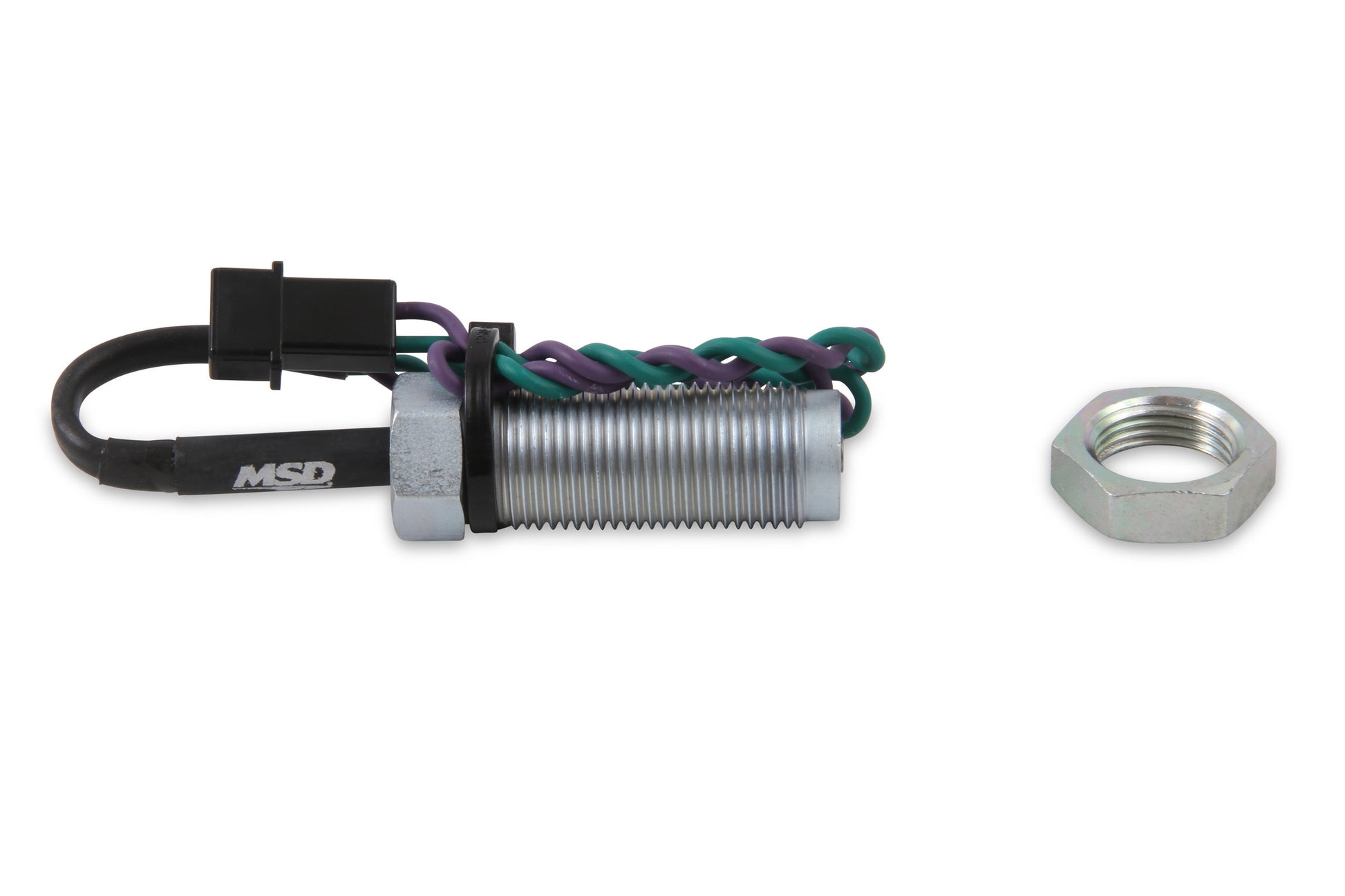

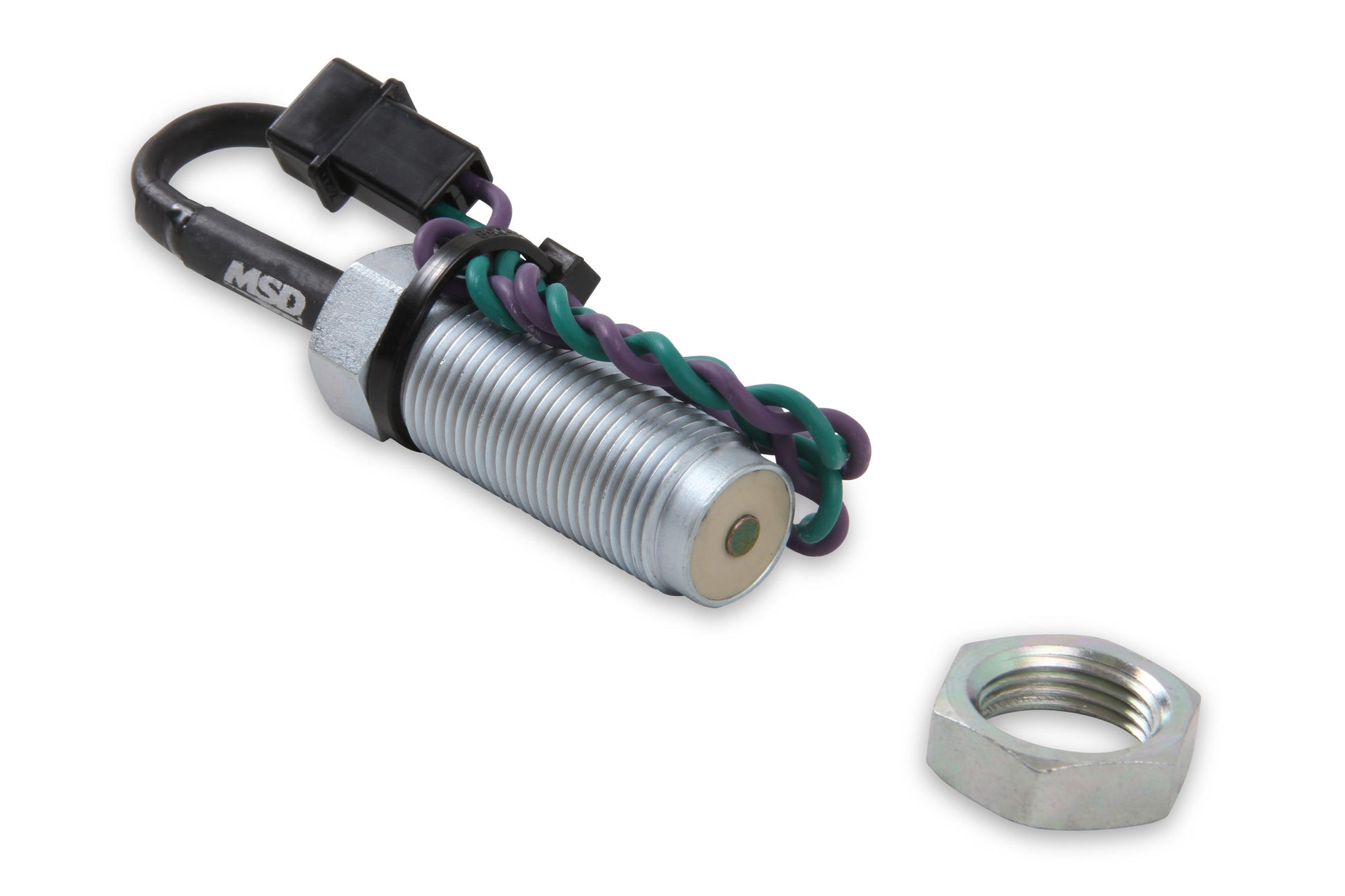

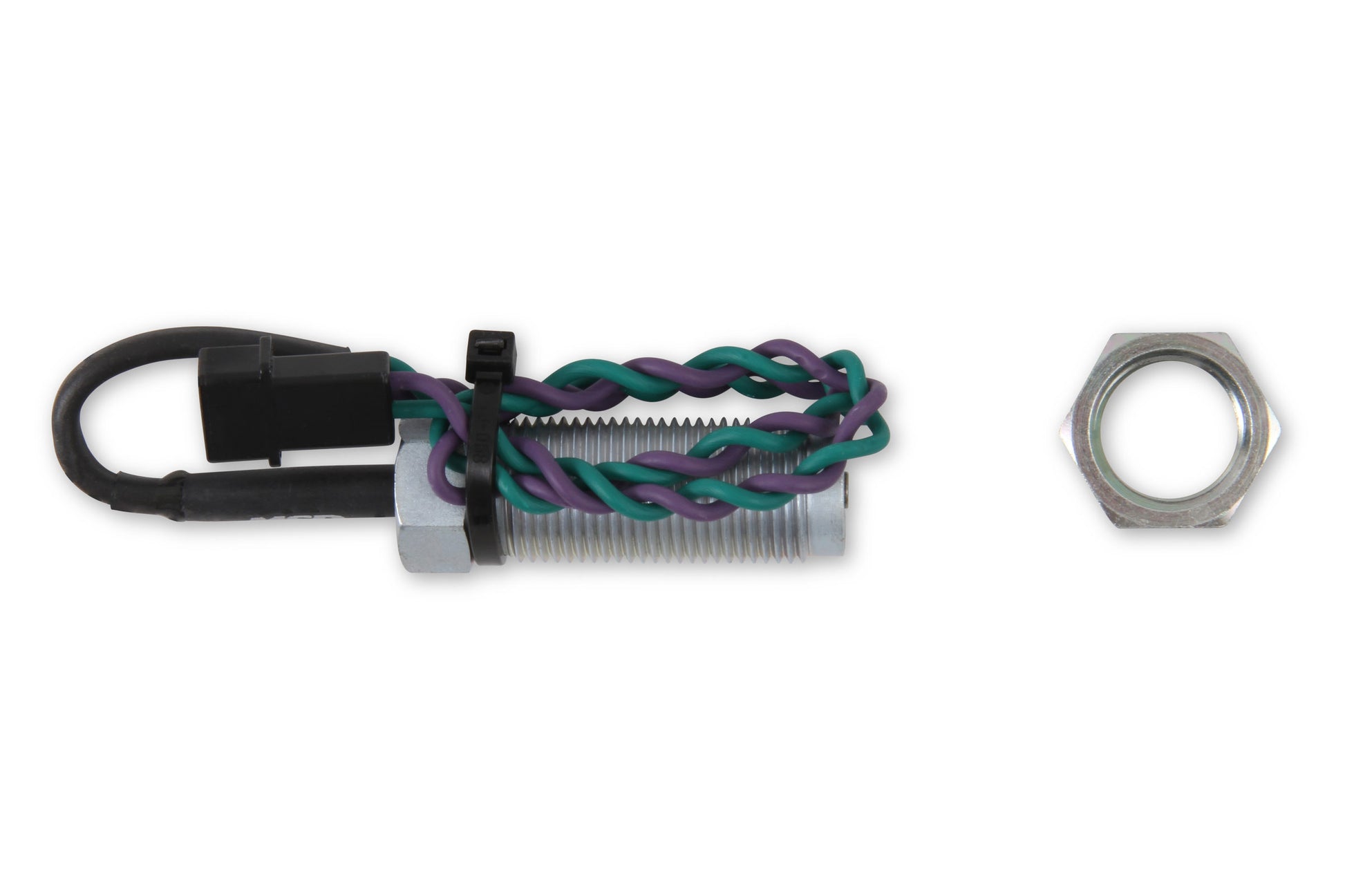

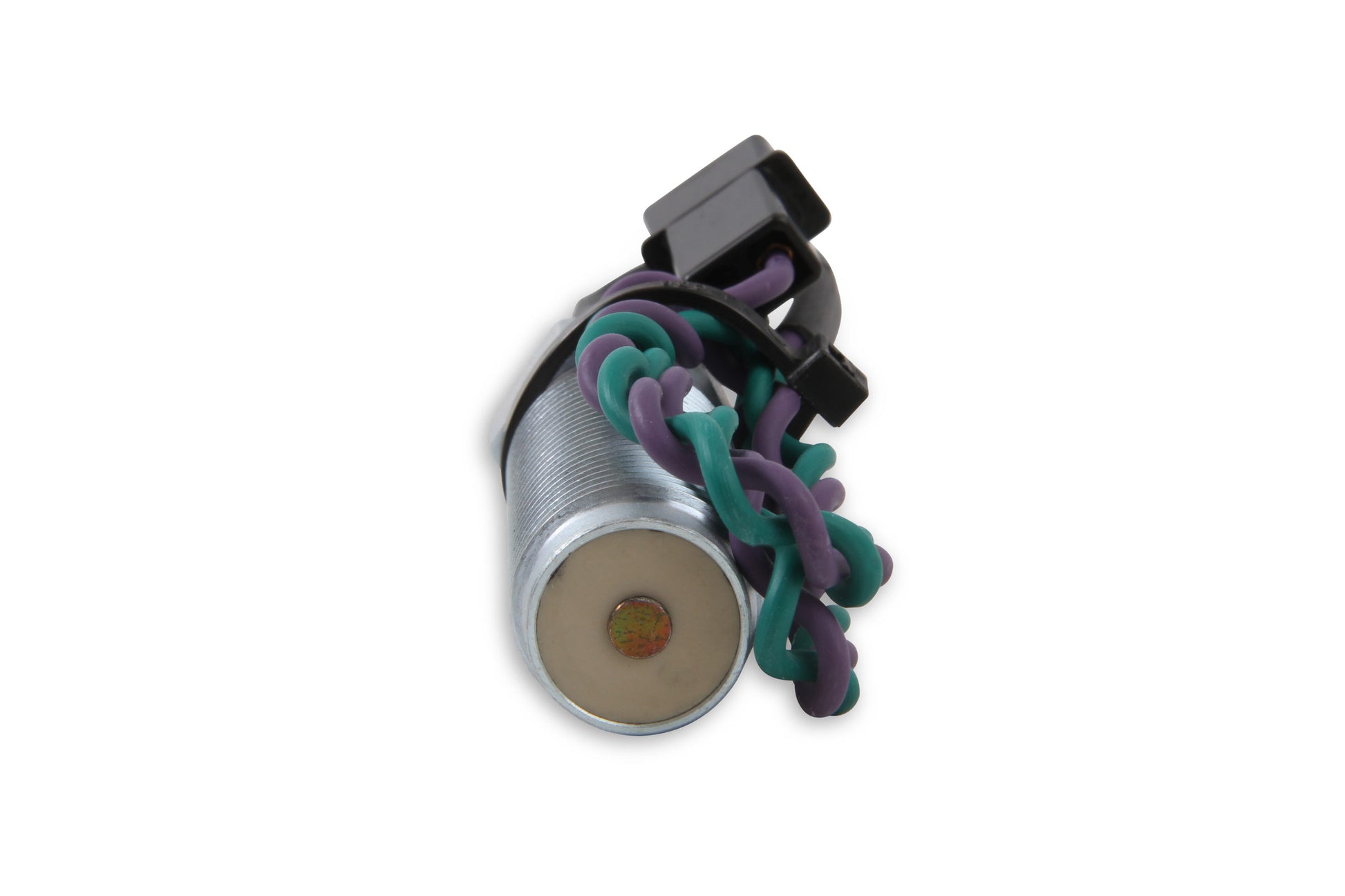

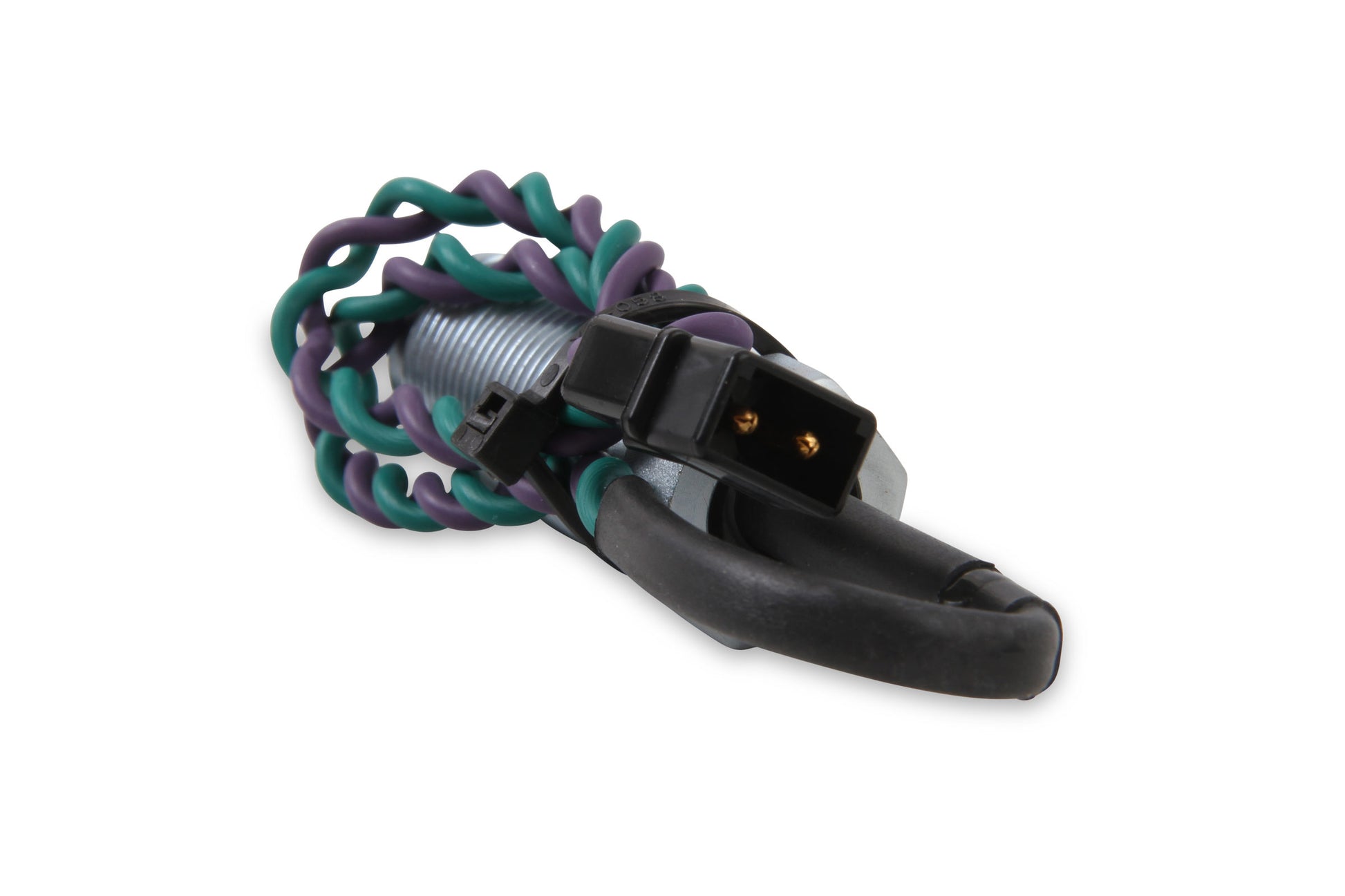

MSD 8276 - Non-Magnetic Pickup Assembly

MSD 8276 - Non-Magnetic Pickup Assembly

Crank Trigger Pickup - Non-Magnetic - 3/4-16 in Thread - 2.25 in Long - 6 in Long Harness - Each

6" Harness - Replacement - Use with MSD Flying Magnet Crank Trigger Kits

MSD's non-magnetic pick-ups are engineered for extreme applications. In fact, this pick-up was designed and tested on 300+ mph top fuel dragsters. To live up to MSD's demanding expectations in these extreme applications, we took it upon ourselves to design and build the pick-ups in-house. This way we can control every aspect of their assembly and quality. Each pick-up is hand wound on a special bobbin and terminated to our tinned conductor, Teflon jacketed wiring. These wires are also routed through a strain relief for protection. This assembly is then installed into the precision housing and is potted with a fracture resistant epoxy compound. To ensure that the windings are entirely encased in epoxy, the pick-ups undergo a vacuum procedure to remove any air inside the housing. All of these procedures are necessary to produce the strongest, most reliable non-magnetic pick-up available.

• Replacement Pick-up
