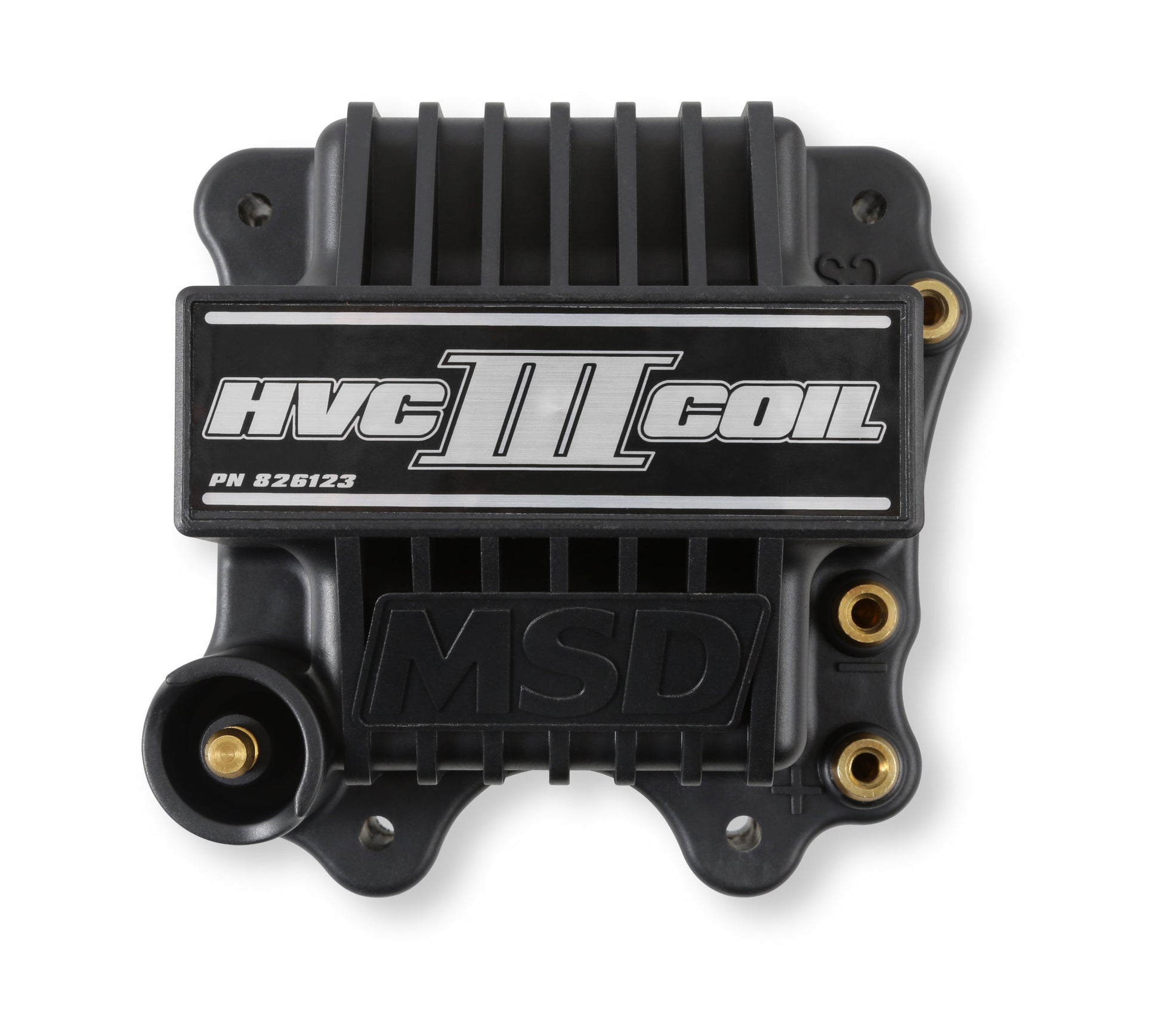

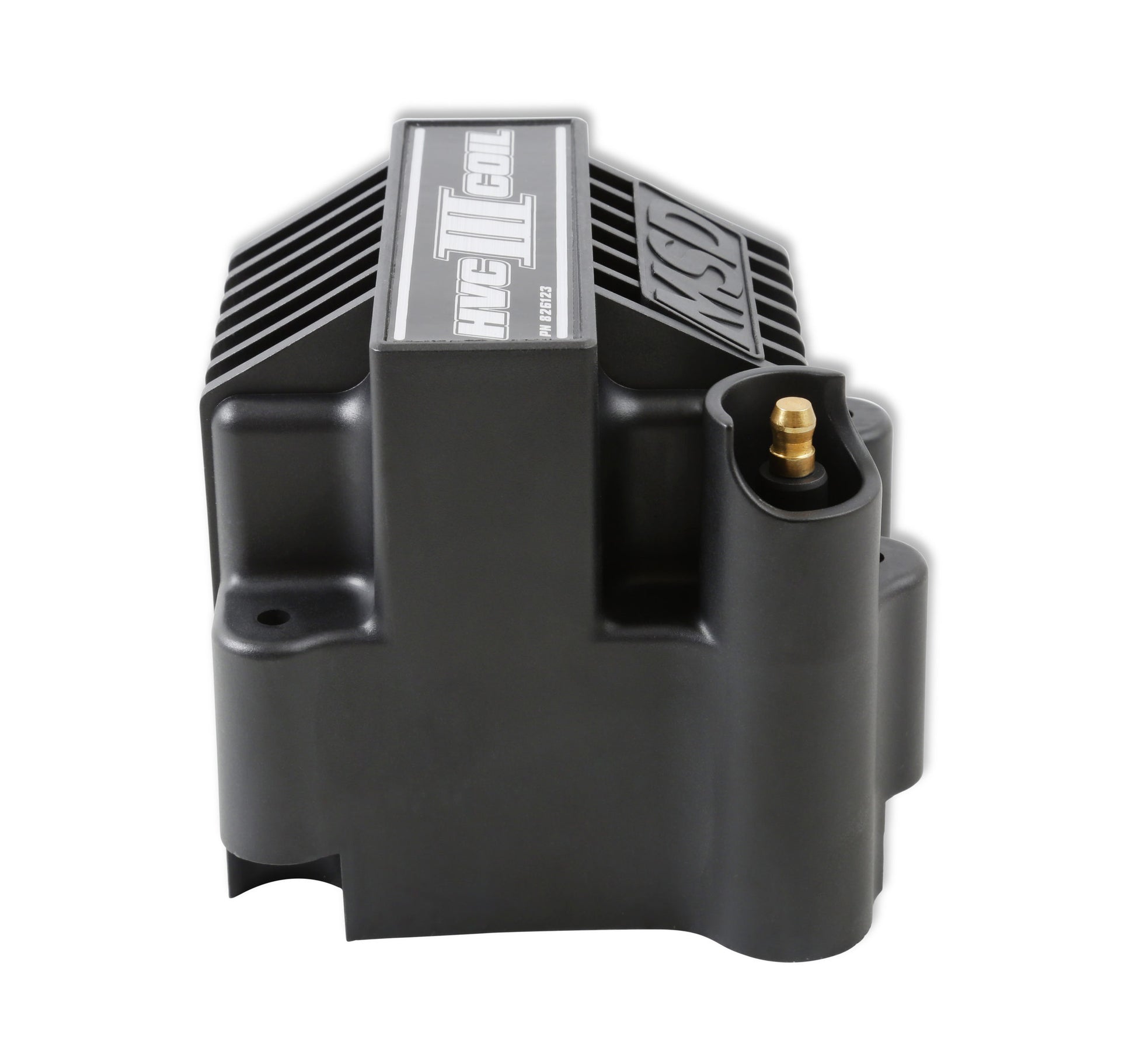

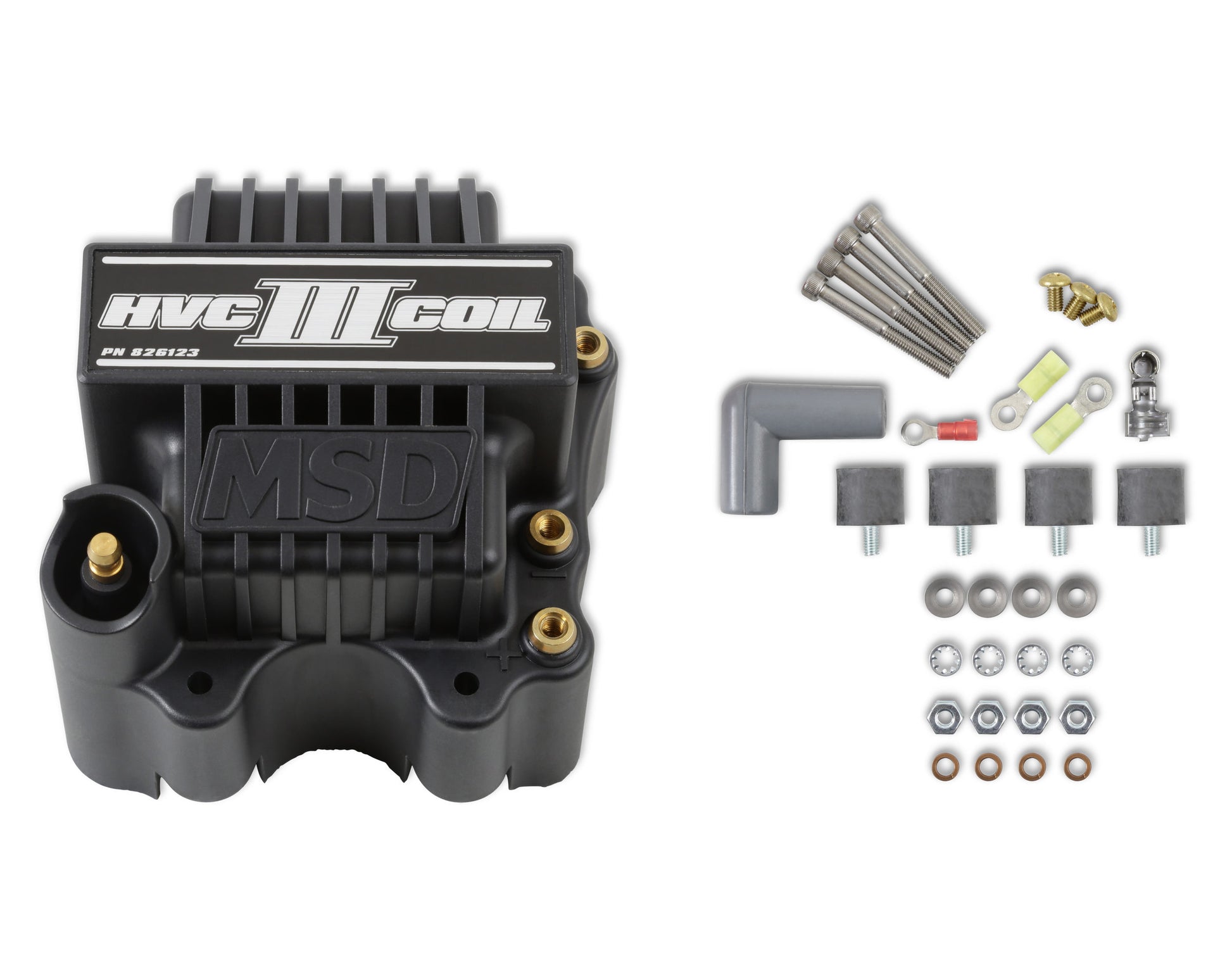

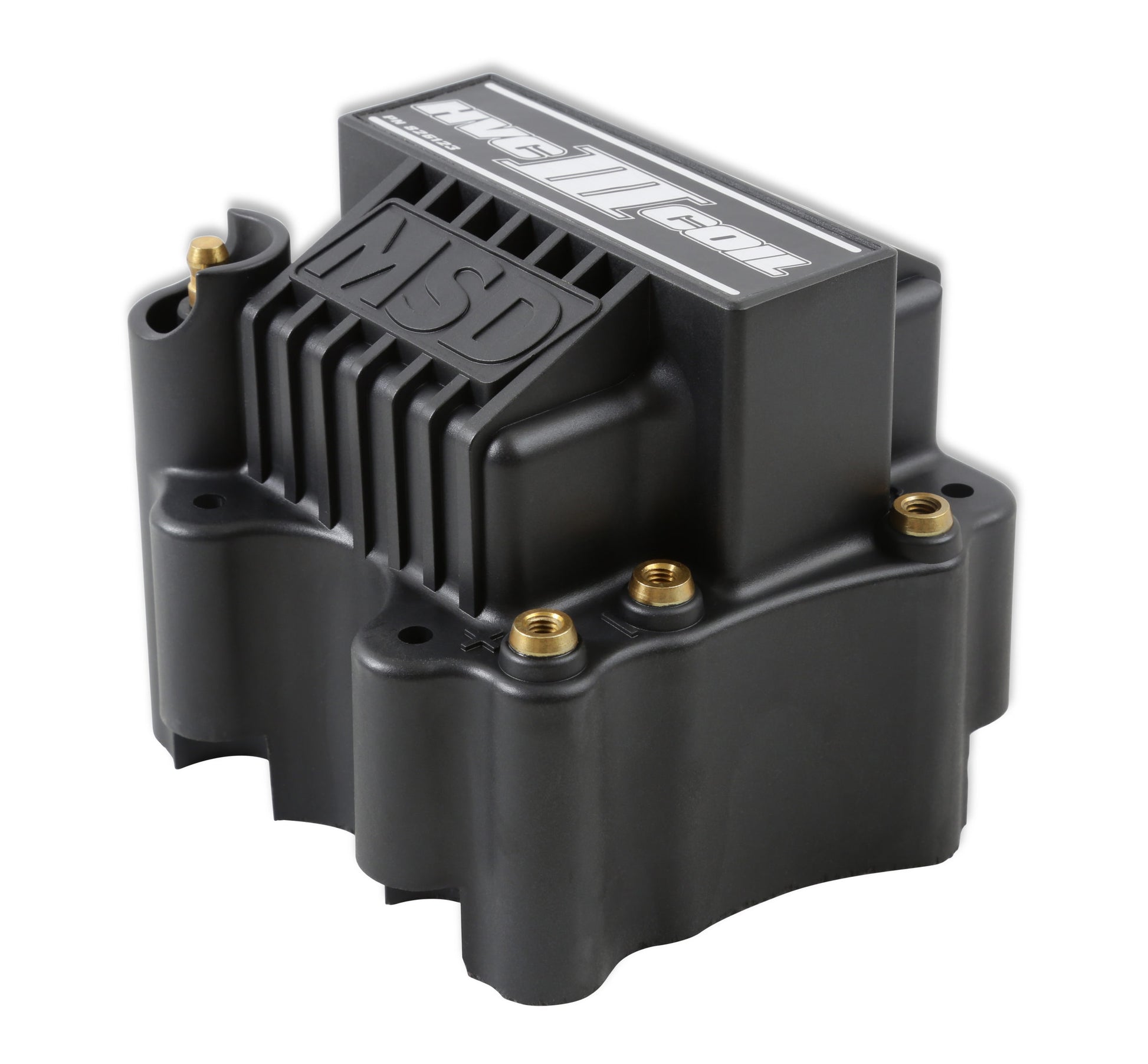

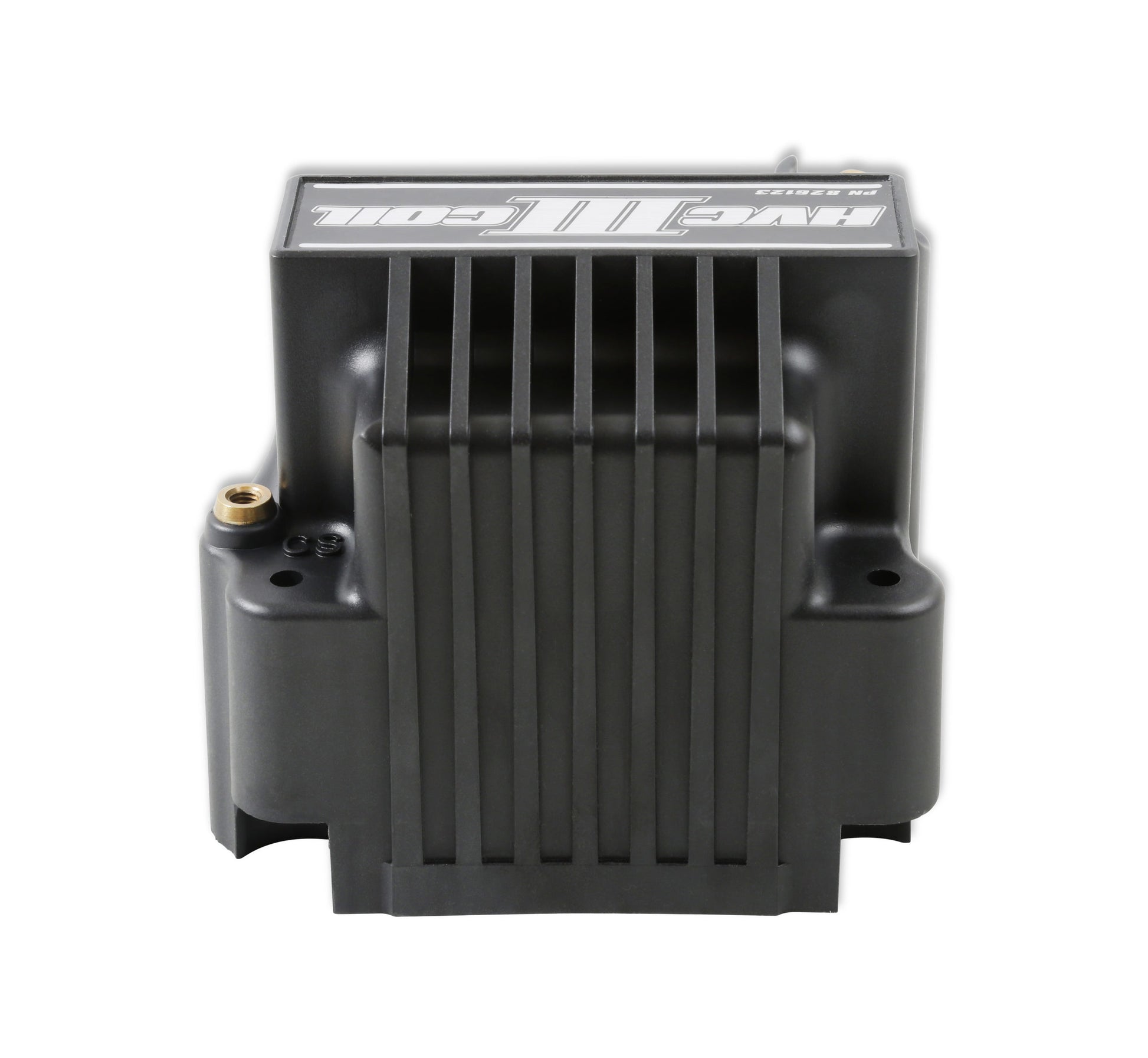

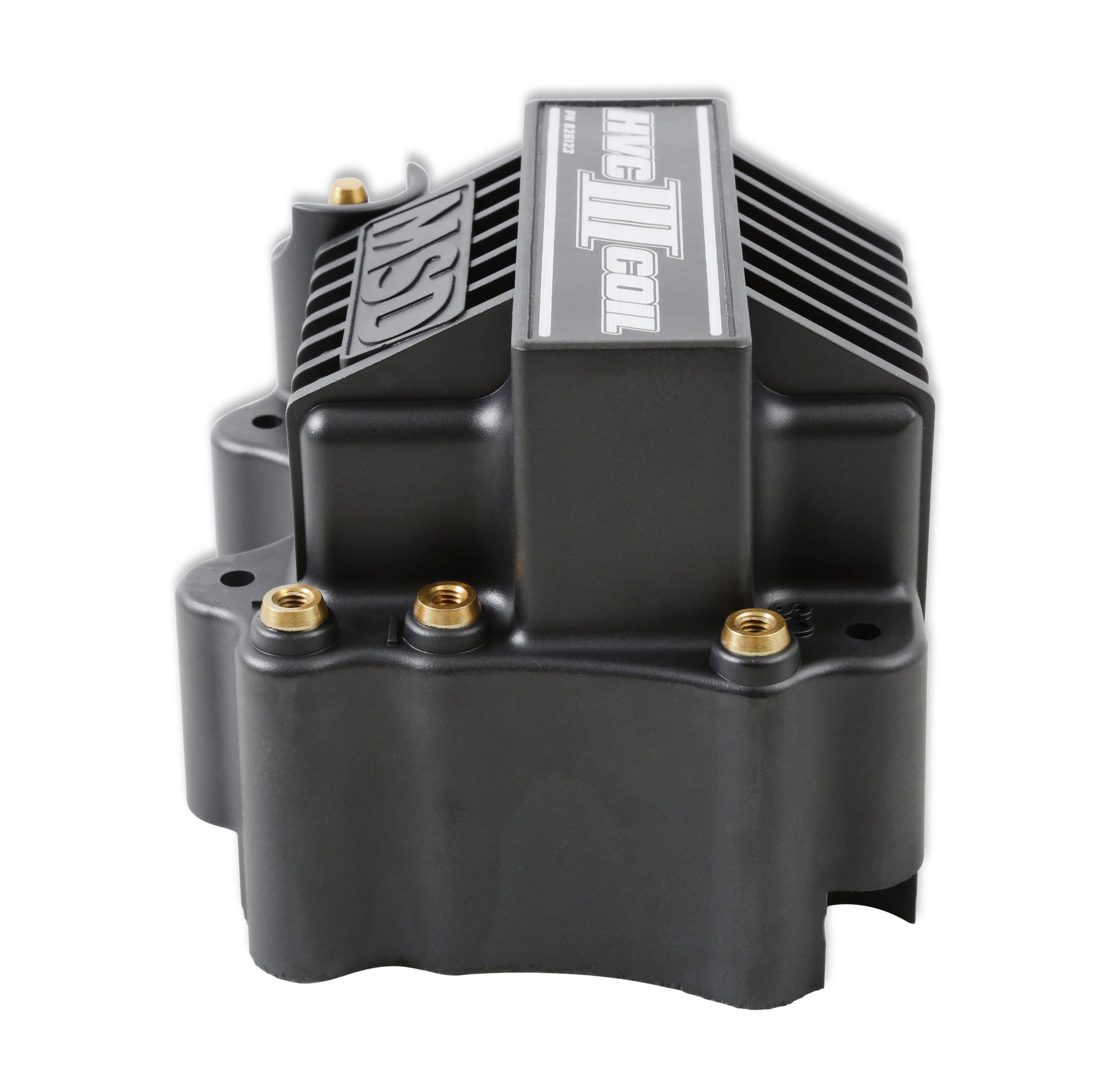

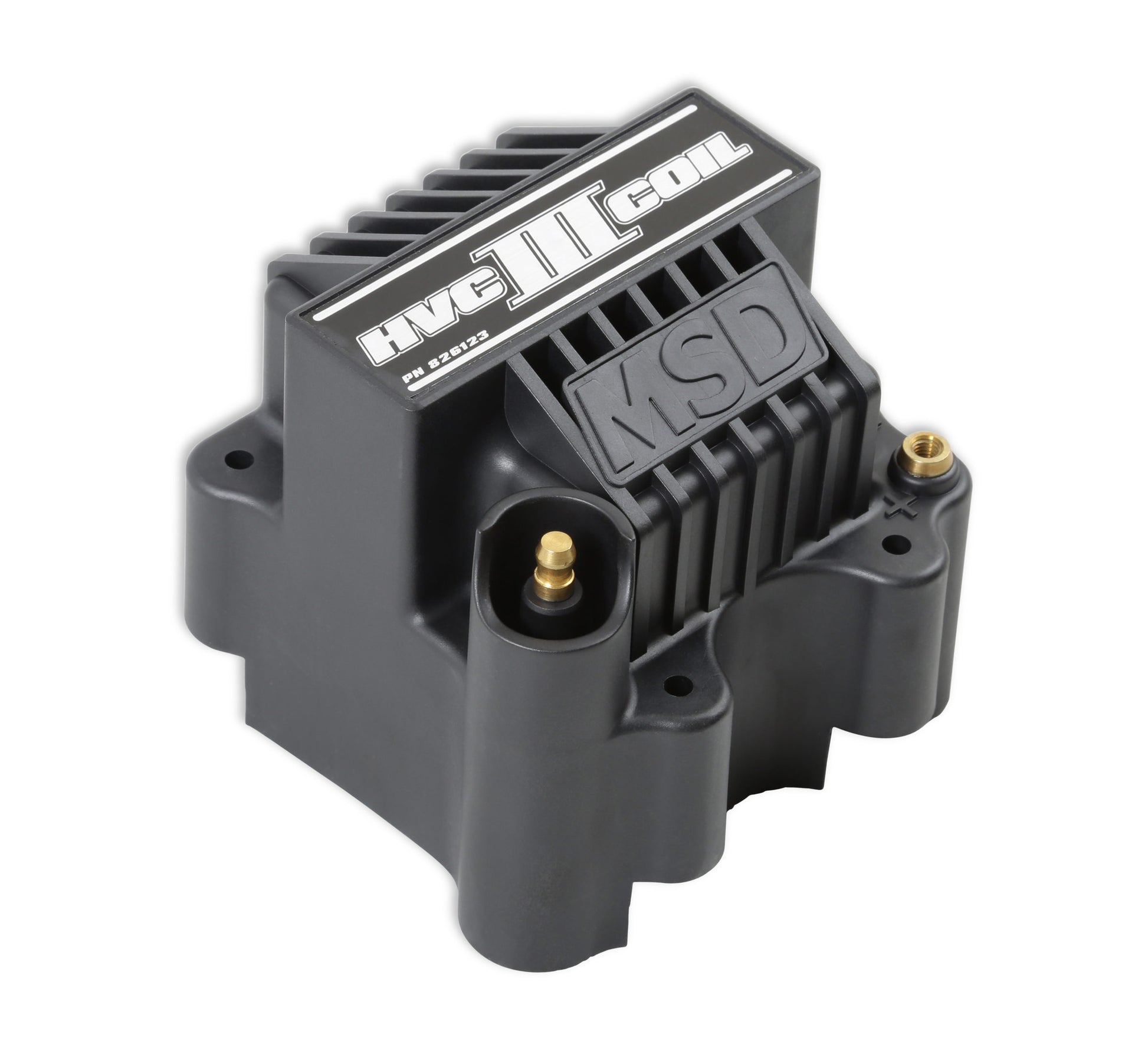

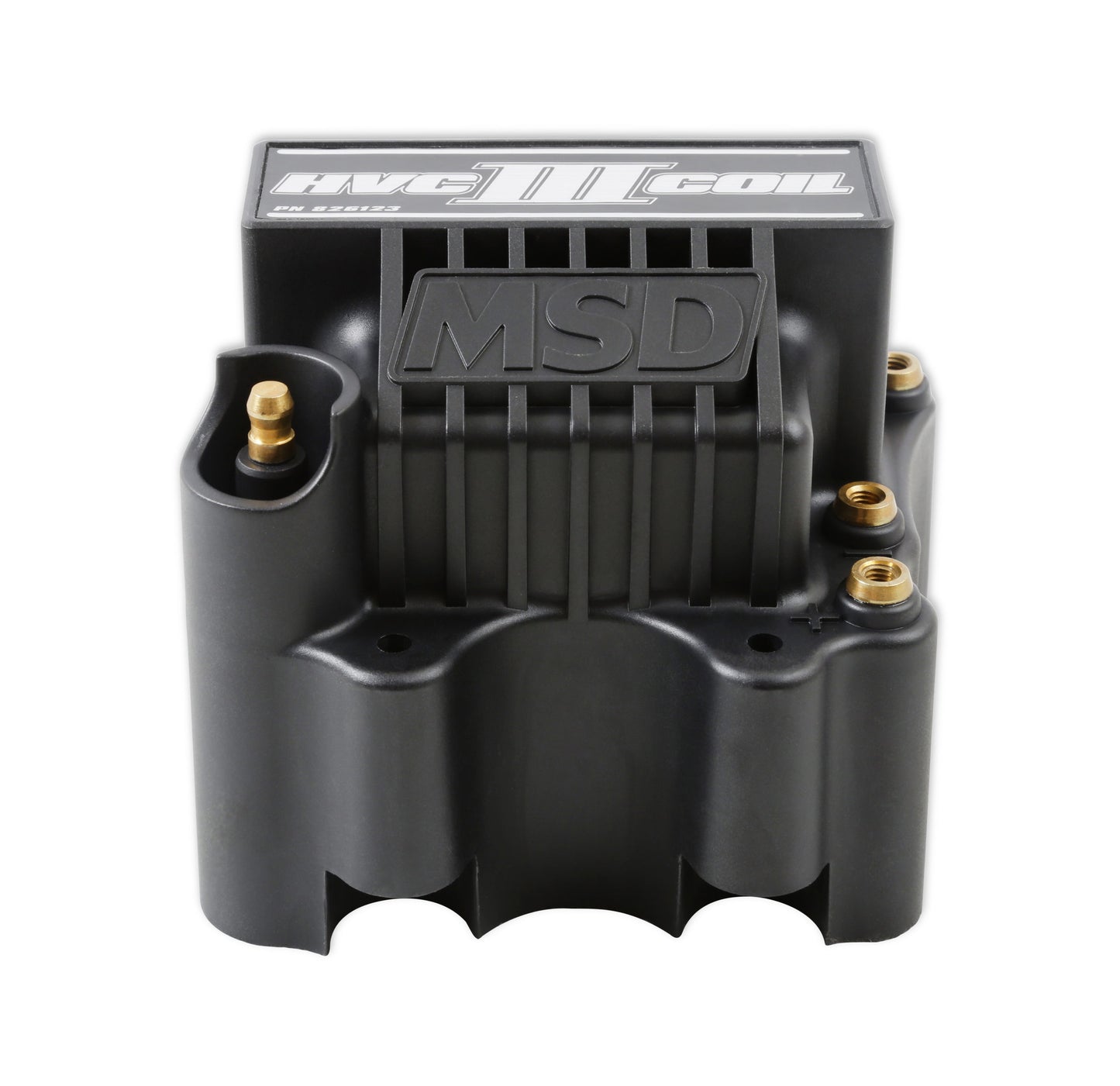

MSD 826123 - HVC-III Ignition Coil

MSD 826123 - HVC-III Ignition Coil

Ignition Coil - HVC III - U-Core - 0.160 ohm - Male HEI - 45000V - Black - Each

HVC-III Ignition Coil; Racing Coil For Use w/MSD 7-8 Series Ignition; 0.250 mH Inductance; 45000 Max Volt; 2 Amp Peak Current; 150 uS Spark Duration; 70:1 Turns Ratio; Black;

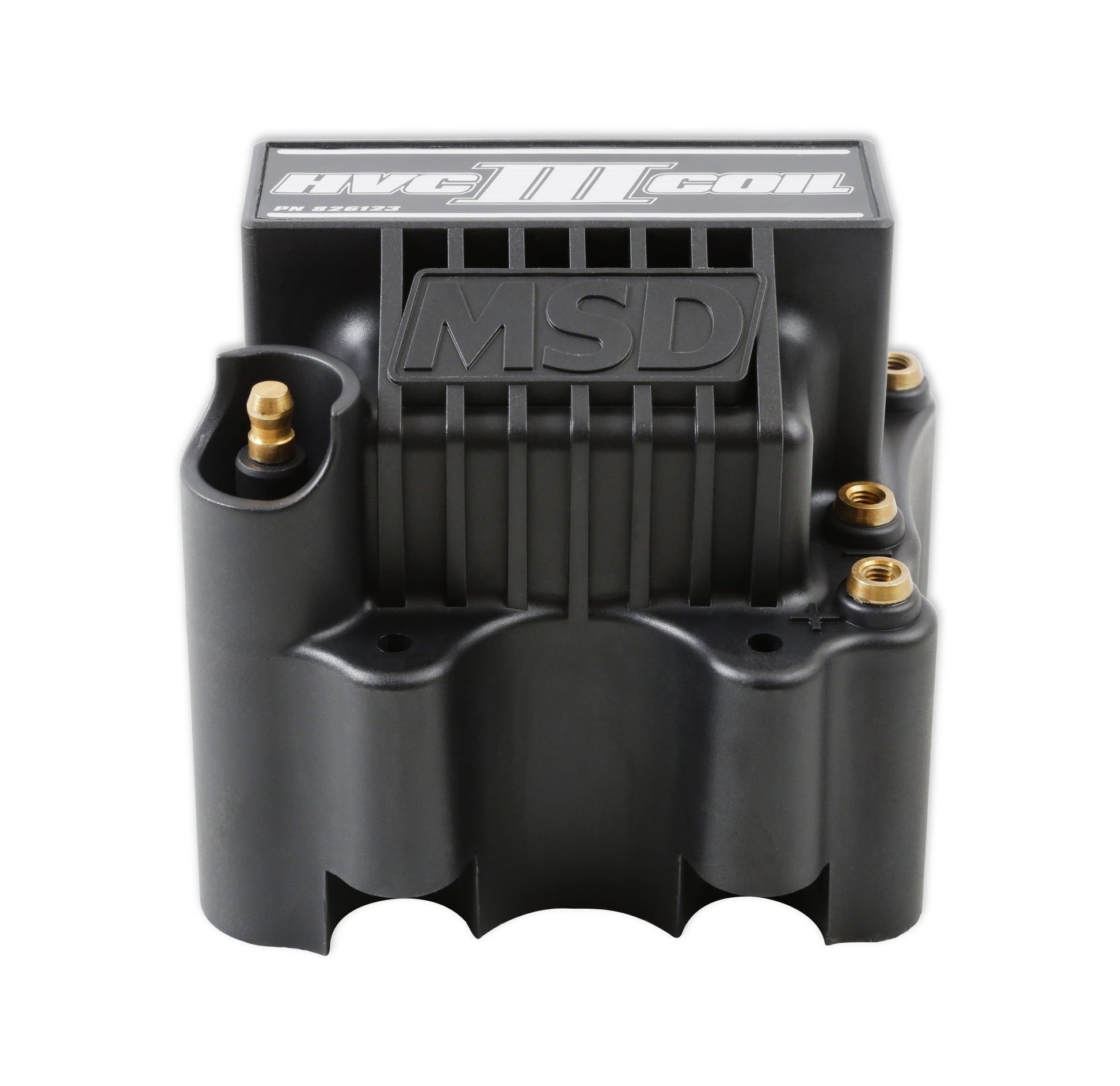

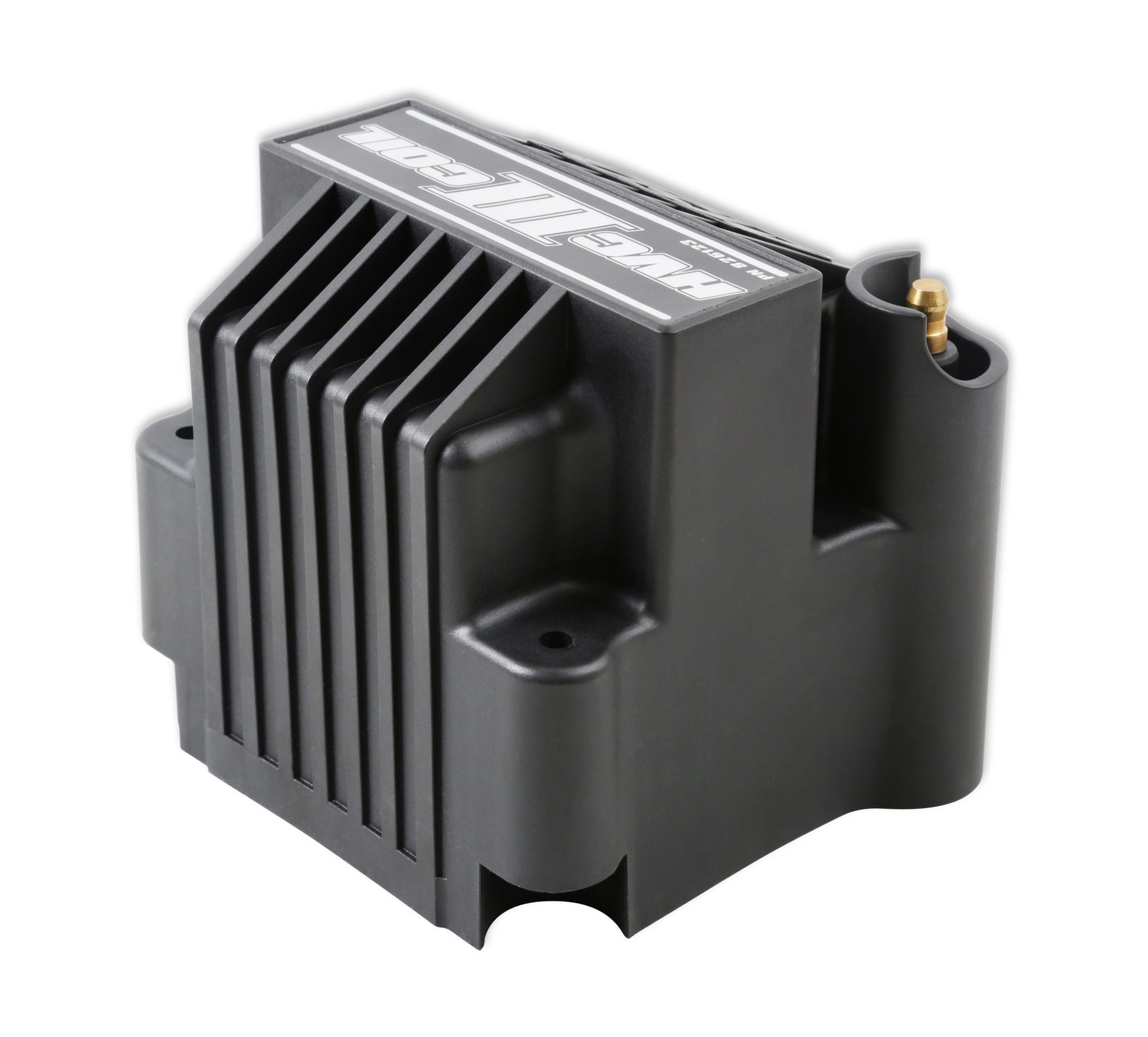

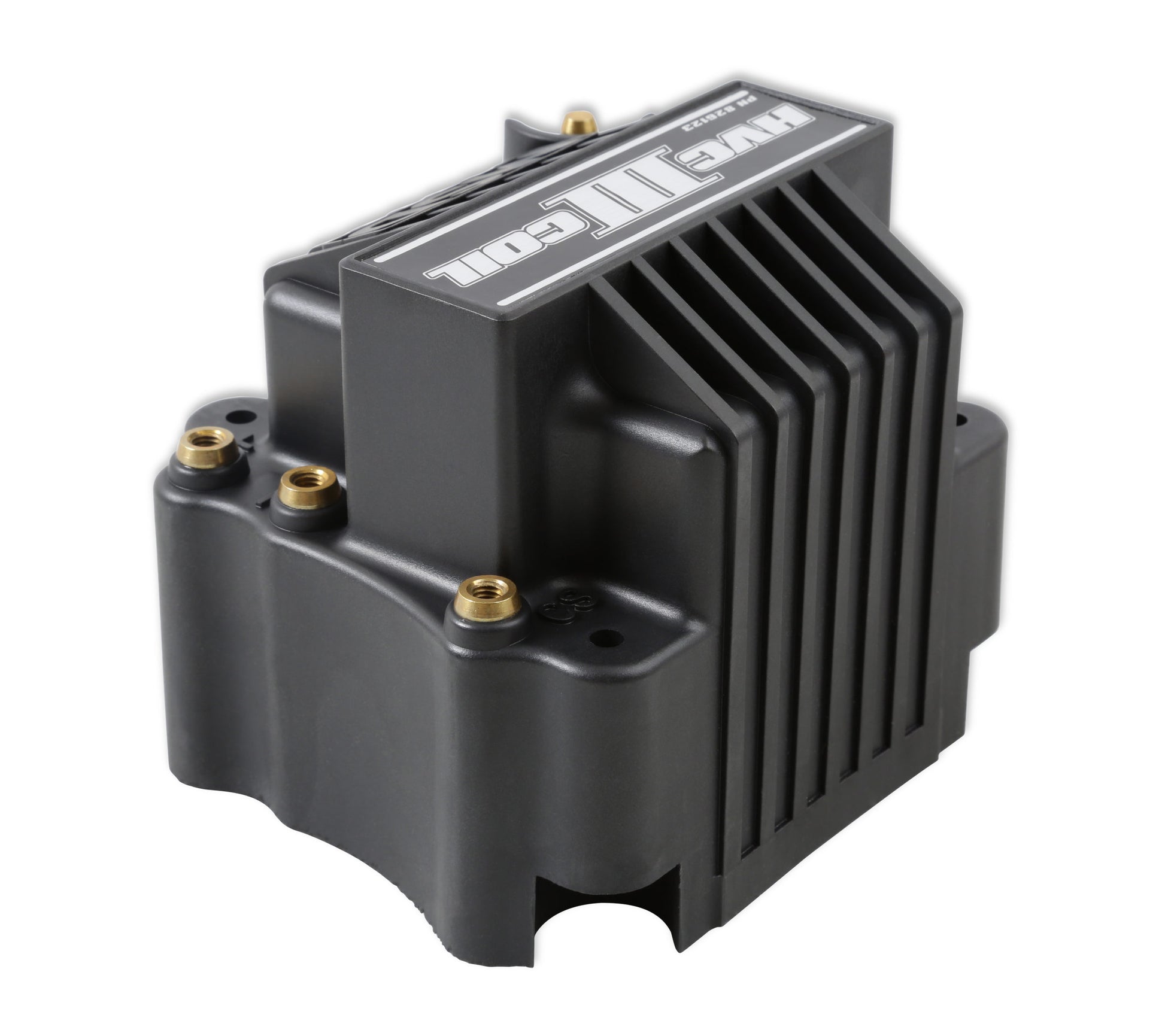

The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.

• Adjustable Output Energy Up To 680 Millijoules
• Compatible With 8/6/4 Cylinder Engines
• Spark Current Sense And Recording For Each Firing
• Spark Duration Of Greater Than 250 Microseconds
• Rated For Continuous Operation At An Output Of 600 mJ
• Operates Between 12- 28V
• Starting And Running Down To Six Volts
• Programmable Trigger Edge
• Reverse Battery Protection
• Internally Protected From Damage
• Diagnostic Led Detects The Presence Of Faults
• On-The-Fly Power Output Selection Wire
