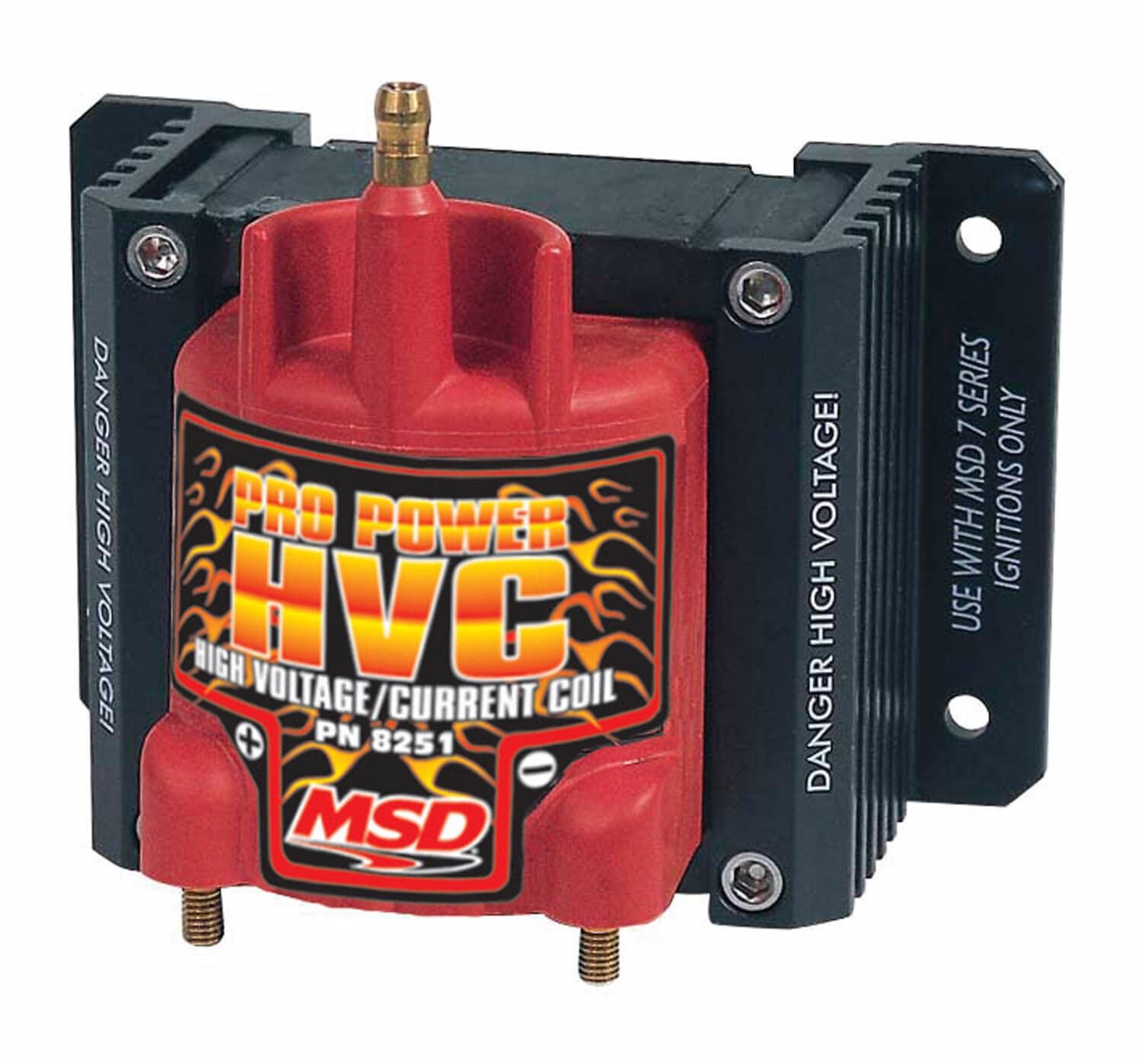

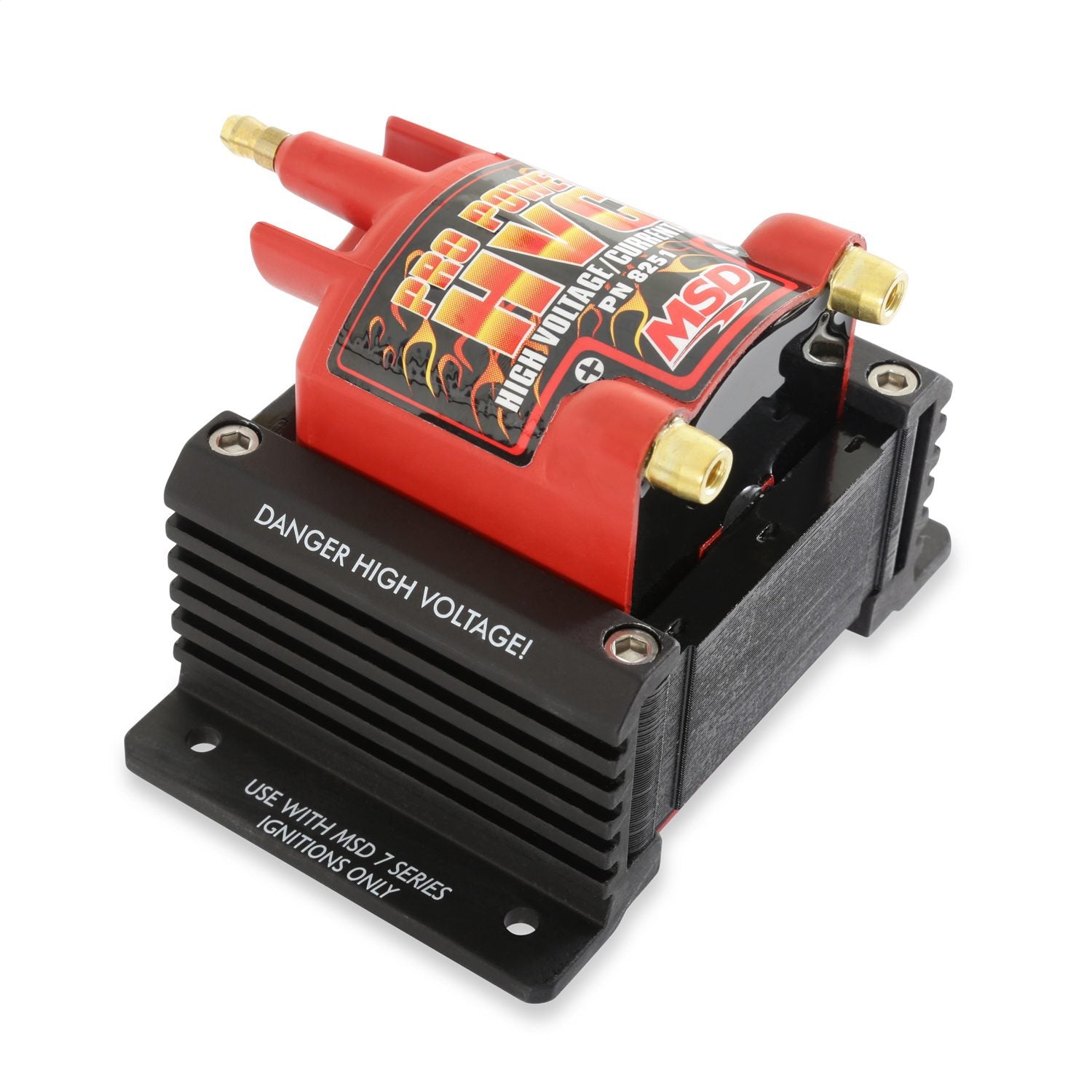

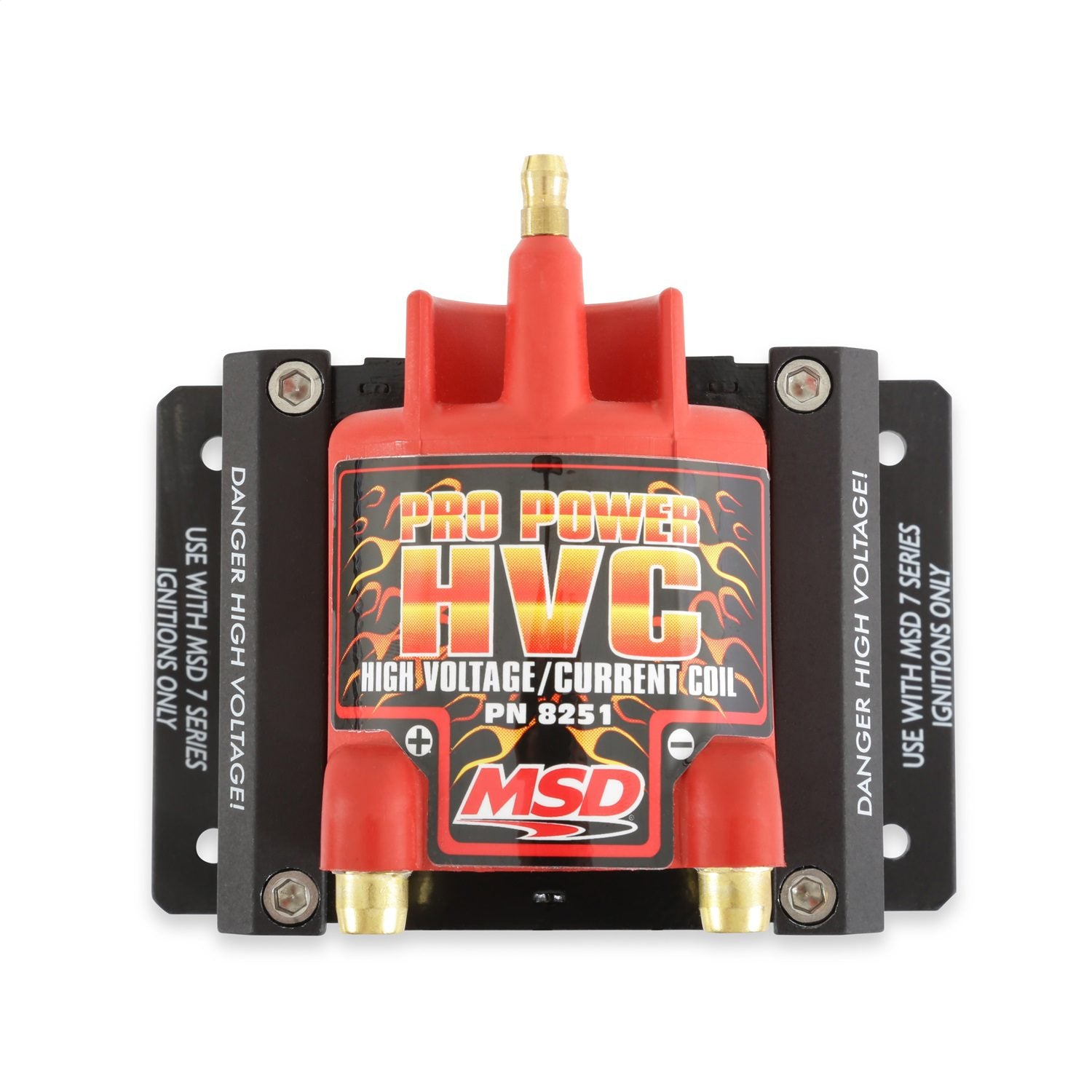

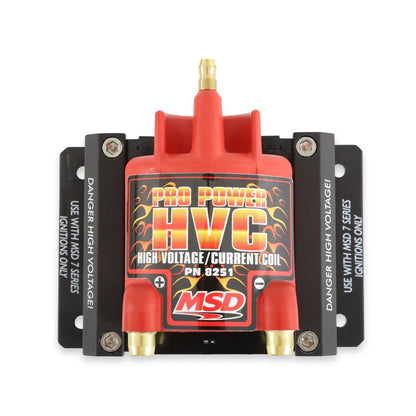

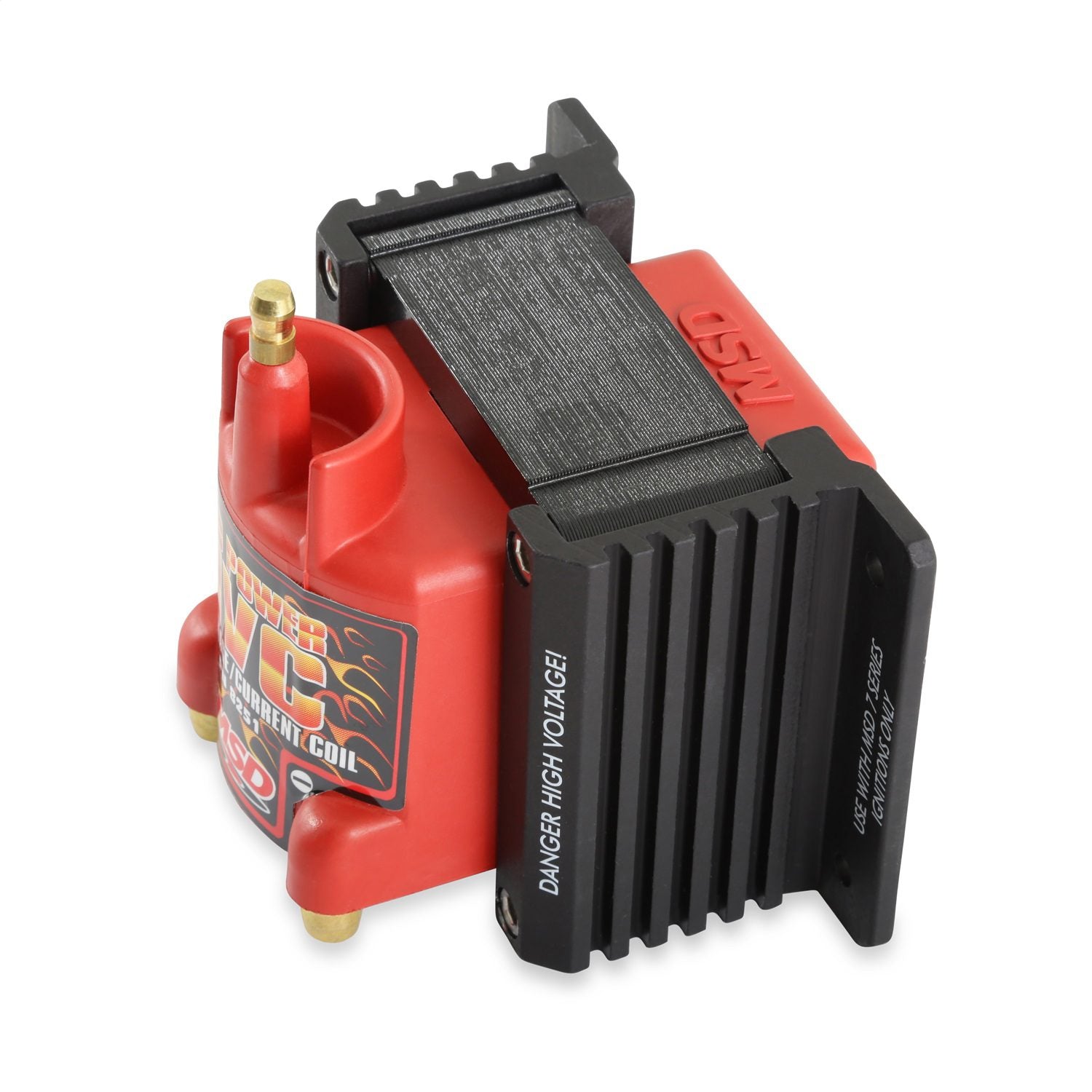

MSD 8251 - Pro Power HVC Ignition Coil

MSD 8251 - Pro Power HVC Ignition Coil

Ignition Coil - Blaster Pro Power HVC - E-Core - 0.040 ohm - Male HEI - 45000V - Red - Each

Pro Power HVC Ignition Coil; For Use w/MSD 7 or 8 Series Ignition Control; 1mH Inductance; 45000 Max Voltage; 1.1 Amp Peak Current; 10 uS Spark Duration; 85:1 Turns Ratio; Black;

Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC coils are designed to produce maximum voltage and energy. To accomplish this combination of high voltage and current MSD uses an e-core winding design. This is a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.

• Spark plug style terminal and threaded brass primary studs
• No CARB Exemption Order Number
• 85:1 turns ratio and lower primary resistance produce high voltage output
• Designed for racing applications with an MSD 7 Series Ignition Control

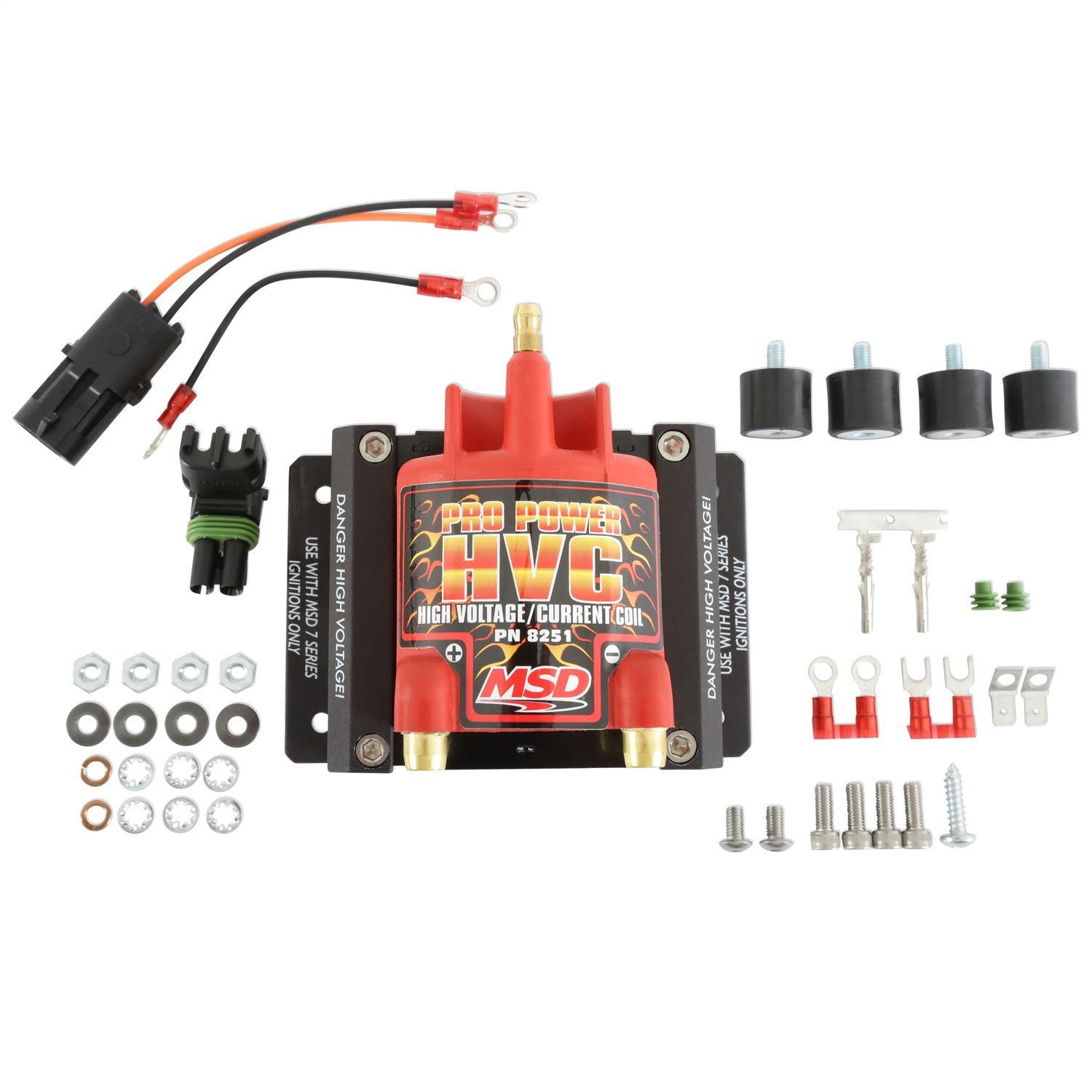

• Supplied with rubber shock mounts
• Windings are encased in red epoxy and secured with extruded brackets
• Efficient E-core winding design produces more voltage and current
