MSD - 8250

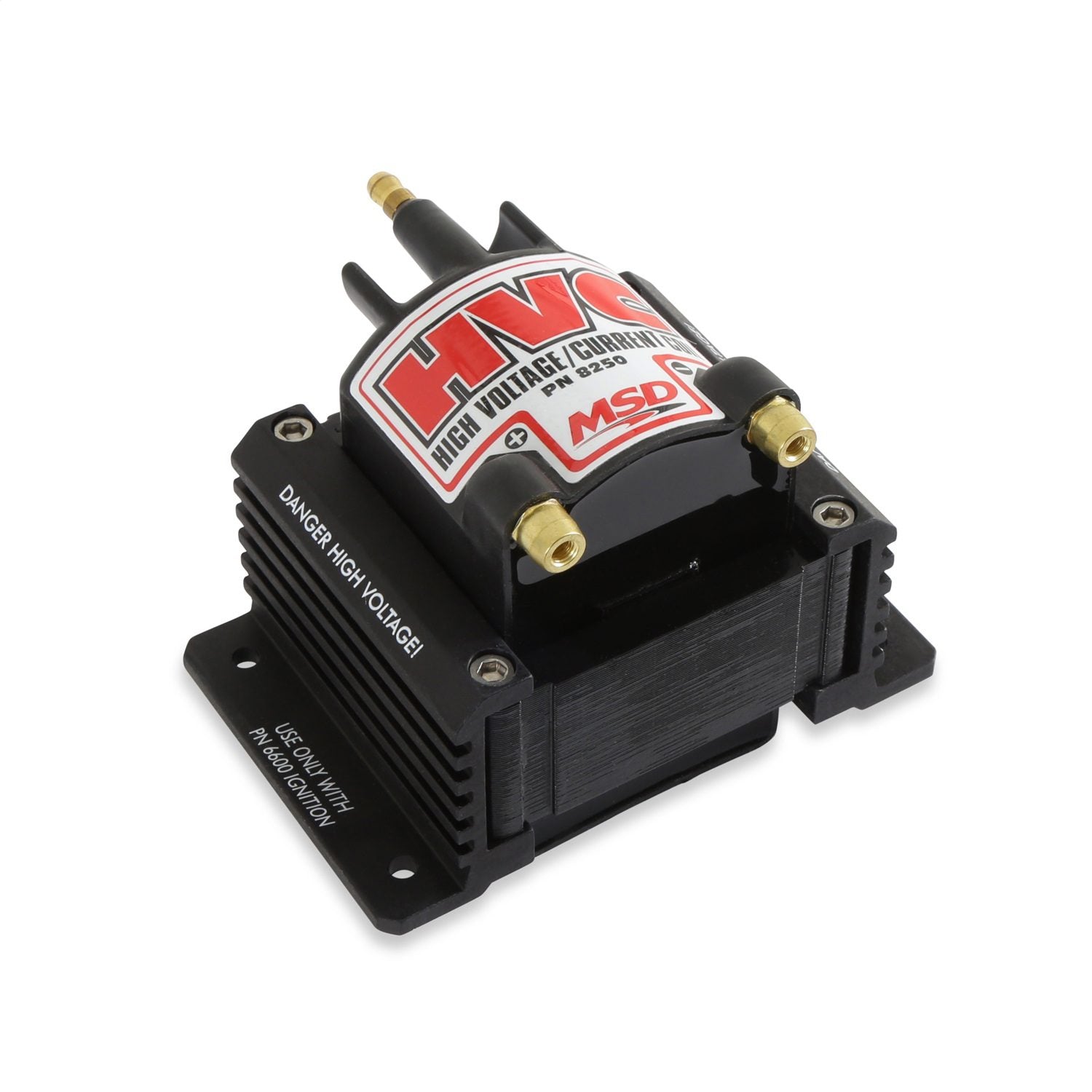

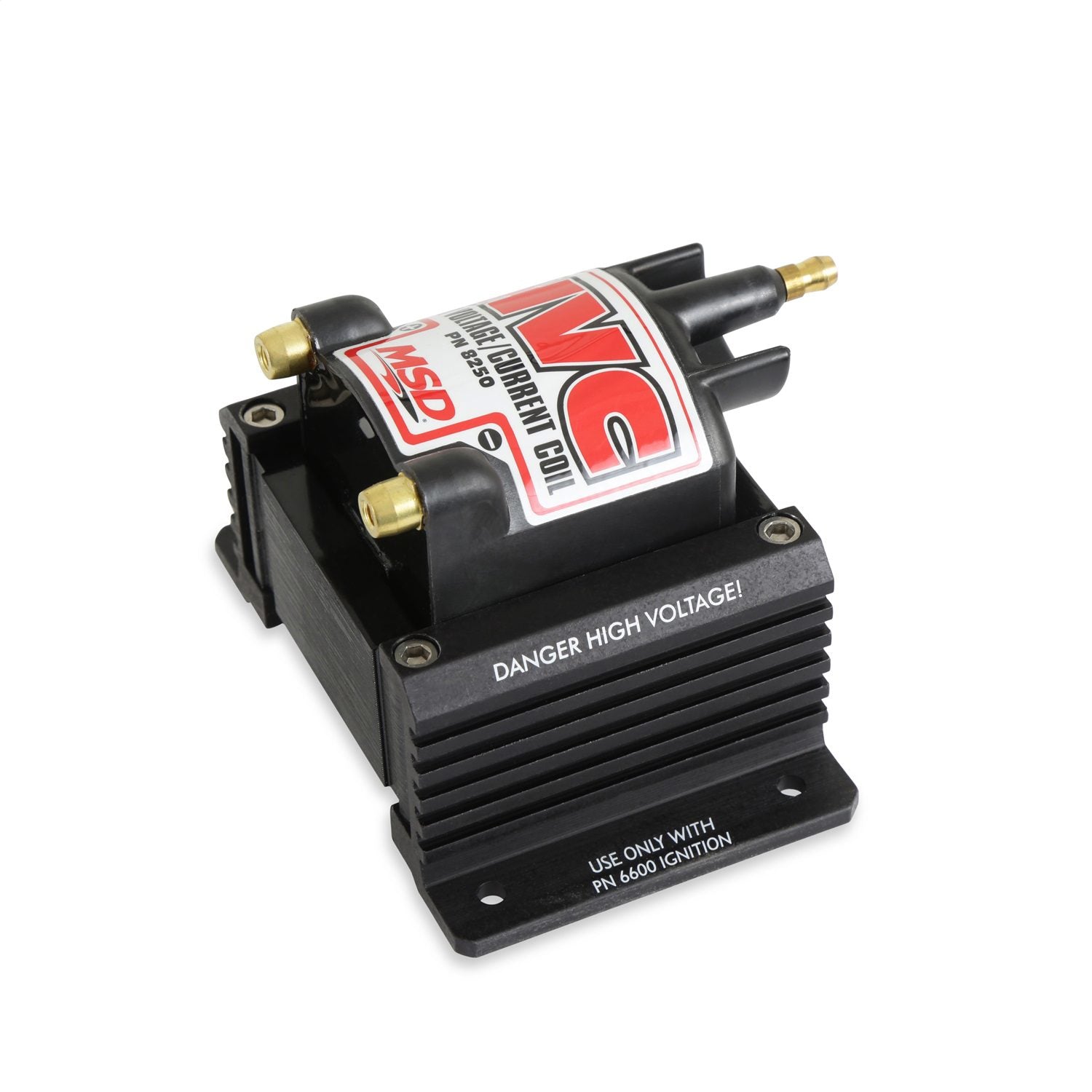

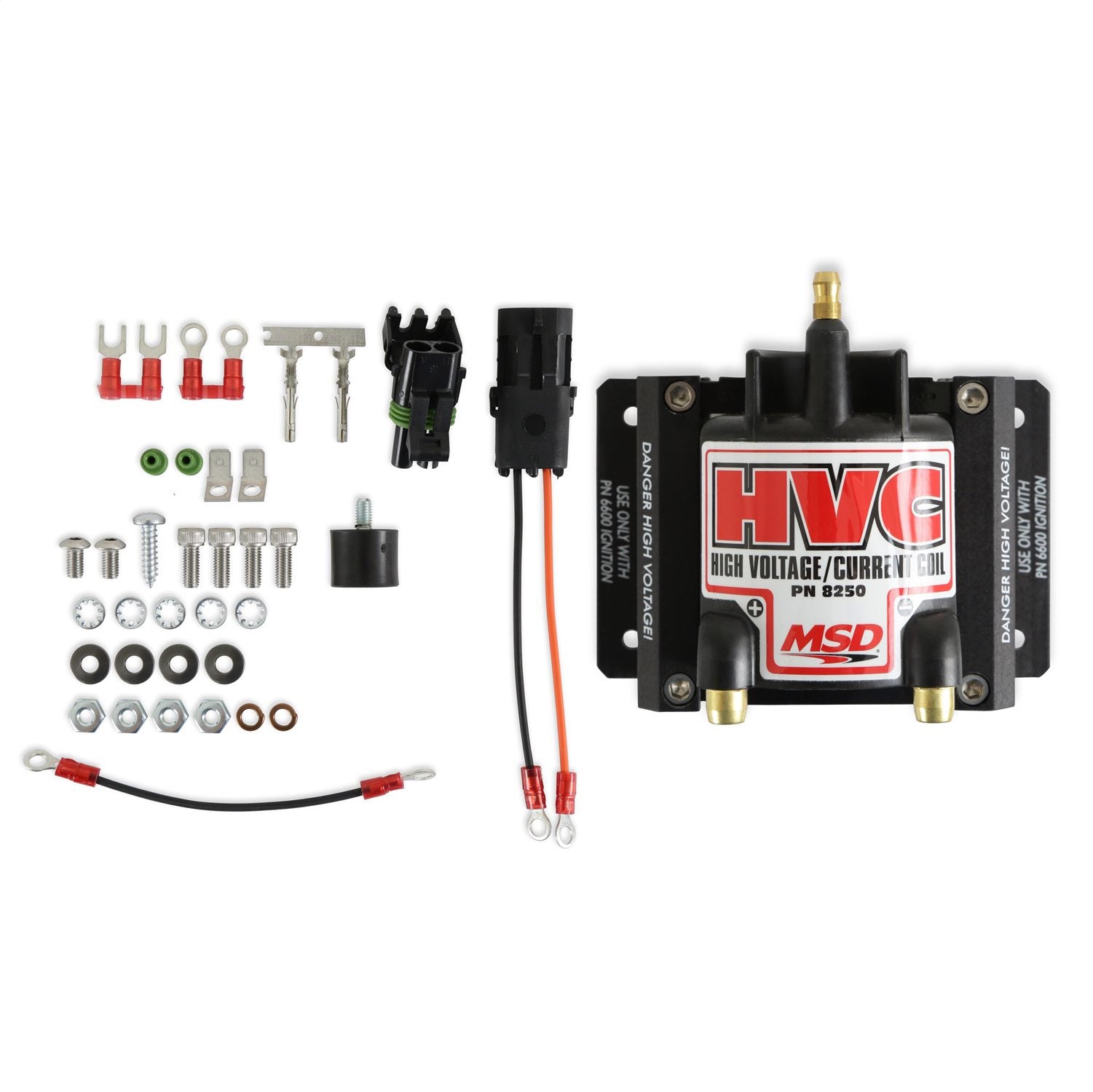

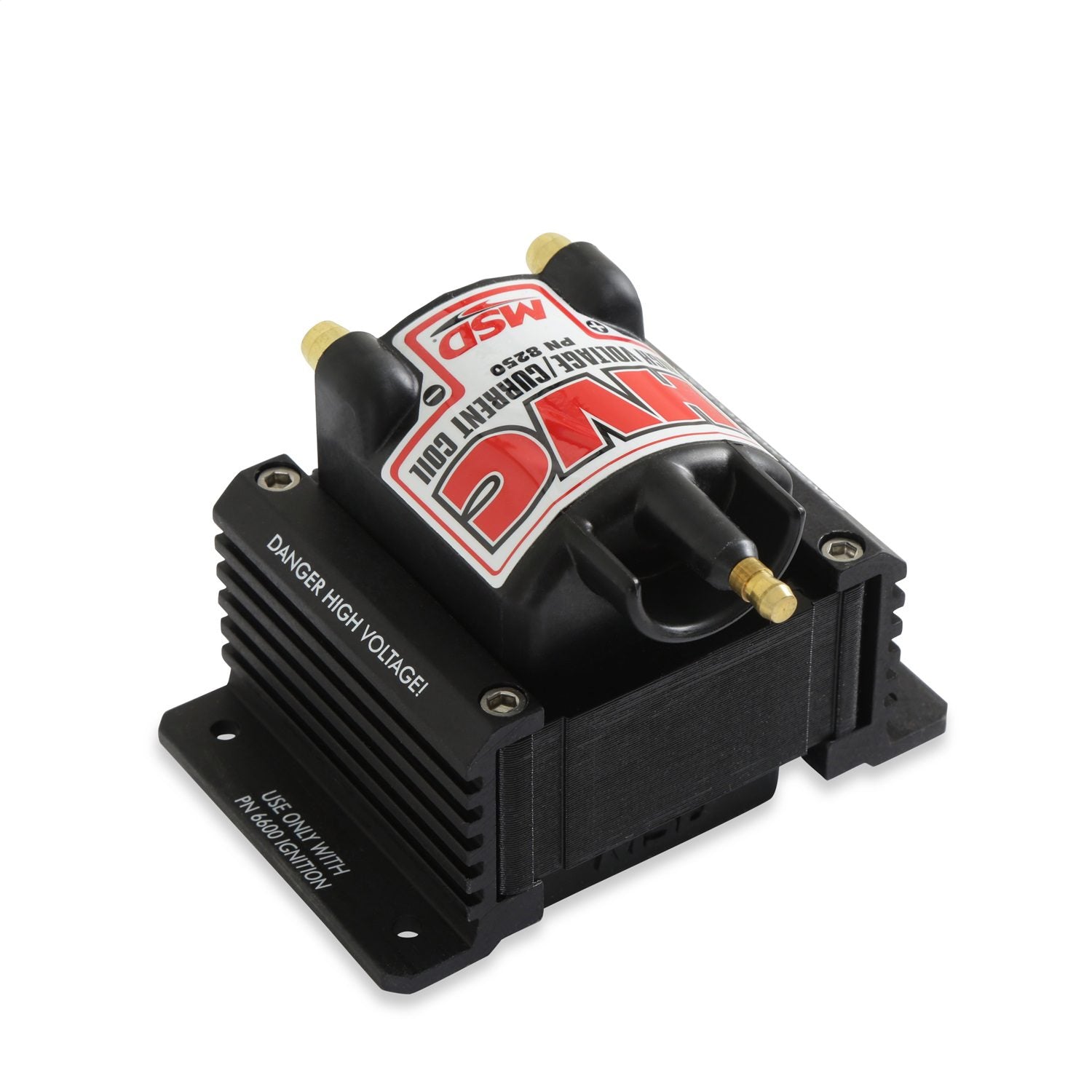

Ignition Coil - Blaster HVC - E-Core - 0.070 ohm - Male HEI - 34000V - Black - Each
6 HVC Ignition Coil; 3mH Inductance; 34000 Max Voltage; 600mA Peak Current; 100:1 Turns Ratio; Designed For HVC Professional Racing Ignition Control PN[6631/6632];
The E-Core design of the HVC Coil is more efficient in producing more output with less loss. The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar aftermarket ignition.
- E-Core design produces more voltage and current
- Runs 50% cooler than canister coils
- Massive laminations/windings are engineered for less energy loss
- Delivers High Voltage To ionize The Plug Gap
Brand: MSD
Category: Ignition
Color: Black
Emission Code: 4
Inductance: 3mH
Maximum Voltage: 34,000 Volts
part type: Ignition Coil
Peak Current: 600 mA
Primary Resistance: .07 OHMs
Product Type: Ignition Coils
Secondary Resistance: 360 OHMs
Spark Duration: 200 uS
Sub Category: Ignition Coil
Turns Ratio: 4.167361111111111
Type: Circle Track
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
Weight: 3.75 Lbs
