MSD 8227 - Blaster TFI Ignition Coil

MSD 8227 - Blaster TFI Ignition Coil

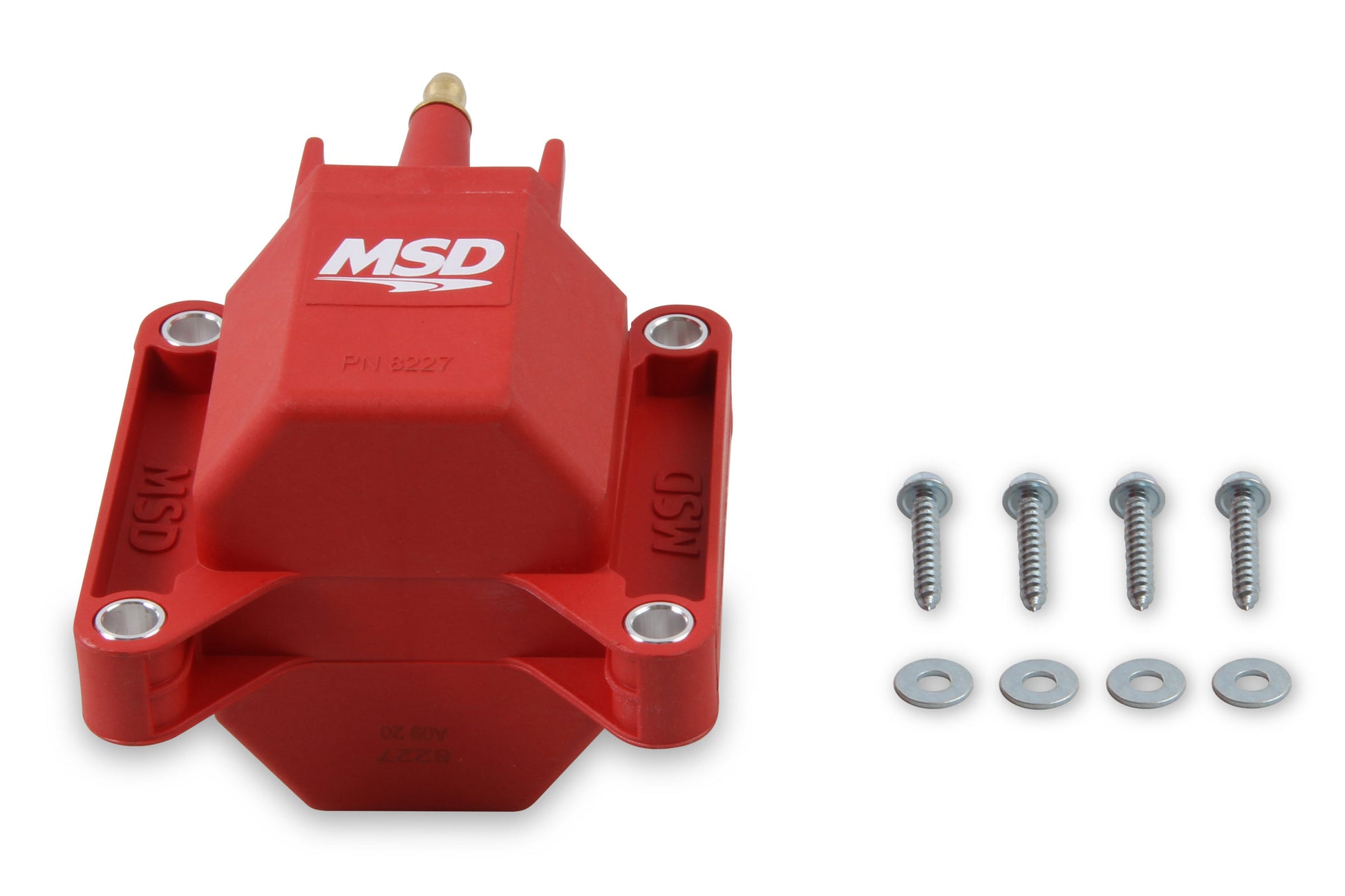

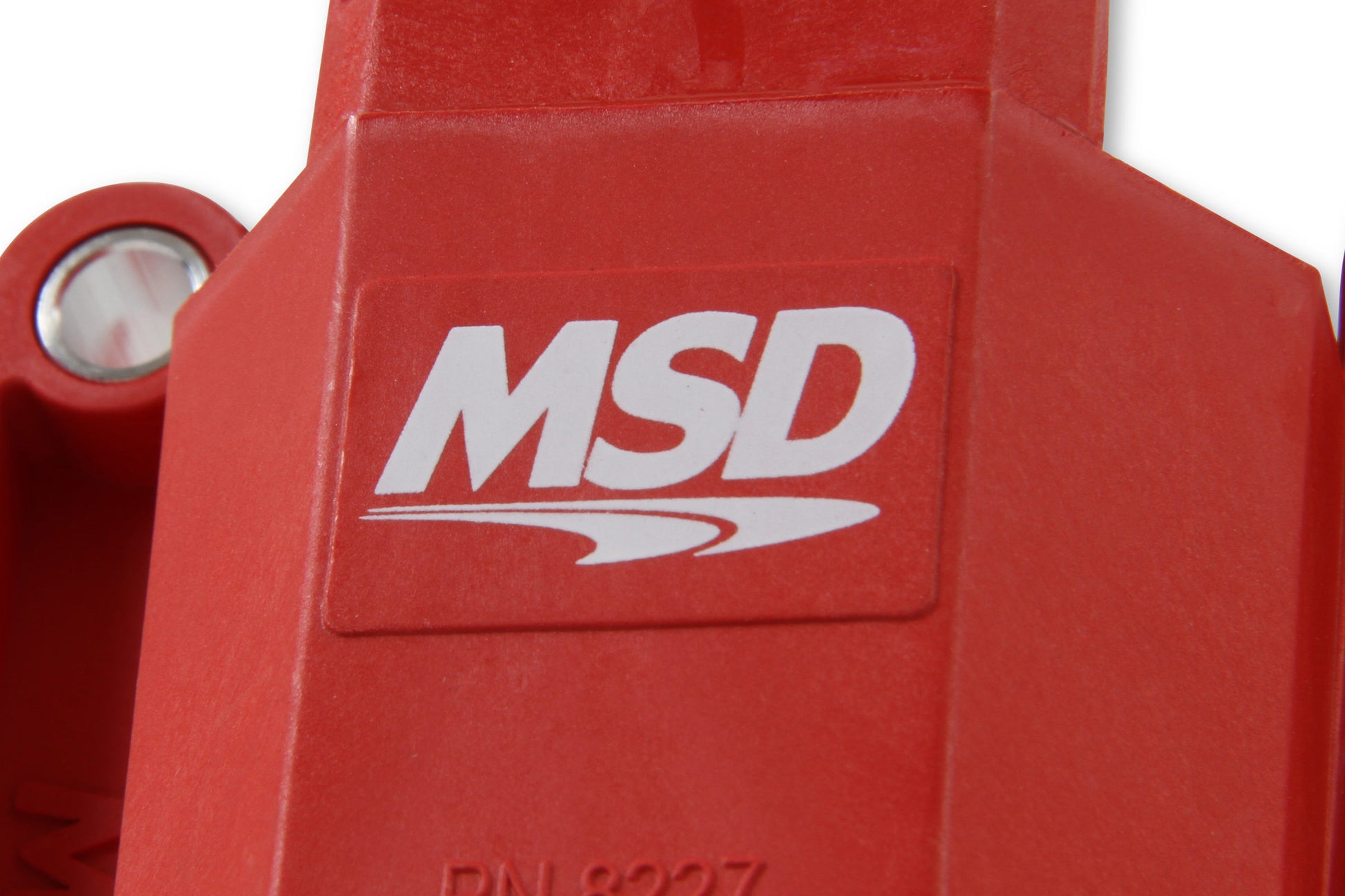

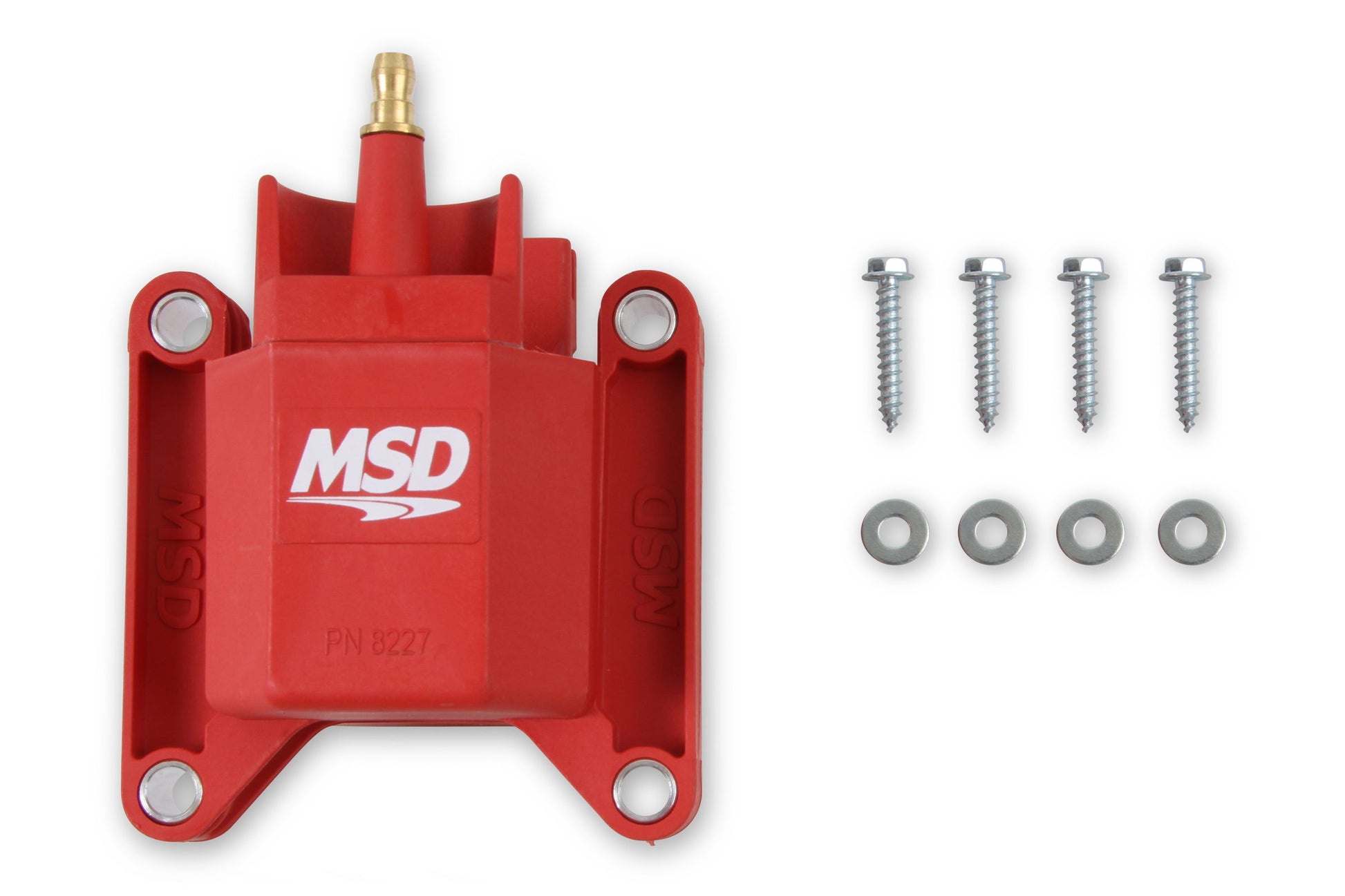

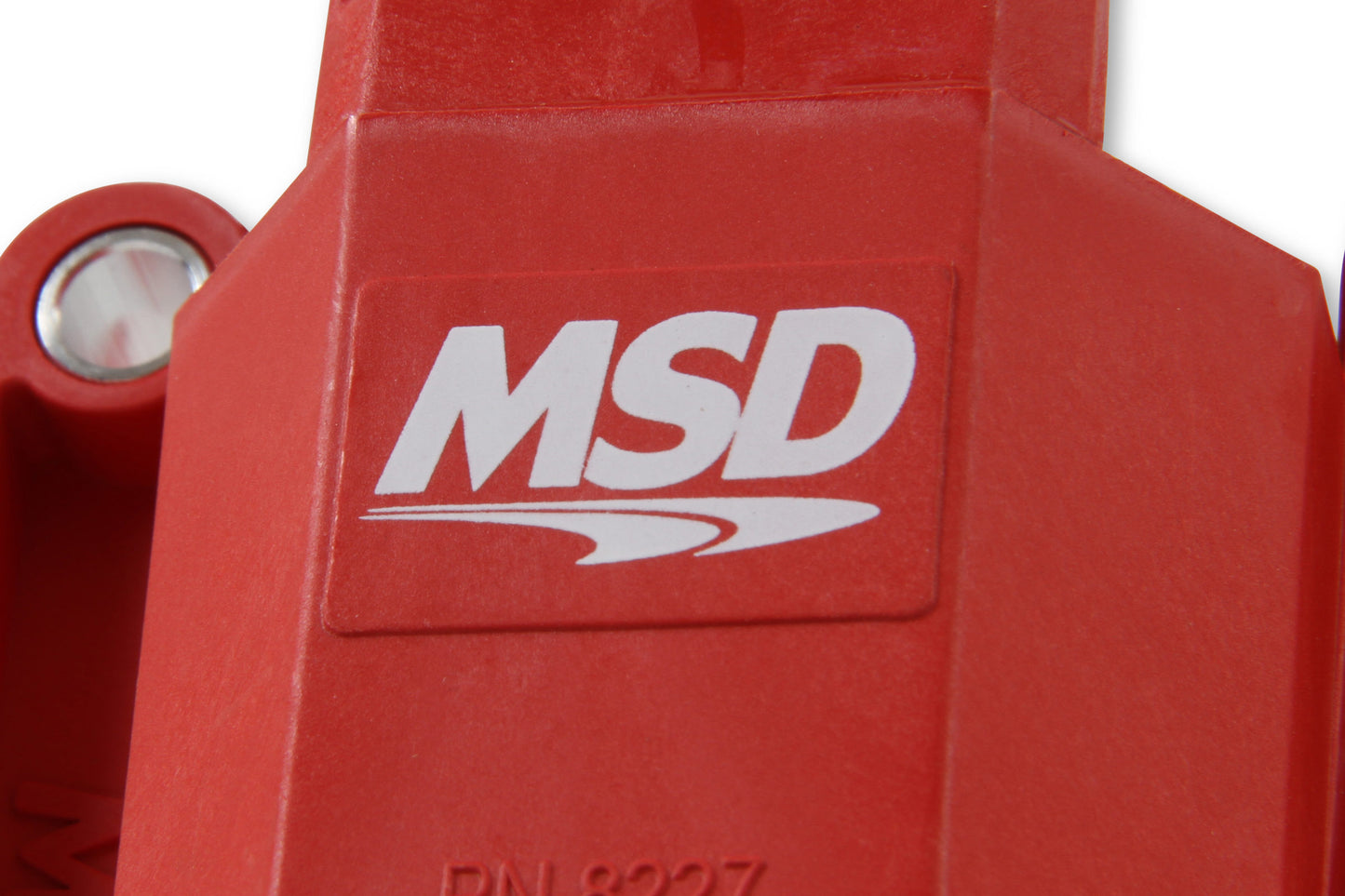

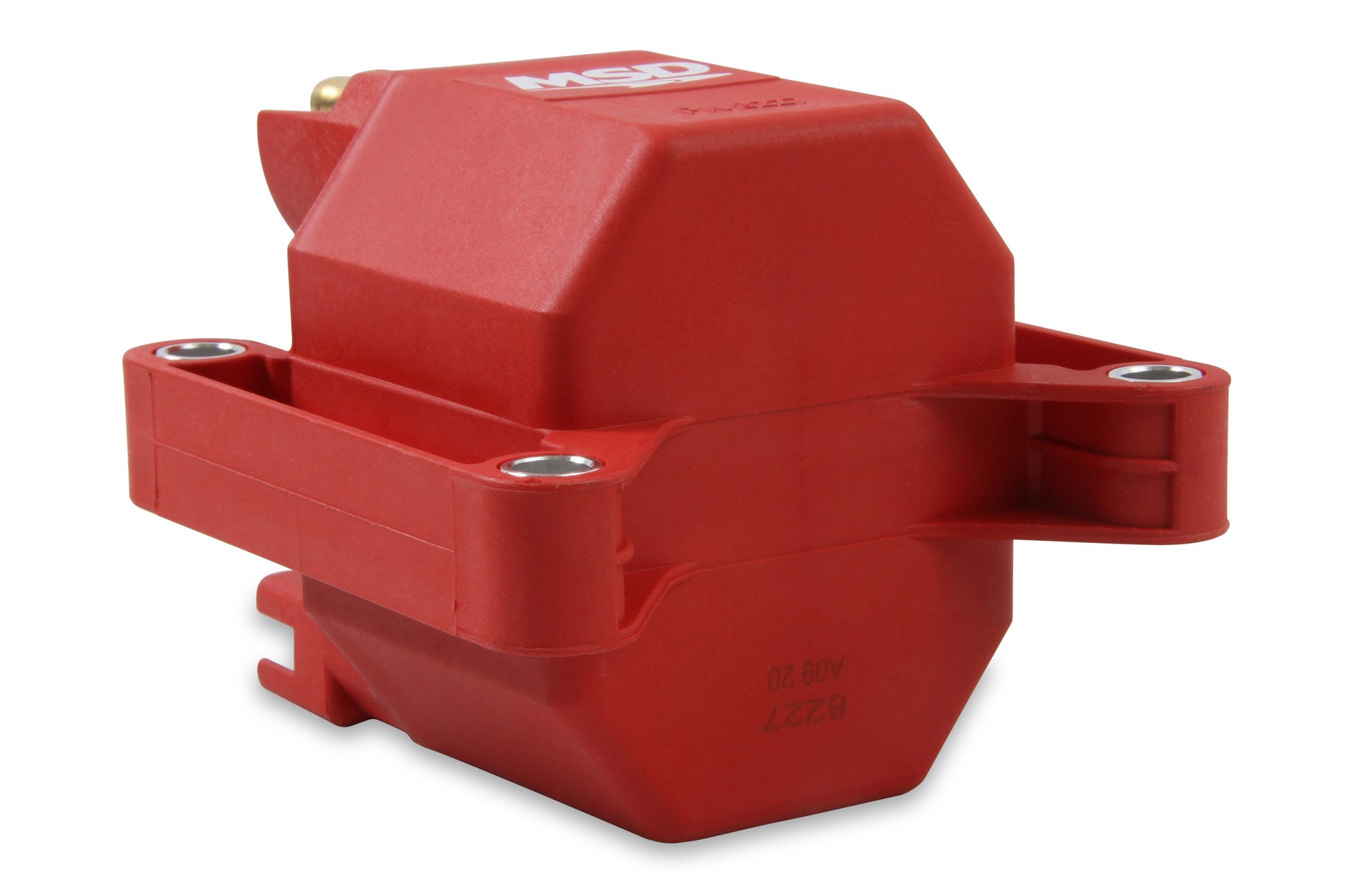

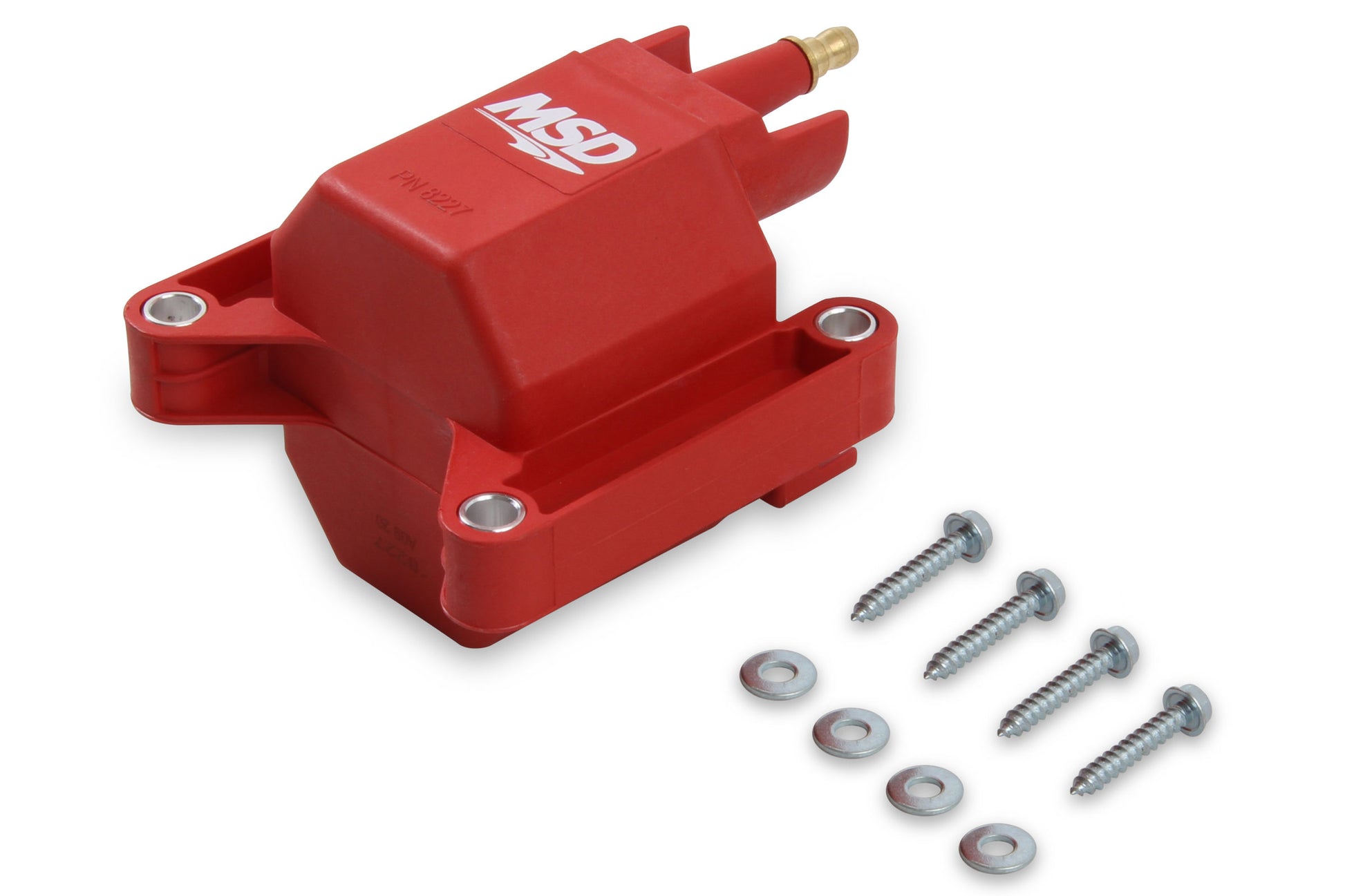

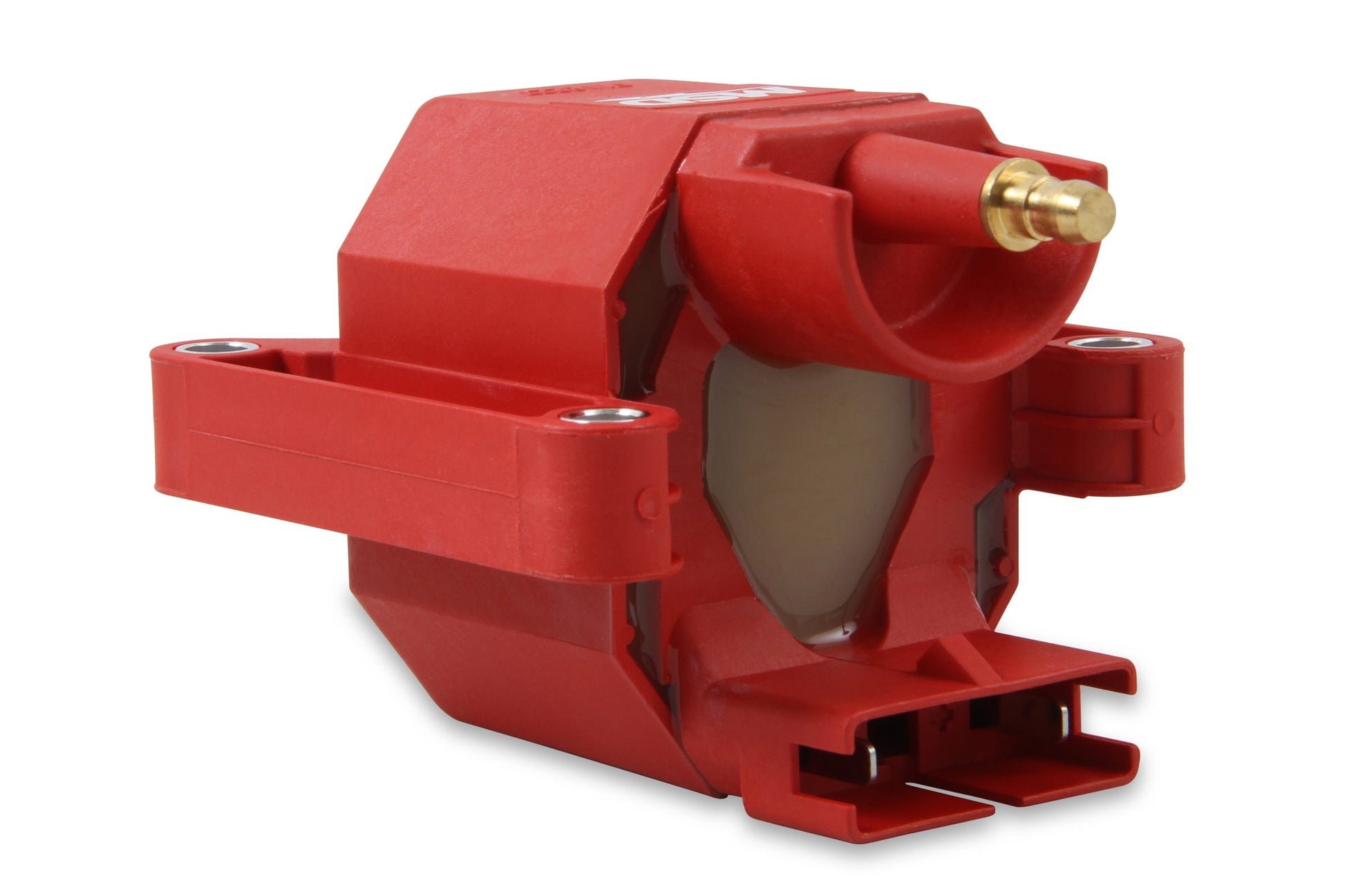

Ignition Coil - Blaster Ford TFI - E-Core - 0.680 ohm - Male HEI - 44000V - Red - Ford TFI - Each

Blaster TFI Ignition Coil; Direct Replacement; 5.6 mH Inductance; 44000 Max Voltage; 220 ma Peak Current; 300 uS Spark Duration; 100:1 Turns Ratio; Red; Single;

Top off your GM ignition system with these great new replacement coils. The GM coils have MSD performance in factory style housings. MSD designed these coils by combining our blaster coil experience with e-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The coils will work with stock ignition systems as well as MSD equipped cars and trucks. Installation tip: If you plan to install an MSD ignition with your GM dual connector coil, use PN 8876 harness for a direct plug-in installation.

• Direct performance replacement for Ford TFI coil
• 85:1 turns ratio
• Lower Primary Resistance Produces High Voltage Output
• Works w/Stock Ignition As Well As MSD Ignitions
• CARB E.O. Approved
