MSD

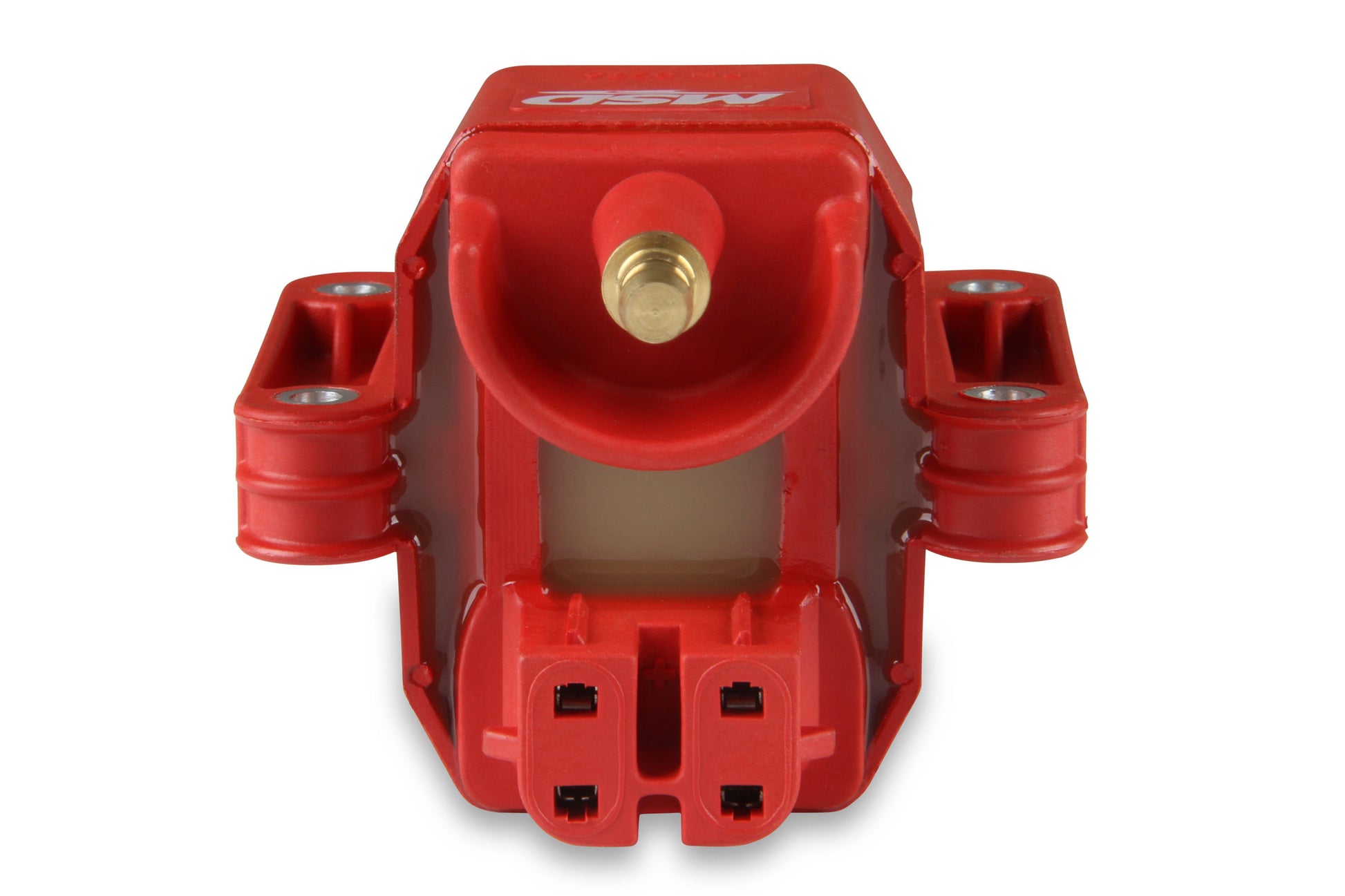

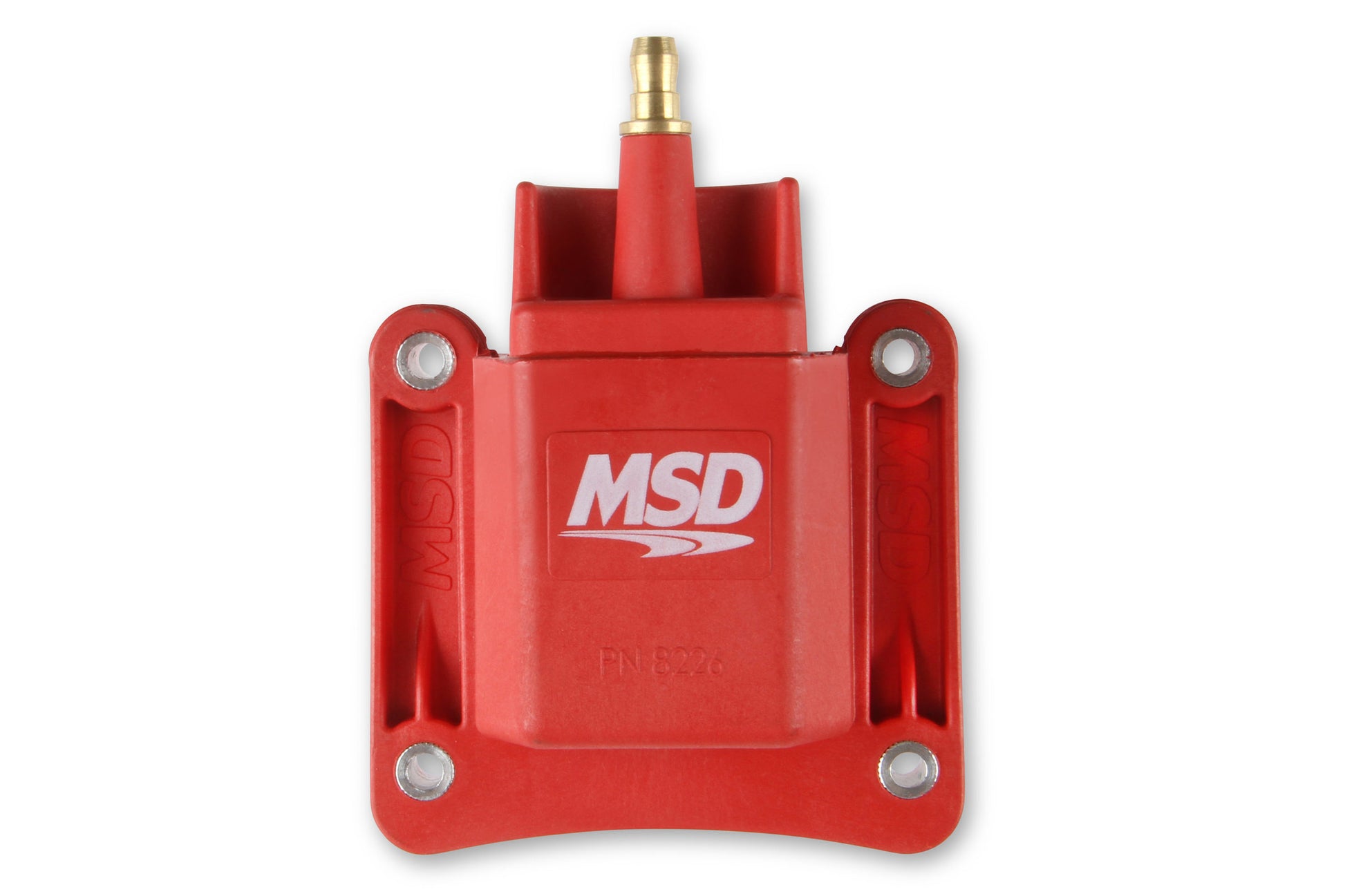

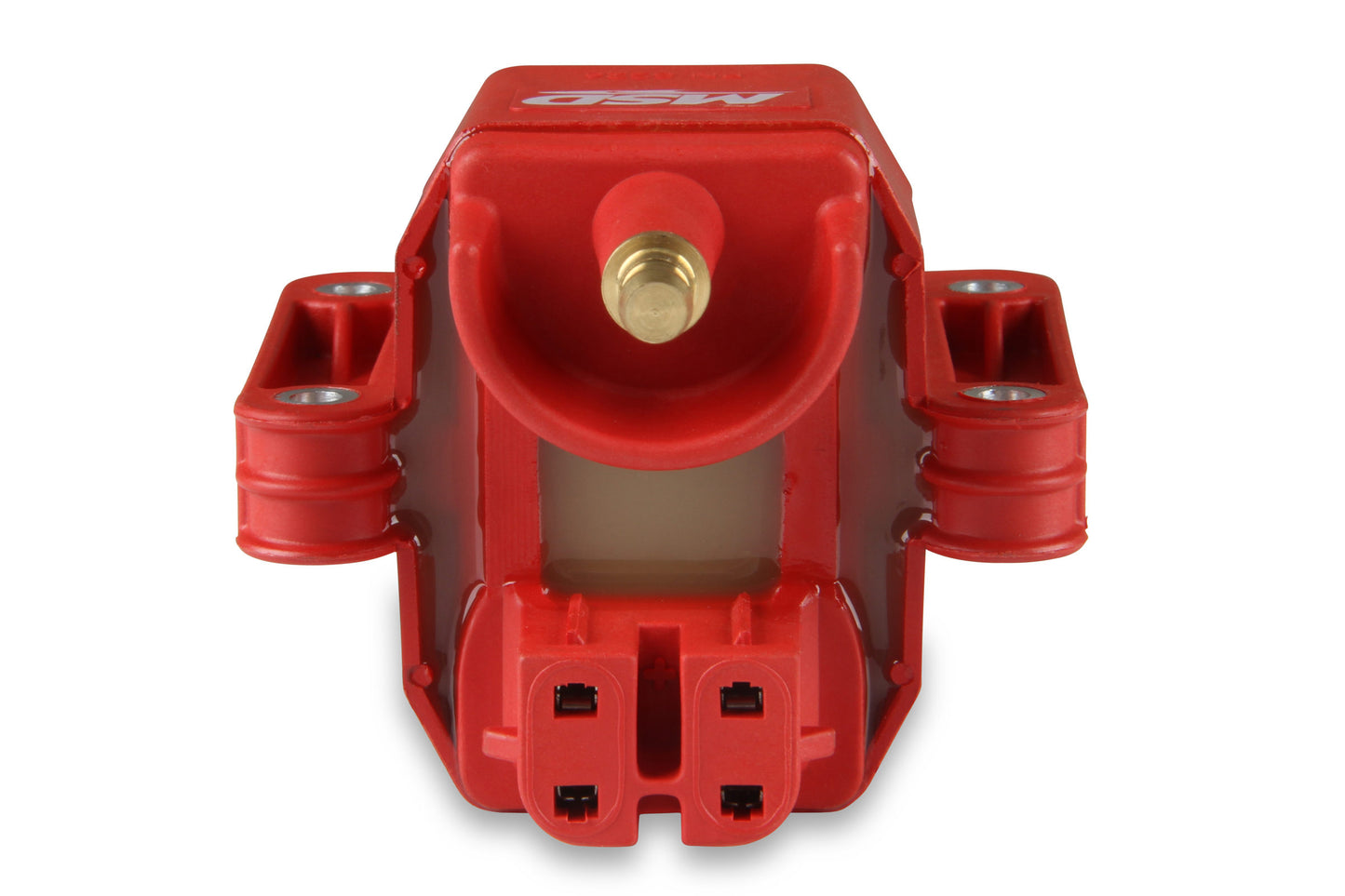

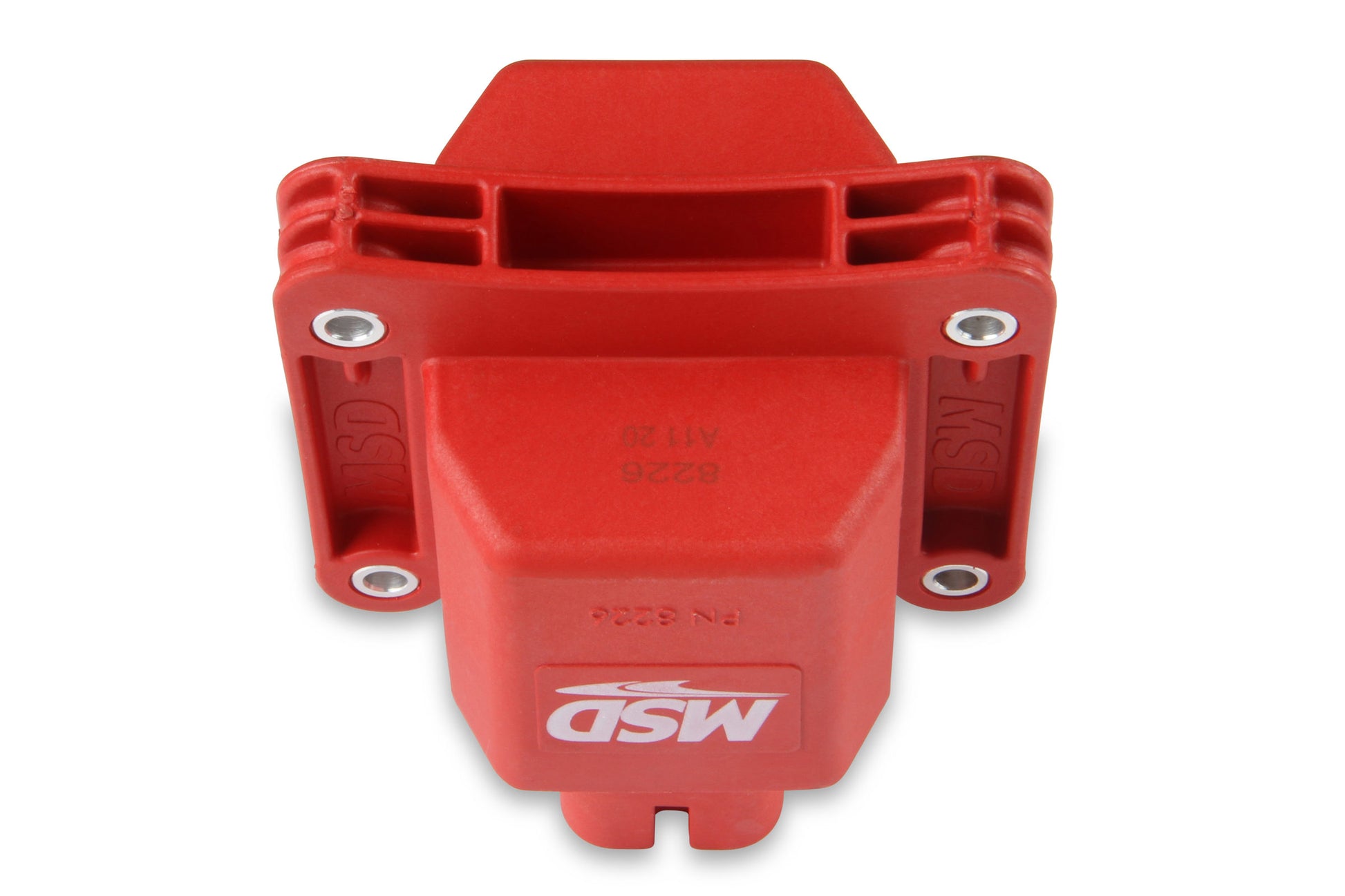

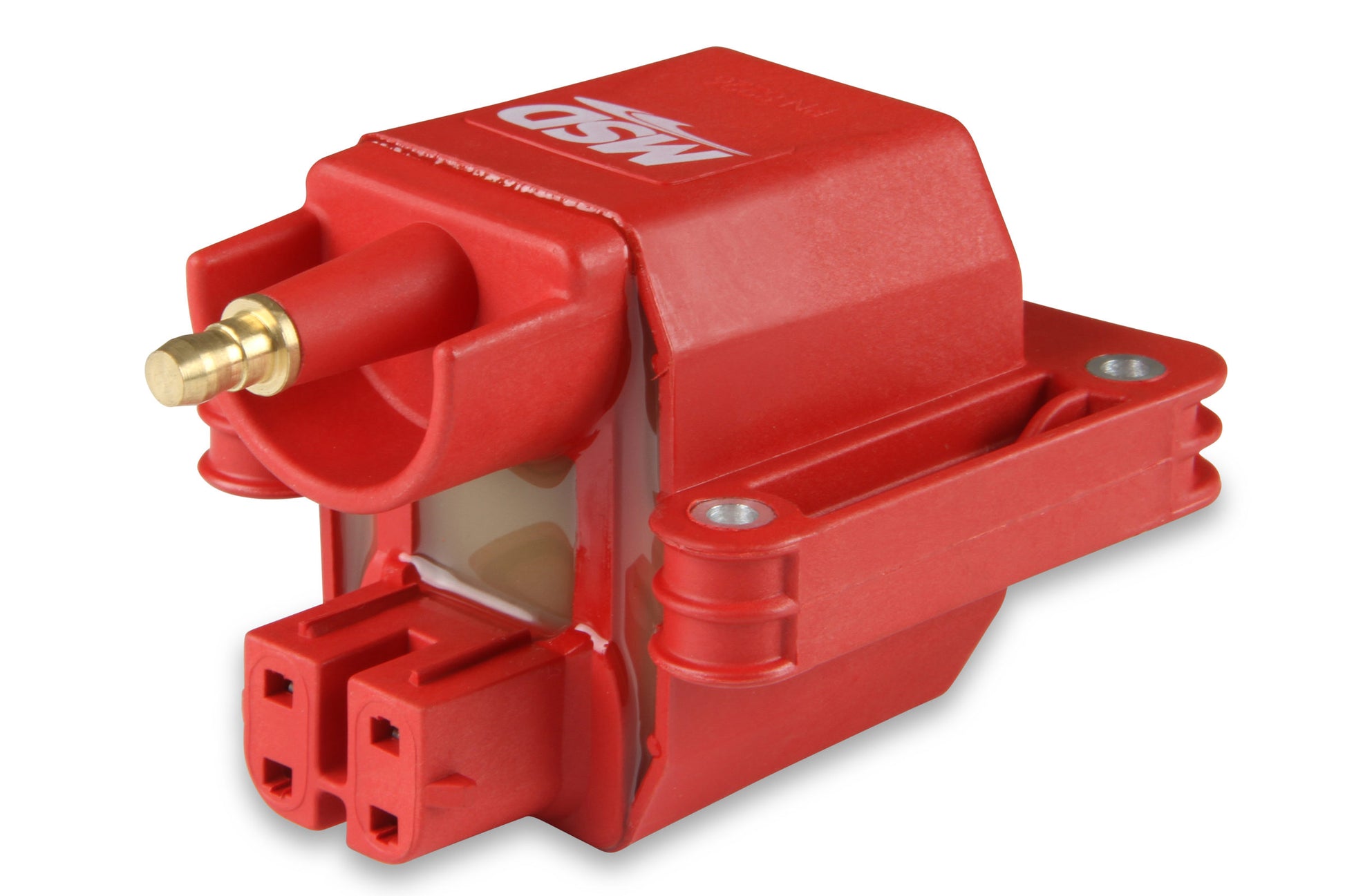

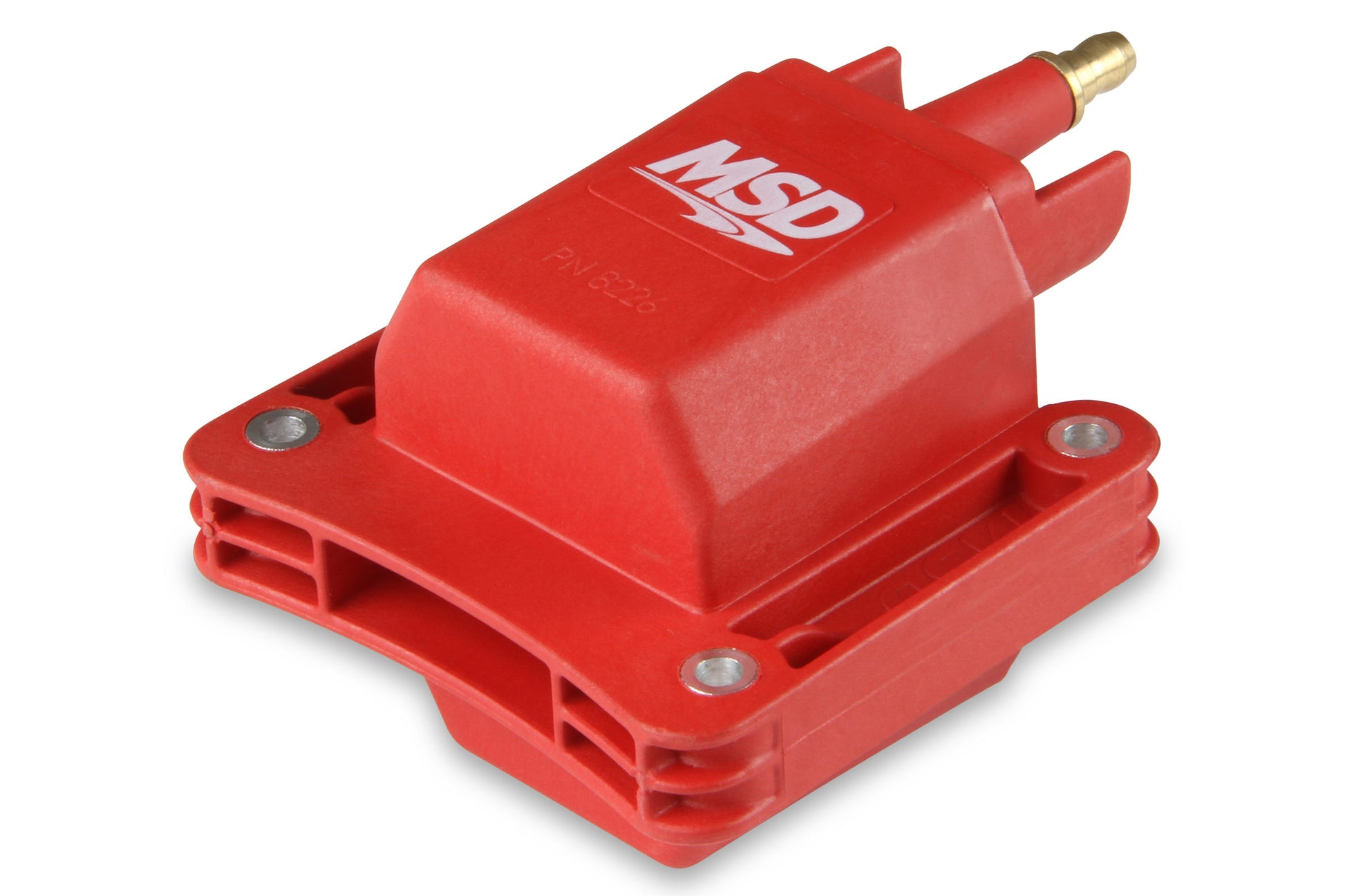

MSD 8226 - GM Dual Connection Ignition Coil

MSRP: $102.29
$92.99
( saved $9.30 )
Write a Review
  • MSD 8226 - GM Dual Connection Ignition Coil
  • MSD 8226 - GM Dual Connection Ignition Coil
  • MSD 8226 - GM Dual Connection Ignition Coil
  • MSD 8226 - GM Dual Connection Ignition Coil
  • MSD 8226 - GM Dual Connection Ignition Coil
  • MSD 8226 - GM Dual Connection Ignition Coil
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Verify fitment with your vehicle
GO
Clear
Adding to cart… The item has been added
SKU:
MSD-8226
UPC:
085132082261
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

MSD - 8226

Ignition Coil - Blaster TFI and GM - E-Core - 0.680 ohm - Male HEI - 44000V - Red - GM Dual Connector - Each

GM Dual Connection Ignition Coil; Direct Replacement; 5.6 mH Inductance; 44000 Max Voltage; 220 ma Peak Current; 300 uS Spark Duration; 100:1 Turns Ratio; Red; Single;

Top off your GM Ignition system with these great new replacement coils. The GM Coils have MSD performance in factory-style housings! MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks. The MSD Blaster GM Coil is designed to produce increased voltage and energy over the stock GM Coil. To get even more ignition performance, install an MSD Ignition Control with a PN 8876 Harness for a direct plug-in installation.

  • Direct performance replacement for GM dual connector coil
  • 100:1 Turns Ratio
  • Lower Primary Resistance Produces High Voltage Output
  • Works w/Stock Ignition As Well As MSD Ignitions
  • CARB E.O. Approved

Brand: MSD
Category: Ignition
Emission Code: 1
Inductance: 5.6 mH
Maximum Voltage: 44,000 Volts
part type: Ignition Coil
Peak Current: 220 mA
Primary Resistance: .68 OHMs
Product Type: Ignition Coils
Secondary Resistance: 4.8K OHMs
Spark Duration: 300 uS
Sub Category: Ignition Coil
Turns Ratio: 4.167361111111111
Warning: California Proposition 65
Warranty: Manufacturer's Limited 1 Year Warranty
Weight: N/A

Year
Make
Model
Submodel
Engine
1991
Buick
Commercial Chassis
Base
5.0L
1992 - 1996
Buick
Commercial Chassis
Base
5.7L
1992 - 1995
Buick
Roadmaster
Base
5.7L
1996
Buick
Roadmaster
Collector's Edition
5.7L
1991
Buick
Roadmaster
Estate Wagon
5.0L
1992 - 1995
Buick
Roadmaster
Estate Wagon
5.7L
1996
Buick
Roadmaster
Estate Wagon Collector's Edition
5.7L
1992 - 1995
Buick
Roadmaster
Limited
5.7L
1996
Buick
Roadmaster
Limited Collector's Edition
5.7L
1982
Buick
Skyhawk
Custom
1.8L
1982
Buick
Skyhawk
Limited
1.8L
1985
Buick
Skylark
Custom
2.5L
1985
Buick
Skylark
Custom
2.8L
1985
Buick
Skylark
Limited
2.5L
1985
Buick
Skylark
Limited
2.8L
1986
Buick
Somerset
Custom
2.5L
1986
Buick
Somerset
Limited
2.5L
1986
Buick
Somerset
T-Type
2.5L
1985
Buick
Somerset Regal
Base
2.5L
1985
Buick
Somerset Regal
Limited
2.5L
