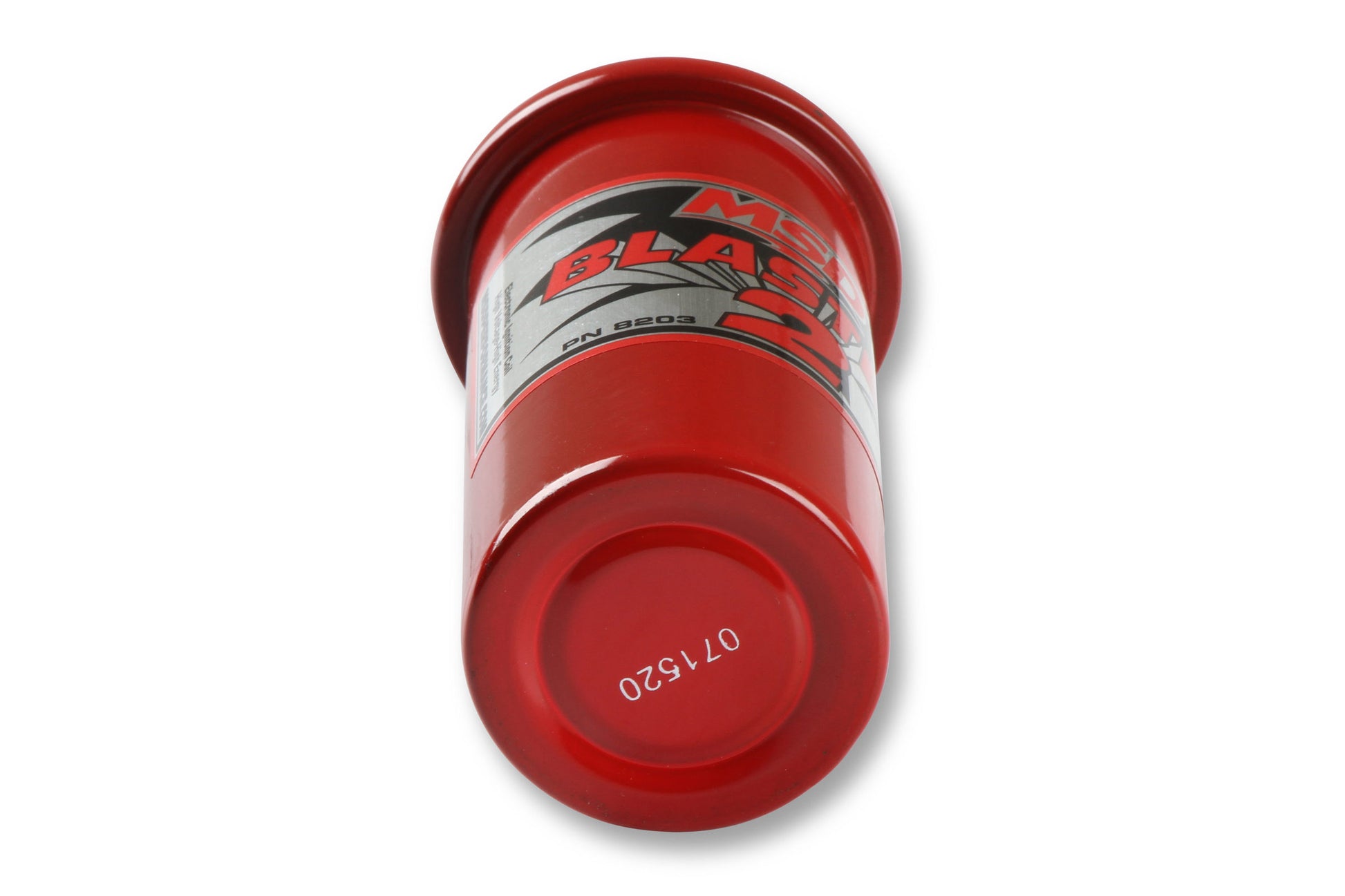

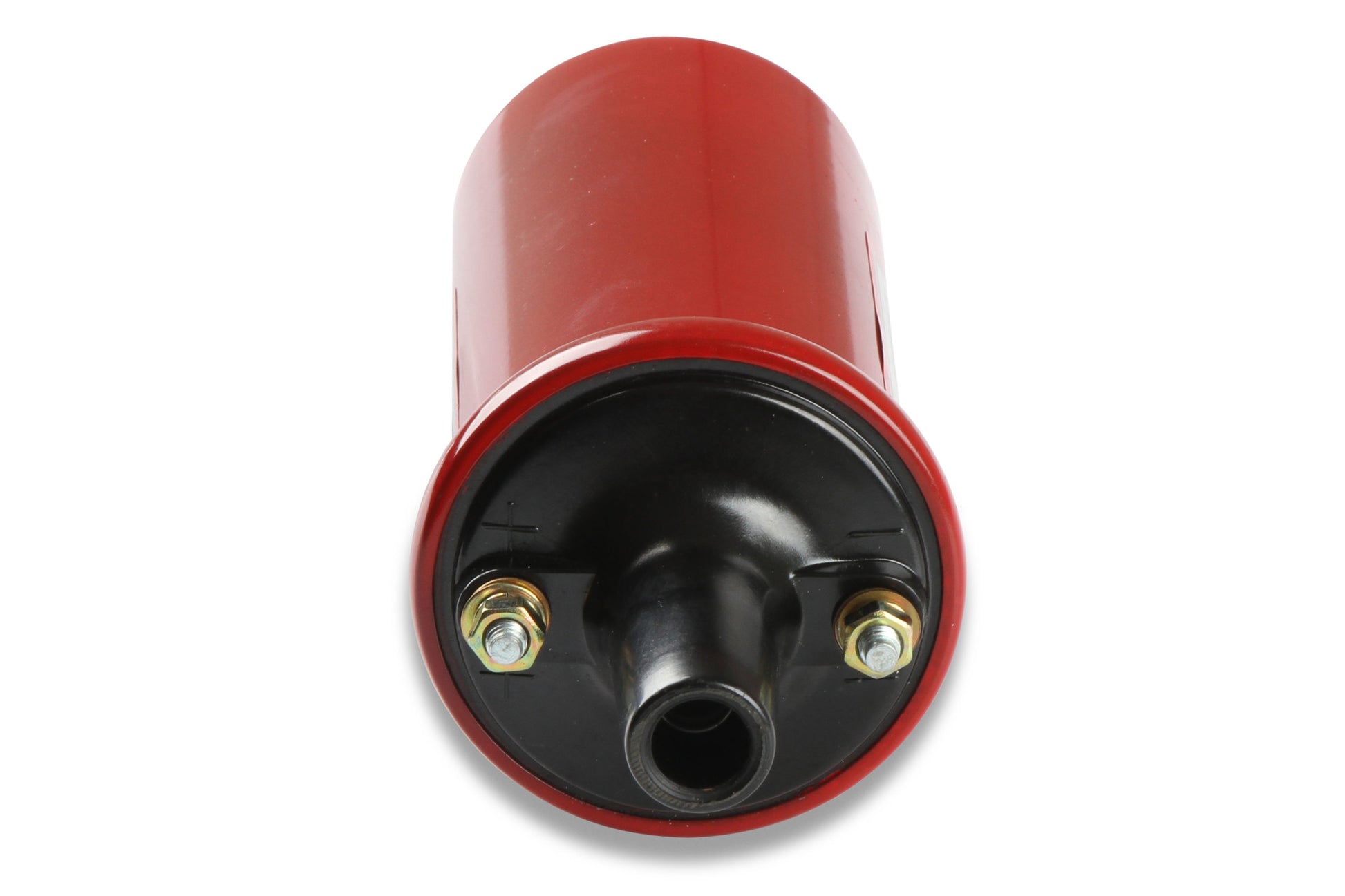

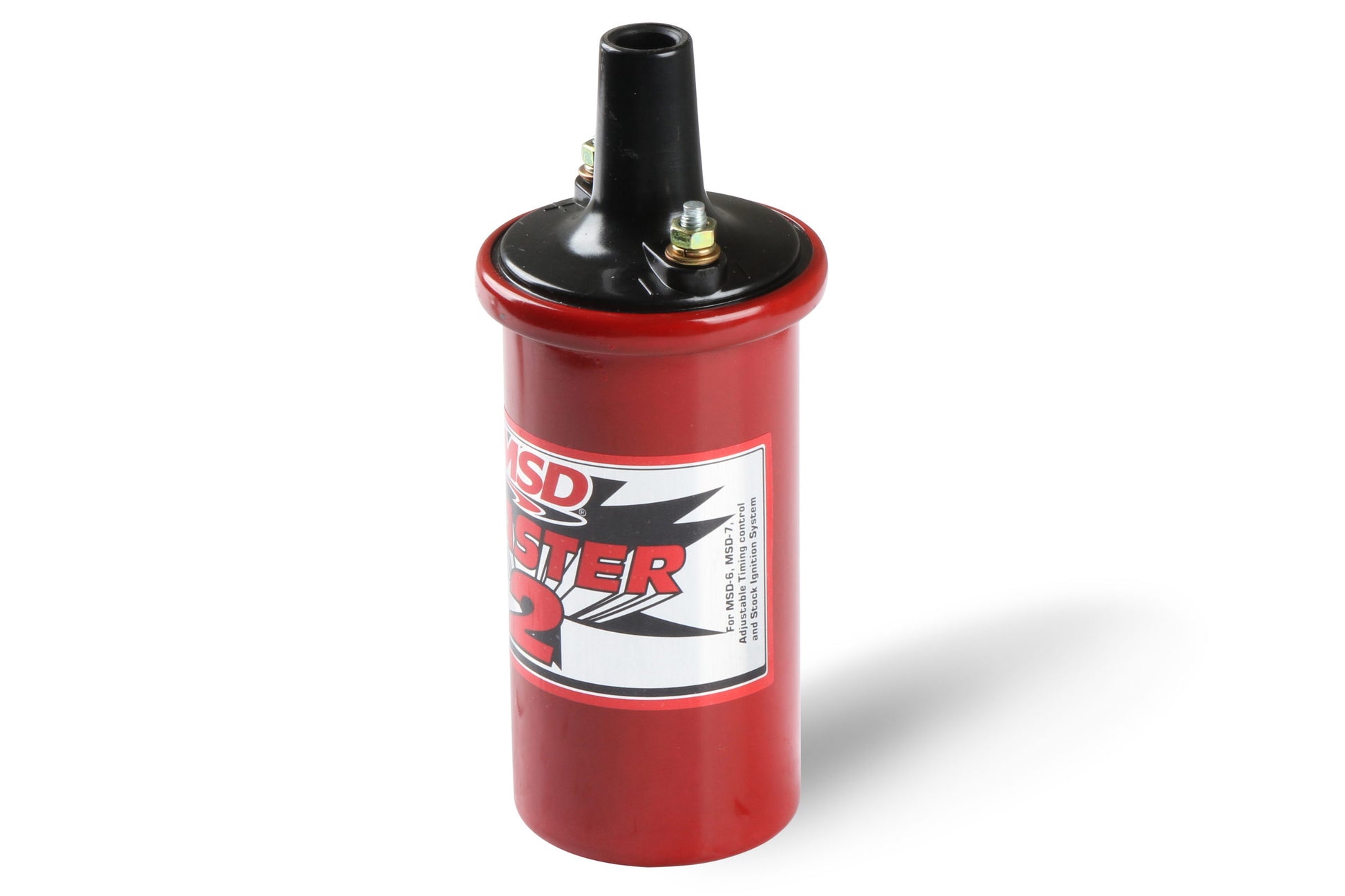

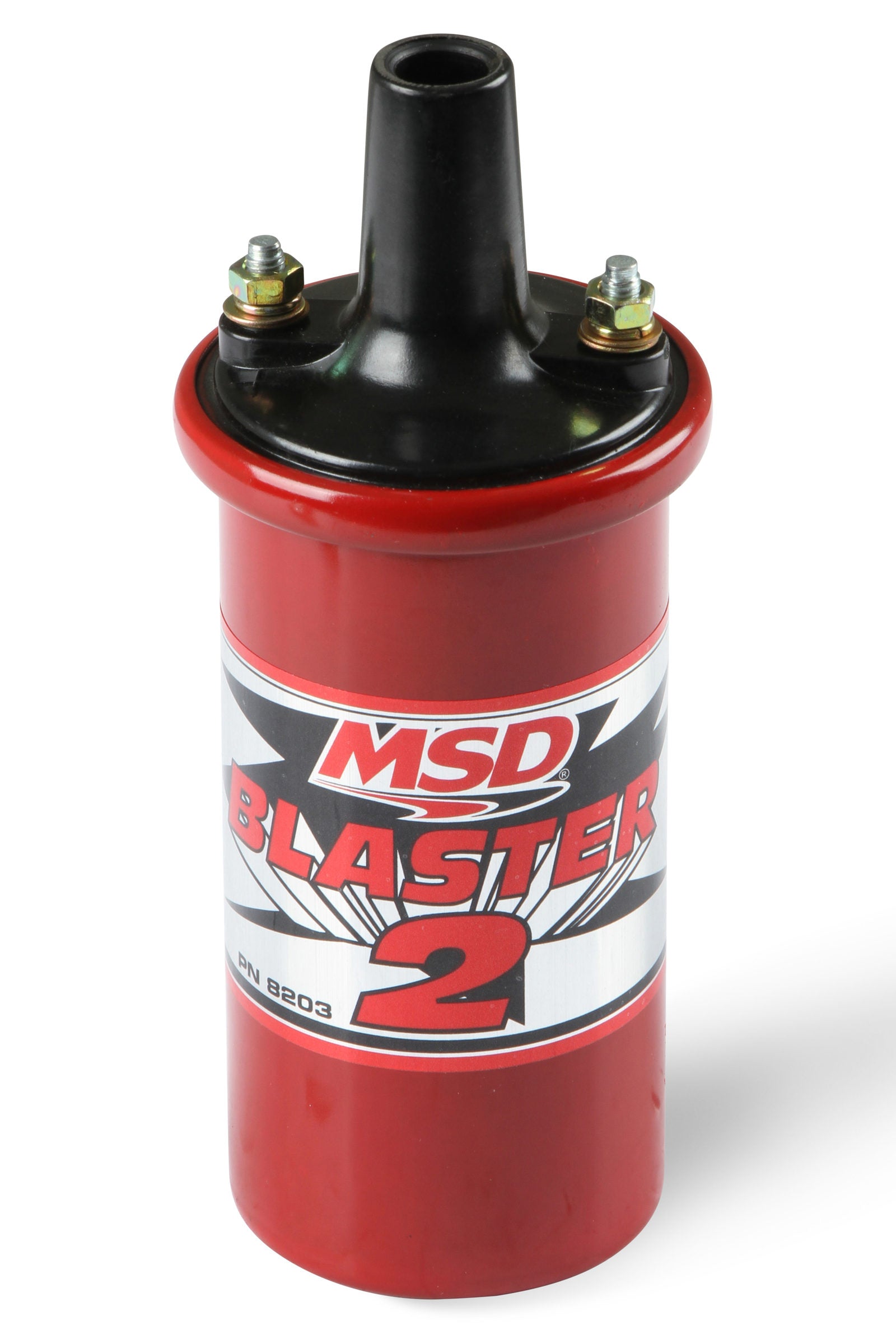

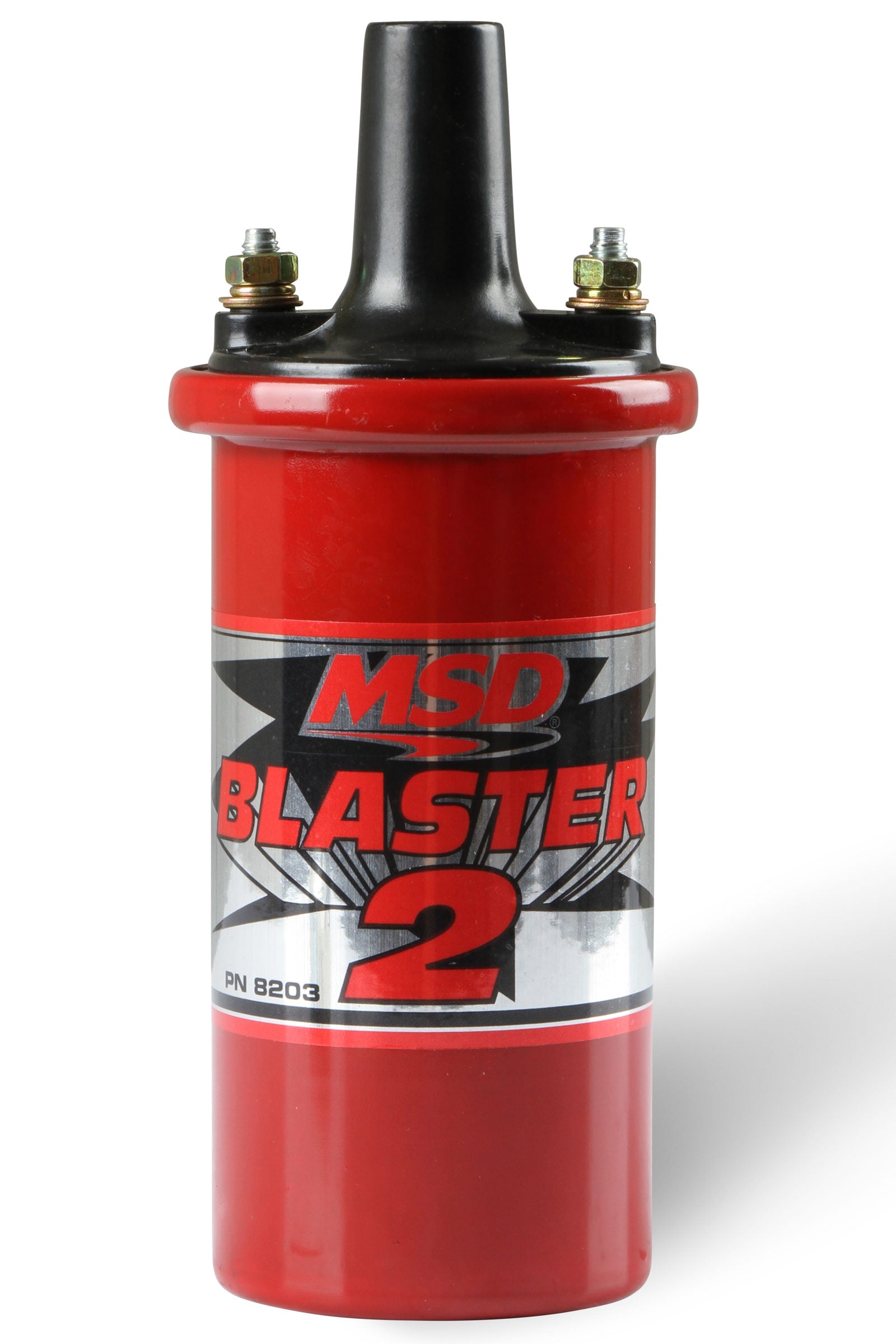

MSD 8203 - Blaster 2 Ignition Coil

MSD 8203 - Blaster 2 Ignition Coil

Ignition Coil - Blaster 2 - Canister - Oil Filled - 0.700 ohm - Female Socket - 45000V - Ballast Resister / 90 Degree Boot / Terminal Included - Red - Kit

Blaster 2 Ignition Coil; Incl. Ballast Resistor For Stock Applications; 8 mH Inductance; 45000 Max Volts; 140mA Peak Current; 350 uS Spark Duration; 100:1 Turns Ratio; Red;

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD blaster ignition, MSD 5, 6 or 7, the blaster coil line is the right choice. All of the blaster coils are designed for improved spark output. Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. There are several versions of the blaster coil available. All of them have the same internal specifications, but have different housings or components. Each blaster coil can be used with a stock ignition, blaster ignition, MSD 5, 6 or 7 ignition control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.

• Improved output coil for stock points or electronic ignitions
• Works w/Blaster Ignition Or MSD 5/6/7 Series
• Ballast Resistor Required If Used w/Stock Points Ignition

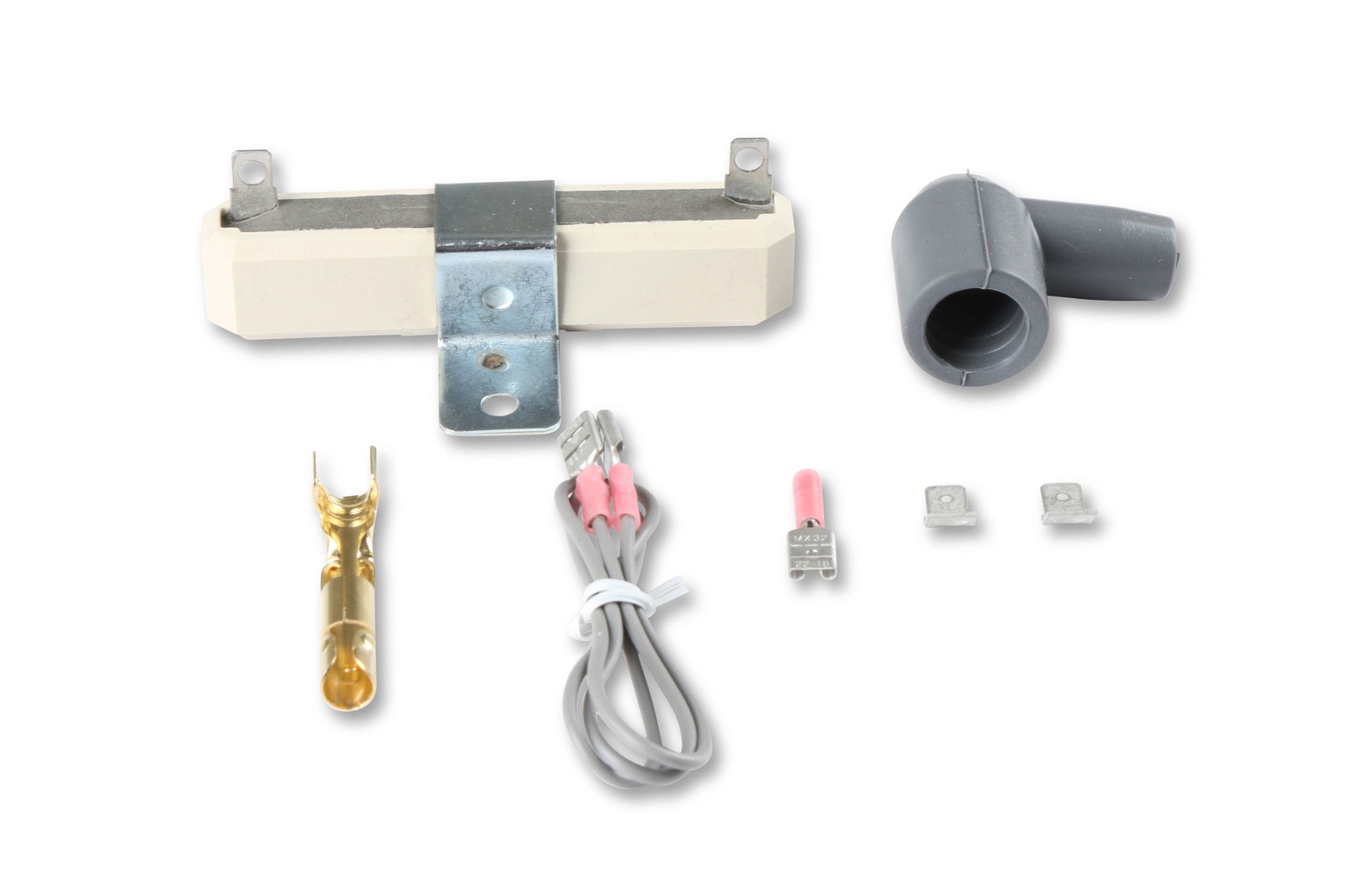

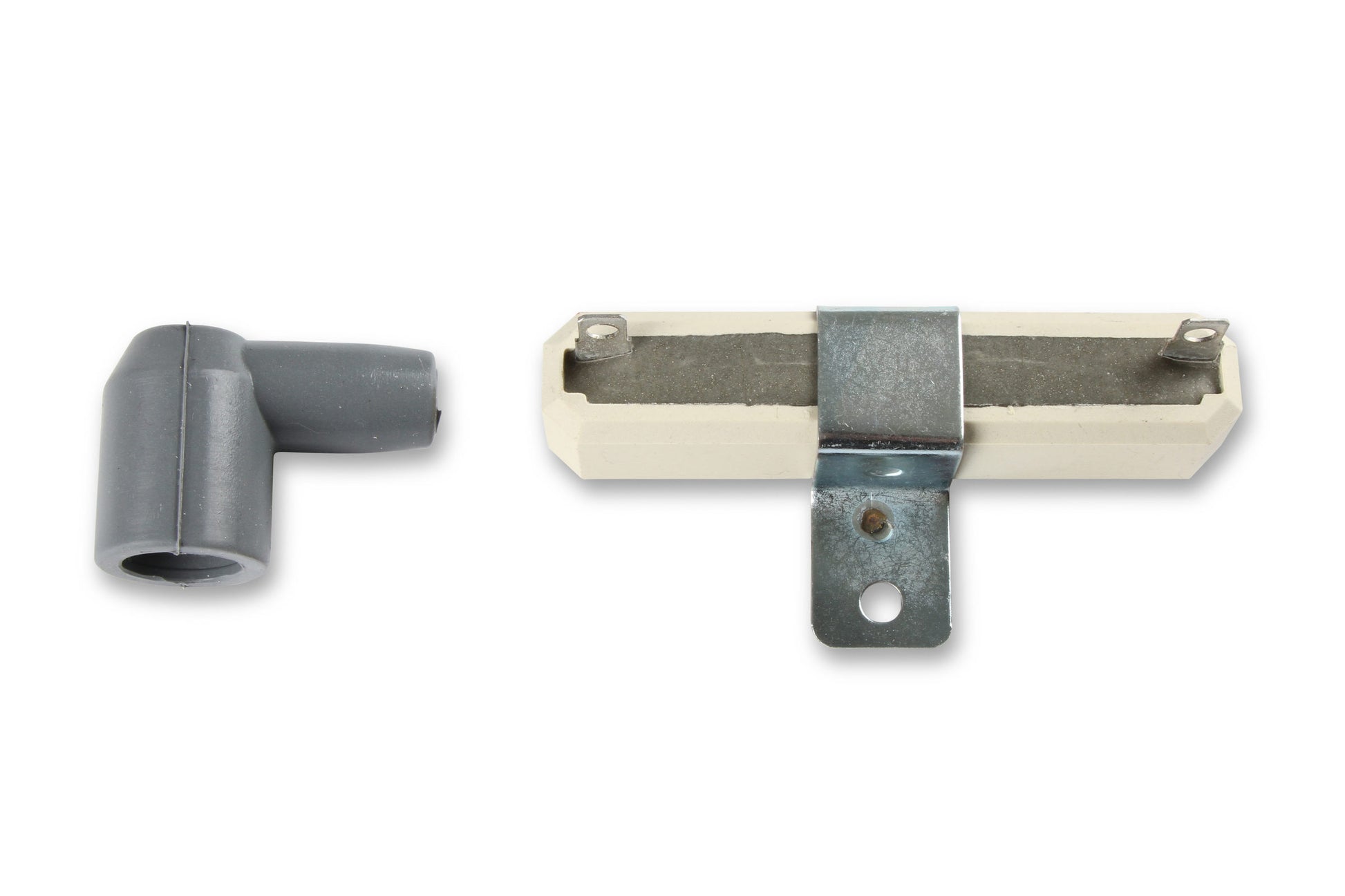

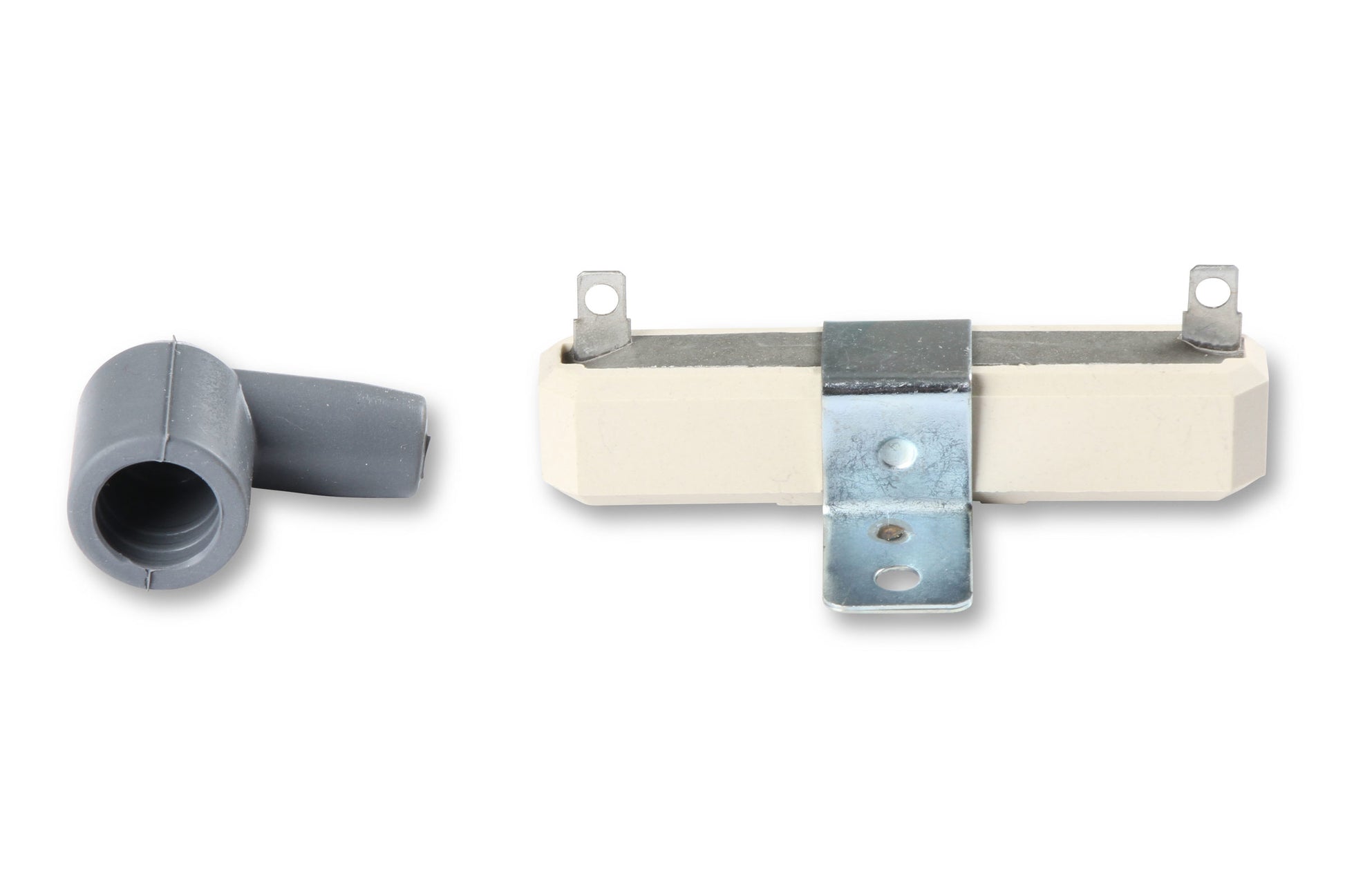

• Supplied w/2 Spark Plug Wire Boots/Terminals/Ballast Resistor
• 100:1 Turns Ratio
• Lower Primary Resistance Produces High Voltage Output
• Metal Canister Is Filled w/Premium Grade Oil For Cooling
• CARB E.O. Approved
