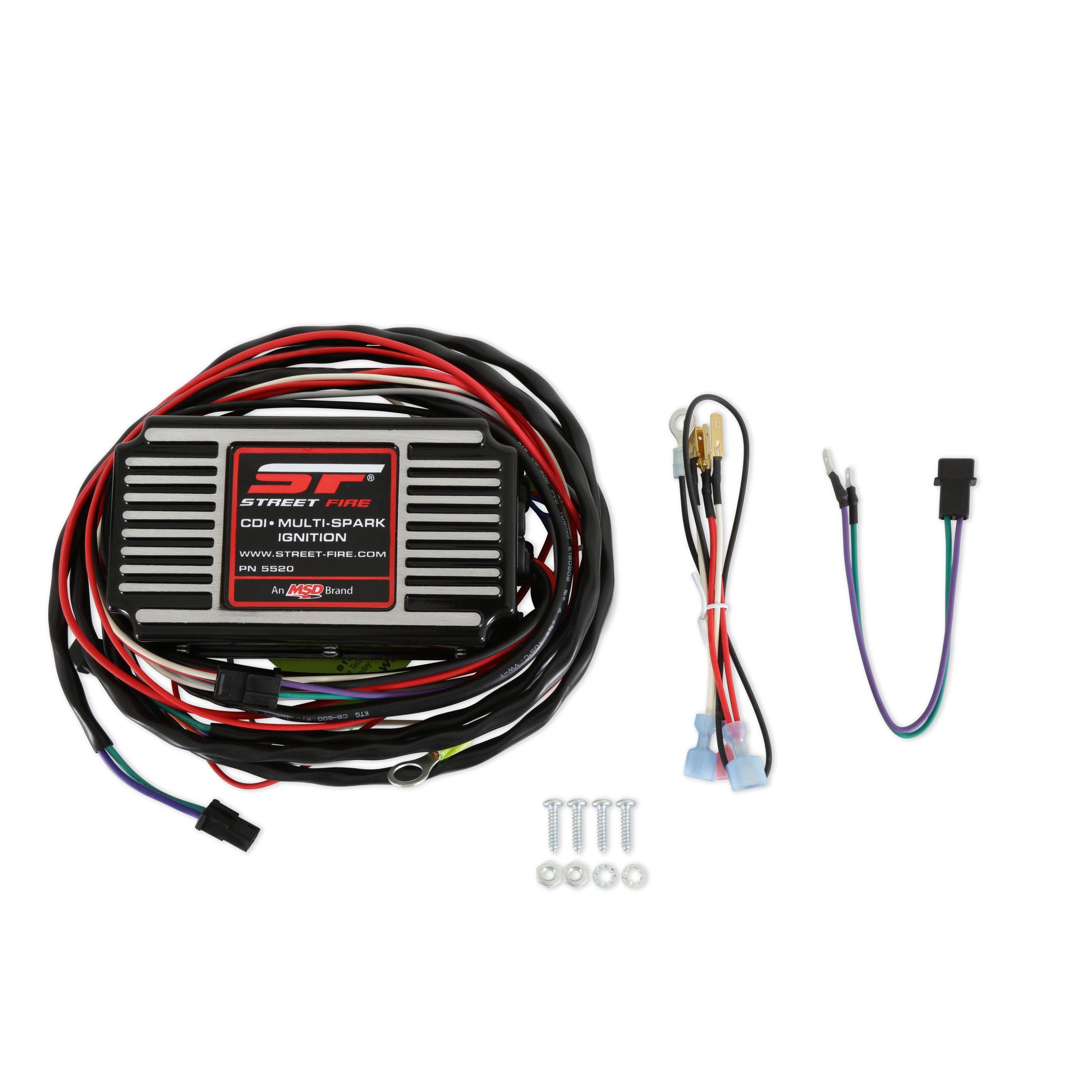

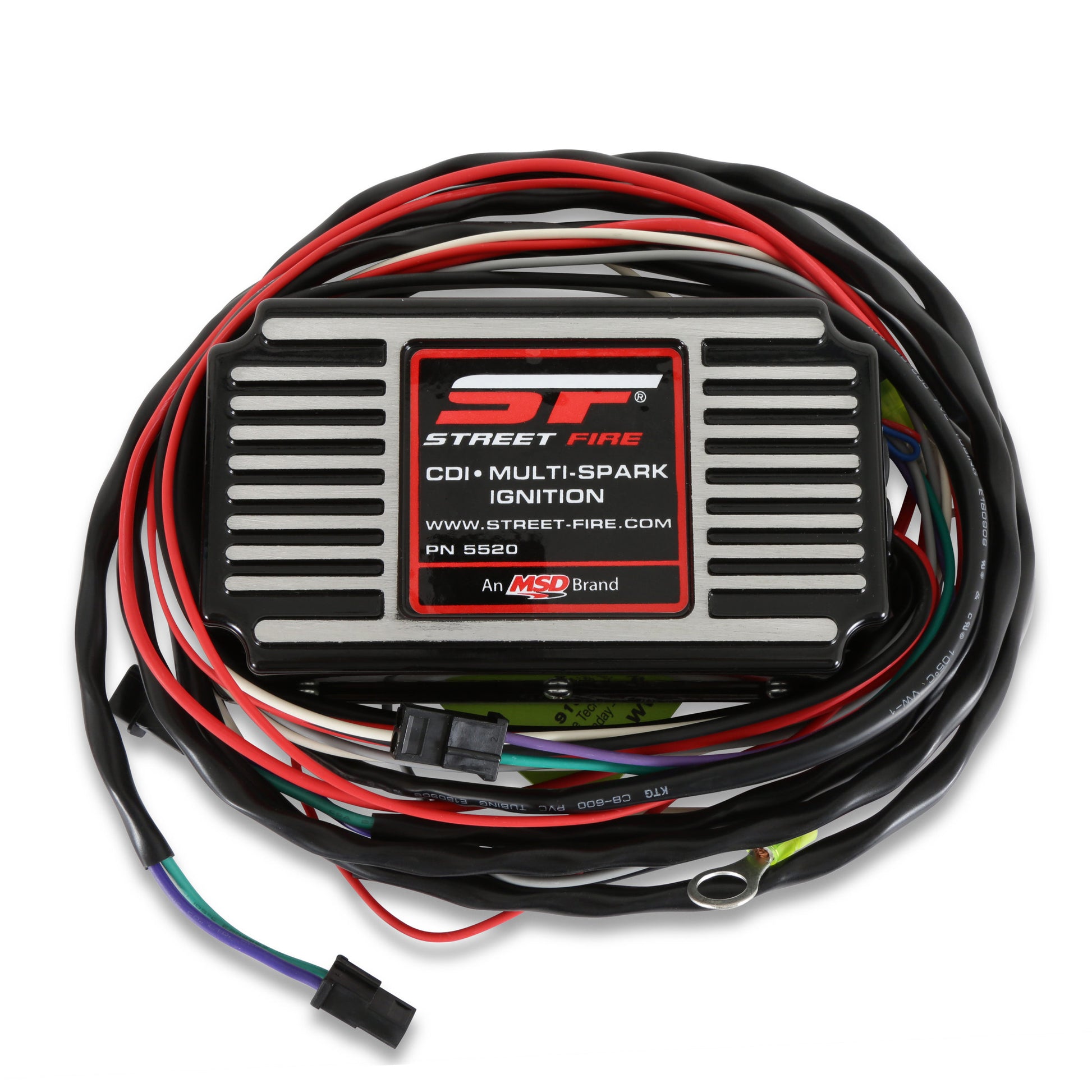

MSD - 5520
Ignition Box - Street Fire - Digital - CD Ignition - Multi-Spark - 43000V - Rev Limiter - Each
Street Fire™ Ignition Controller; w/Rev Control; 4/6/8 Cylinder; 0.7 Amp per 1000 RPM; 435 Primary Volts; 15000 RPM w/14.4 Volts; 43000 Secondary Volts; 95mJ Per Spark;

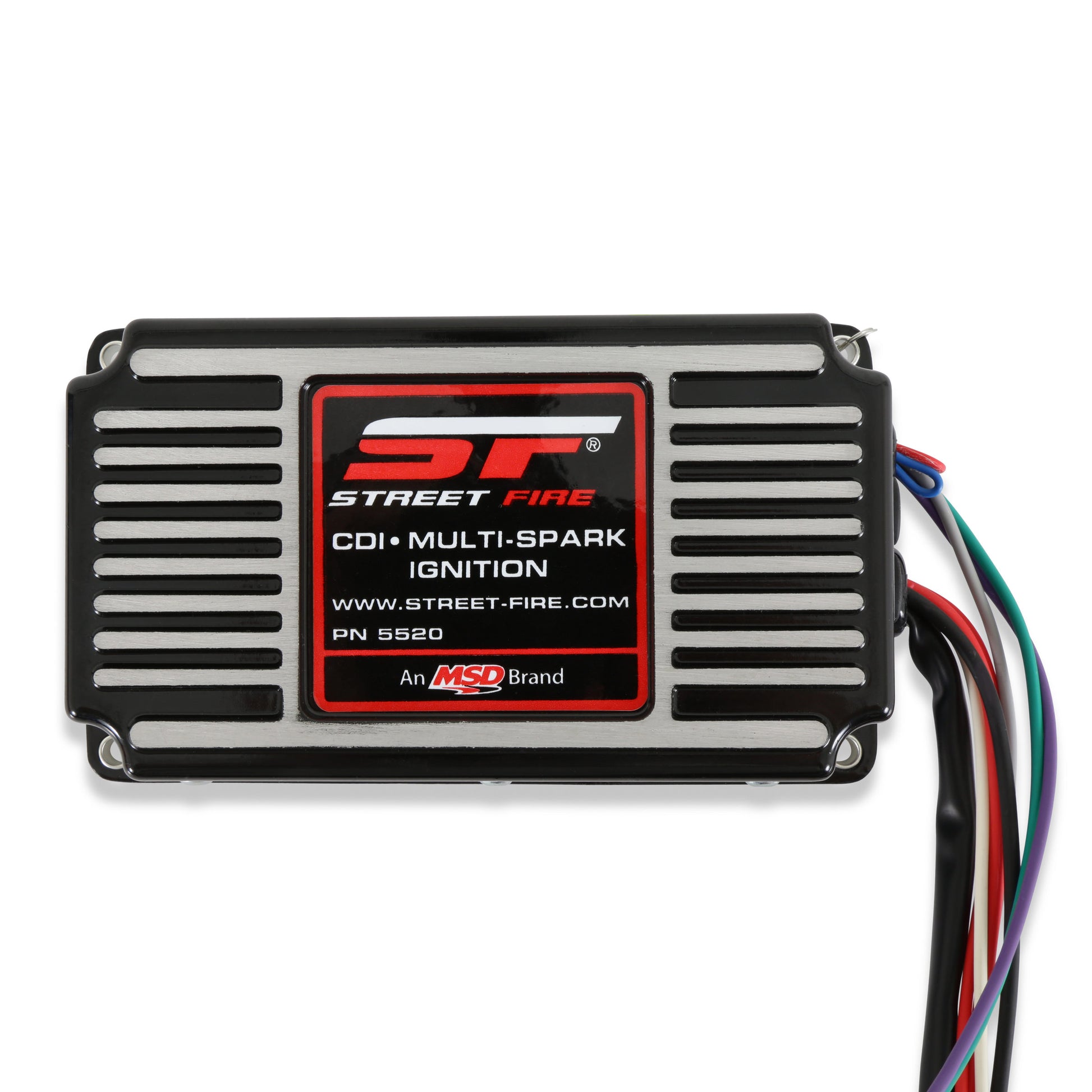

The Street Fire Capacitve Discharge Ignition is perfect for performance enthusiasts with a tight budget. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that last for 20° of crankshaft rotation when the engine is running at lower rpm. This ensures combustion of the air/fuel mixture and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. An adjustable rev limiter will protect the engine in the event of driveline failure. This rpm is adjustable with rotary dials in 100 rpm increments. If you have a 4, 6 or 8-cylinder engine, the Street Fire CDI will connect and fire it up! Covered by CARB E.O. # D-40-43
- Capacitive Discharge Technology
- Multiple Sparks Improve Starting And Idle
- Full Power Output At High RPM
- Connects to points/amplifiers/magnetic pickup distributors
- Adjustable rev limiter for overrev protection
