Mr. Gasket - 902A
Ring Gear Spacer - 0.315 in Thick - Bolts - Steel - Natural - GM 12-Bolt - Kit

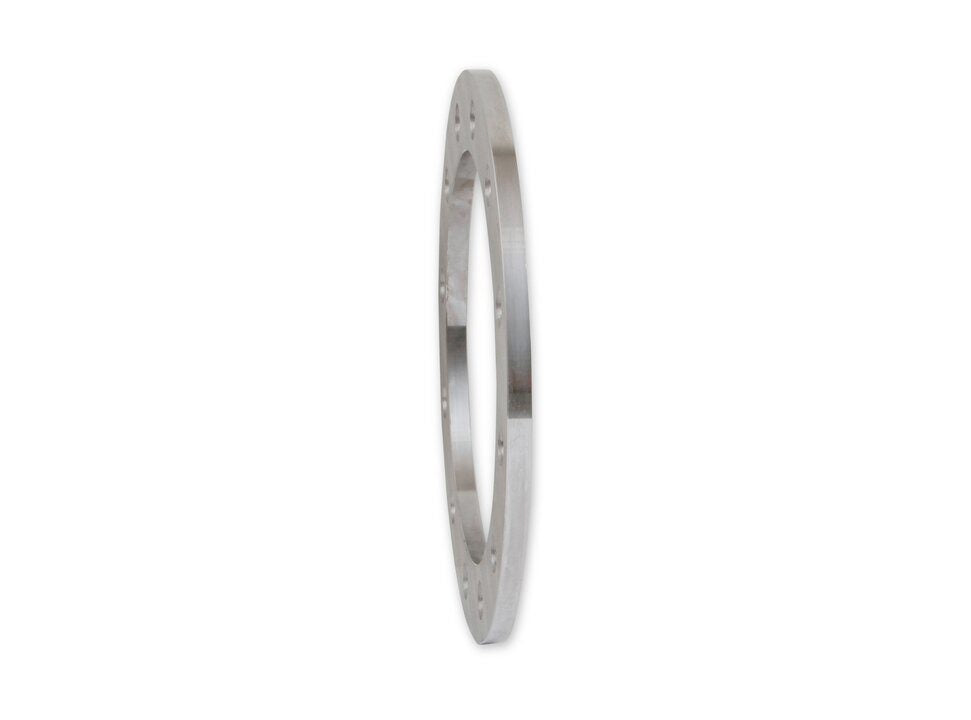

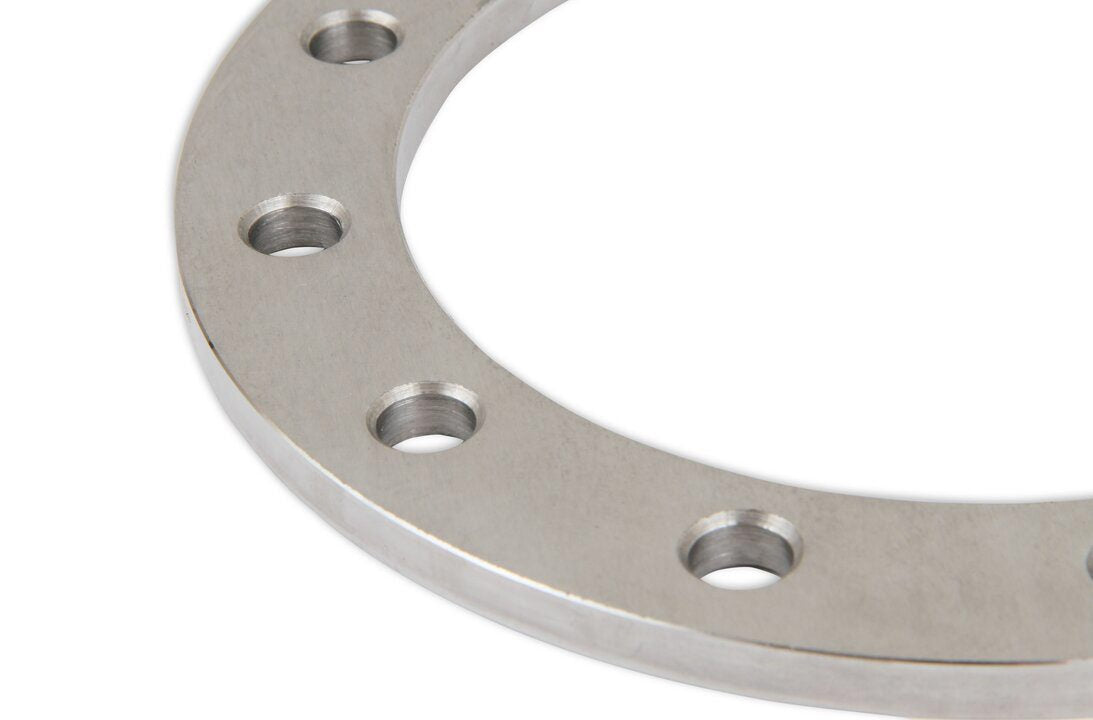

Ring Gear Spacer; 8 7/8 in.; 0.305 in. - 0.315 in. Thickness; 7/16 in. Bolt Hole Dia.; w/Bolts; 1965-72 Chevy 12 Bolt Rear End;

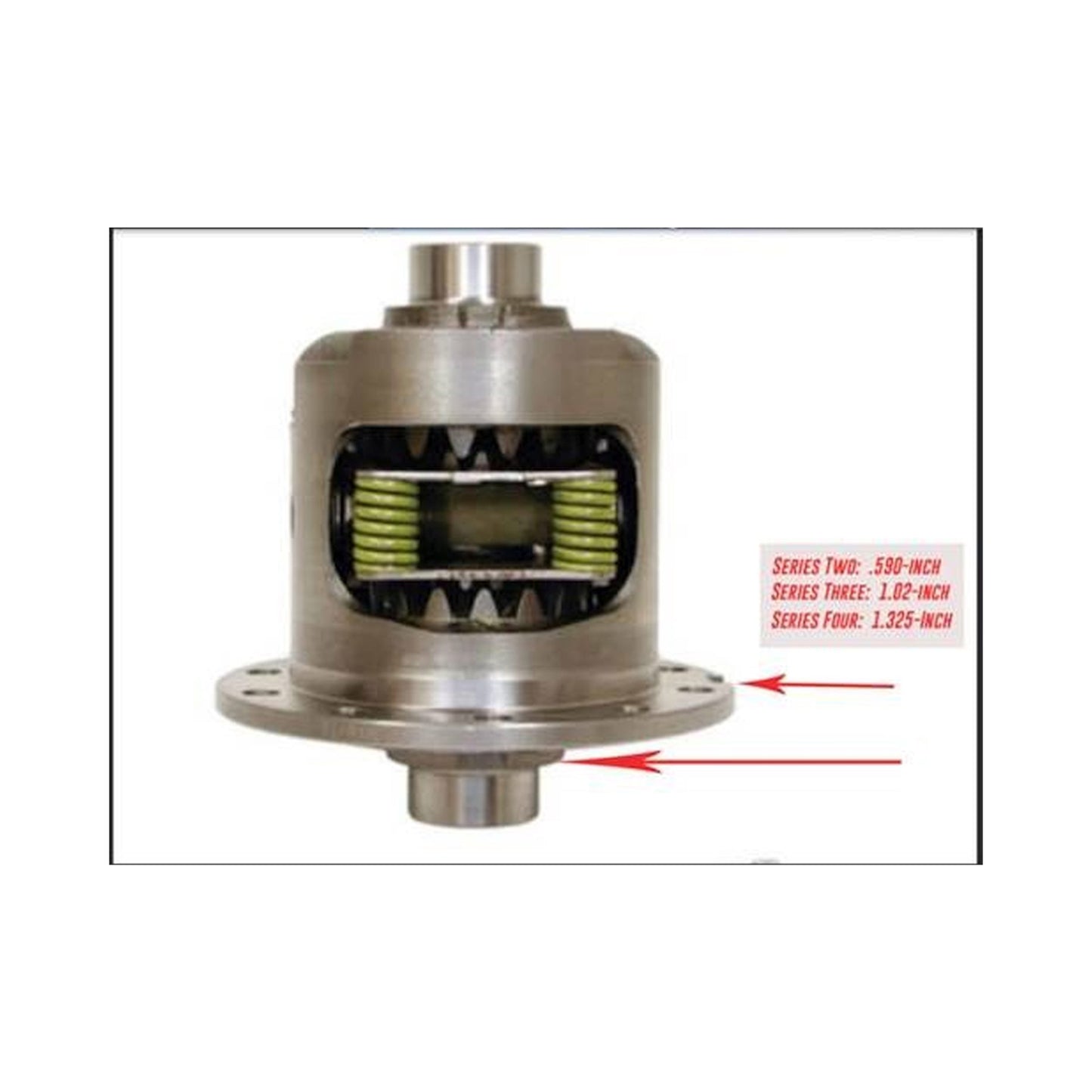

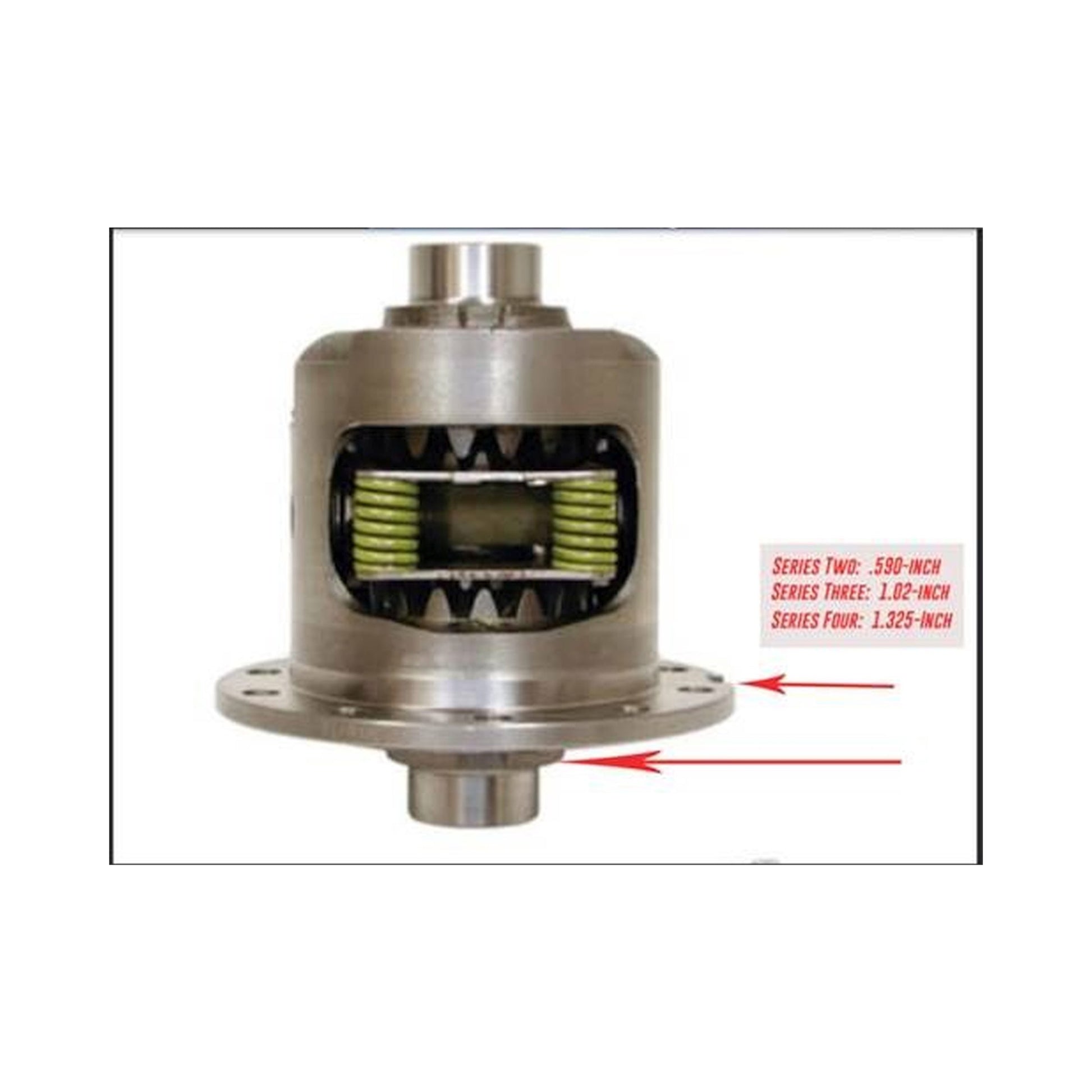

*This spacer should only be used when using the Series Four Gearset on a Series Three Carrier. See image 2 for more information on the differences between the Series. The thickness of this spacer, .305"-.315", coincides with the difference between the series 3 and 4 Carriers. The Series 2 Carrier, being only a little over 1/2 inch thick at the ring gear flange, is not suitable for mid to high HP with slicks.

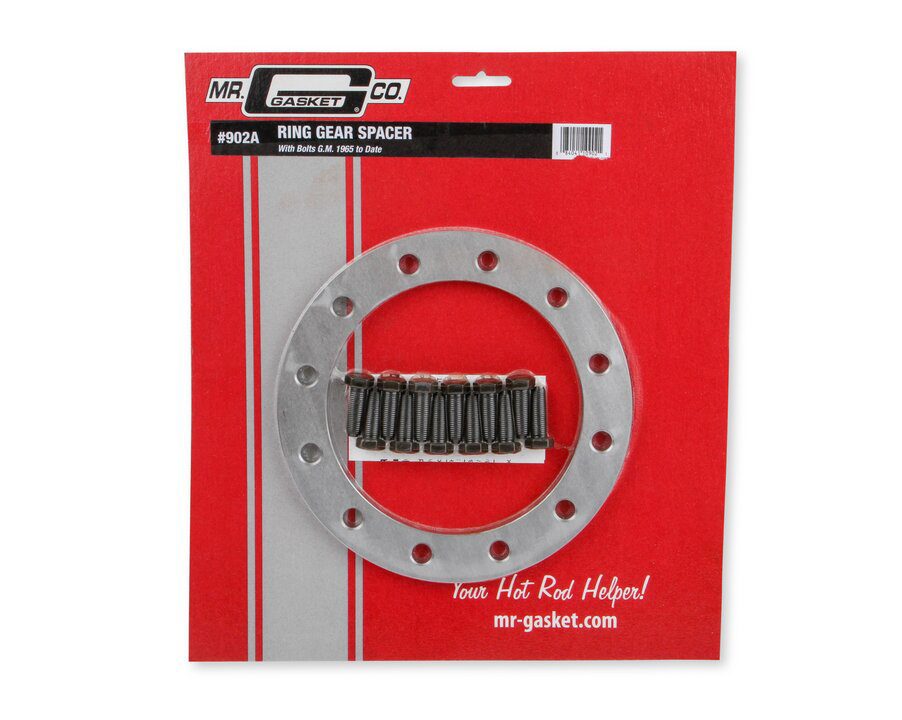

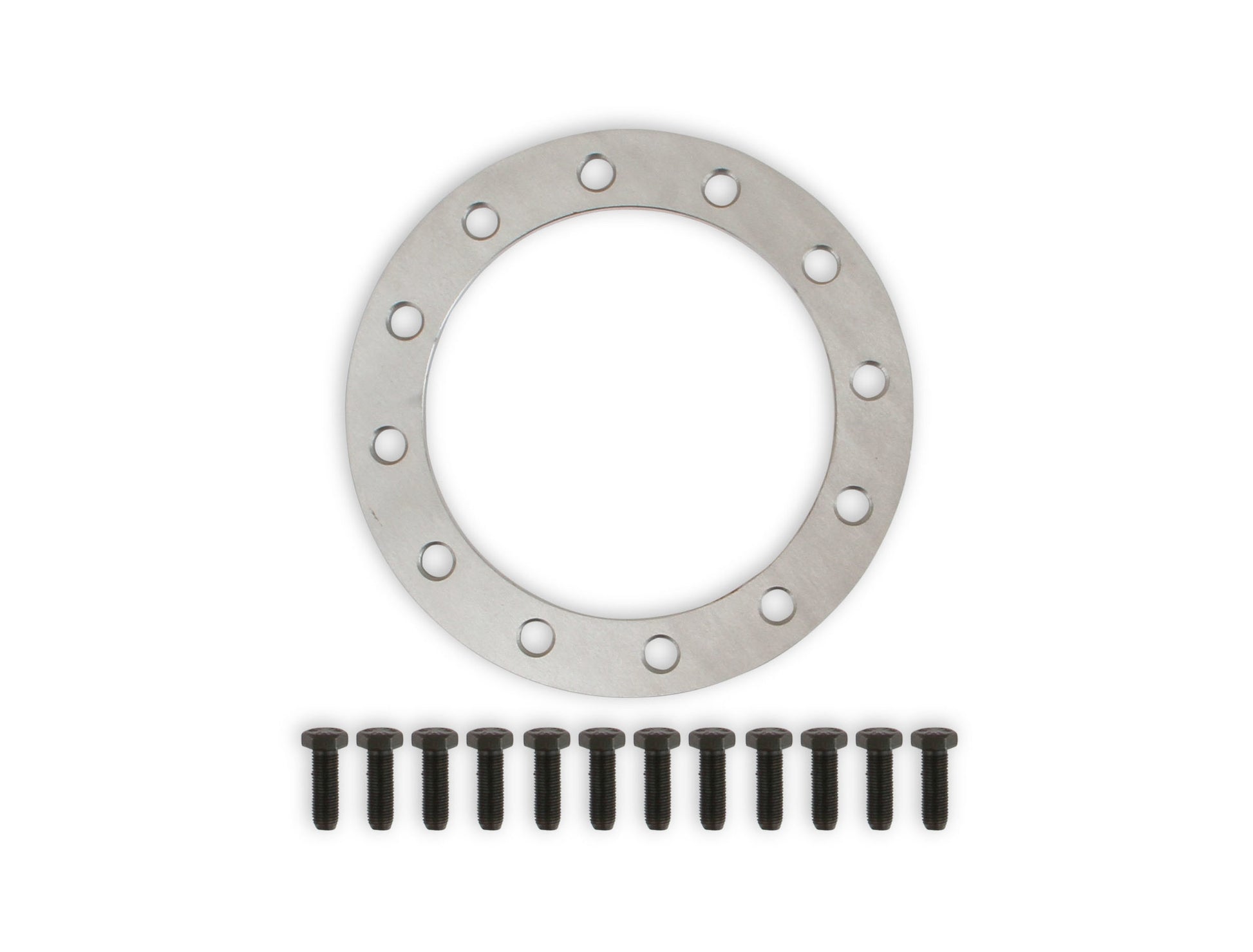

- Includes (12) 3/8"-24 x 1-1/8" Long Bolts
- High Quality Grade-8 Bolts w/ Black Oxide Coating
- Ring Gear Spacer Thickness .305"-.315" - High Carbon Steel - Blanchard Ground to Ensure Parallel Alighnment
- Bolt Hole Diameter .437"
- Allows the use of a Series 4 Gearset on a Series 3 Carrier
Brand: Mr. Gasket
Category: Driveline and Axles
Emission Code: 5
Finish: Bare
Material: Steel
part type: Differential Side Bearing Spacer
Product Type: Ring Gear spacer
Sub Category: Hardware, Fasteners and Fittings
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Weight: 2.45
