Mr. Gasket - 7606G

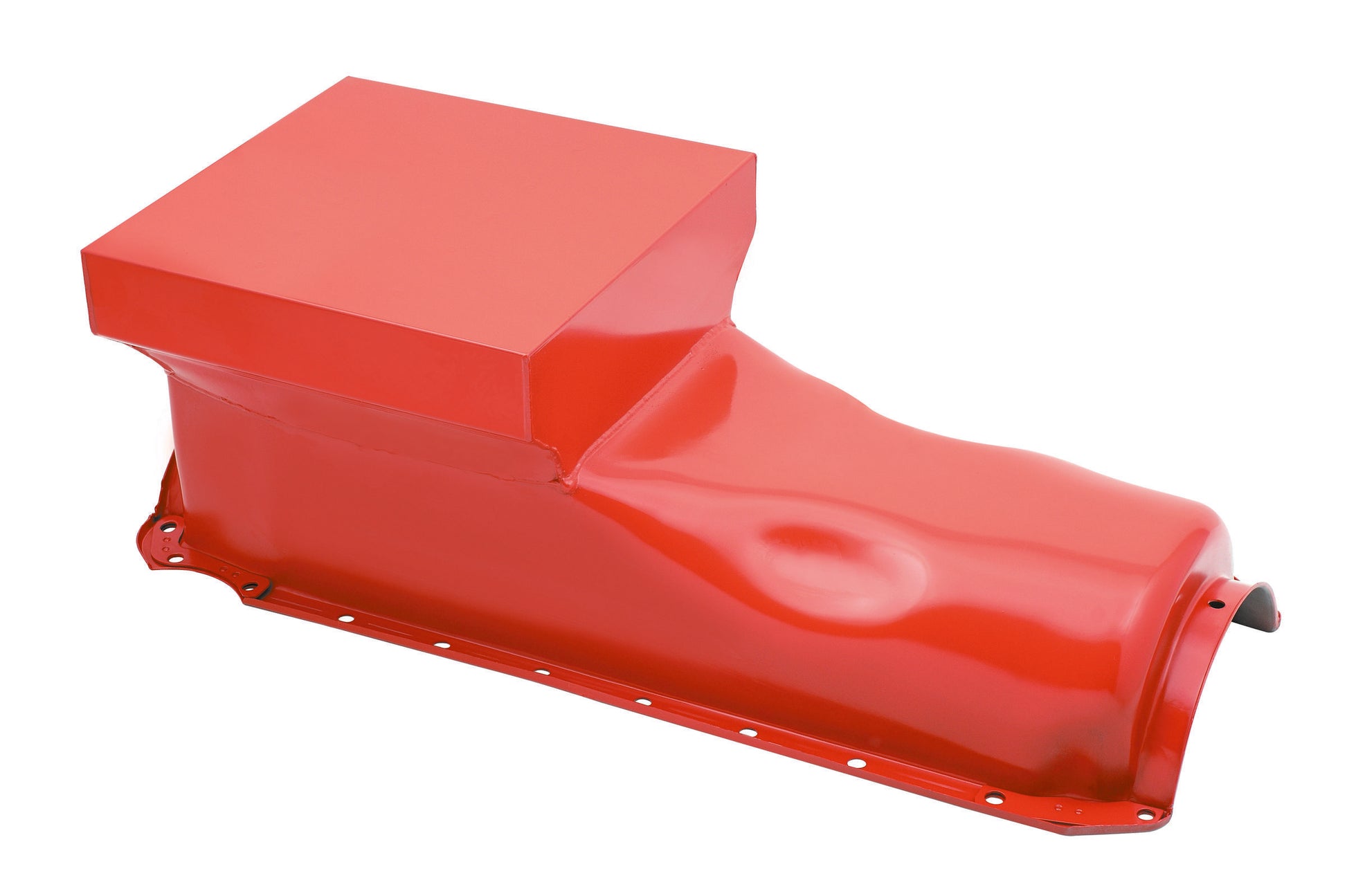

Mr. Gasket Low Profile Oil Pan - Orange
Oil Pan; Low Profile; Racing; w/Trap Door; Orange;
Designed for most big block Chevrolet applications, the low profile sump design allows increased oil capacity without restricting ground clearance. Specially designed internal trap door baffling, combined with custom oil pump pick-ups, keep oil pressure fluctuation to a minimum. These oil pan measure 8-1/4 inch deep from the top side rail to bottom sump, and feature bright orange paint finish. For both street and racing applications. Oil pan capacity is 6 quarts.
- Additional oil capacity - 6 Quarts
- Superior oil control due to internal trap door baffle
- Good ground clearance
- Prepainted bright orange
- Depth of Oil Pan: 8-1/4"
- Width of Oil Pan: 8-3/8"
- Length of Oil Pan: 22-3/4"
Application: 1965-1990 Big Block Chevy
Baffled: Yes
Brand: Mr. Gasket
Category: Engine
Color: Orange
Emission Code: 5
Gasket Or Seal Included: No
Material: Steel
part type: Engine Oil Pan
Product Type: Oil Pan Kit
Sub Category: Cylinder Block Components
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Weight: 14
