Mr. Gasket - 6830G

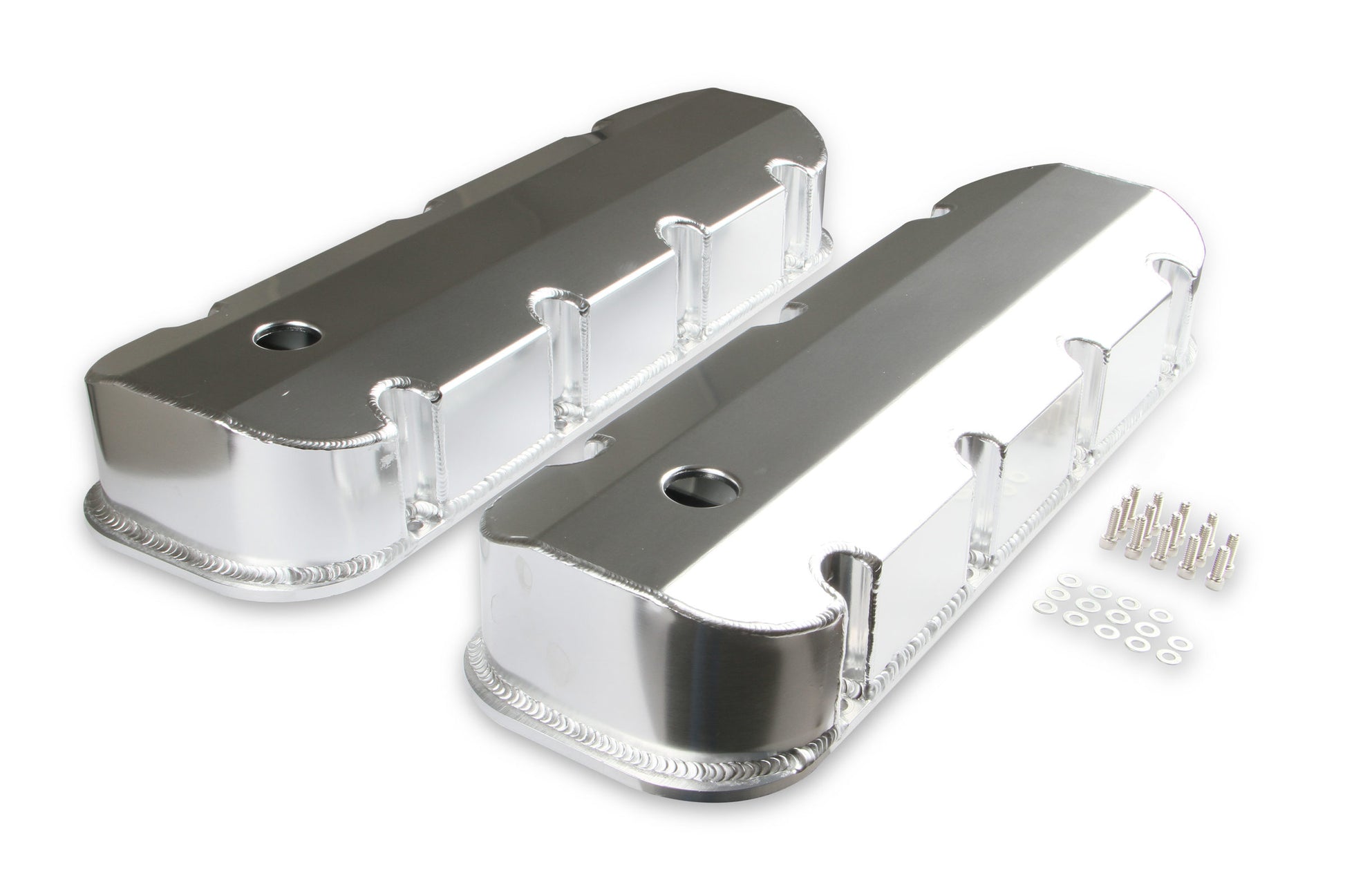

Mr. Gasket Fabricated Aluminum Valve Covers with Breather Holes - Short Bolt
Aluminum Valve Cover; 1/4 in. Thick Billet; Pair;
Fabricated from lightweight aluminum and features a smooth top with a baffled opening and short mounting bolts. Has 1/4 inch thick 1-piece mounting flange which to maintain rail flatness and increase valve cover strength. Includes mounting hardware.

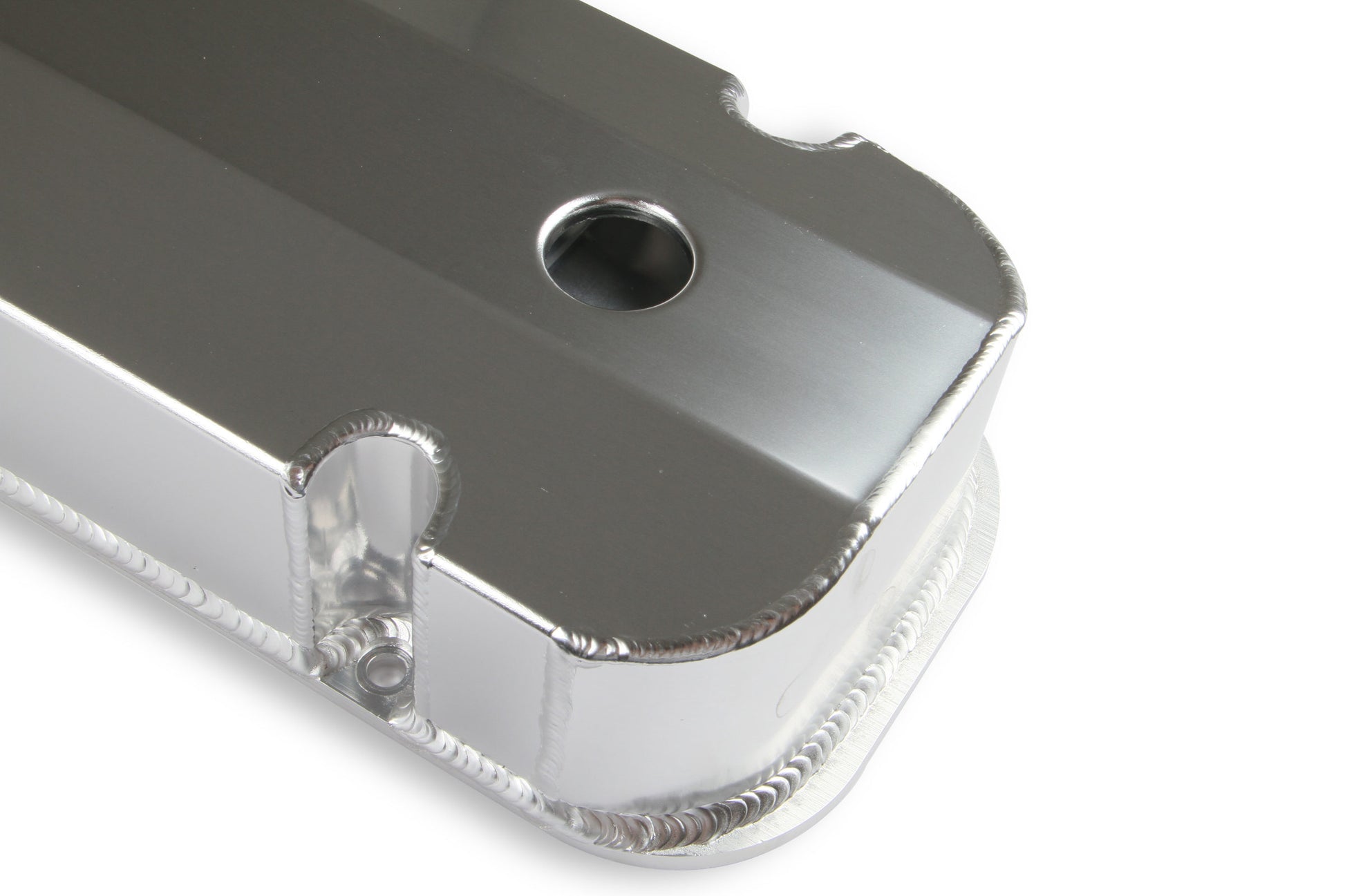

- High quality 100% TIG welded construction
- Constructed of 6061 T5 sheet aluminum

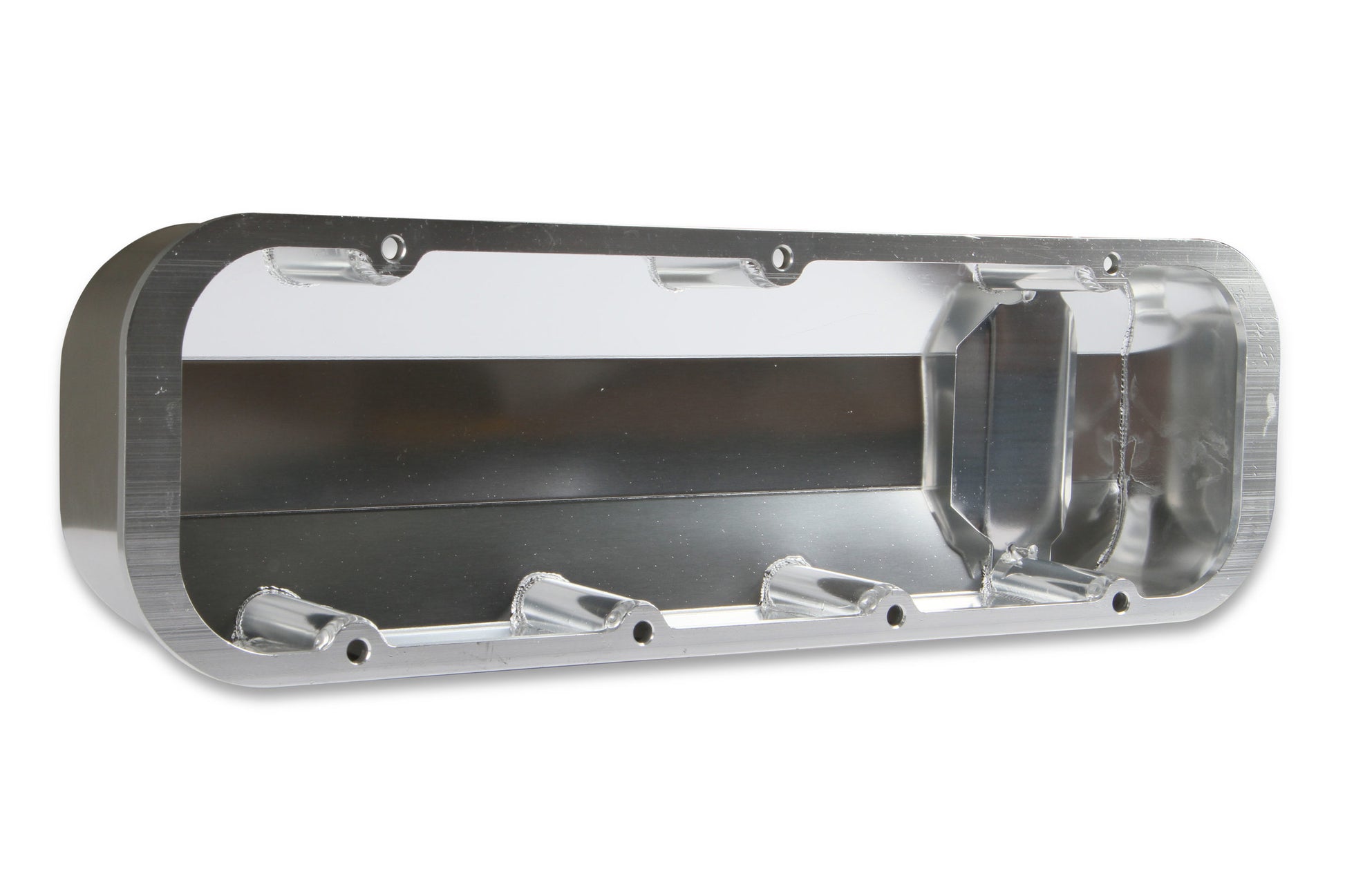

- 1/4” thick 1-piece CNC billet flange for superior sealing
- Silver anodized finish
- Applications for most popular GM, Ford, and Chrysler
- Has 1.25" breather openings
- Standard height or tall height available for additional valve train clearance

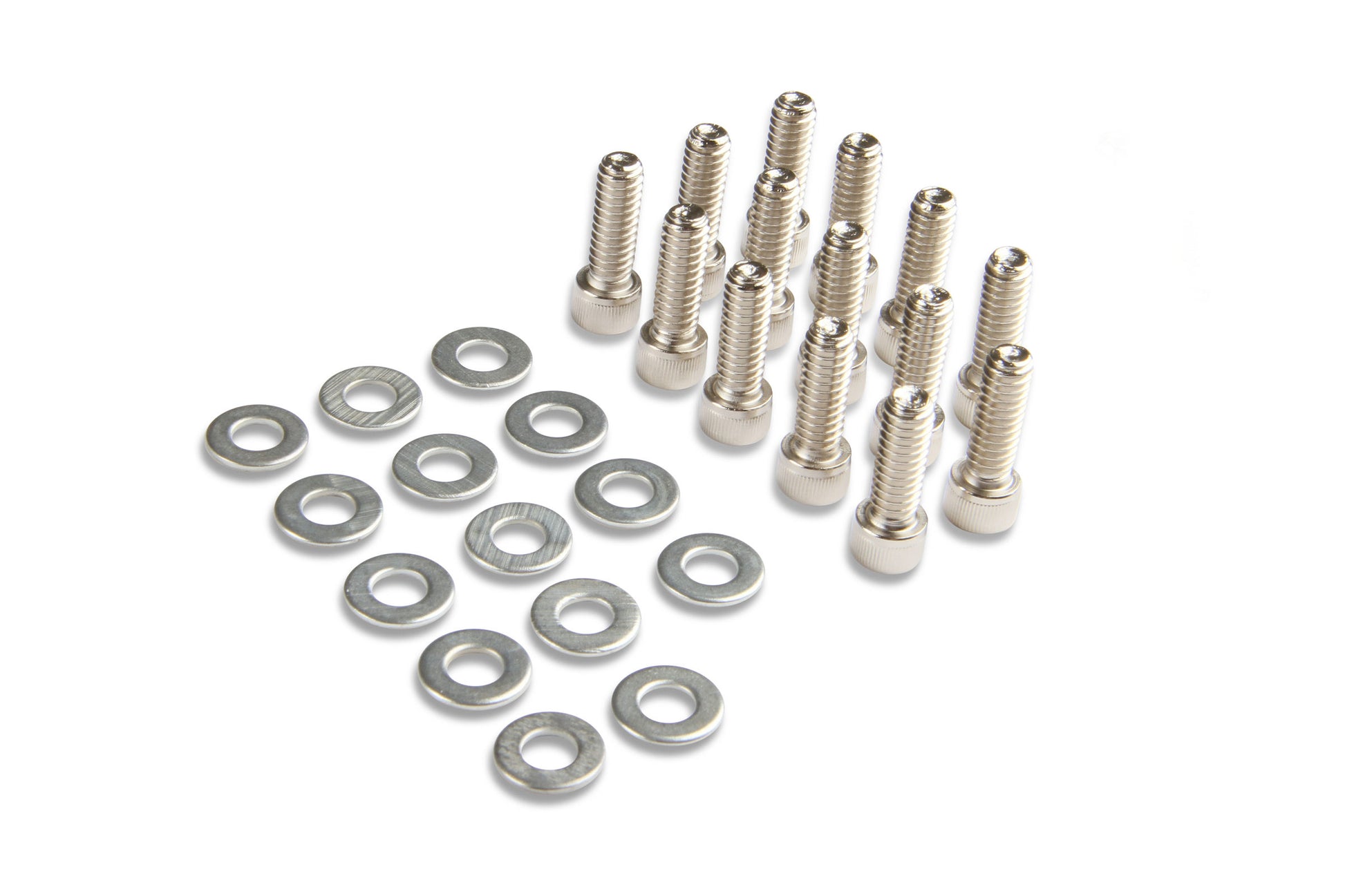

- Includes mounting hardware
- Sold as a pair
Application: Big Block Chevy
Baffle Included: Yes
Bolt Pattern: Perimeter
Brand: Mr. Gasket
Breather Cap Included: No
Breather Opening Size: 1.25
Breather(s) Included: No
Category: Engine
Construction: Cast
Emission Code: 5
Finish: Silver
Flange Thickness: 0.25
Gaskets Included: No
Gromment(s) Included: No
Grommets Included: No
Height: 3.500
Length: 22.125
Logo: None
Material: Fabricated Aluminum
Mounting Hardware Included: Yes
Oil Fill: Yes
Oil Filler Cap Included: No
part type: Engine Valve Cover Set
Product Type: Valve Cover
Sheen Level: High Gloss
Style: Short Bolt BBC
Sub Category: Cylinder Block Components
Valve Cover Gasket Included: Yes
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Width: 6.75
