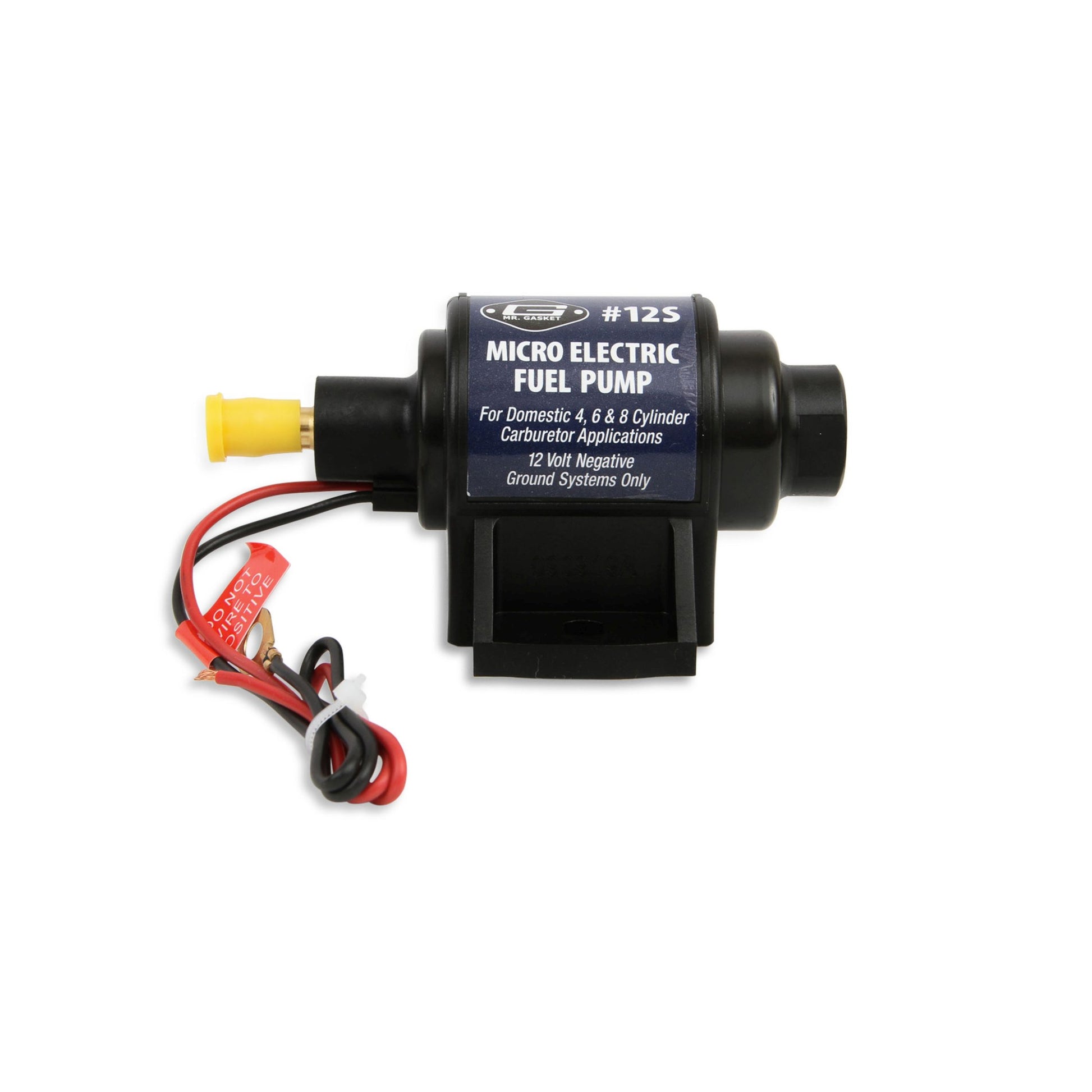

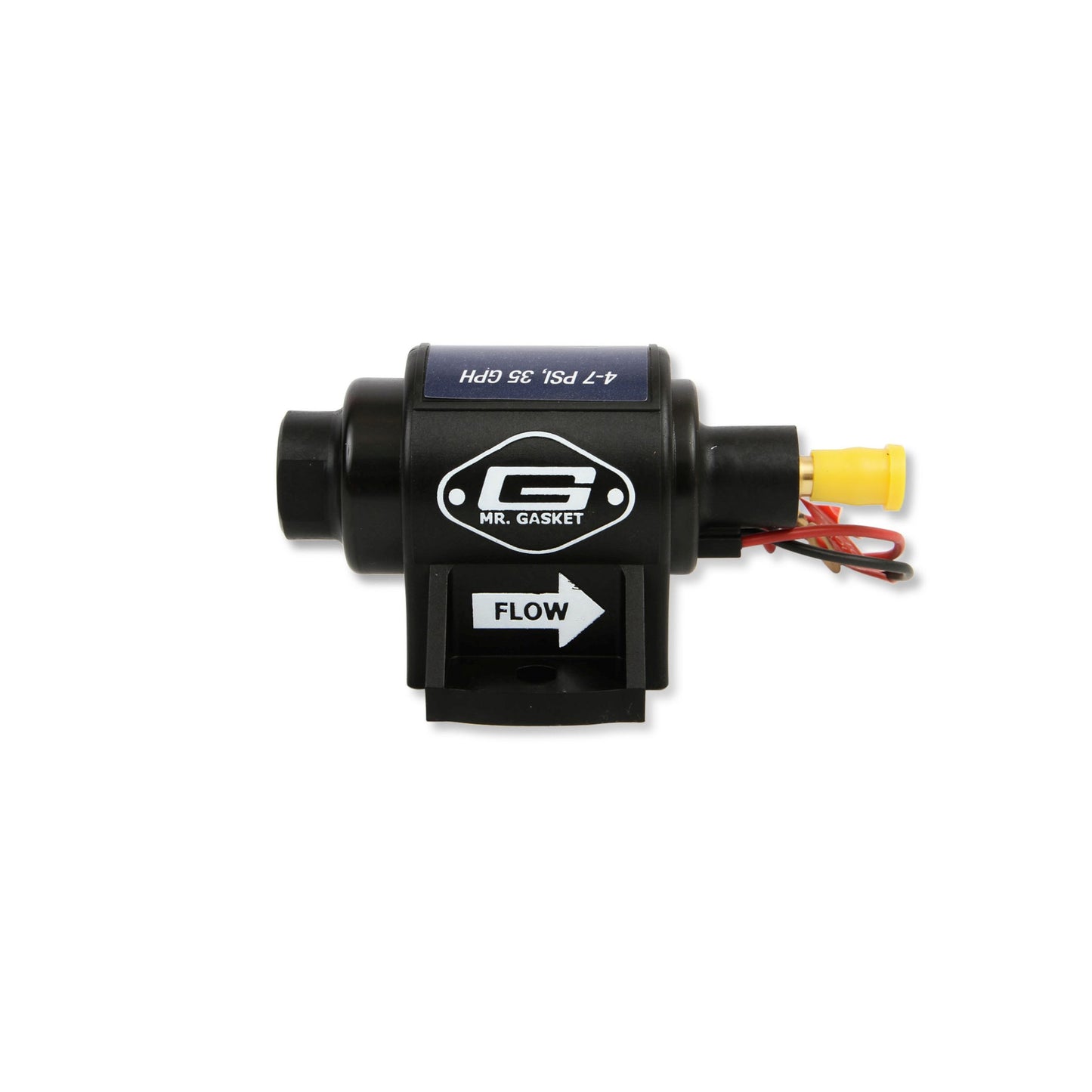

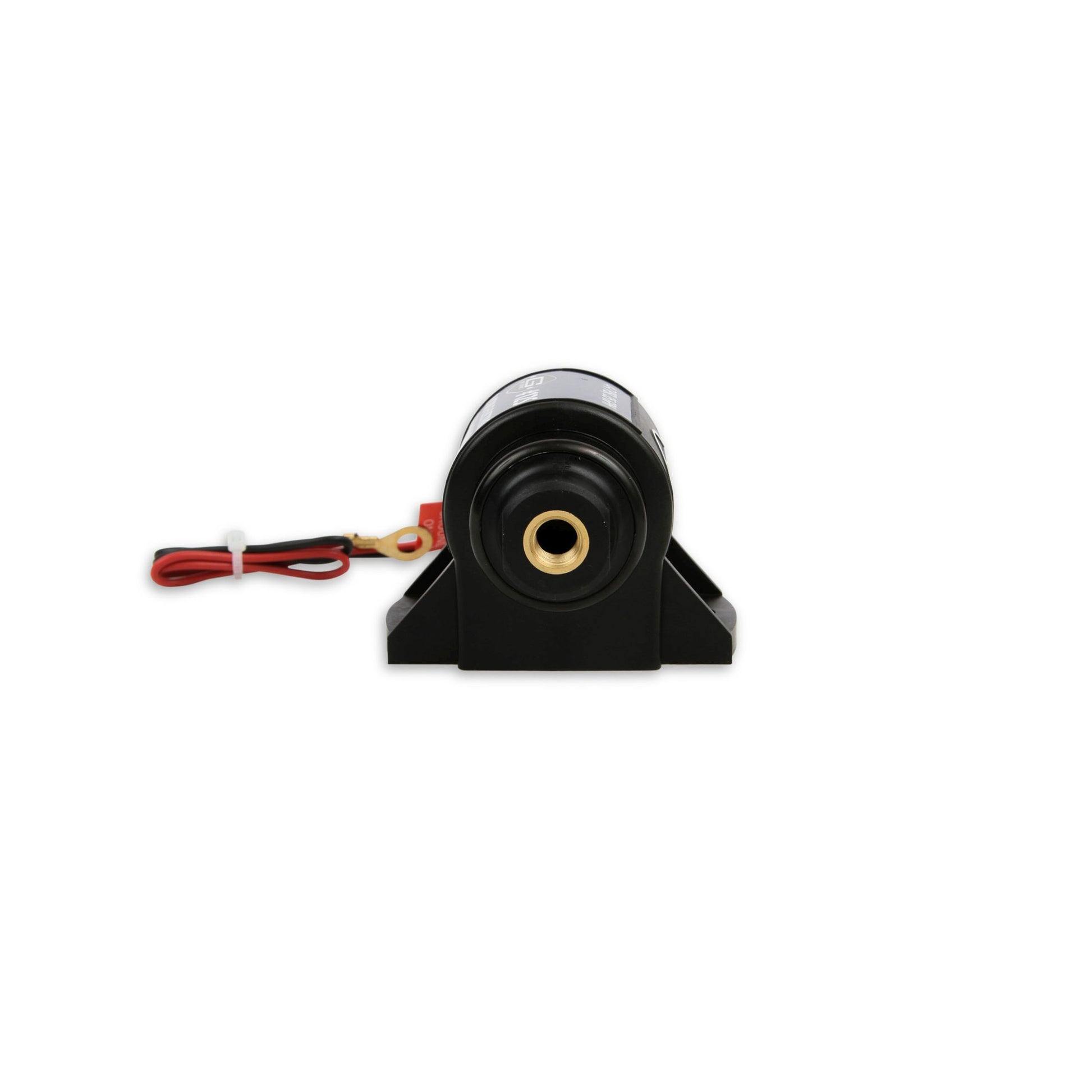

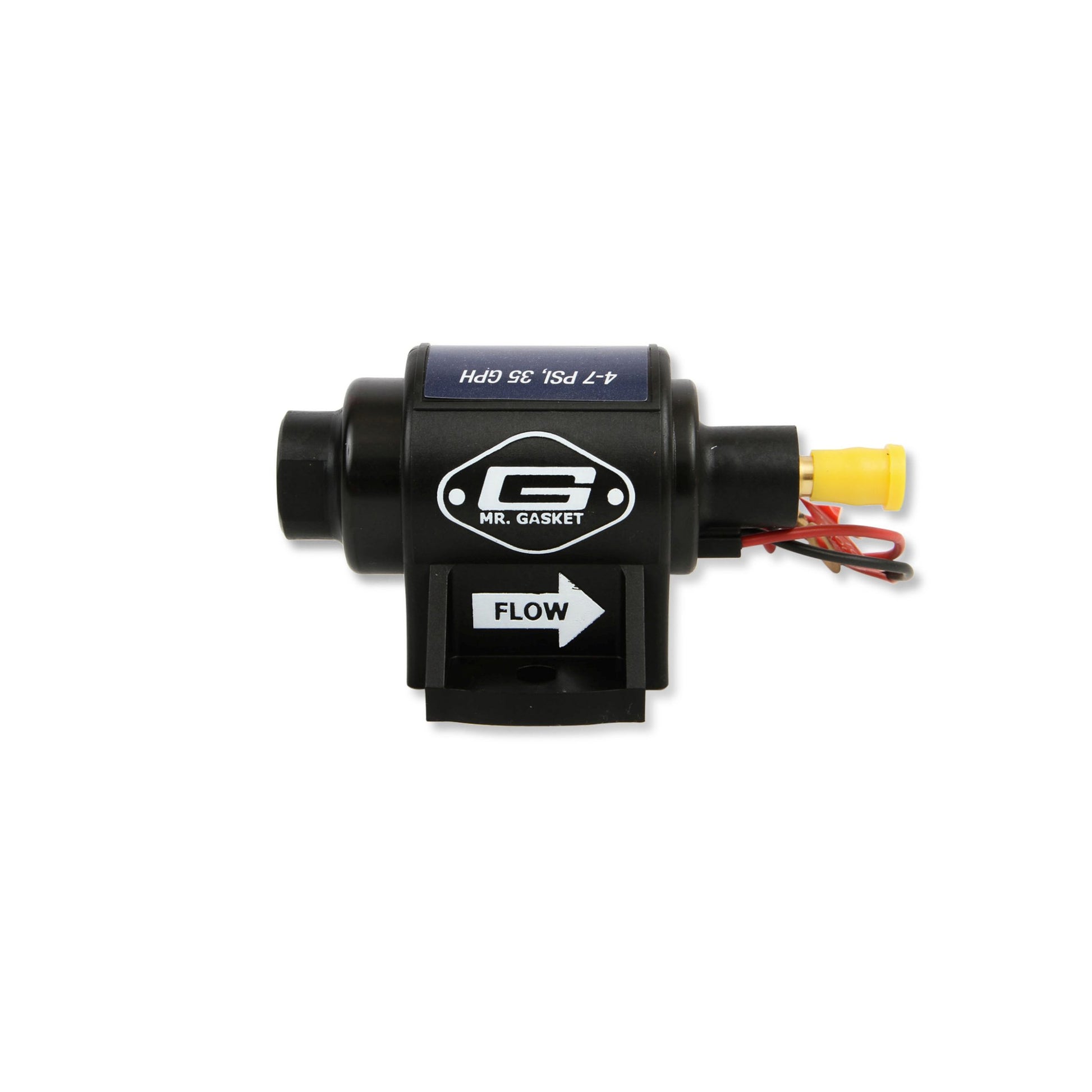

Mr. Gasket - 12S

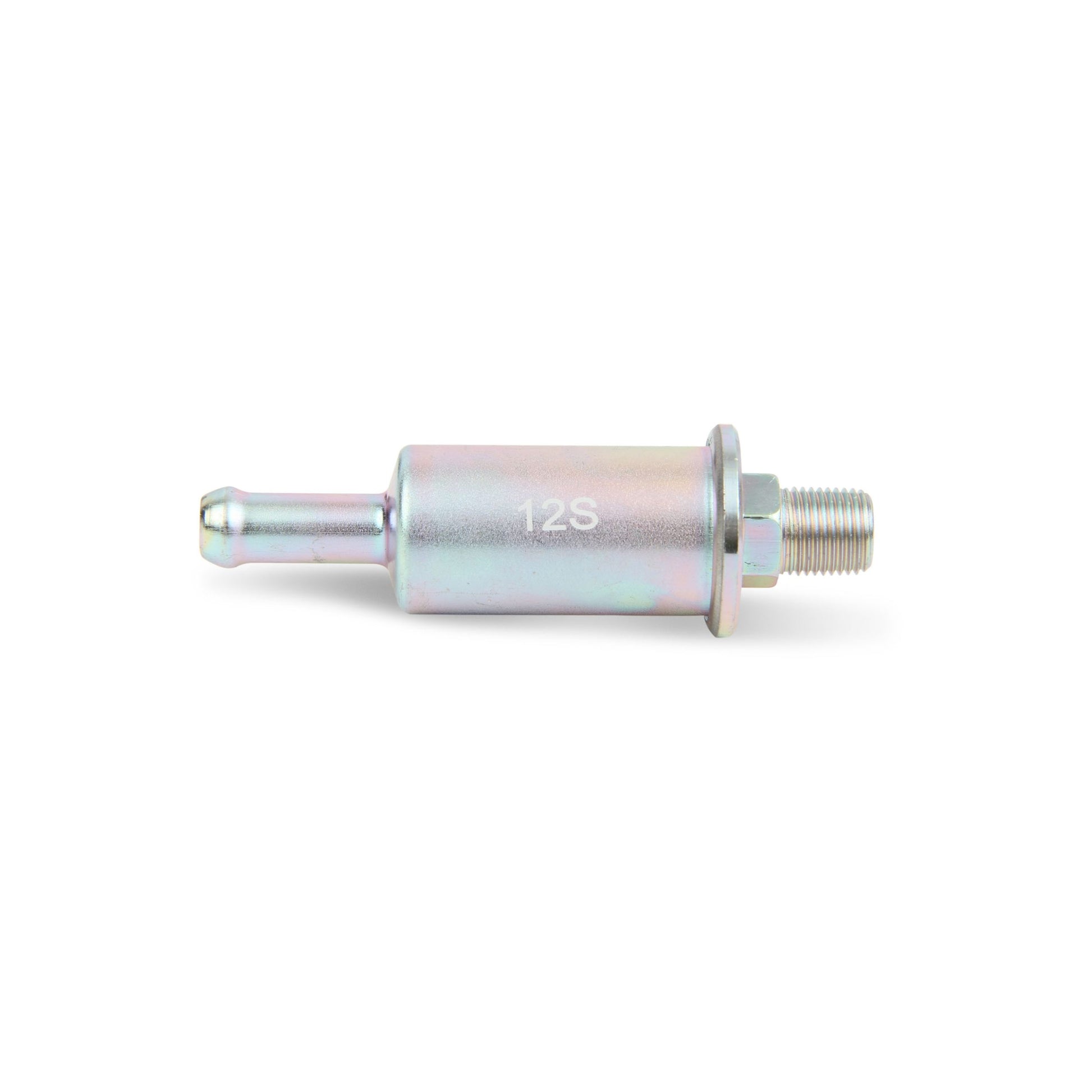

Fuel Pump - Micro In-Line - Electric - 35 gph Free Flow - 1/8 in NPT Female Inlet / Outlet - Filter - Gas - Each
Electric Fuel Pump; For Use w/Carburetor; Domestic; 4-7 psi; 35 gph;

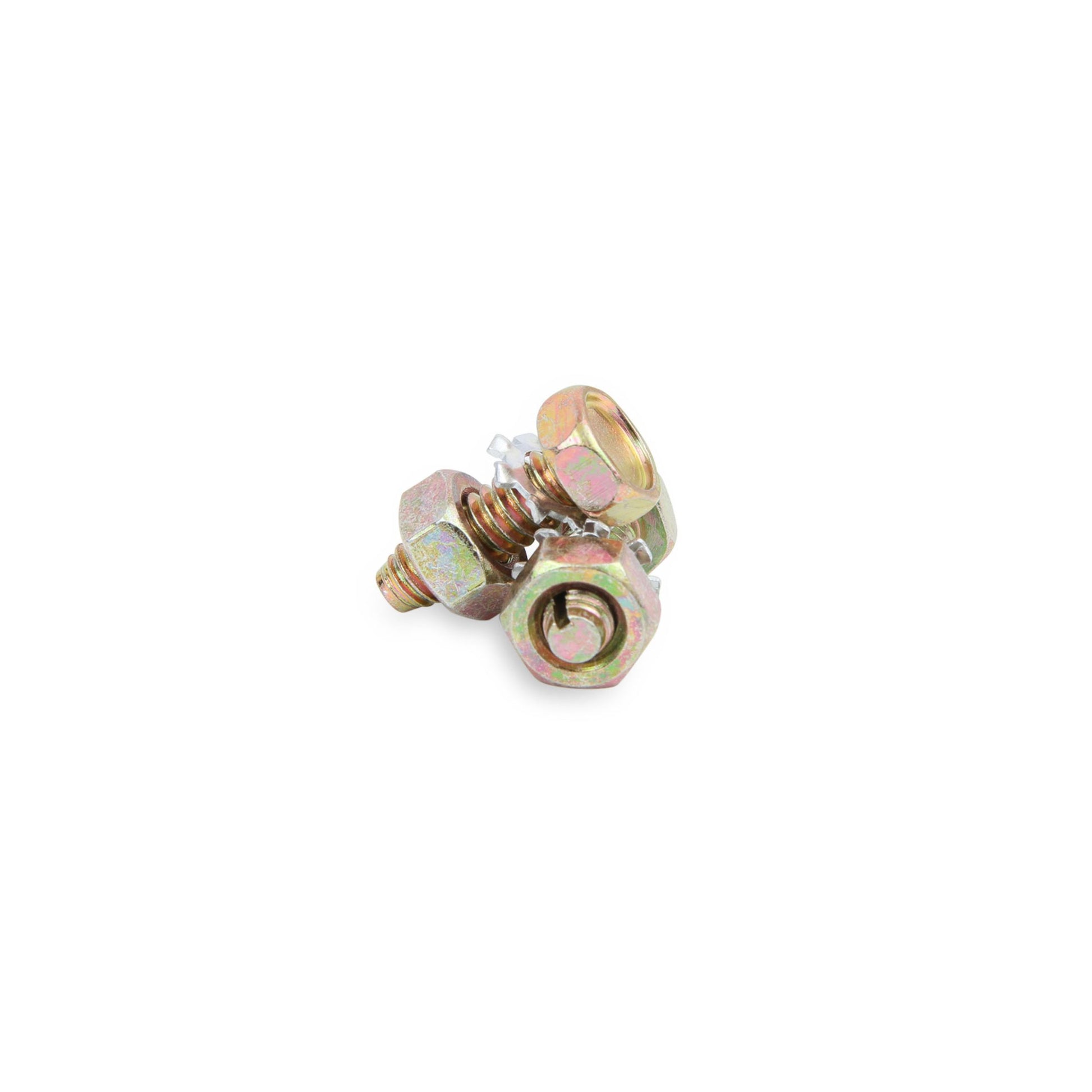

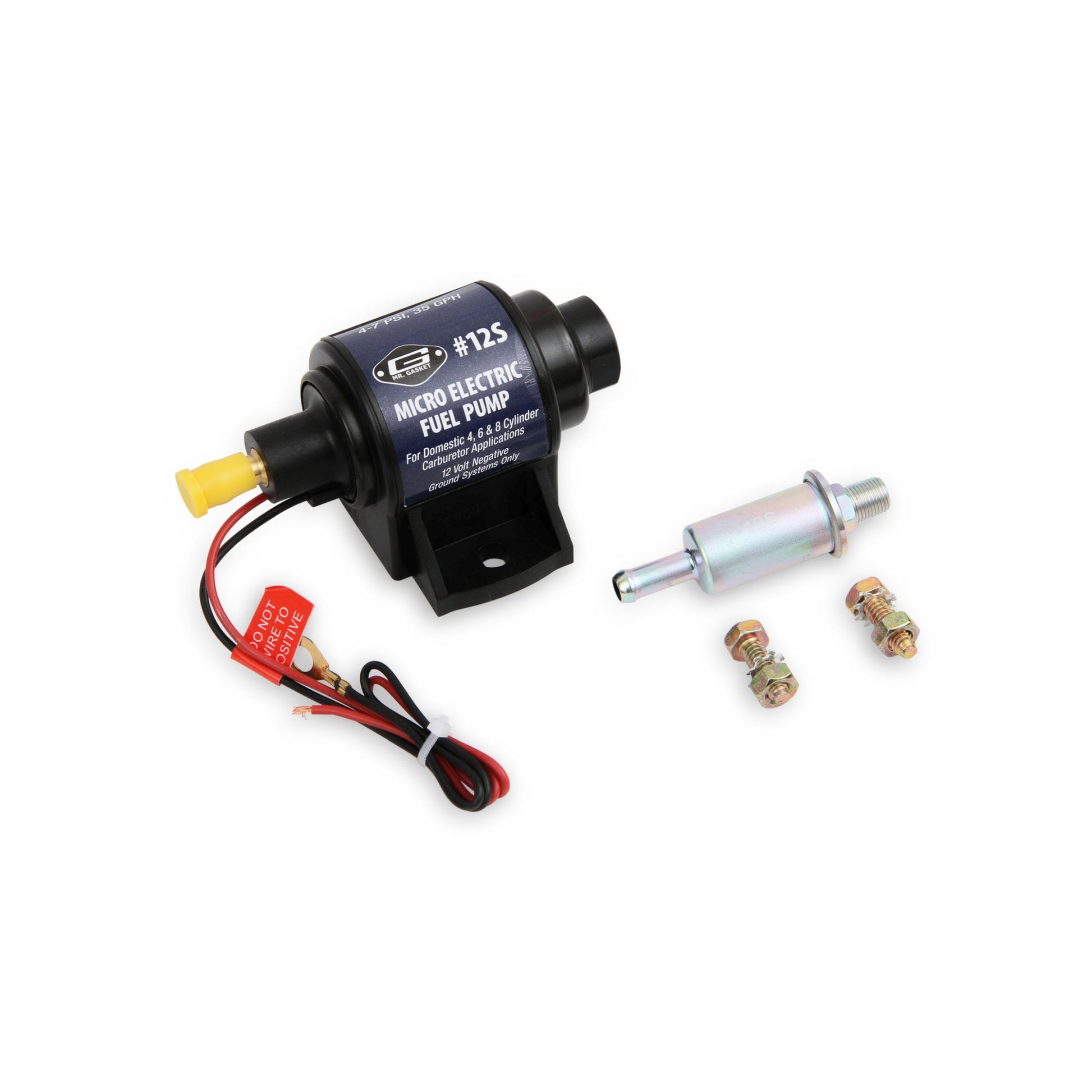

Gravity fed type pump with simple two-wire design. Works on 12 Volt negative ground systems only. Includes fittings and mounting hardware along with easy to follow DIY instructions. Pumps require approximately one amp average draw at maximum delivery. Flows 35 GPH (gallons per hours at 4-7 PSI (pounds per square inch). Universal design for most domestic 4, 6, & 8-cylinder carburetor applications.
- Solid-state Worry Free Electronics
- Internal Pressure Regulating
- Universal Design Allows For Easy Installation
- No Diaphragms Or Mechanical Parts To Wear Out
- They Make An Excellent Fuel Transfer or Booster Pump
- Not designed for use on aircraft of any type.
- Hose Barbs Fit 5/16" Fuel Hose
- Self-priming, 2 wire design
- Eliminates vapor lock and flooding
Application: Universal
Brand: Mr. Gasket
Category: Air and Fuel Delivery
Color: Black
Emission Code: 5
Free Flow GPH: 35
Fuel System: Carbureted
Fuel Type: Gasoline
Hose Size: 5/16
Inlet Size: 1/8 inch NPT
Material: Polymer
Max Pressure: 7 psi
part type: Electric Fuel Pump
Product Type: Fuel Pump
Sub Category: Fuel Pumps and Related Components
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Weight: 0.75
