Motive Gear - D60-373

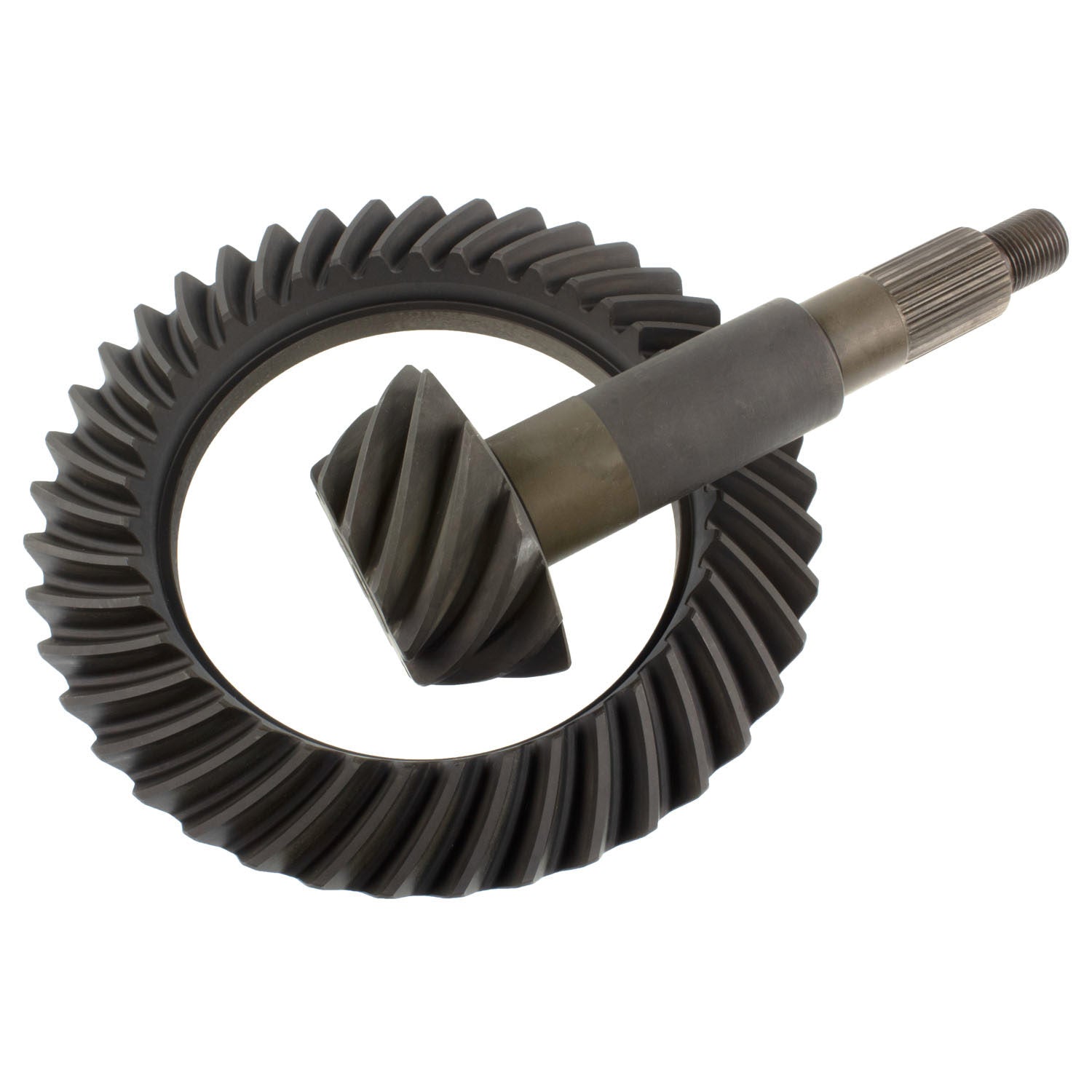

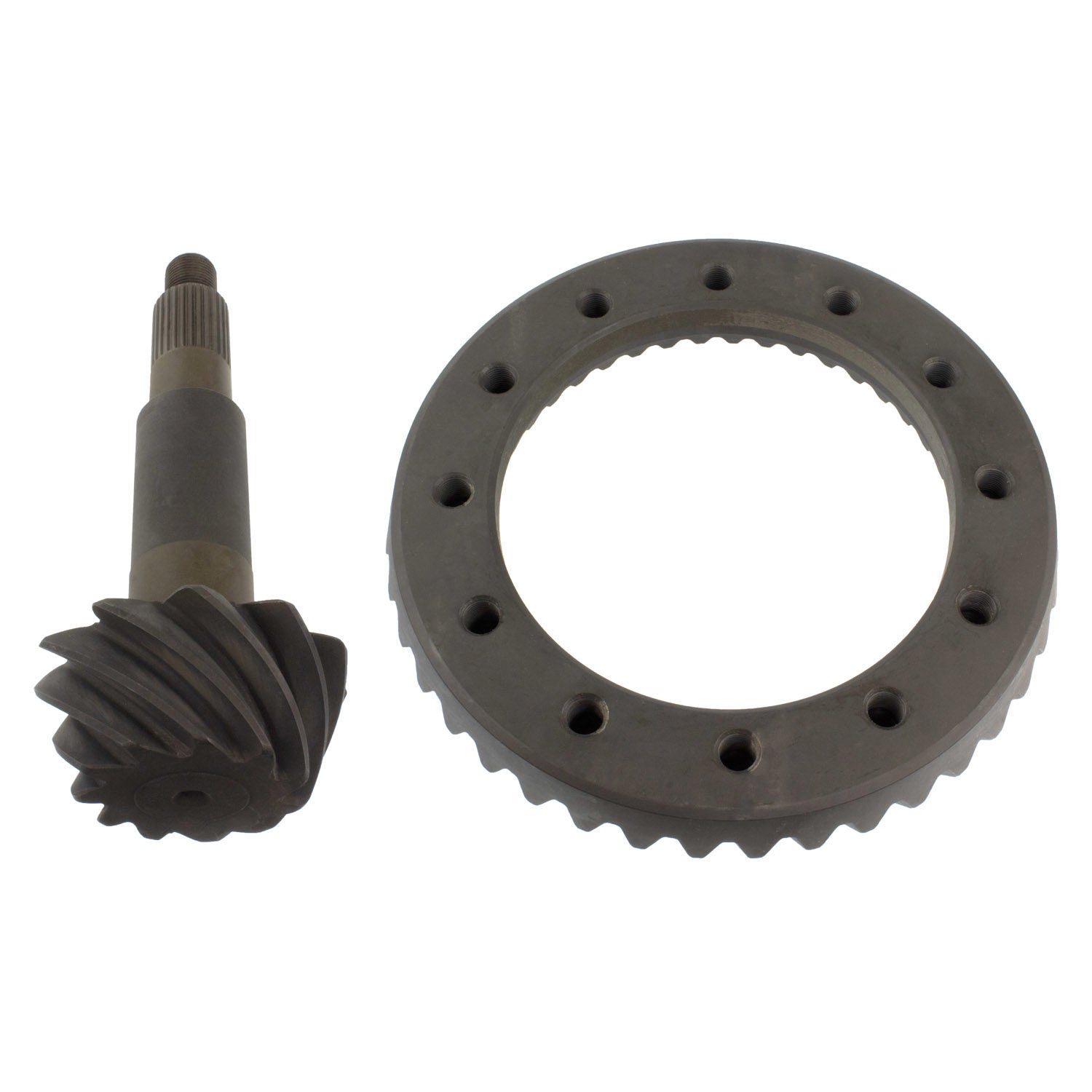

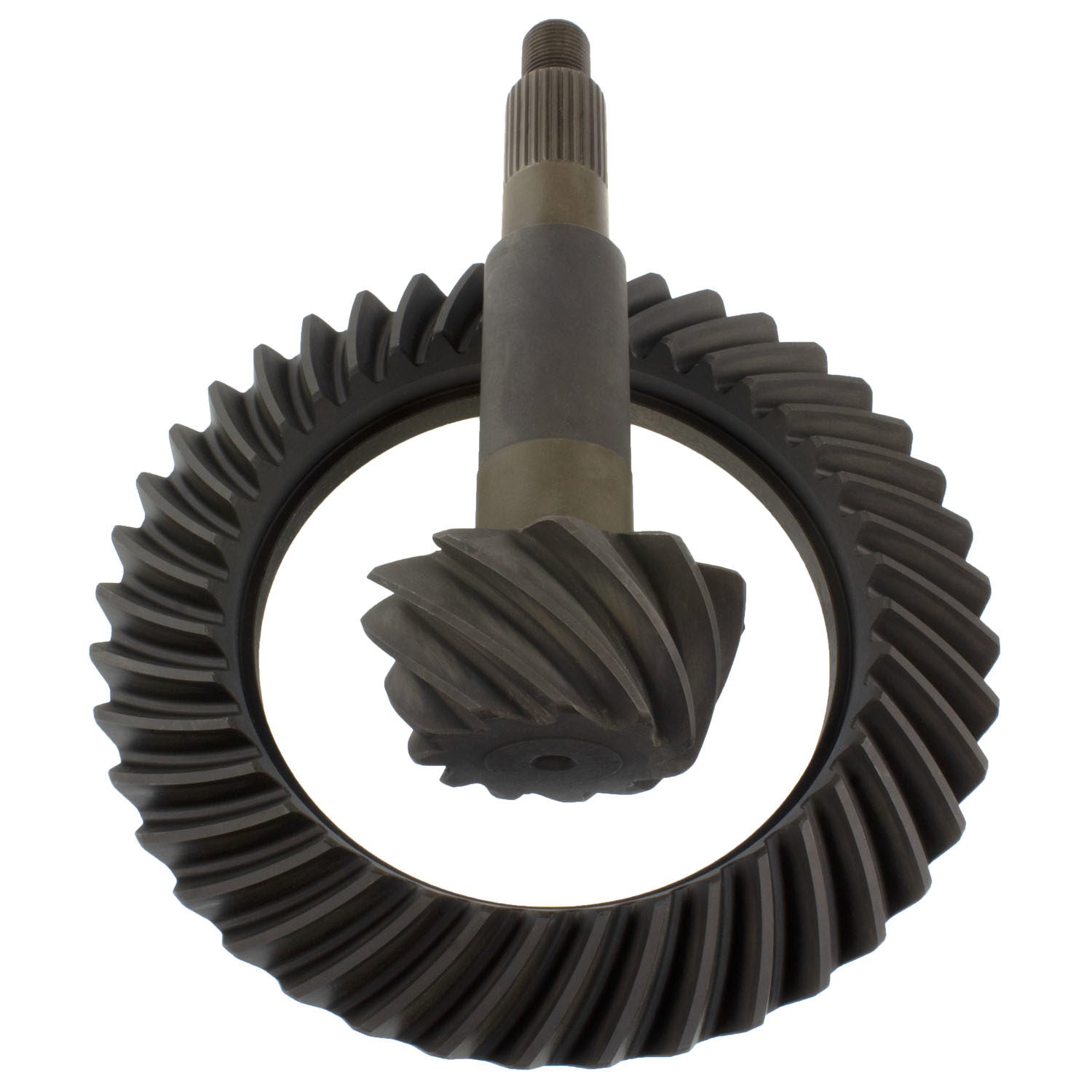

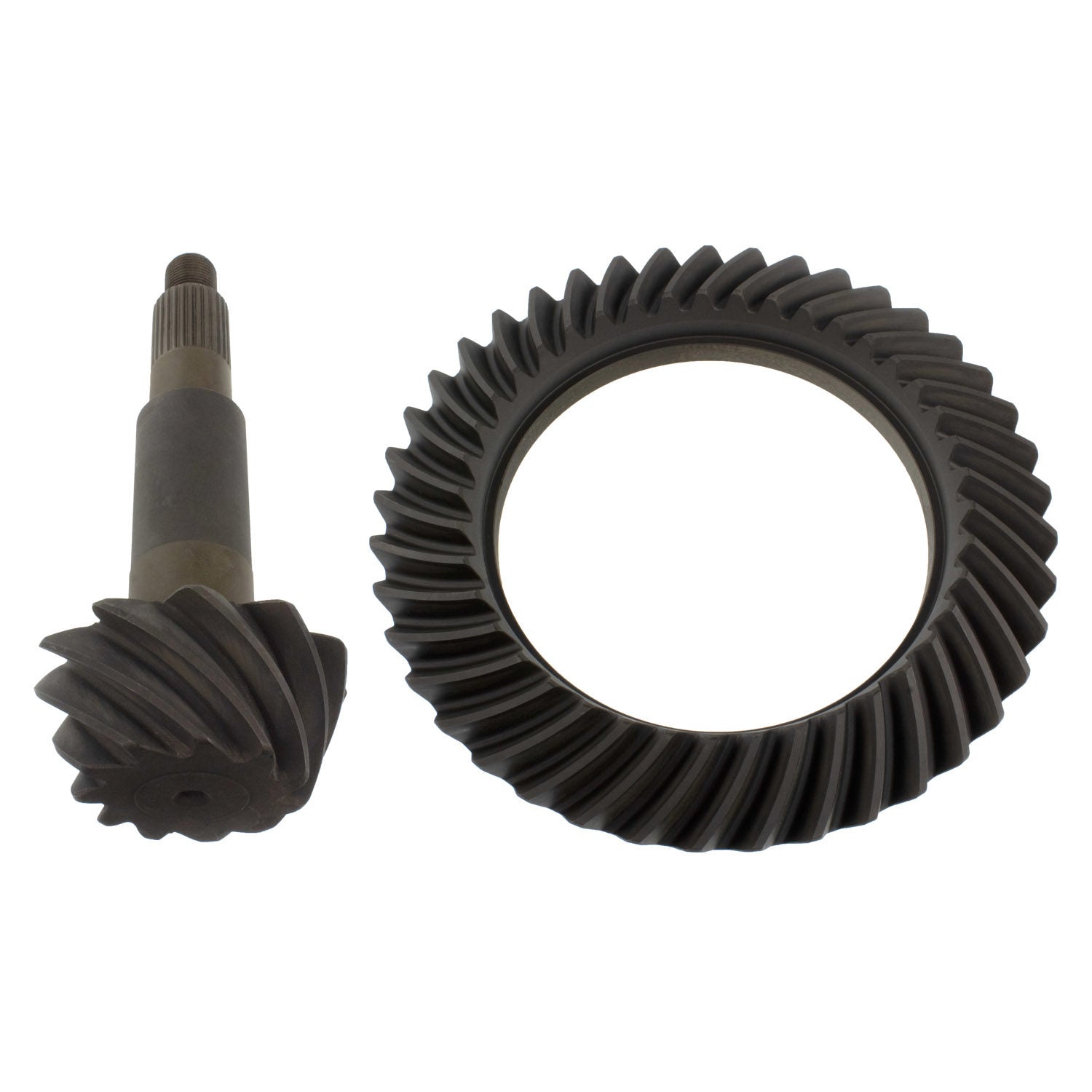

Ring and Pinion - 3.73 Ratio - 29 Spline Pinion - 9.75 in - Dana 60 - Kit
Motive Gear - Differential Ring and Pinion
Motive Gear offers some of the toughest drive train components on the market today. If you are looking for the largest line of performance ring and pinion gear options available with gear sets in a wide range of ratios for nearly every application, both on and off-road, check out Motive Gear. Motive Gear products can be found in the winner's circle at racing events worldwide. The superior quality of Motive Gear components is the result of years of racing development, outstanding design and state-of-the-art manufacturing methods. Extensive testing is performed on all products by our in-house engineers.
Cover Bolt Quantity: 10
Ring Gear Tooth Quantity: 41
Ring Gear Bolt Quantity: 12
App/Model: Dana 60 Standard
Differential Carrier Break: 4.10 Ratio and Lower
Taxonomy A: LD Differential
Taxonomy B: Ring and Pinion
Taxonomy C: Front
Taxonomy C: Rear
Taxonomy D: 3.73
Ring Gear Material: 8620 Steel
Pinion Shaft Diameter: 1.626
Ring Gear Rotation: Standard
Pinion Gear Tooth Quantity: 11
Gear Ratio: 3.73
Ring Gear Outside Diameter: 9.75
Pinion Spline Count: 29
Differential Case Design Type: Dana 60 Standard
