Mishimoto MMTMIC-WRX-08SLRD - 08-14 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses

Name: Mishimoto MMTMIC-WRX-08SLRD - 08-14 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses
Brand: Mishimoto
SKU: MMTMIC-WRX-08SLRD
Price: 993.95 USD
Availability: InStock

Mishimoto MMTMIC-WRX-08SLRD - 08-14 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses

Mishimoto | MMTMIC-WRX-08SLRD
SKU: MMTMIC-WRX-08SLRD

$993.95 USD

~~$1,093.00 USD~~ $993.95 USD

Sale Sold out

Shipping calculated at checkout.

3 in stock

Mishimoto MMTMIC-WRX-08SLRD - 08-14 Subaru WRX Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses

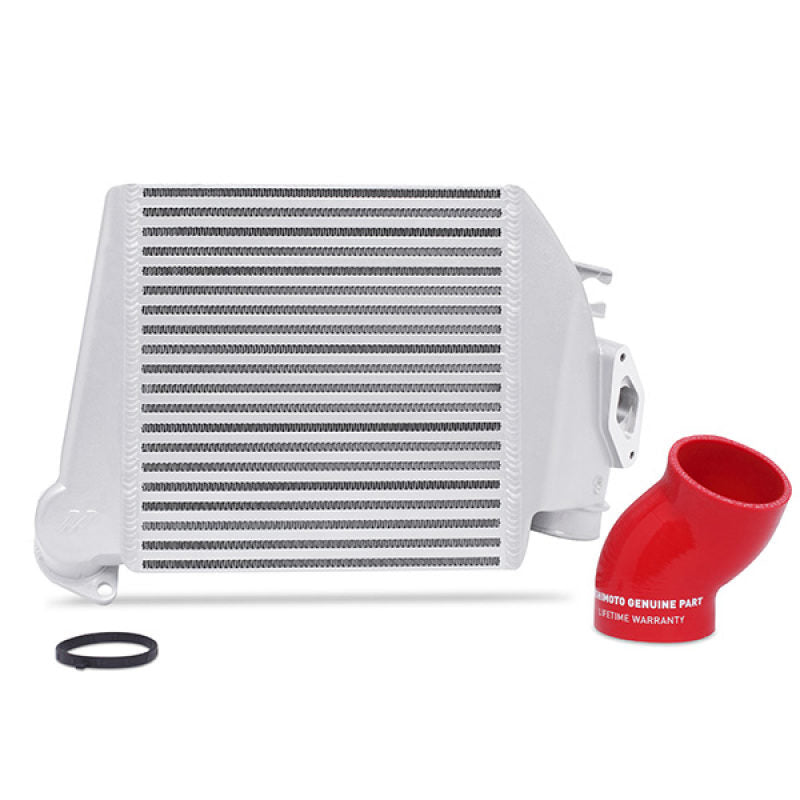

Top-Mount Intercooler, Silver Cooler Red Hoses, fits Subaru WRX 2008-2014

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

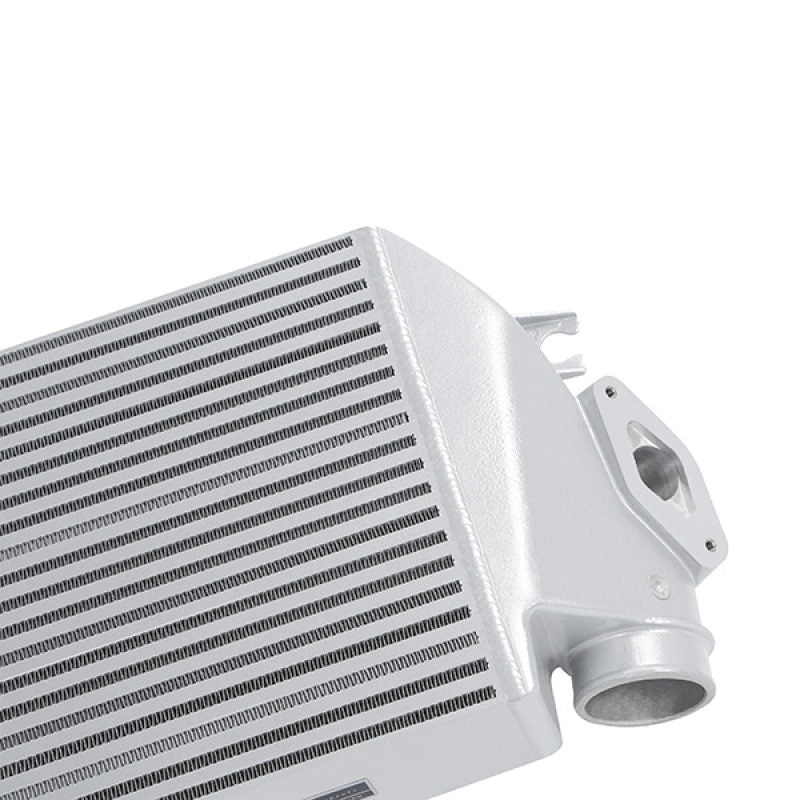

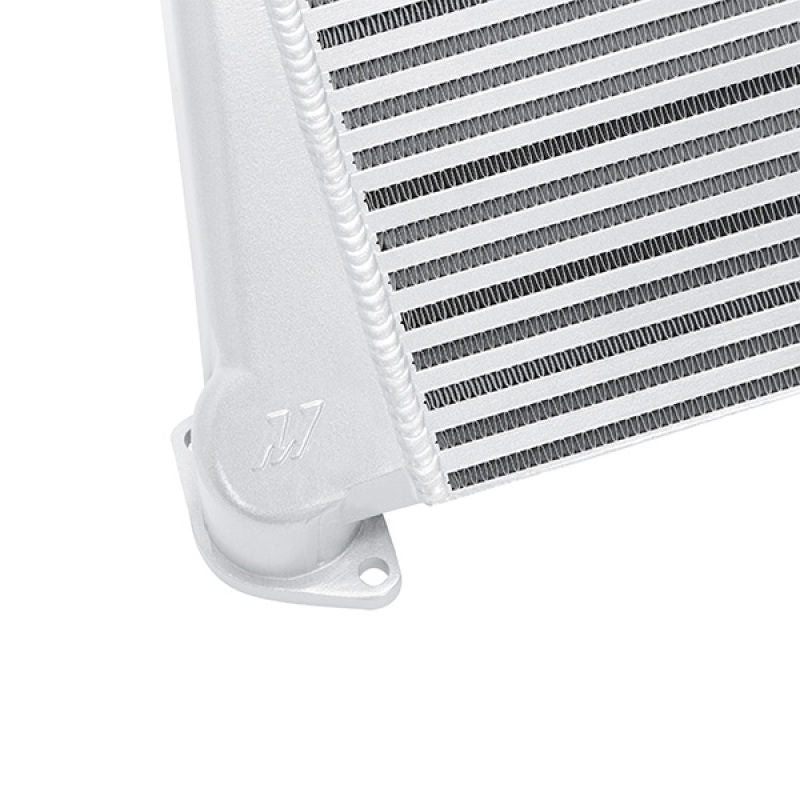

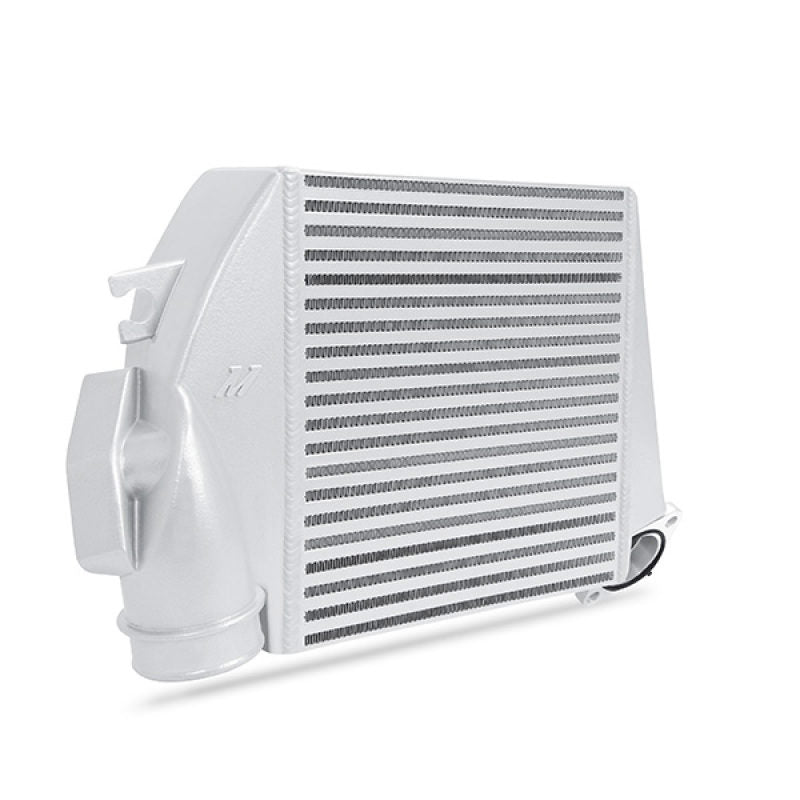

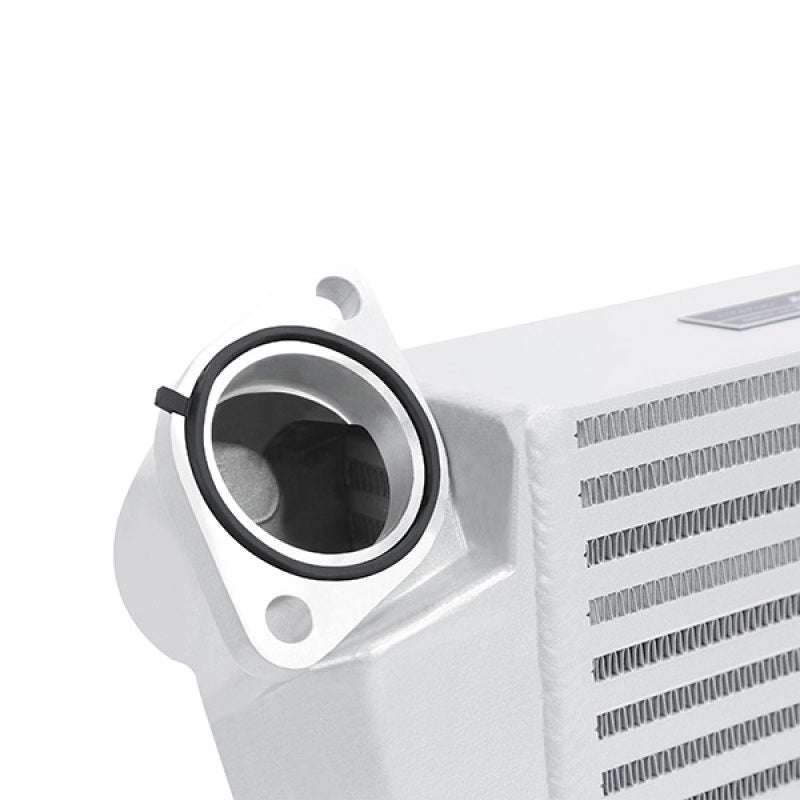

Looking for a way to reduce high intake temperatures on your stock or modified WRX? The solution is the Mishimoto direct-fit top-mount intercooler engineered specifically for the 2008--2014 Subaru WRX. The stock top-mount intercooler is prone to head soak and even failure of the stock plastic endtanks above 18psi. Mishimoto engineers spent months designing and testing this new intercooler to ensure optimum performance on both the street and track. This intercooler utilizes durable cast aluminum end tanks TIG-welded to a highly efficient, dense bar-and-plate core. The Mishimoto intercooler has a 3.75" thick core and a total volume of 584 in3. Thanks to this volume and a very dense offset fin pitch, we are able to optimize heat transfer and support vehicles from stock up to 400 whp. This intercooler endured rigorous testing, showing a 12 F temperature drop as well as a +6 whp and +8 wtq bolt-on power increase for our stock test vehicle. Installation is simple, requires no modification to any parts in the engine bay, and can be completed in under 30 minutes. Included with this intercooler are a new turbo-intercooler O-ring gasket, and Mishimoto's silicone throttle-body coupler. These components negate the need to gather supplies for installation, and they ensure years of reliable service. This intercooler is available in a durable powder-coated finish of Stealth Black or Sleek Silver, and it includes the Mishimoto Lifetime Warranty.

Heavy-duty bar-and-plate core with cast end tanks to sustain high boost
Core design optimized for optimal flow while providing excellent heat transfer
6 whp and 8 wtq increases

Cold Side Pipe Inside Diameter: 2.75

Core Thickness: 3.5

Core Length: 11

Core Height: 11

Core Color: Silver

Core Construction: Bar-and-Plate

Core Material: Aluminum

Coupler Color: Red

Coupler Material: Silicone

End Tank Construction: Cast

End Tank Material: Aluminum

Hot Side Pipe Inside Diameter: 1.875

Inlet Diameter: 1.875

Outlet Diameter: 2.75

Intercooler Type: Air-to-Air

Maximum Boost Pressure: 30

Maximum Horsepower: 350

Pipe Color: Red

Pipe Finish: Powder Coated

Pipe Material: Aluminum

Universal Or Specific Fit: Specific

TechSpec Applications: 2008-2014 Subaru WRX--2005-2009 Legacy GT--2005-2009 Outback XT--2009-2013 Forester XT

TechSpec Engine Codes: EJ255

TechSpec Chassis Codes: GR--GV

TechSpec Maximum Recommended Boost Pressure (PSI): 30

TechSpec Maximum Recommended Horsepower: 350

TechSpec Overall Length (in): 18.5

TechSpec Overall Height (in): 12.5

TechSpec Overall Width (in): 5

TechSpec Core Type: Bar-and-Plate

TechSpec Core Thickness (in): 3.5

TechSpec Core Length (in): 11

TechSpec Core Height (in): 11

TechSpec Inlet (in): 1.875

TechSpec Outlet (in): 2.75

TechSpec Weight (lbs): 21

TechSpec Note: This kit is rated for 250-350 whp with maximum limits of approximately 400 whp, or 30 PSI of turbo boost. Exceeding that horsepower or pressure limit may require a larger front-mount intercooler.

TechSpec Includes: (1) Top-Mount Intercooler--(1) Intercooler to Throttle-Body Hose--(1) Turbo to Intercooler O-Ring Gasket

TechSpec Installation Notes: N/A

TechSpec Pipe Shape: N/A

TechSpec Pipe Diameter: N/A

TechSpec Pipe Length: N/A

TechSpec Centerline Radius: N/A

SellingPoint01: Heavy-duty bar-and-plate core with cast end tanks to sustain high boost

SellingPoint02: Core design optimized for optimal flow while providing excellent heat transfer

SellingPoint03: 6 whp and 8 wtq increases

SellingPoint04: 12 F temperature decrease with minimal pressure drop

SellingPoint05: 80-percent larger core volume over stock

SellingPoint06: 37.9-percent greater internal flow area
