Mishimoto MMTMIC-WRX-01BKBL - Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Black & Blue Hoses

Mishimoto MMTMIC-WRX-01BKBL - Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Black & Blue Hoses

Mishimoto | MMTMIC-WRX-01BKBL
SKU: MMTMIC-WRX-01BKBL
$776.95 USD
$855.00 USD $776.95 USD
Sale Sold out
Shipping calculated at checkout.

12 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMTMIC-WRX-01BKBL - Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Black & Blue Hoses

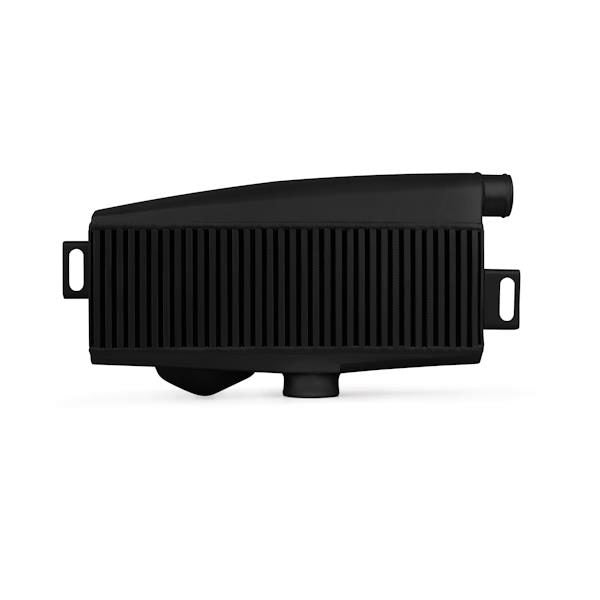

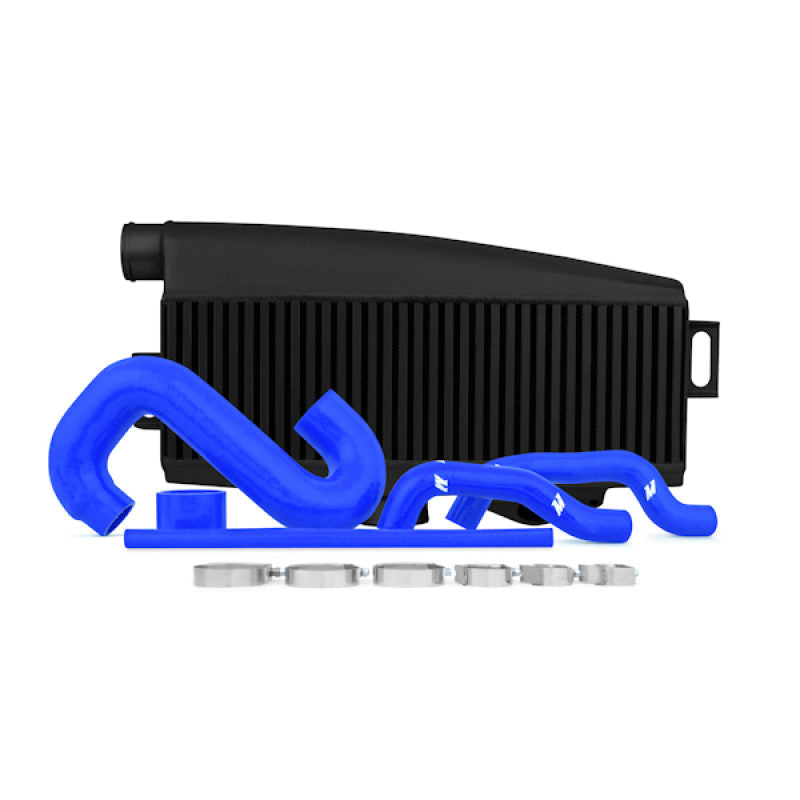

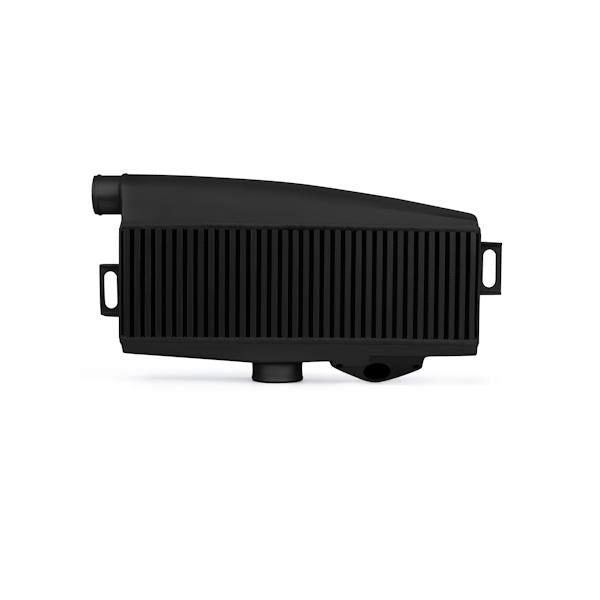

Top-Mount Intercooler Kit, Black w/ Blue Pipes, fits Subaru WRX/STI 2002-2007

Complete intercooler kit engineered to reduce intake air temperatures for increased power and efficiency. Includes high-quality components for optimal airflow, improved throttle response, and a precise, easy installation.

Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

  • High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
  • Durable and precision engineered cast aluminum end tanks provide smooth flow
  • Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
Pipe Color: Blue
Pipe Finish: Powder Coated
Pipe Material: Aluminum
Universal Or Specific Fit: Specific
TechSpec Applications: Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Engine Codes: EJ20--EJ25
TechSpec Chassis Codes: GD6--GG6
TechSpec Maximum Recommended Boost Pressure (PSI): 22
TechSpec Maximum Recommended Horsepower: 305
TechSpec Overall Length (in): 22.25
TechSpec Overall Height (in): 11.25
TechSpec Overall Width (in): 3.625
TechSpec Core Type: Bar-and-Plate
TechSpec Core Thickness (in): 3.5
TechSpec Core Length (in): 19
TechSpec Core Height (in): 6
TechSpec Inlet (in): 2.5
TechSpec Outlet (in): 2.75
TechSpec Weight (lbs): 17.25
TechSpec Note: This kit is rated for approximately 350 whp, or 25PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles.

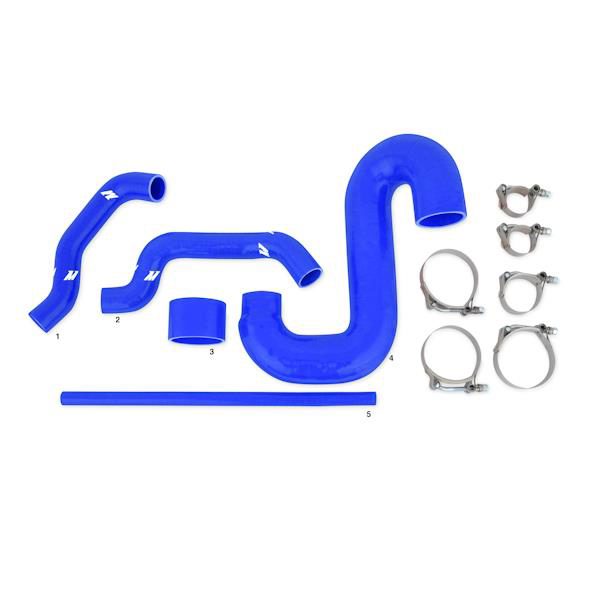

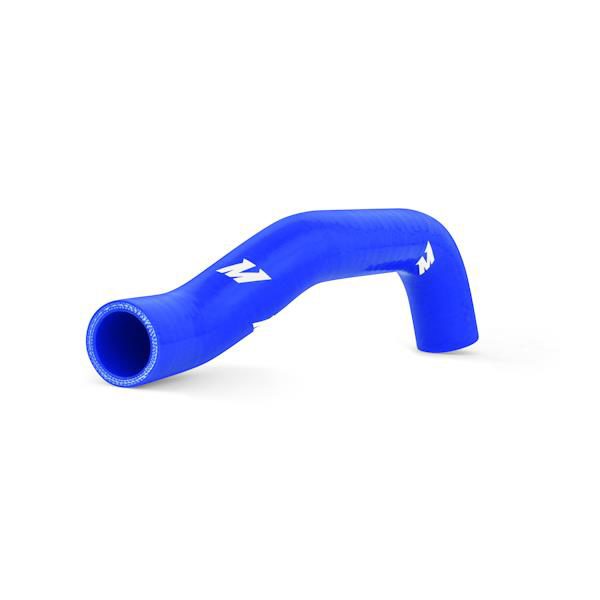

TechSpec Includes: (1) Bar-and-Plate Intercooler--(5) Silicone Hoses and Couplers--(1) High-Temp Silicone hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting, 3/4-in I.D.--(1) WRX specific BPV hose--(1) STI specific BPV hose--(1) Intercooler to throttle body coupler--(1) PCV hose
TechSpec Installation Notes: N/A
TechSpec Pipe Shape: N/A
TechSpec Pipe Diameter: N/A
TechSpec Pipe Length: N/A
TechSpec Centerline Radius: N/A
SellingPoint01: Direct fit for the 2002-2007 Subaru WRX/STI
SellingPoint02: High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
SellingPoint03: Durable and precision engineered cast aluminum end tanks provide smooth flow
SellingPoint04: Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
SellingPoint05: Unique single inlet design provides superior airflow and proper dispersion of air through the core
SellingPoint06: Gained 14 hp and dropped intake temperatures 30 F when installed in 305 hp vehicle with 20-22 psi of boost
SellingPoint07: Will support vehicles with up to 350 hp
SellingPoint08: Available in Sleek Silver or Stealth Black finish
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
CARB EO Number: D-759
Install Difficulty: 3
OptionLabel: Black Intercooler, Blue Hoses
Cold Side Pipe Inside Diameter: 2.75
Core Thickness: 3.5
Core Length: 19
Core Height: 6
Core Color: Black
Core Construction: Bar-and-Plate
Core Material: Aluminum
Coupler Color: Blue
Coupler Material: Silicone
End Tank Construction: Cast
End Tank Material: Aluminum
Grade Type: Performance
Hose Clamps Included: Yes
Hot Side Pipe Inside Diameter: 2.5
Inlet Diameter: 2.5
Outlet Diameter: 2.75
Intercooler Type: Air-to-Air
Maximum Boost Pressure: 22
Maximum Horsepower: 305
