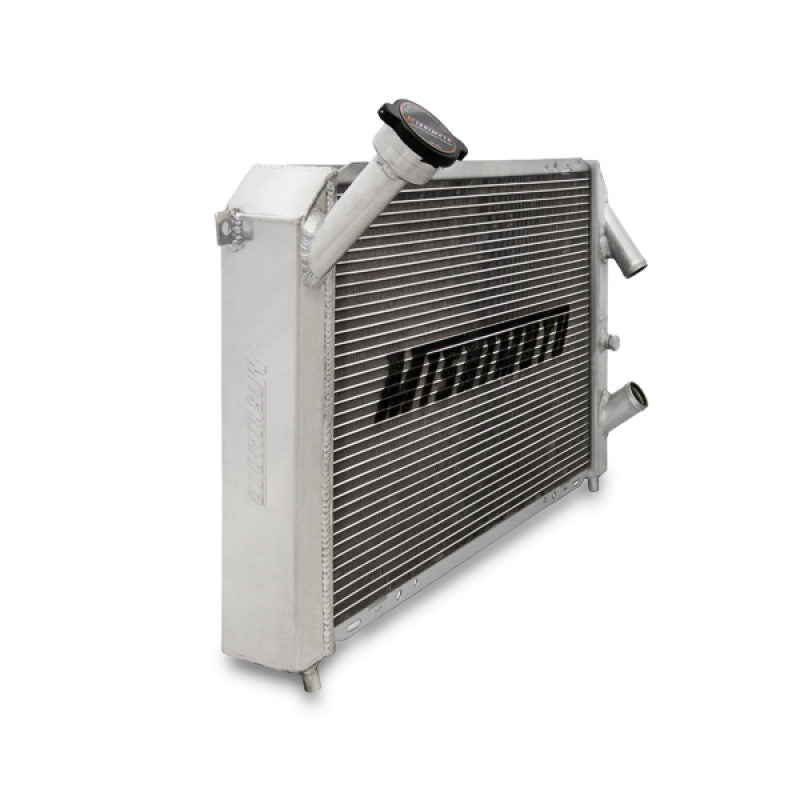

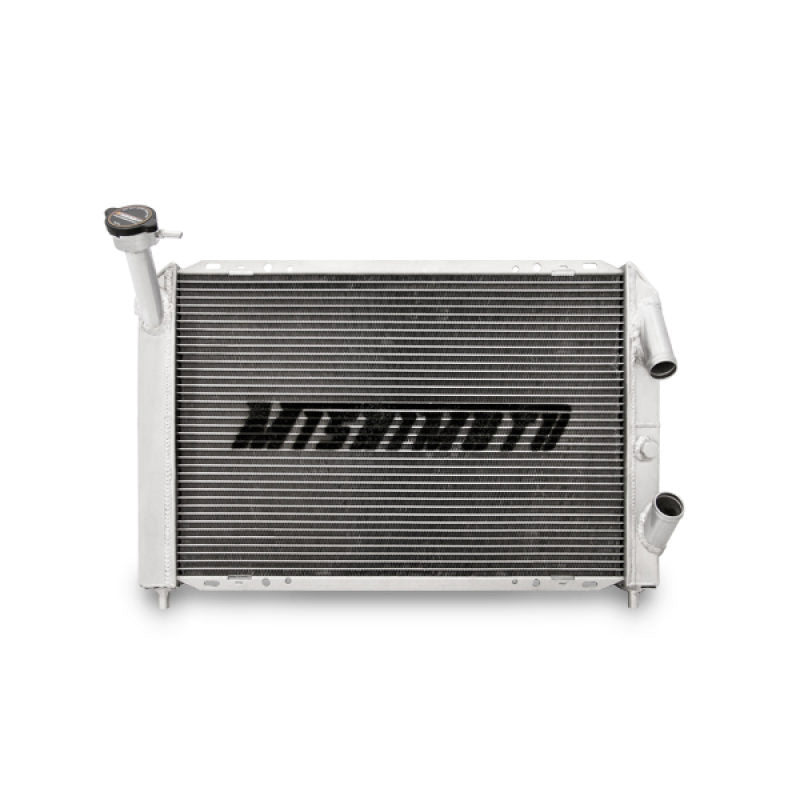

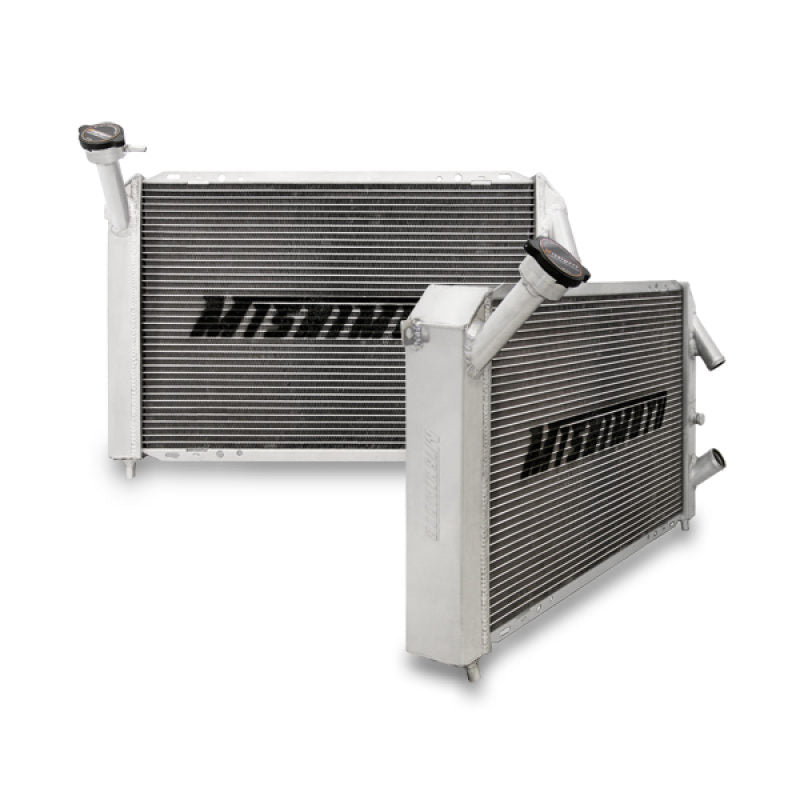

Mishimoto MMRAD-RX-LS - 93-95 Mazda RX7 w/ LS Engine Swap Manual Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 15.75
Core Length: 22.2
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.17
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 0
Inlet Diameter: 1.38
Inlet Location: Top Right
Outlet Diameter: 1.5
Outlet Location: Bottom Right
Overall Height: 27.34
Overall Length: 19.5
Overall Width: 2.67
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 27.34
TechSpec Overall Length (in): 19.5
TechSpec Overall Width (in): 2.67
TechSpec Core Length (in): 22.2
TechSpec Core Height (in): 15.75
TechSpec Fluid Capacity (gal): N/A
TechSpec Rows: 2
TechSpec Inlet (in): 1.38
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2.17
TechSpec Drain Plug Thread Size: N/A
TechSpec DPI: 2067
TechSpec Material: Aluminum
TechSpec Applications: N/A
TechSpec Engine Codes: LS
TechSpec Chassis Codes: FD
TechSpec Note: Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap
SellingPoint02: Provides a bolt-in cooling solution which simplifies the engine-swap process
SellingPoint03: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint04: Features a two-row, 2.17-in thick, efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and optimal heat dissipation
SellingPoint06: Provides efficient temperature reduction for street and/or track use
SellingPoint07: Efficient temperature regulation for both stock and forced induction vehicles

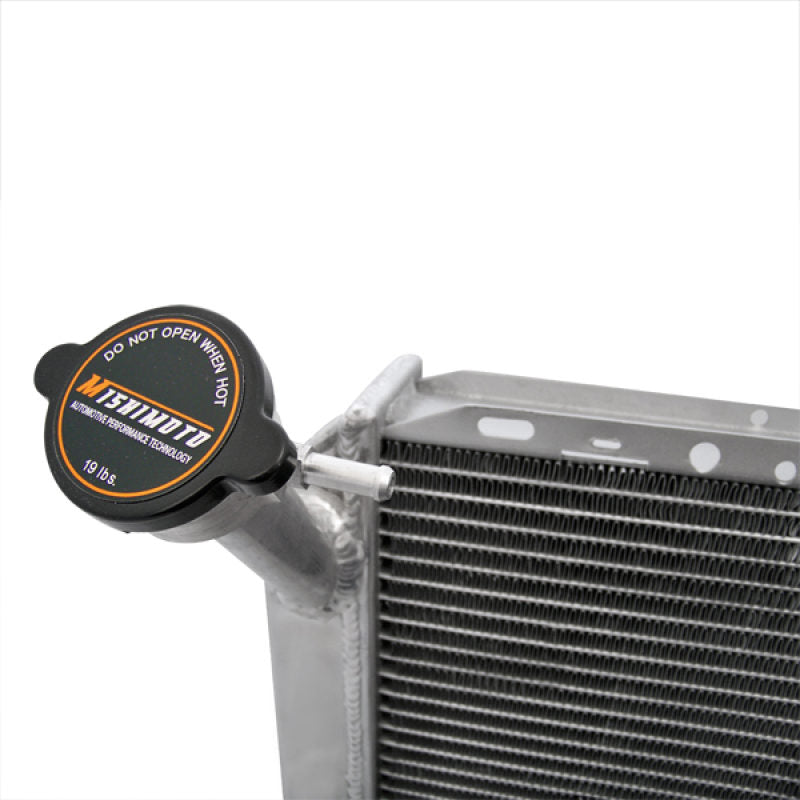

SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

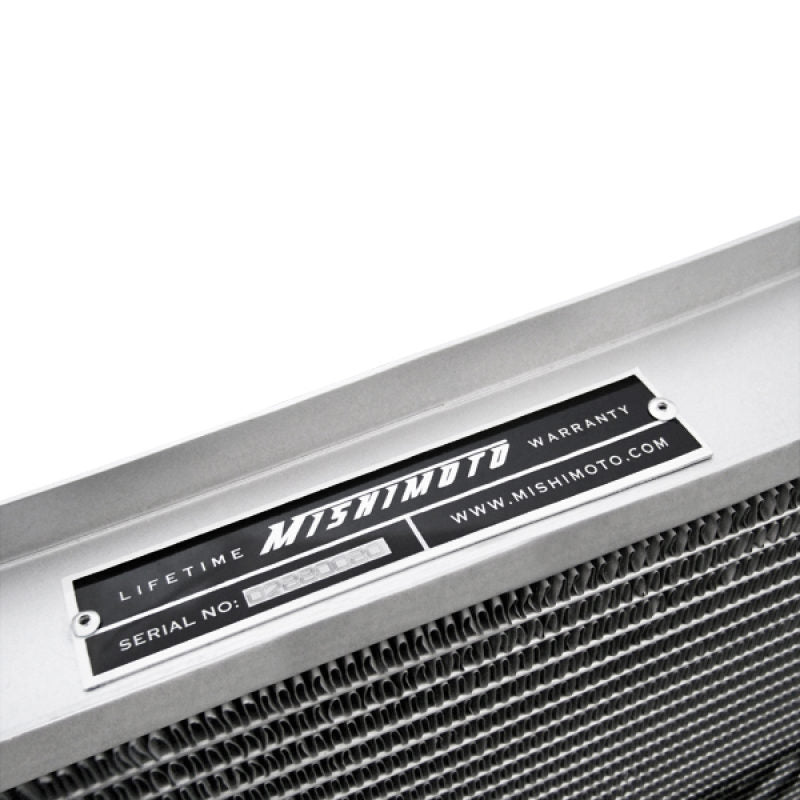

SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
