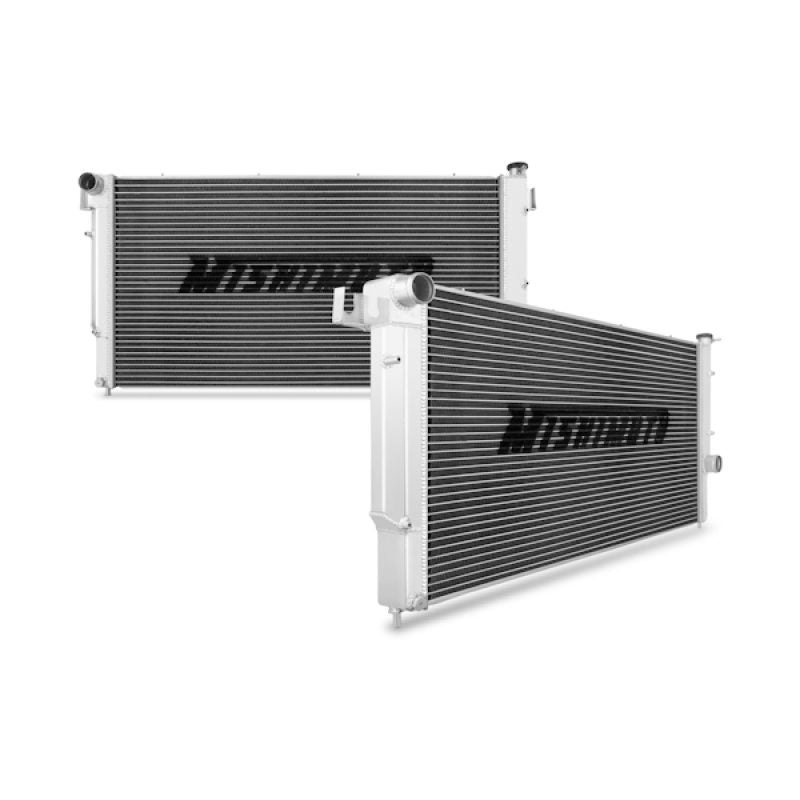

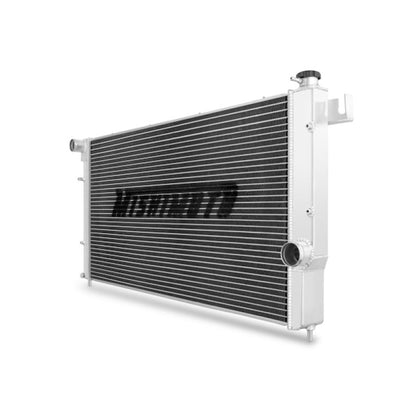

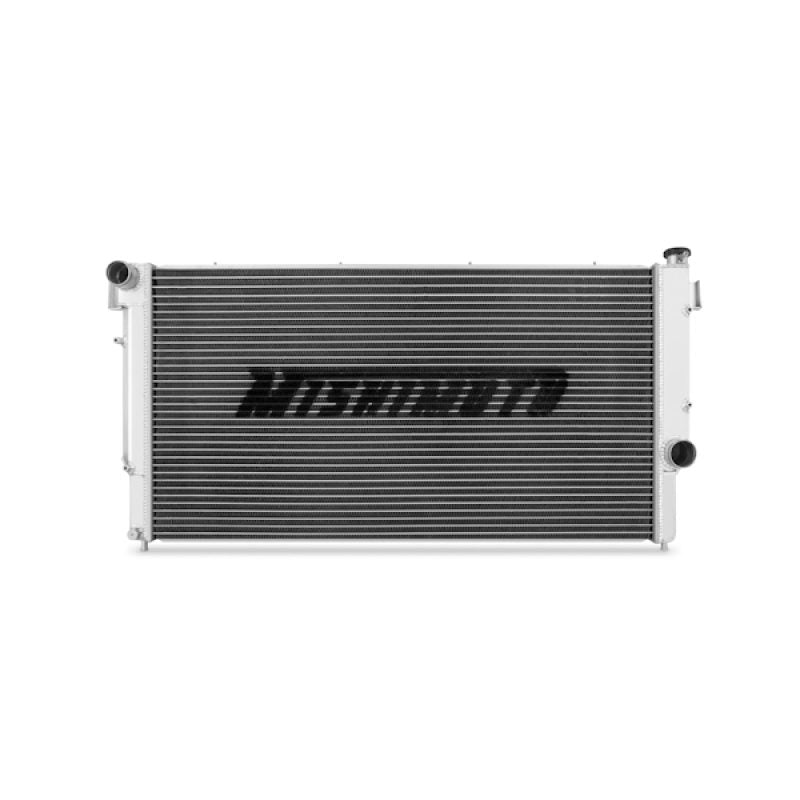

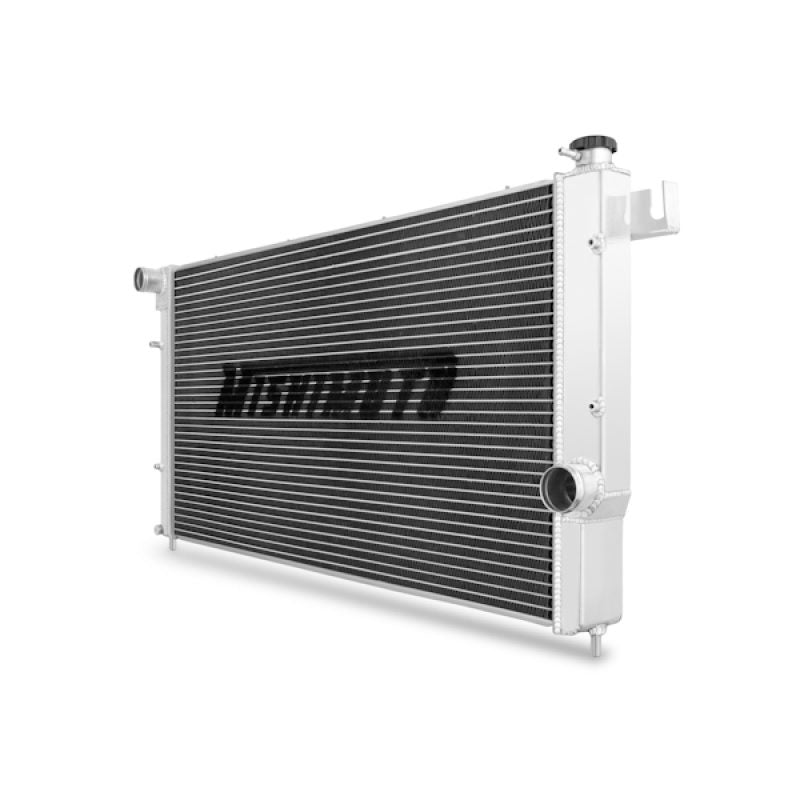

Mishimoto MMRAD-RAM-94 - 94-02 Dodge Ram w/ 5.9L Cummins Engine Aluminum Performance Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto has released a direct-fit performance aluminum radiator for the 1994-2002 Dodge 5.9L Cummins.A high-performance truck needs a cooling system that can keep up with the constant abuse of towing, hauling, and runs on the drag strip.Mishimoto radiators feature a brazed aluminum core with TIG-welded end tanks for superior durability, reliability, and performance.Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.
TechSpec Overall Height (in): 21.9
TechSpec Overall Length (in): 45.4
TechSpec Overall Width (in): 4.8
TechSpec Core Length (in): 36.42
TechSpec Core Height (in): 19.21
TechSpec Fluid Capacity (gal): 6.78
TechSpec Rows: 3
TechSpec Inlet (in): 1.77
TechSpec Outlet (in): 1.97
TechSpec Core Thickness (in): 2.44
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1553
TechSpec Material: Aluminum
TechSpec Applications: 1994-2002 Dodge Ram 2500--1994-2002 Dodge Ram 3500--1998 Dodge Ram 2500 Quad Cab--1998 Dodge Ram 3500 Quad Cab--1998 Dodge Ram 2500 Club Cab--2001 Dodge Ram 3500 Quad Cab
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: This radiator now includes (4) M6x1.0 bolts to connect the fan shroud to the radiator. If you did not receive these bolts please do not reinstall your stock bolts and contact our customer service team
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--(4) M6 x 1.0 Fan Shroud Bolts--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1994-2002 Dodge 5.9L 12V/24V Cummins
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a three-row, 2.44-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
SellingPoint06: Efficient temperature regulation for both stock and modified trucks

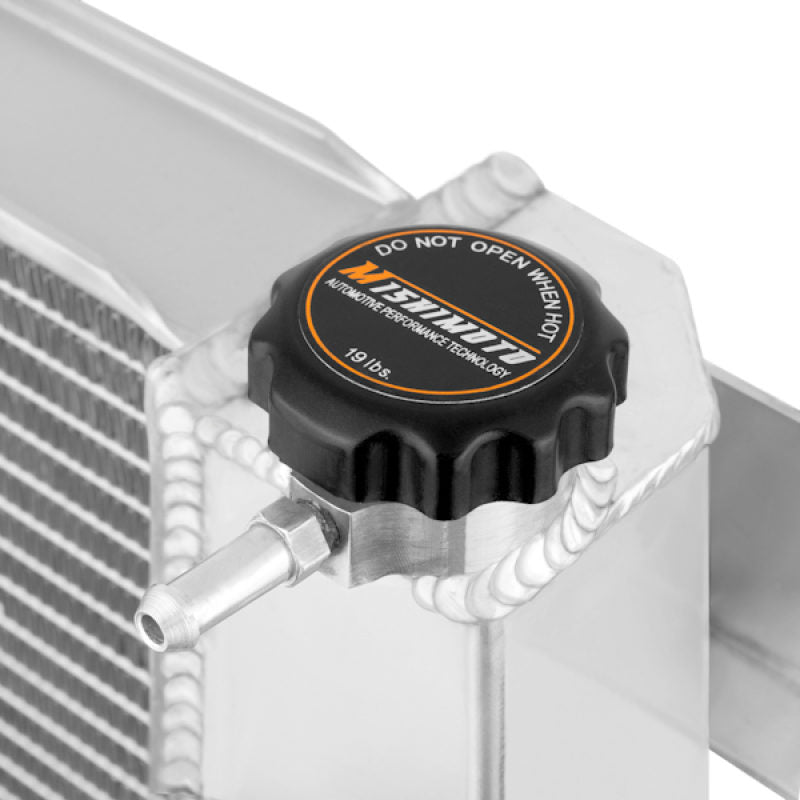

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes new fan shroud bolts
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 19.21
Core Length: 36.42
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2.44
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 6.78
Inlet Diameter: 1.77
Inlet Location: Top Left
Outlet Diameter: 1.97
Outlet Location: Bottom Right
Overall Height: 21.9
Overall Length: 45.4
Overall Width: 4.8
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
