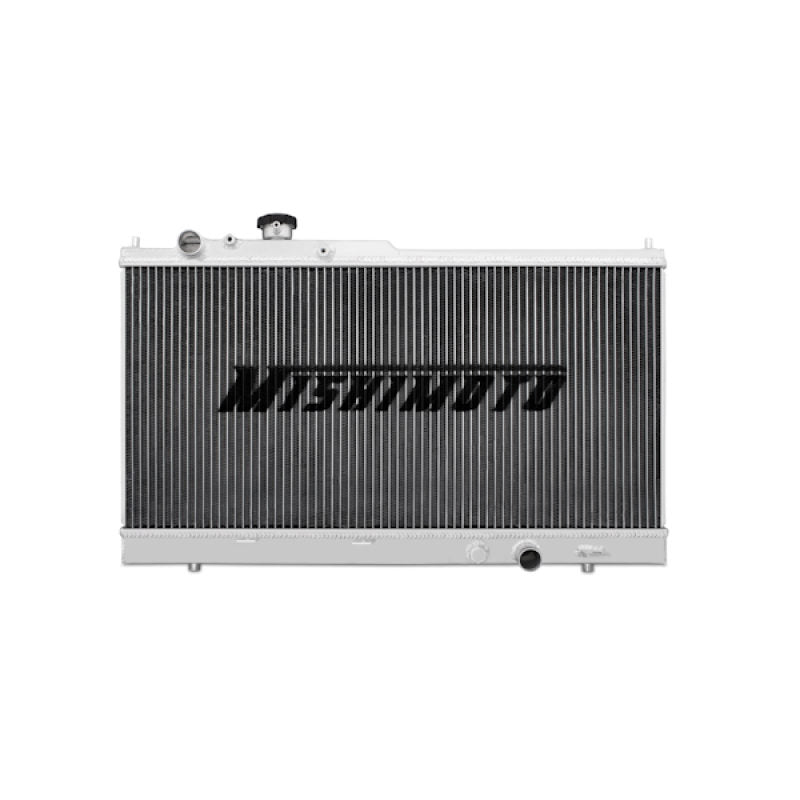

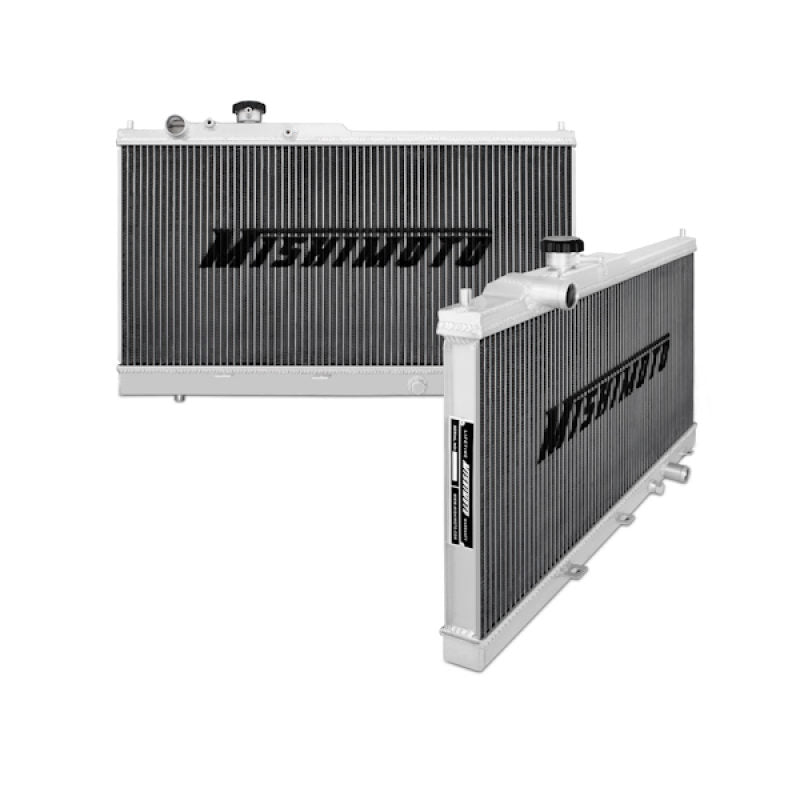

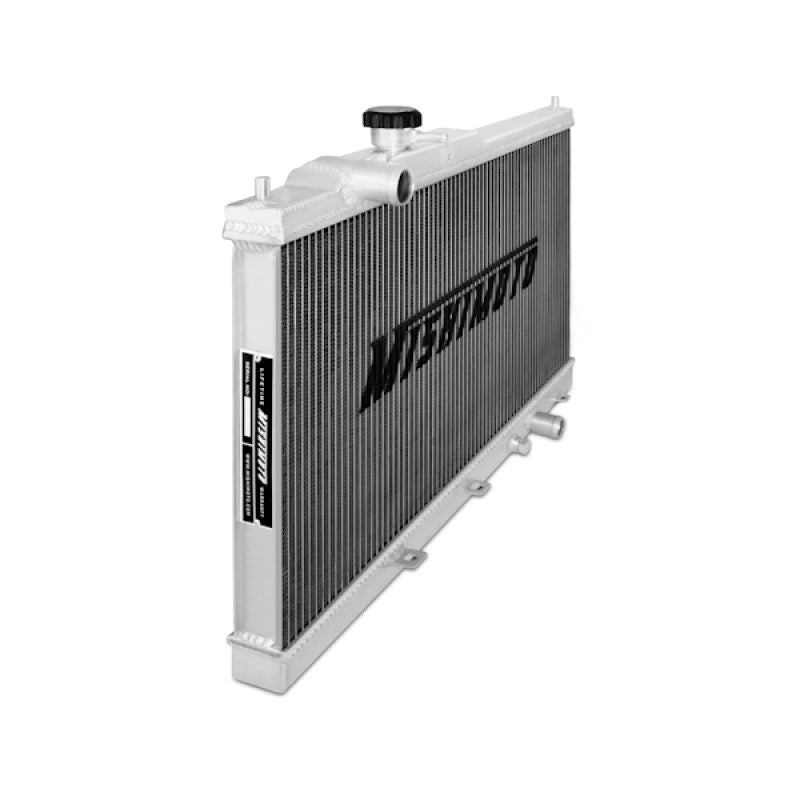

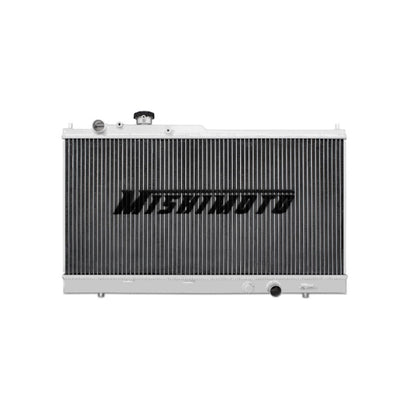

Mishimoto MMRAD-PRO-03 - 01-03 Mazda Protege Manual Aluminum Radiator **Requires Modification**
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
The Mishimoto performance aluminum radiator for the Mazda Protege is the ideal upgrade to the OEM radiator.Whether your Protege is a daily driver or a track car, a Mishimoto radiator will maximize cooling efficiency, boost engine functions and protect your car from overheating.Every Mishimoto performance radiator is a direct OEM fit, making installation effortless, no cutting or modification is required.
TechSpec Overall Height (in): 27.5
TechSpec Overall Length (in): 17.07
TechSpec Overall Width (in): 1.92
TechSpec Core Length (in): 26.87
TechSpec Core Height (in): 13
TechSpec Fluid Capacity (gal): 2.24
TechSpec Rows: 2
TechSpec Inlet (in): 1.1
TechSpec Outlet (in): 1.1
TechSpec Core Thickness (in): 1.42
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2303
TechSpec Material: Aluminum
TechSpec Applications: N/A
TechSpec Engine Codes: FS-DEFS-DET
TechSpec Chassis Codes: BJFPBJFW
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1999-2003 Mazda Protégé
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.42-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Efficient temperature regulation for both stock and modified vehicles

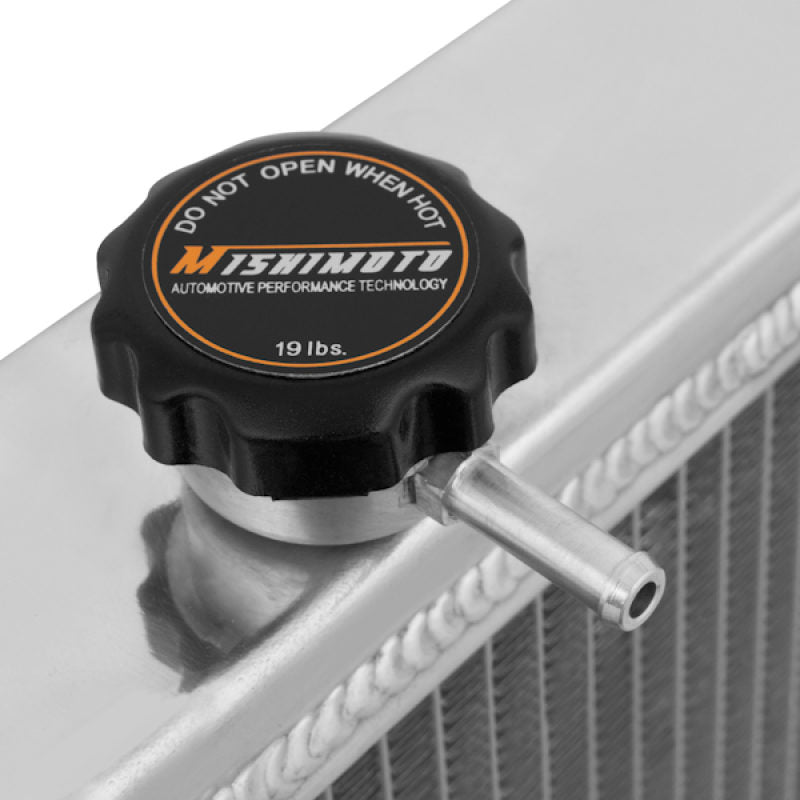

SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 13
Core Length: 26.87
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.42
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.24
Inlet Diameter: 1.1
Inlet Location: Top Left
Outlet Diameter: 1.1
Outlet Location: Bottom Right
Overall Height: 27.5
Overall Length: 17.07
Overall Width: 1.92
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
