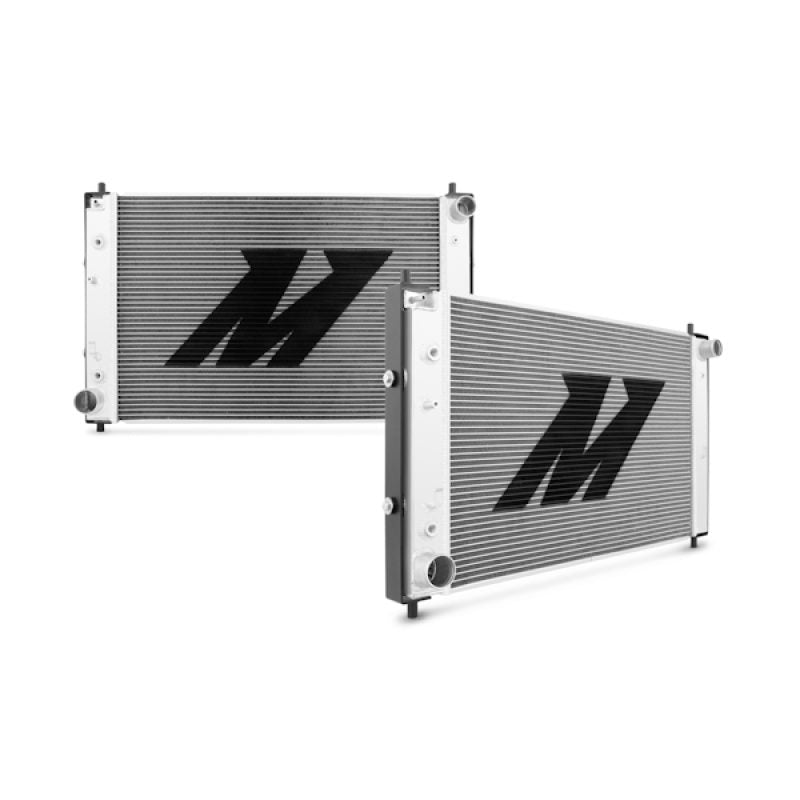

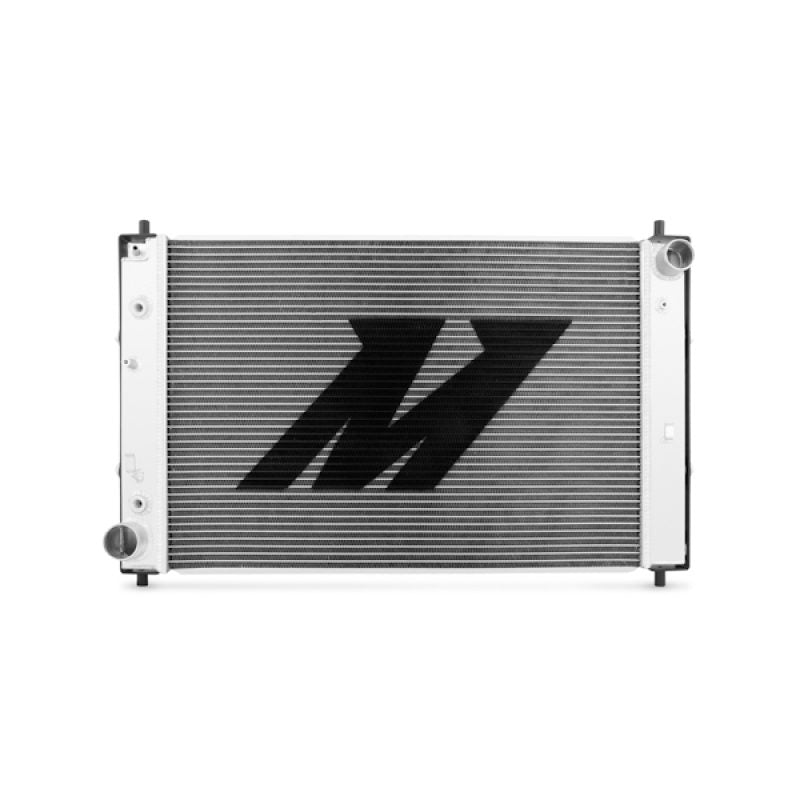

Mishimoto MMRAD-MUS-97BA - 97-04 Ford Mustang w/ Stabilizer System Automatic Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto has released a revolutionary new radiator for the automatic 1997-2004 Ford Mustang.The high torque generated by the Mustangs revealed a fatal flaw in the OEM design, where the torquing chassis would cause the OEM radiators to separate the endtanks from the cores.Utilizing a patented floating bracket system, this radiator was engineered to eliminate the issues found in the OEM design while simultaneously adding cooling capacity and increasing efficiency.The new Mishimoto Mustang radiator is a direct fit and installs in about two hours with no cutting or trimming required. All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and an excellent warranty.
TechSpec Overall Height (in): 31.57
TechSpec Overall Length (in): 19.76
TechSpec Overall Width (in): 4.68
TechSpec Core Length (in): 24.92
TechSpec Core Height (in): 17.24
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 2
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.77
TechSpec Core Thickness (in): 1.57
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 2139
TechSpec Material: Aluminum
TechSpec Applications: 1997-2001 Ford Mustang Cobra--2002-2004 Ford Mustang SVT Cobra--2001 Ford Mustang Bullitt--2003-2004 Ford Mustang Mach 1
TechSpec Engine Codes: 289ci (4.6L)
TechSpec Chassis Codes: SN-95
TechSpec Note: N/A

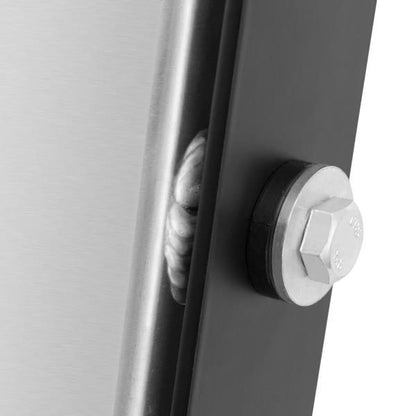

TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--Left & Right Brackets--(4) - Rubber Bushings & Metal Collars--(4) - M8 Flange Head Bolts--(4) - M8 Washers--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1997-2004 Ford Mustang 4.6L with automatic transmission
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.57-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street or strip
SellingPoint06: Efficient temperature regulation for both stock and mo
SellingPoint07: Features internal transmission fluid cooler which accepts factory cooler lines

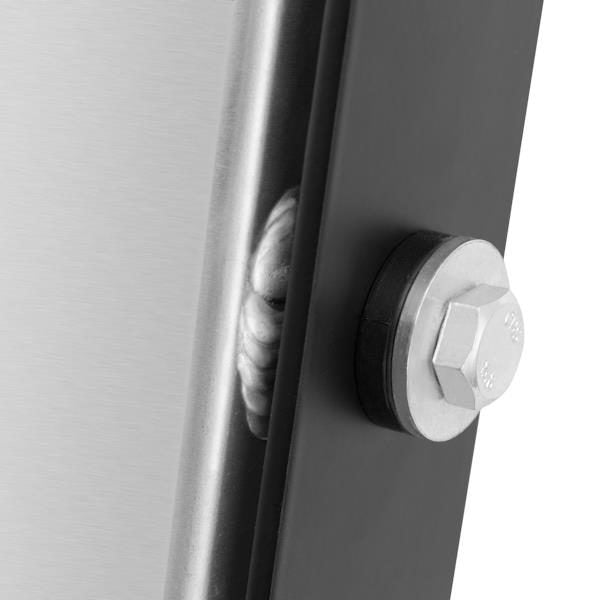

SellingPoint08: Utilizes patent-pending radiator stabilizer system which isolates the radiator from the chassis, eliminating the potential of chassis flex from impacting the integrity of the radiator
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Patent No. US D703,126

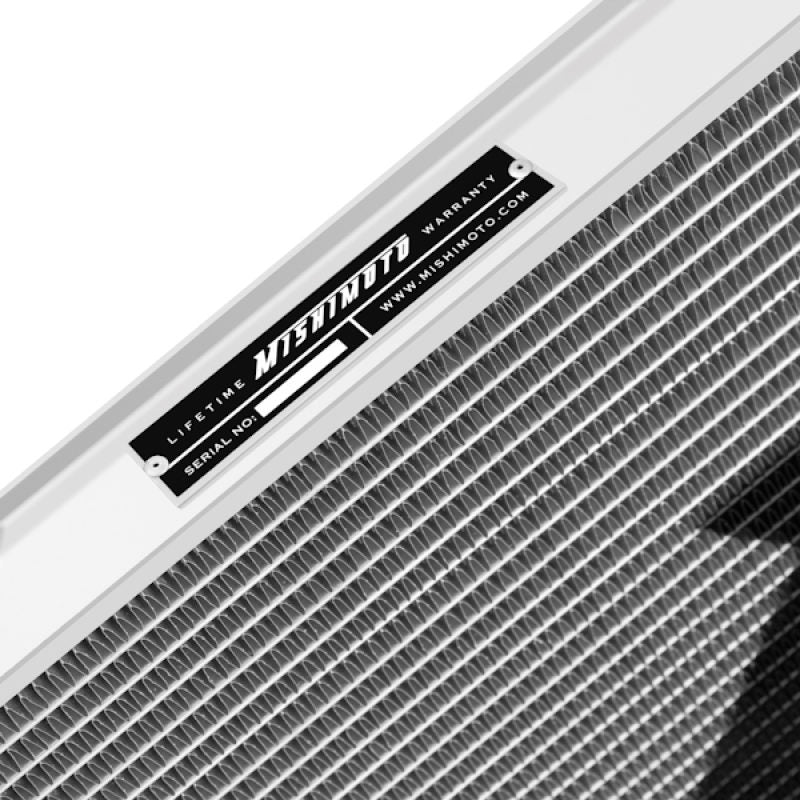

SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 17.24
Core Length: 24.92
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.57
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 3.97
Inlet Diameter: 1.57
Inlet Location: Top Right
Outlet Diameter: 1.77
Outlet Location: Bottom Left
Overall Height: 31.57
Overall Length: 19.76
Overall Width: 4.68
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
