Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

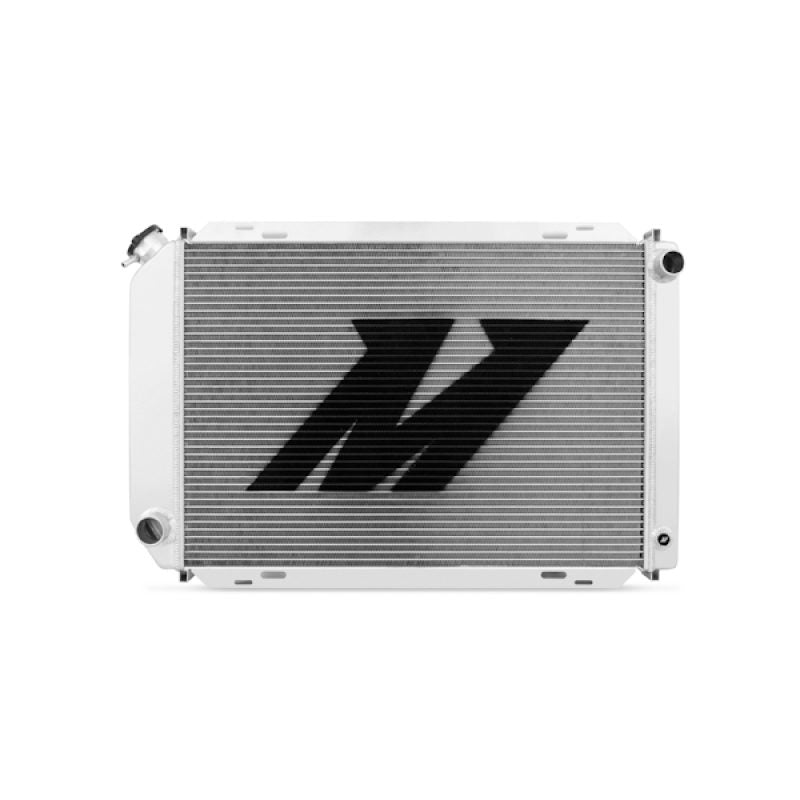

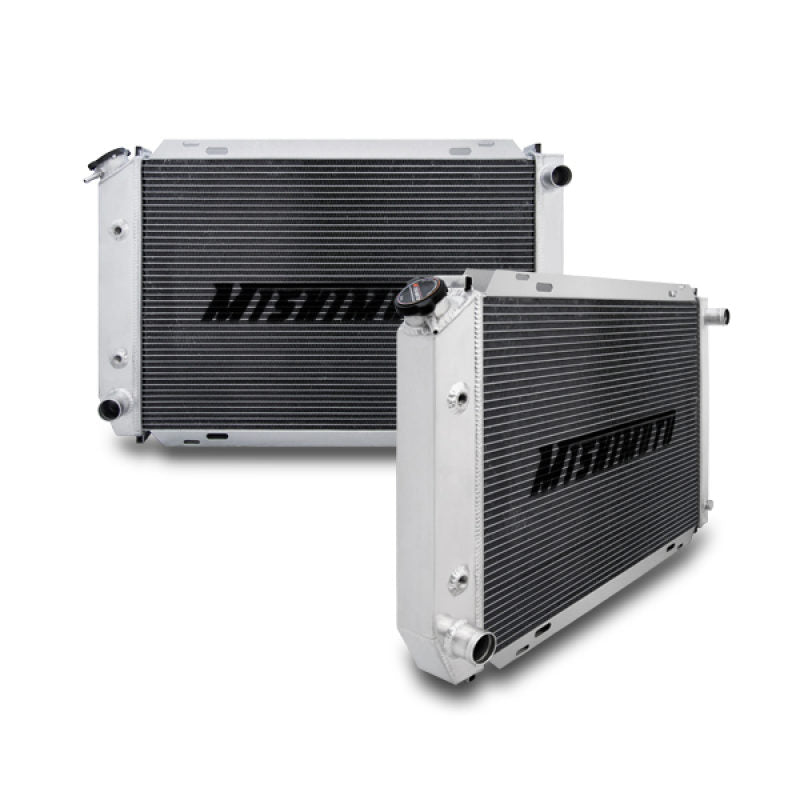

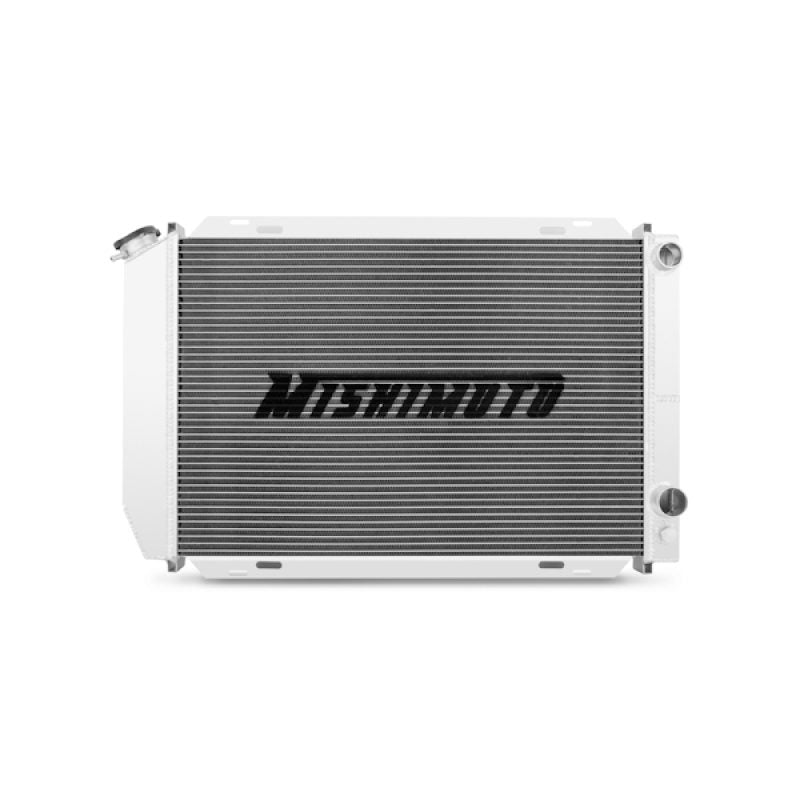

The Mishimoto Mustang Dual Pass Racing Radiator is the ideal upgrade to the stock OEM Mustang radiator.Made with aircraft quality aluminum and specifically engineered to maximize cooling efficiency, boost engine functions and protect your car from overheating.Note - May require longer water hoses.
TechSpec Overall Width (in): 4.25
TechSpec Core Length (in): 24.45
TechSpec Core Height (in): 16.7
TechSpec Fluid Capacity (gal): 3.97
TechSpec Rows: 3
TechSpec Inlet (in): 1.25
TechSpec Outlet (in): 1.5
TechSpec Material: Aluminum
TechSpec Applications: 1979-1993 Ford Mustang (All)--1980-1988 Ford Thunderbird--1980-1983 Ford Fairmont--1981-1982 Ford Granada--1983-1986 Ford LTD--1978-1983 Mercury Zephyr--1980-1986 Mercury Capri--1980-1988 Mercury Cougar
TechSpec Engine Codes: 302ci (5.0L)
TechSpec Chassis Codes: N/A
TechSpec DPI: 138/556
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Core Thickness (in): 2.05
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit--Custom lower hose is required due to the relocated lower hose port
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1979-1993 Ford Mustang 5.0L with relocated lower hose
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: Features a three-row, 2.05-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and optimal heat dissipation
SellingPoint05: Perfect for use on the street and strip
SellingPoint06: Efficient temperature regulation for both stock and modified vehicles
SellingPoint07: Unique dual pass design is precision engineered to provide substantial heat transfer
SellingPoint08: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 16.7
Core Length: 24.45
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2.05
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 3.97
Inlet Diameter: 1.25
Inlet Location: Top Right
Outlet Diameter: 1.5
Outlet Location: Bottom Right
Overall Height: 19.1
Overall Length: 30
Overall Width: 4.25
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 19.1
TechSpec Overall Length (in): 30
