Mishimoto MMRAD-MUS-69X - 69-70 Ford Mustang X-Line Performance Aluminum Radiator

Name: Mishimoto MMRAD-MUS-69X - 69-70 Ford Mustang X-Line Performance Aluminum Radiator
Brand: Mishimoto
SKU: MMRAD-MUS-69X
Price: 499.95 USD
Availability: InStock

Mishimoto MMRAD-MUS-69X - 69-70 Ford Mustang X-Line Performance Aluminum Radiator

Mishimoto | MMRAD-MUS-69X
SKU: MMRAD-MUS-69X

$499.95 USD

~~$550.00 USD~~ $499.95 USD

Sale Sold out

Shipping calculated at checkout.

14 in stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Mishimoto MMRAD-MUS-69X - 69-70 Ford Mustang X-Line Performance Aluminum Radiator

3-Row Performance Aluminum Radiator, fits Ford Mustang 1969-1970

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

An ideal upgrade for the brittle stock radiator, the Mishimoto 1969--1970 Ford Mustang X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1969 Mustang radiator for daily driving or the extra cooling power from a 3-row 1970 Mustang radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock '69 Mustang radiator or '70 Mustang Radiator cannot handle the heat that comes along with impressive horsepower. This classic 1969/1970 Mustang radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each classic Mustang radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic Mustang radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
3-row brazed aluminum core
Billet aluminum fill neck

TechSpec Overall Height (in): 22.1

TechSpec Overall Length (in): 21

TechSpec Overall Width (in): 5

TechSpec Core Length (in): 16.1

TechSpec Core Height (in): 19.6

TechSpec Fluid Capacity (gal): 2.78

TechSpec Rows: 3

TechSpec Inlet (in): 1.5

TechSpec Outlet (in): 1.5

TechSpec Core Thickness (in): 2.5

TechSpec Drain Plug Thread Size: 1/4-18 NPT

TechSpec DPI: 339

TechSpec Material: Aluminum

TechSpec Applications: 1969-1970 Ford Mustang 250ci (4.1L) I6, 302 ci (4.9L) V8, 351ci (5.8L) V8--1969-1970 Mercury Cougar 302 ci (5.0L) V8--1969-1970 Ford Maverick 250ci (4.1L) I6, 302 ci (4.9L) V8--1971-1973 Mercury Comet 250ci (4.1L) I6

TechSpec Engine Codes: 250ci (4.1L) I6--302ci (4.9L) V8--351ci (5.8L) V8

TechSpec Chassis Codes: N/A

TechSpec Note: N/A

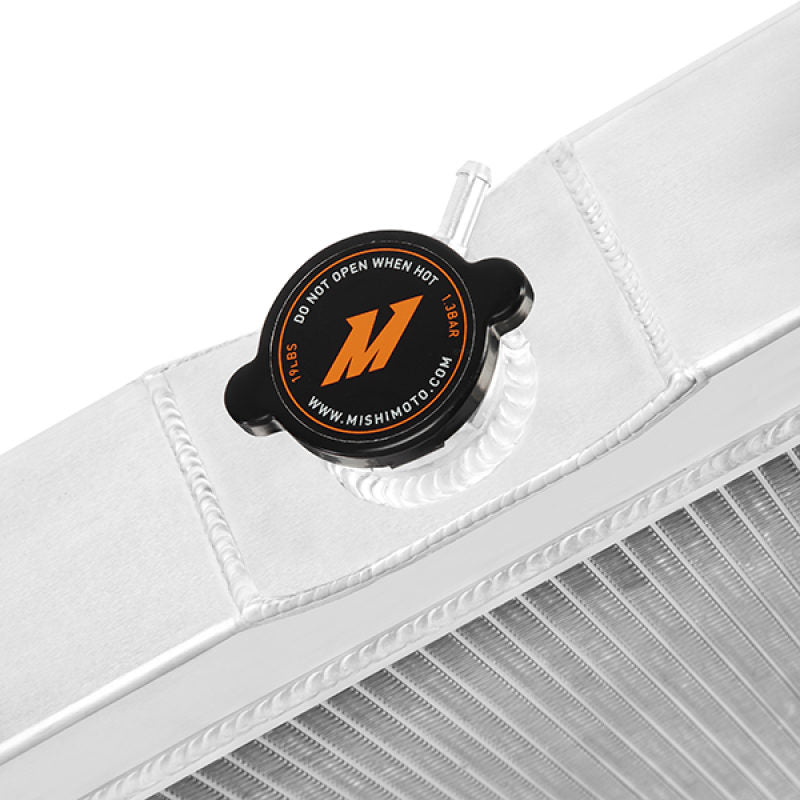

TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty

SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity

SellingPoint02: 3-row brazed aluminum core

SellingPoint03: Billet aluminum fill neck

SellingPoint04: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures

SellingPoint05: Includes an internal transmission cooler to ensure optimal fluid temperatures for automatic transmissions

SellingPoint06: Includes magnetic drain plug

SellingPoint10: N/A

SellingPoint11: N/A

SellingPoint12: N/A

SellingPoint13: N/A

SellingPoint09: N/A

SellingPoint08: N/A

SellingPoint07: Mishimoto Lifetime Warranty
