Mishimoto MMRAD-LCR-98 - Toyota Land Cruiser J100 Performance Radiator 1998-2007

Mishimoto MMRAD-LCR-98 - Toyota Land Cruiser J100 Performance Radiator 1998-2007

Mishimoto | MMRAD-LCR-98
SKU: MMRAD-LCR-98
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

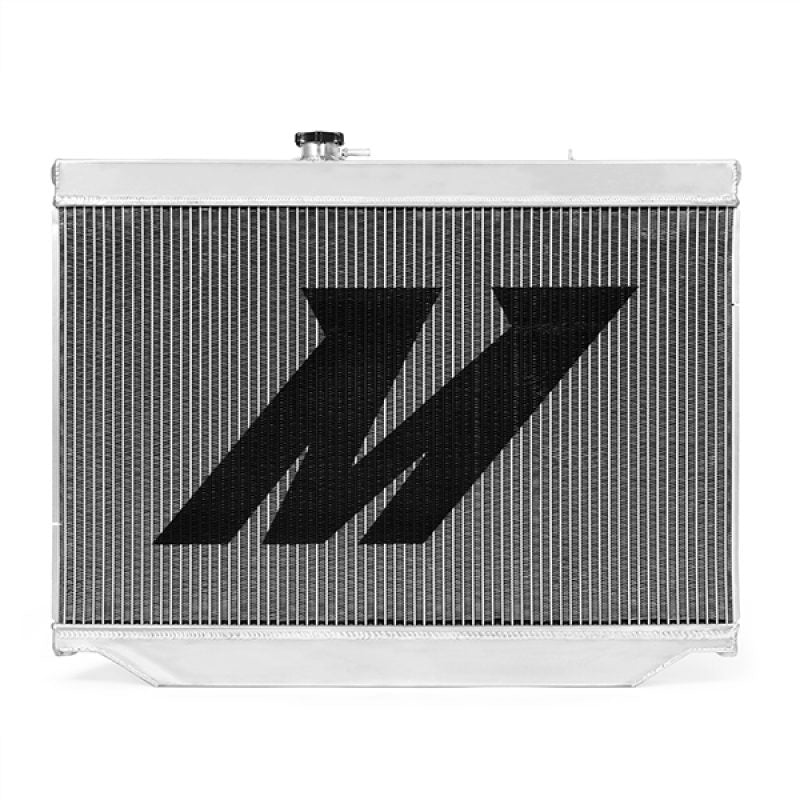

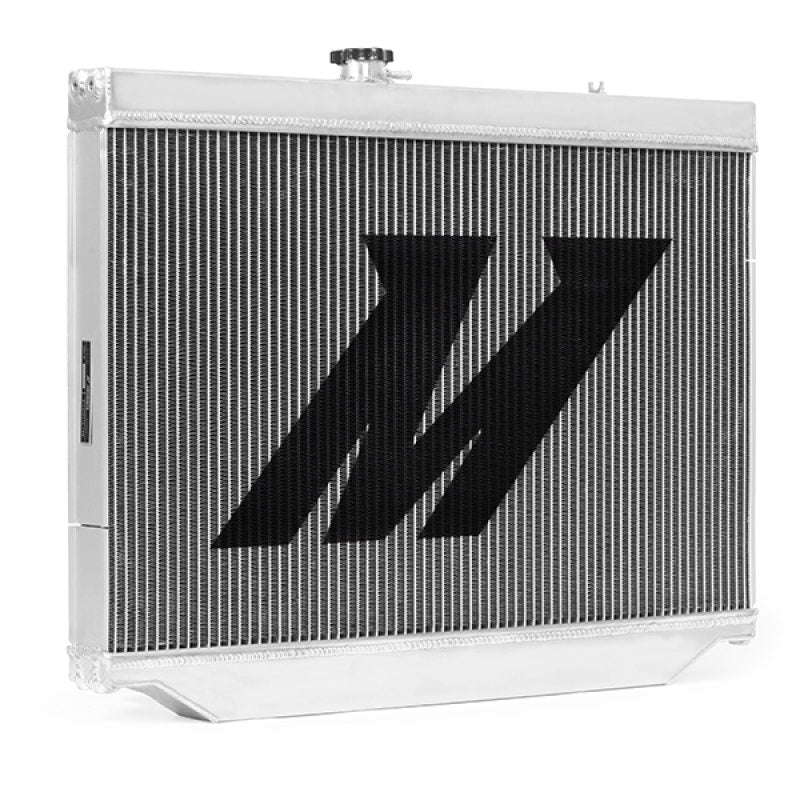

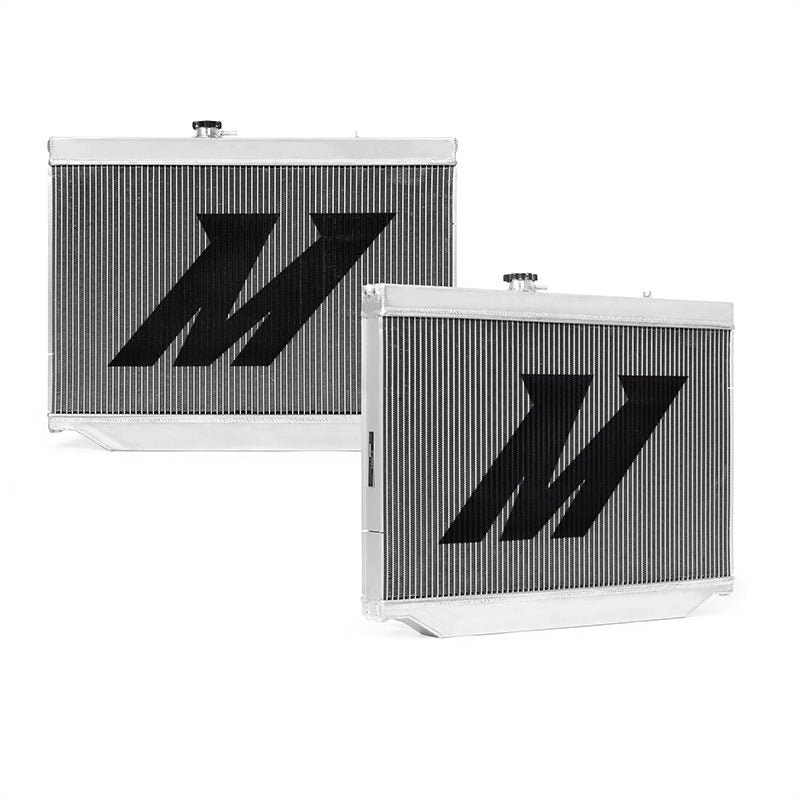

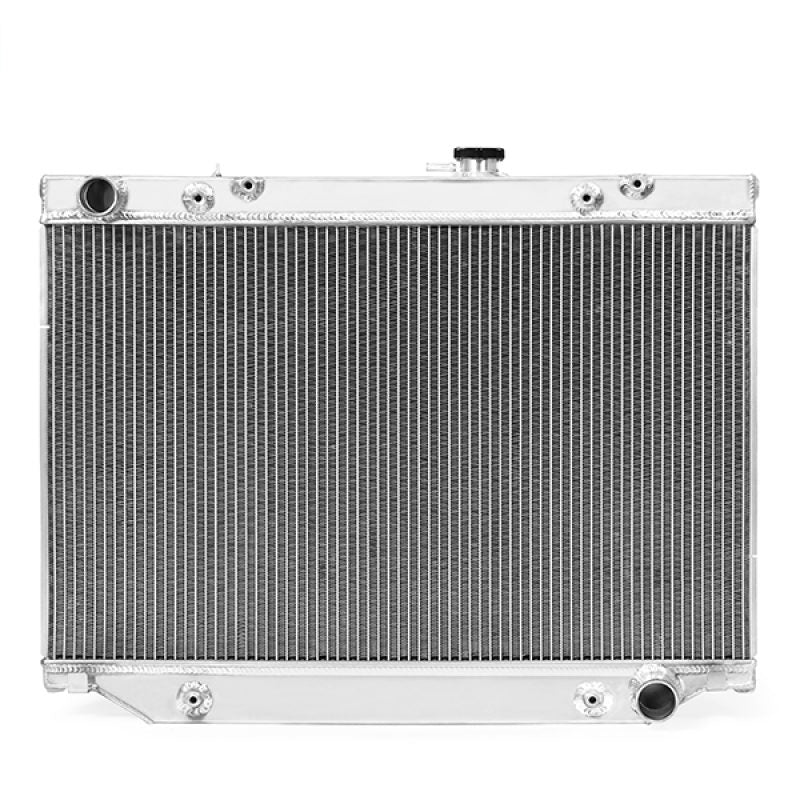

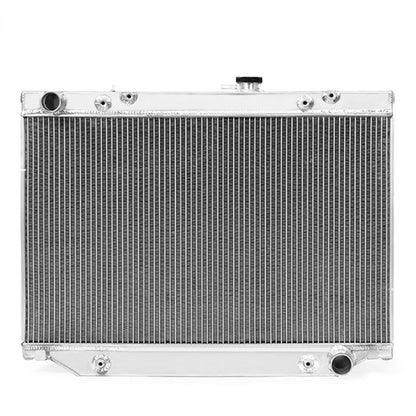

Mishimoto MMRAD-LCR-98 - Toyota Land Cruiser J100 Performance Radiator 1998-2007

Performance Aluminum Radiator, fits Toyota Land Cruiser J100 (1HZ 1FE) 1998-2007

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

If you're looking to upgrade your Toyota J100/J105 cooling, look no further! The Mishimoto 1998-2007 Toyota Land Cruiser J100/J105 Performance Aluminium Radiator is an ideal upgrade for the brittle stock radiator. Our radiator boasts a 19% greater core volume and 29.5% greater coolant capacity to improve cooling efficiency. The Mishimoto Toyota Land Cruiser J100/J105 radiator features durable, aircraft-quality aluminium end tanks that are precision TIG-welded to the 56mm-thick core for superior durability. This Land Cruiser radiator also includes a Magnetic Drain Plug to capture metal debris in the cooling system, as well as a 1.3 bar high-pressure radiator cap. As with every Mishimoto aluminium radiator, this 1998-2007 Toyota Land Cruiser J100/J105 radiator includes the Mishimoto Lifetime Warranty, ensuring superior Products quality and craftsmanship for as long as you own the radiator.

  • Full aluminum construction including durable, TIG-welded end tanks
  • 56mm thick, two-row core for powerful cooling
  • 29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency
SellingPoint05: 19-percent increase in core volume over stock radiator
SellingPoint06: Includes internal transmission cooler to fit with either manual or automatic transmissions

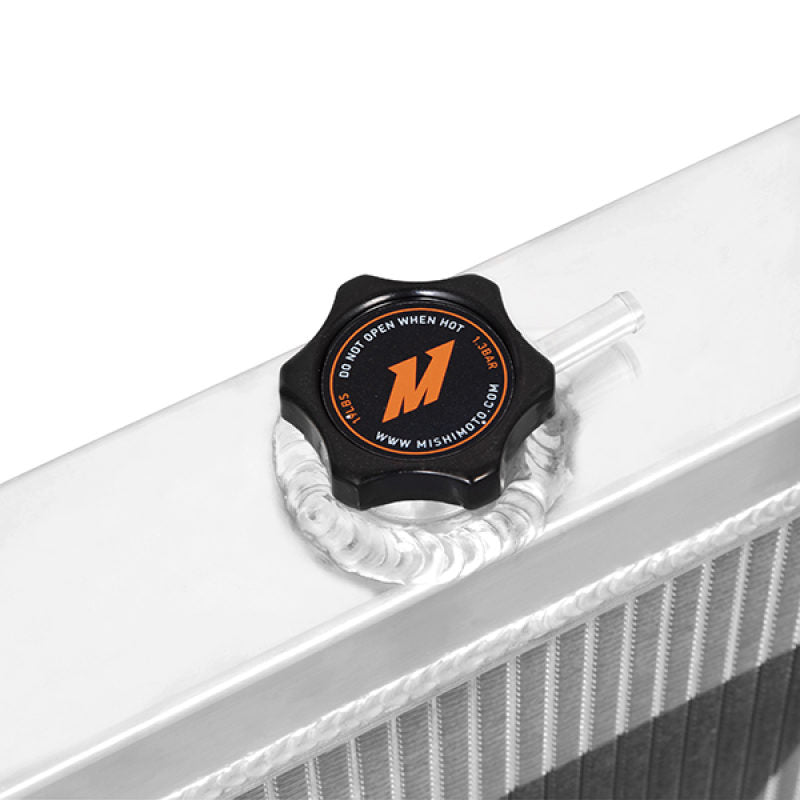

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 16.93
Core Length: 27.64
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.2
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 3.9
Inlet Diameter: 0
Inlet Location: Top Left
Outlet Diameter: 0
Outlet Location: Bottom Right
Overall Height: 22.25
Overall Length: 28
Overall Width: 6.1
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
TechSpec Overall Height (in): 22.25
TechSpec Overall Length (in): 28
TechSpec Overall Width (in): 6.1
TechSpec Core Length (in): 27.64
TechSpec Core Height (in): 16.93
TechSpec Fluid Capacity (gal): 3.9
TechSpec Rows: 2
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Core Thickness (in): 2.2
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: N/A
TechSpec Material: Aluminum
TechSpec Applications: 1998-2007 Toyota Land Cruiser J100/J105 w/ 1HZ 4.2L Diesel--1998-2007 Toyota Land Cruiser J100/J105 w/ 1FZ 4.5L Petrol
TechSpec Engine Codes: 1HZ 4.2L Diesel--1FZ 4.5L Petrol
TechSpec Chassis Codes: J100--J105
TechSpec Note: This radiator uses mounting brackets that are separate from the radiator and the vehicle. The Mishimoto radiator is designed to work with the OEM brackets. If you are replacing an aftermarket radiator, you may need to purchase OEM brackets to fit the Mishimoto radiator.
TechSpec Includes: Mishimoto Aluminum Radiator-- Mishimoto Radiator Cap-- Foam Strip--Mounting Hardware--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for 1998-2007 Toyota Land Cruiser J100/J105 with 4.2L 1HZ or 4.5L 1FZ engines
SellingPoint02: Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03: 56mm thick, two-row core for powerful cooling
SellingPoint04: 29.5-percent increase in fluid capacity over stock radiator for greater cooling efficiency
