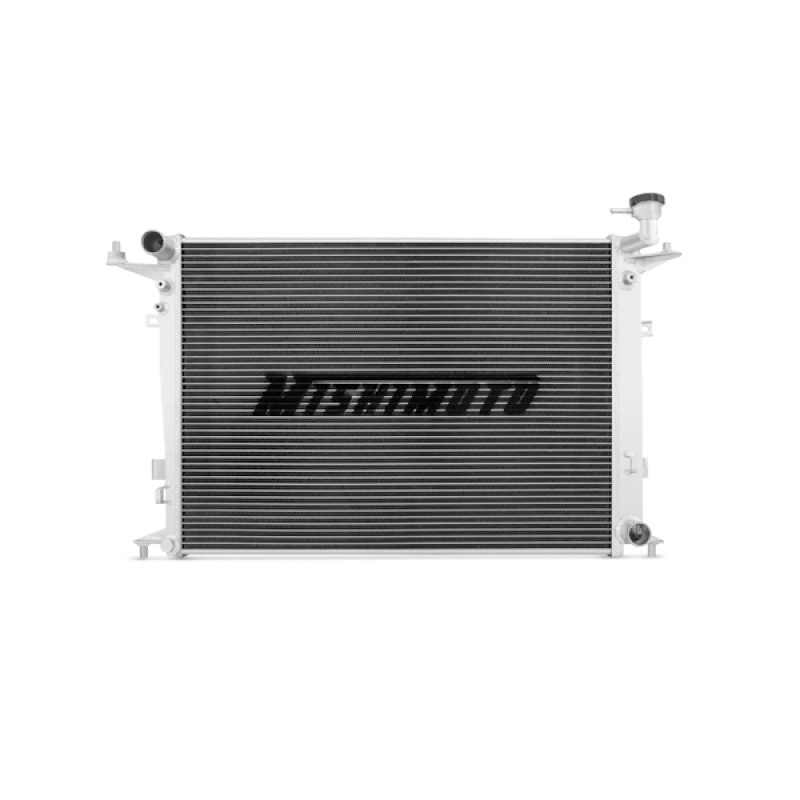

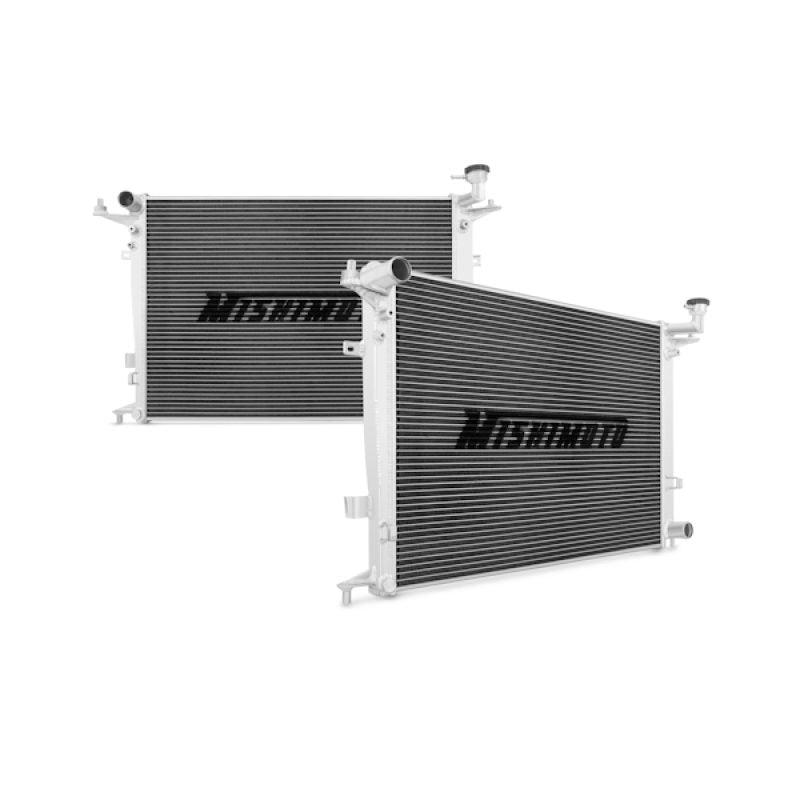

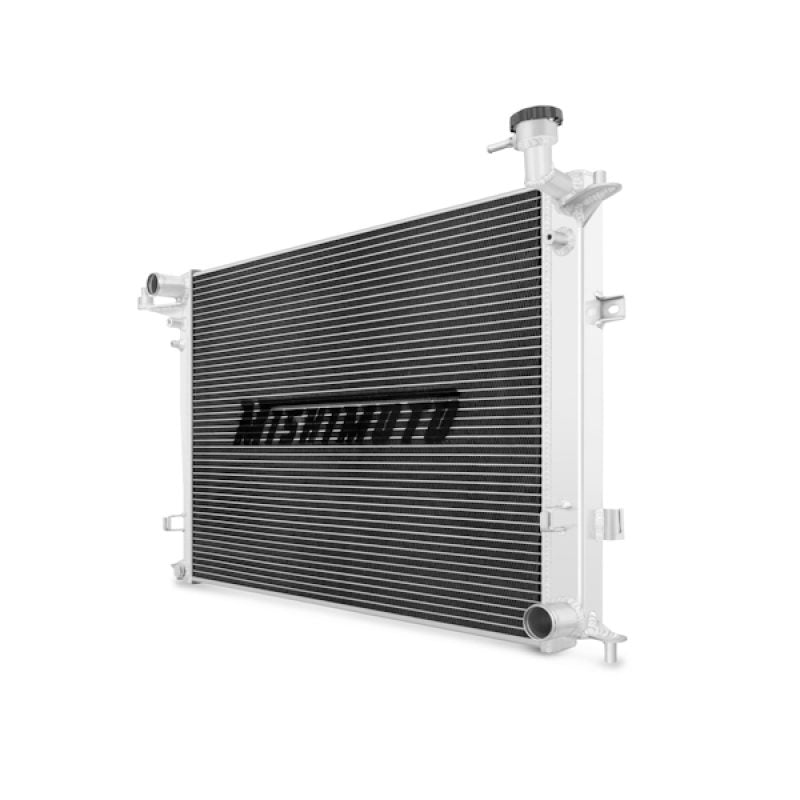

Mishimoto MMRAD-GEN6-10 - 10-12 Hyundai Genesis Coupe 3.8L V6 Performance Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Mishimoto has developed a performance aluminum radiator available for the 2010-13 V6 Hyundai Genesis Coupe.This is the ideal upgrade to your stock Genesis Coupe radiator.Having a high-displacement V6 produces a great amount of heat; by replacing your current Hyundai Genesis radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.Our testing showed a 30 degree decrease in temperatures over stock.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
TechSpec Overall Height (in): 33.1
TechSpec Overall Length (in): 20.9
TechSpec Overall Width (in): 5.4
TechSpec Core Length (in): 25.12
TechSpec Core Height (in): 19.21
TechSpec Fluid Capacity (gal): 2.87
TechSpec Rows: 2
TechSpec Inlet (in): 1.46
TechSpec Outlet (in): 1.46
TechSpec Core Thickness (in): 1.34
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13059
TechSpec Material: Aluminum
TechSpec Applications: 2010-2012 Hyundai Genesis 3.8L V6
TechSpec Engine Codes: 3.8L Lambda V6
TechSpec Chassis Codes: BK
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Bleeder Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2010-2012 Hyundai Genesis Coupe 3.8

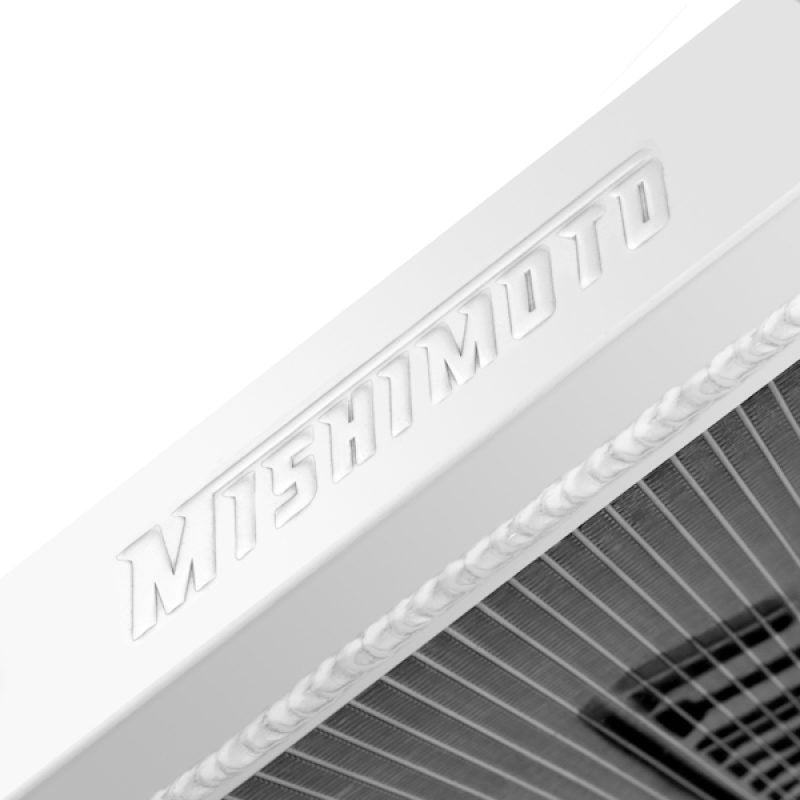

SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.34-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Proven 50-percent increase in radiator efficiency compared to the stock unit
SellingPoint06: Provides optimal heat exchange for both stock and forced induction vehicles
SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

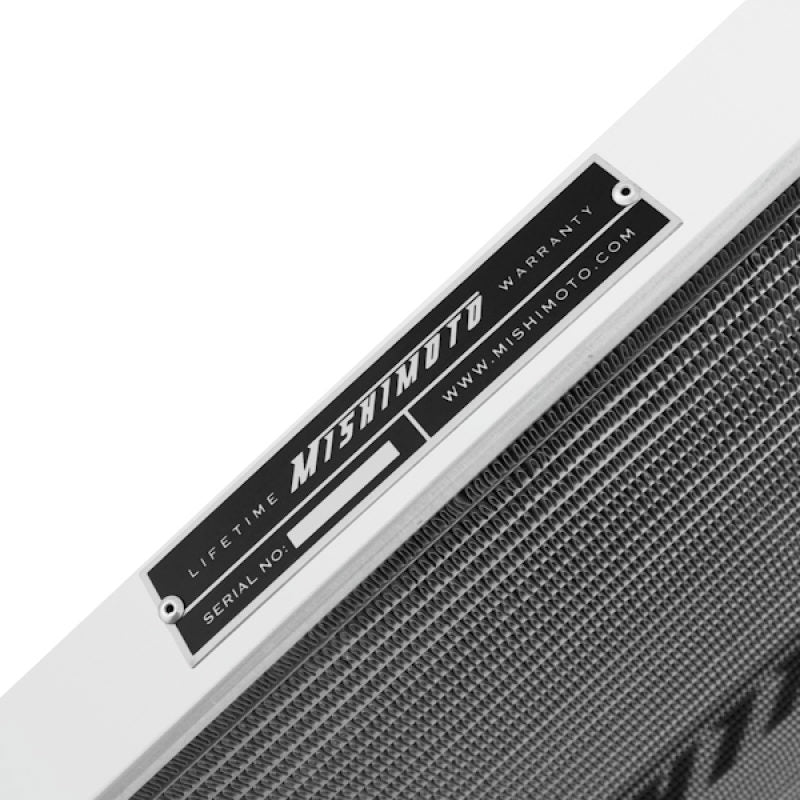

SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 19.21
Core Length: 25.12
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.34
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.87
Inlet Diameter: 1.46
Inlet Location: Top Left
Outlet Diameter: 1.46
Outlet Location: Bottom Right
Overall Height: 33.1
Overall Length: 20.9
Overall Width: 5.4
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
