Mishimoto MMRAD-GEN4-10 - 10+ Hyundai Genesis Coupe 4 cyl Turbo Manual Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

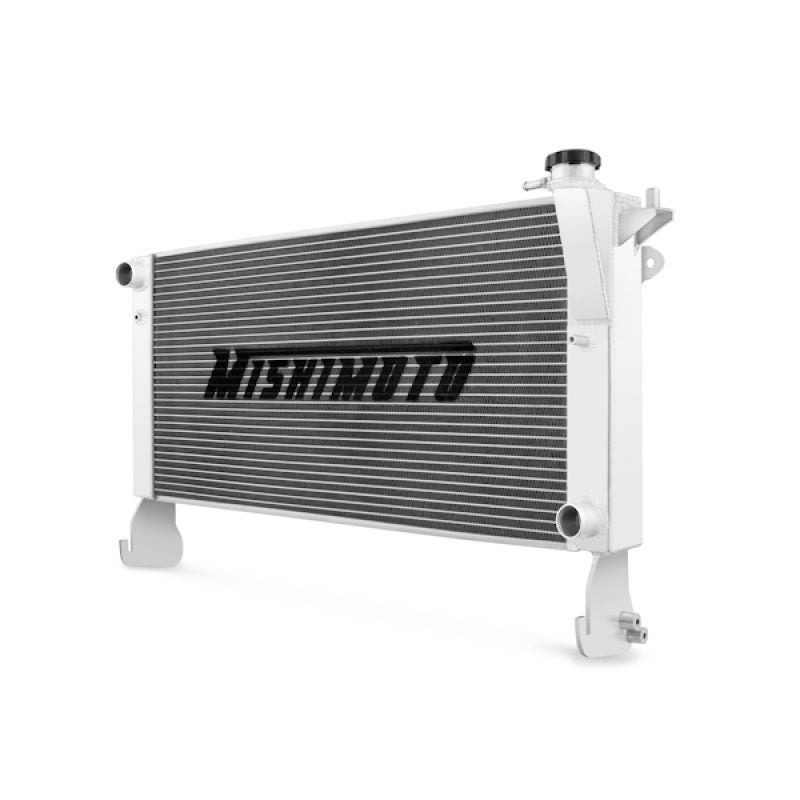

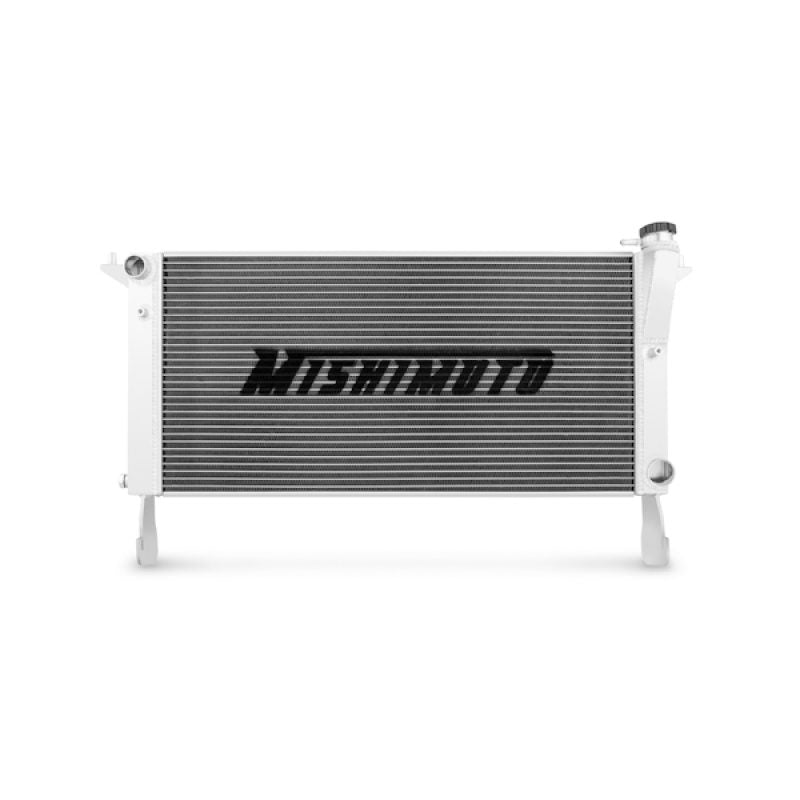

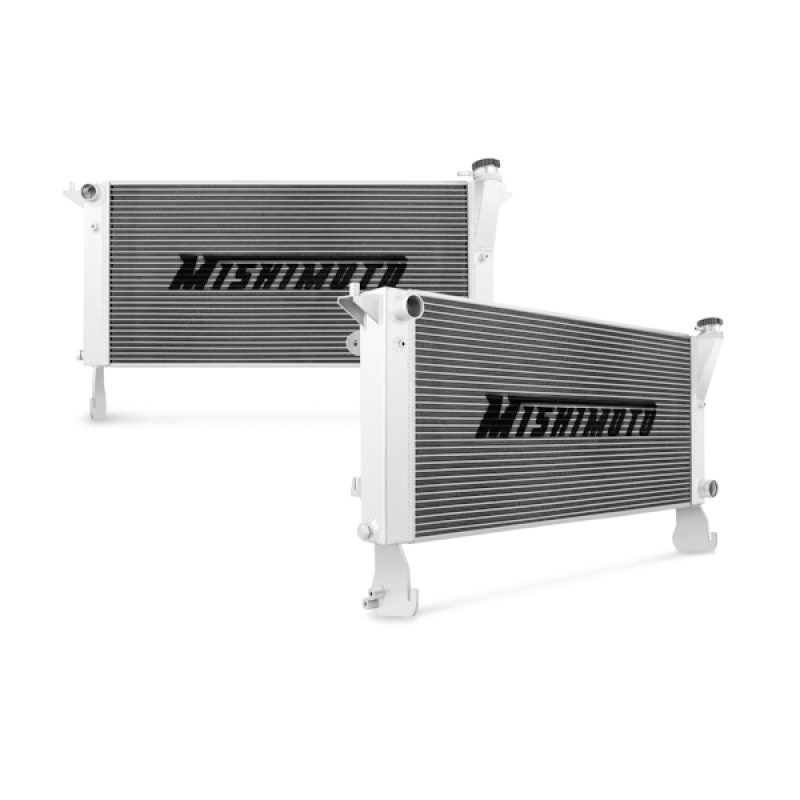

Mishimoto has developed a performance aluminum radiator available for the 2010 Hyundai Genesis Coupe.This is the ideal upgrade to your stock Genesis Coupe radiator.Having a turbo set up produces a great amount of heat; by replacing your current Hyundai Genesis radiator with a top of the line Mishimoto performance aluminum radiator you will undoubtedly notice a cooler, more efficient running engine.The new application is specifically designed and engineered as a direct OEM fit with no modification required for easy installation.
TechSpec Overall Height (in): 32.48
TechSpec Overall Length (in): 17.8
TechSpec Overall Width (in): 2.47
TechSpec Core Length (in): 25.5
TechSpec Core Height (in): 12.5
TechSpec Fluid Capacity (gal): 1.64
TechSpec Rows: 2
TechSpec Inlet (in): 1.4
TechSpec Outlet (in): 1.4
TechSpec Core Thickness (in): 1.97
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13120
TechSpec Material: Aluminum
TechSpec Applications: 2010-2012 Hyundai Genesis Coupe 2.0T
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: BK
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto transmission cooler (P/N: MMTC-U)
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2010-2012 Hyundai Genesis Coupe 2.0T

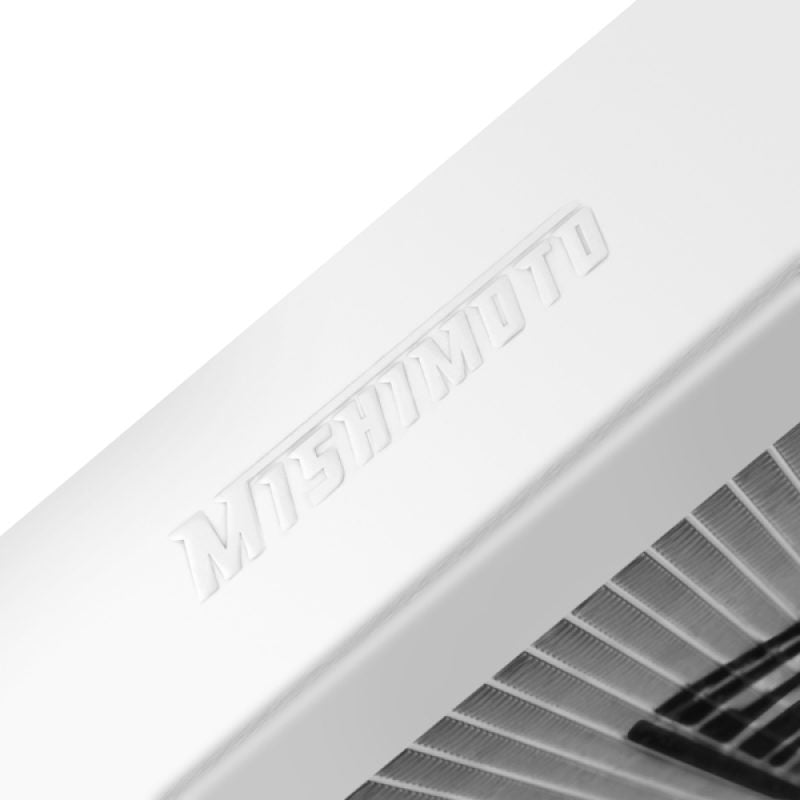

SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Functions with both stock and aftermarket front-mount intercoolers
SellingPoint04: Features a two-row, 1.97-in thick, efficient brazed aluminum core
SellingPoint05: Increased fluid capacity and superior heat dissipation
SellingPoint06: Provides optimal heat exchange for both stock and highly modified vehicles

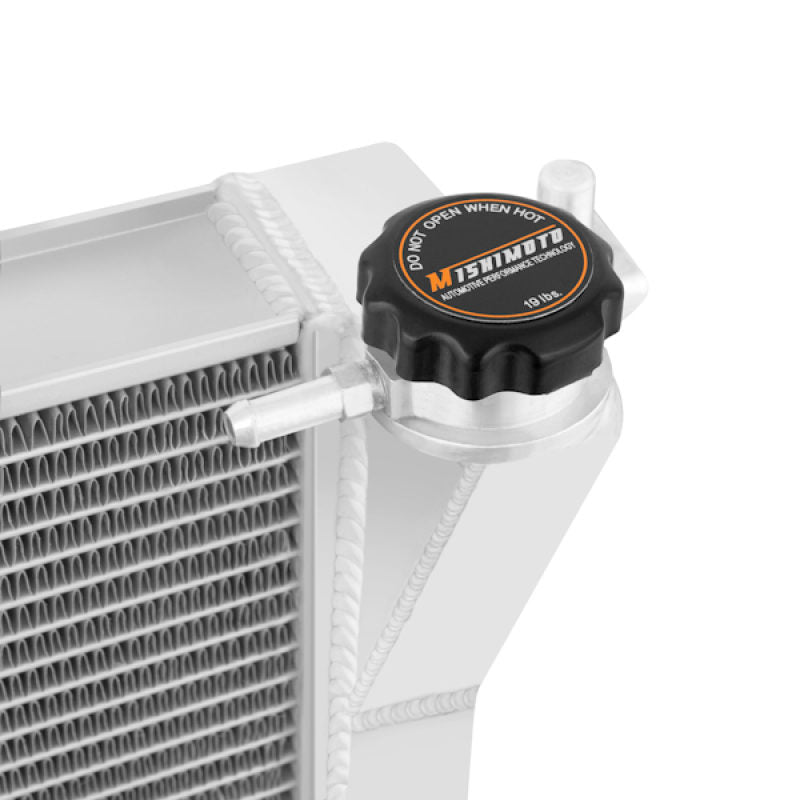

SellingPoint07: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

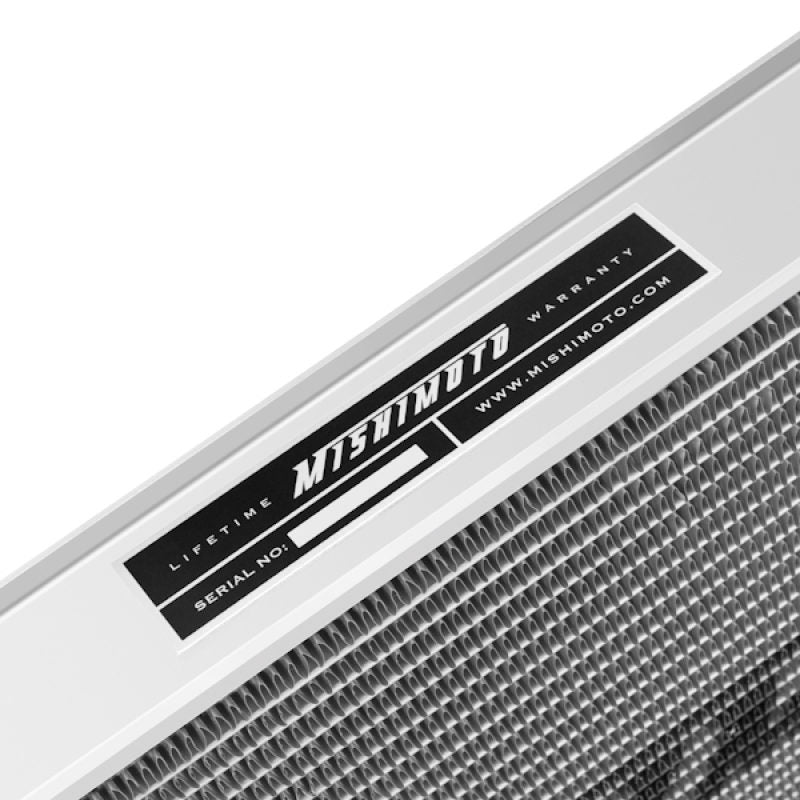

SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Core Finish: Uncoated
Core Height: 12.5
Core Length: 25.5
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.97
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 1.64
Inlet Diameter: 1.4
Inlet Location: Top Left
Outlet Diameter: 1.4
Outlet Location: Bottom Right
Overall Height: 32.48
Overall Length: 17.8
Overall Width: 2.47
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
