Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

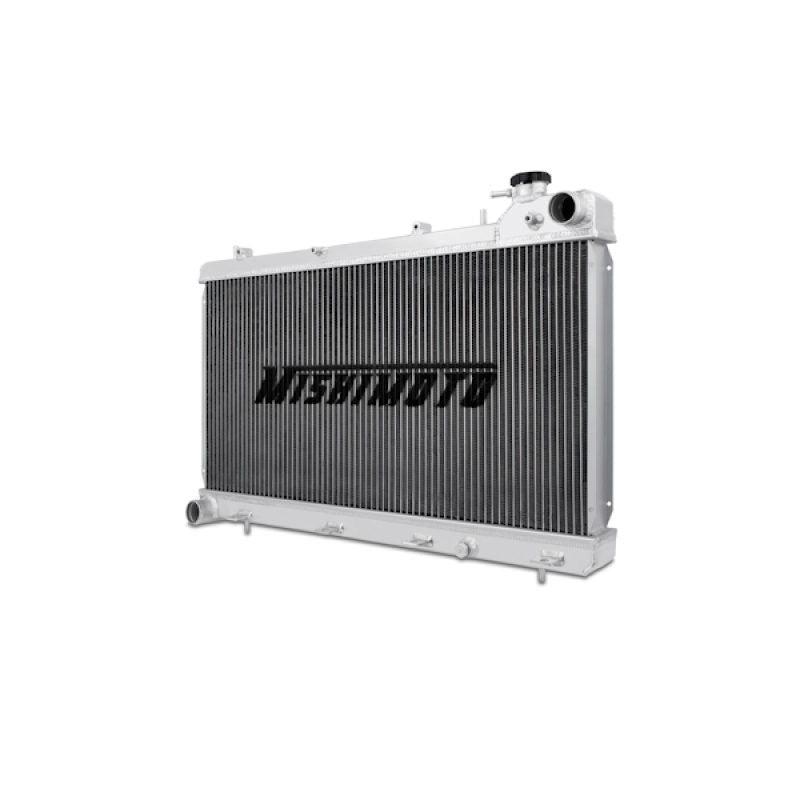

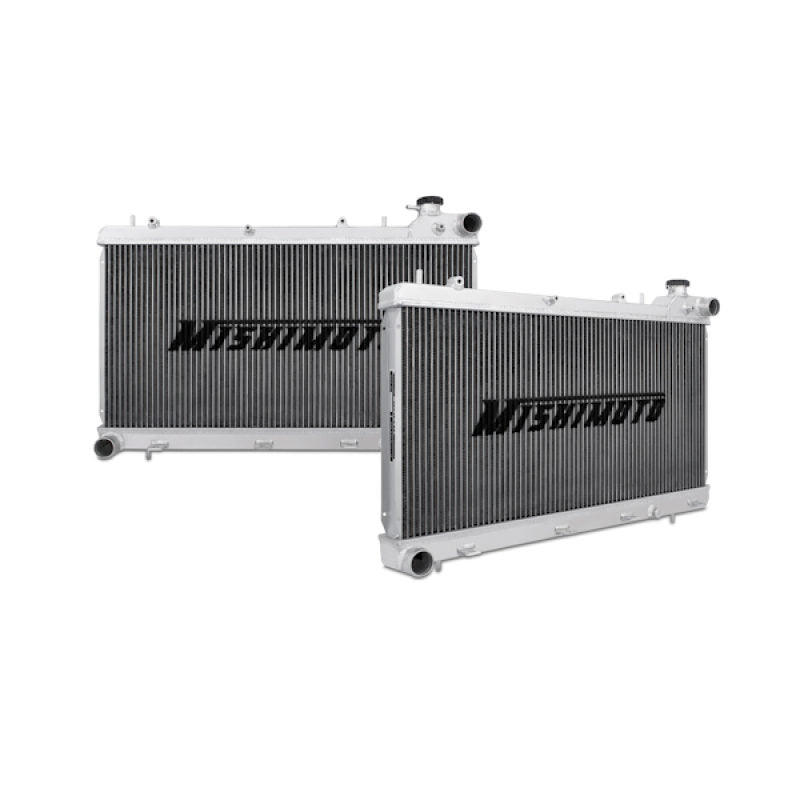

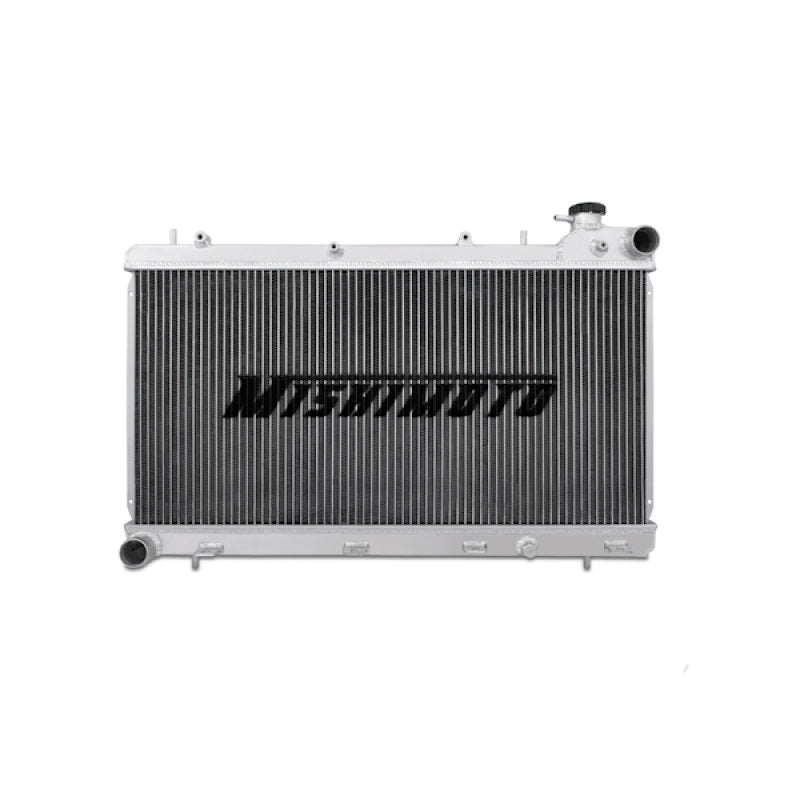

An ideal upgrade to the stock OEM radiator, the Mishimoto Subaru Impreza aluminum radiator will give your vehicle a cooler, more efficient running engine. Most people overlook the importance of installing an upgraded radiator in their engine. Not only will it produce 30-percent greater cooling capacity, but will also boost engine functions and prevent your car from overheating. All Mishimoto performance radiators are made with durable aircraft-quality aluminum, feature a dual core, and polished end tanks. By replacing your stock Impreza GC8 radiator you will notice a cooler, more efficient running engine. Mishimoto can solve your cooling problems with our durable, efficient aluminum radiator. Note: This radiator will only fit non-turbo models.
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 27.08
Core Length: 13.35
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.05
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 1.73
Inlet Diameter: 1.5
Inlet Location: Top Right
Outlet Diameter: 1.5
Outlet Location: Bottom Left
Overall Height: 28.2
Overall Length: 19.3
Overall Width: 2.55
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
TechSpec Overall Height (in): 28.2
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (in): 2.55
TechSpec Core Length (in): 13.35
TechSpec Core Height (in): 27.08
TechSpec Fluid Capacity (gal): 1.73
TechSpec Rows: 2
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.5
TechSpec Core Thickness (in): 2.05
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 1574
TechSpec Material: Aluminum
TechSpec Applications: 1993-1998 Subaru Impreza--1993 Subaru Impreza 4X4--1996-1997 Subaru Impreza Brighton--1993-1997 Subaru Impreza L--1995 Subaru Impreza L 4X4--1993-1994 Subaru Impreza LS--1995-1996 Subaru Impreza LX--1995-1998 Subaru Impreza Outback
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: Vertical flow radiators only----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.----This radiator is only compatible with 2.2L motors. Will only fit non-turbo models.
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 1993-1998 Subaru Impreza GC8

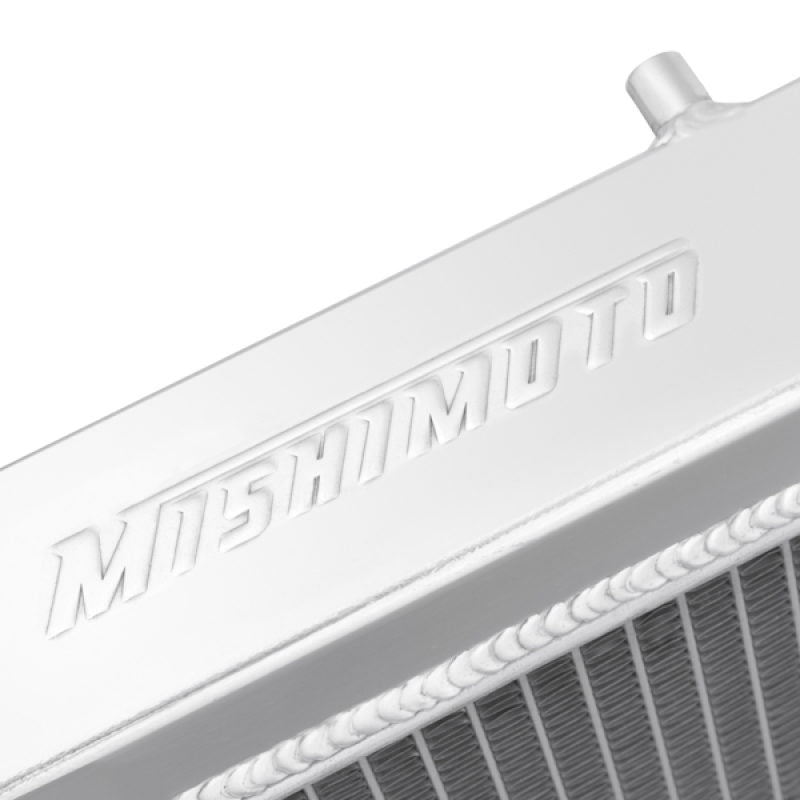

SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 2.05-in thick, efficient brazed aluminum core
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the stock, failure prone plastic end tank radiator

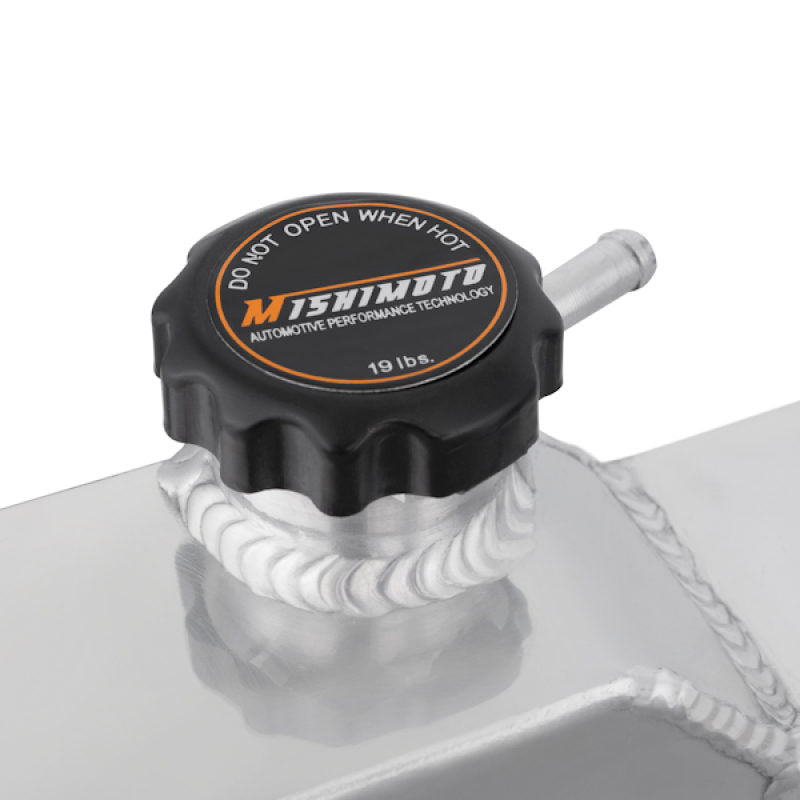

SellingPoint06: Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint07: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

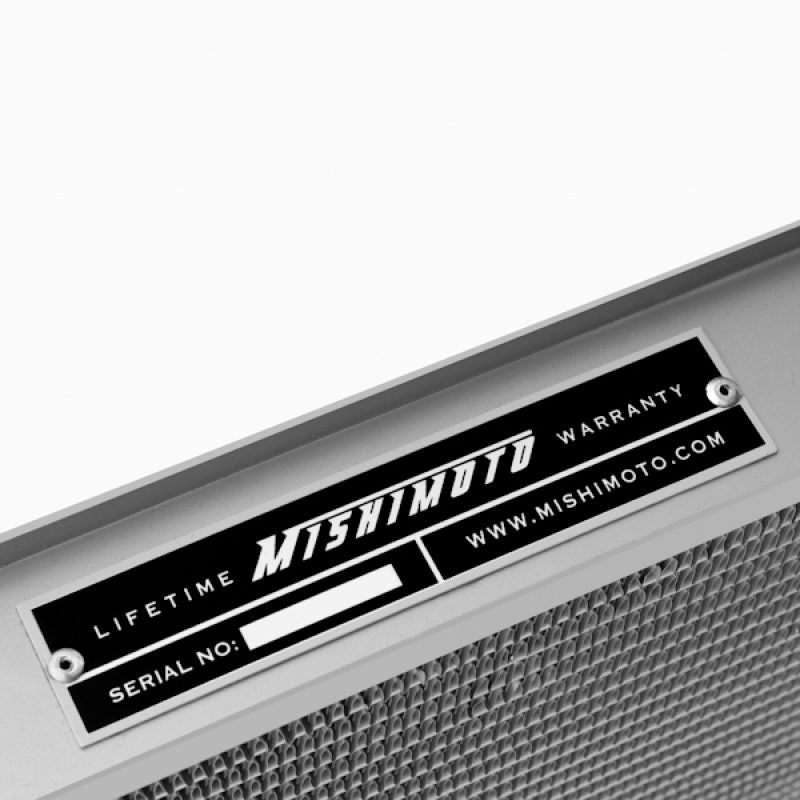

SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
