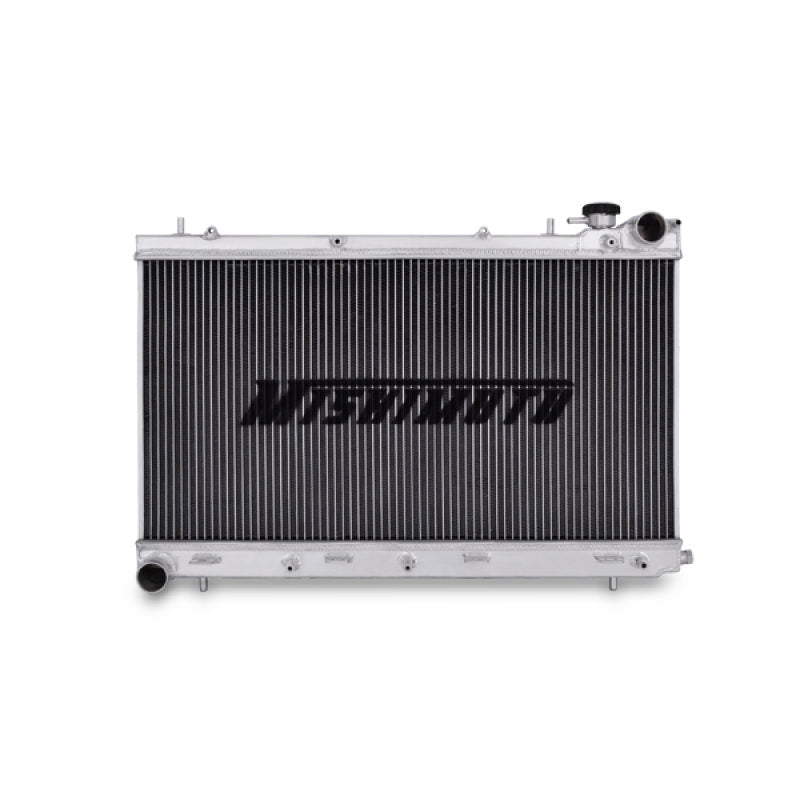

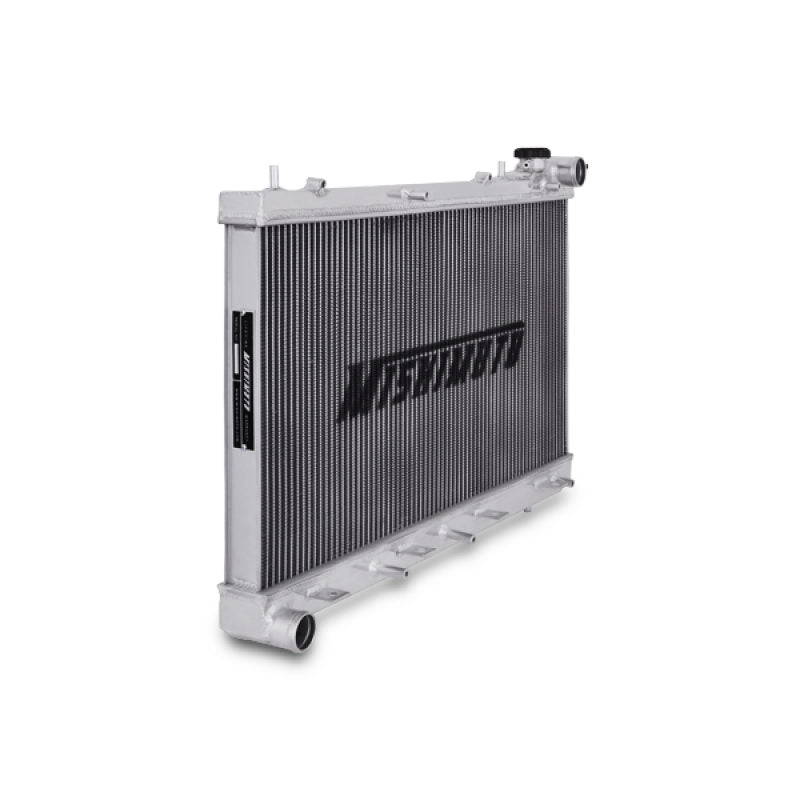

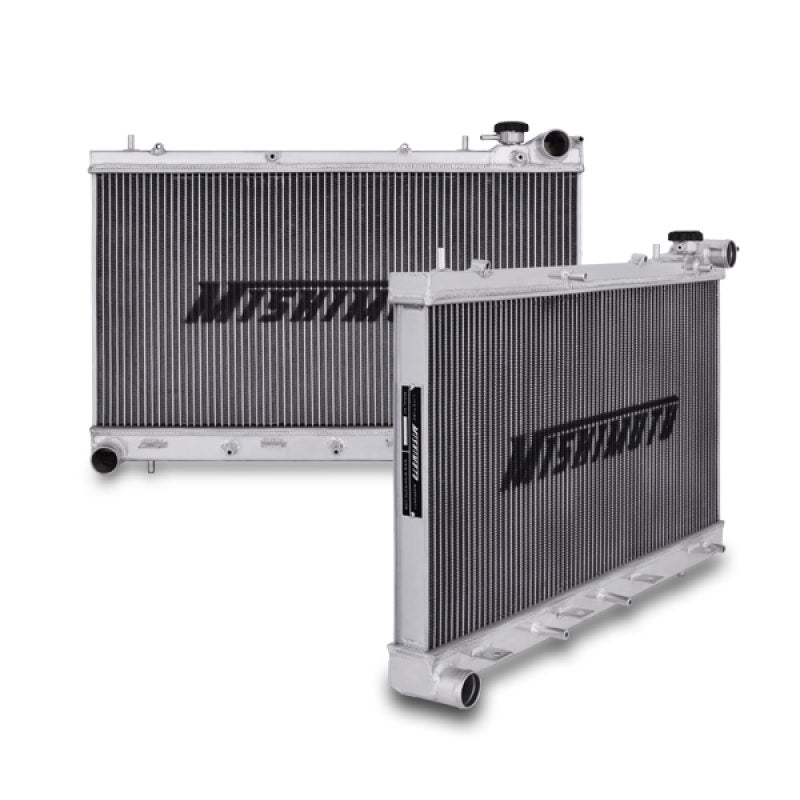

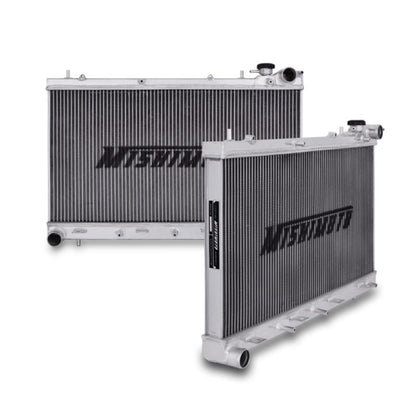

Mishimoto MMRAD-FXT-04 - 04-08 Subaru Forester XT (Manual Only - Not For A/T) Turbo Aluminum Radiator
Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.
Keeping your turbocharged Forester XT cool is essential to maintaining performance and reliability, whether you're navigating rush-hour traffic or exploring winding back roads. The factory radiator can struggle to keep up with the heat generated by the 2.5L turbo engine, especially under heavy loads or in warm weather. The Mishimoto Performance Aluminum Radiator for the Subaru Forester XT is engineered to provide improved cooling efficiency and durability, ensuring your engine runs at its best in any driving situation. -- Featuring a lightweight, dual-row core and 100% brazed aluminum construction, this radiator offers superior heat dissipation and greater pressure tolerance than the stock unit. The TIG-welded polished end tanks add strength and a refined appearance under the hood, while the direct OEM fit design means installation is quick and straightforward, with no cutting or modifications required. -- With its combination of performance, durability, and easy fitment, the Mishimoto Subaru Forester XT Performance Aluminum Radiator is the ideal upgrade for drivers who want to keep their turbocharged engine cool and protected for years to come.
SellingPoint06: Ideal for use on the street, track, or rallycross course

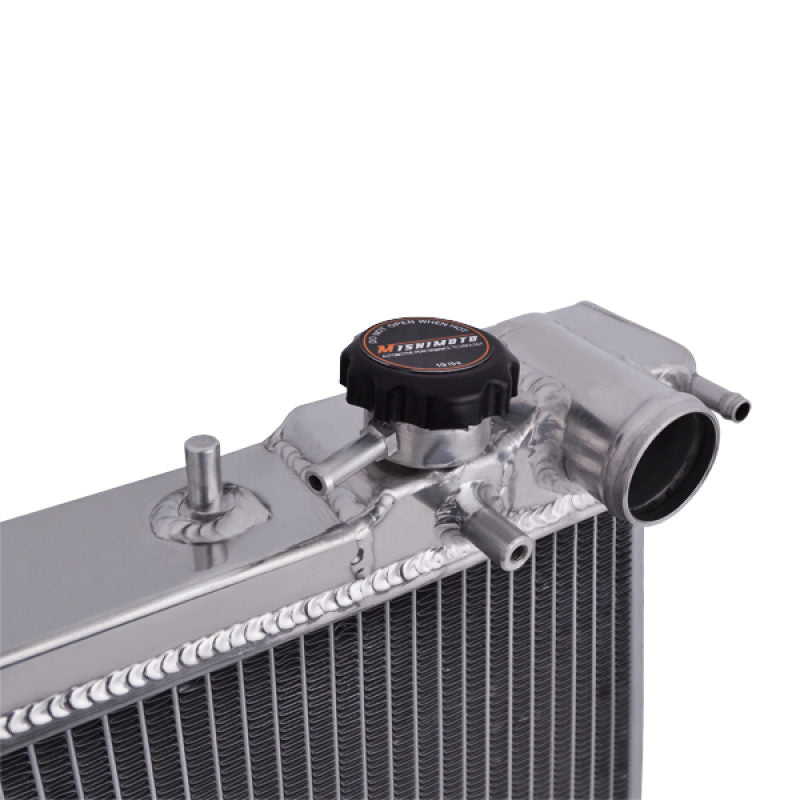

SellingPoint07: Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system
SellingPoint08: Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
SellingPoint09: Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 3
Core Finish: Uncoated
Core Height: 27
Core Length: 14.1
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.65
Down Flow Or Cross Flow Type: Down Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 2.21
Inlet Diameter: 1.57
TechSpec Overall Height (in): 27.7
TechSpec Overall Length (in): 17.4
TechSpec Overall Width (in): 2.2
TechSpec Core Length (in): 14.1
TechSpec Core Height (in): 27
TechSpec Fluid Capacity (gal): 2.21
TechSpec Rows: 2
TechSpec Inlet (in): 1.57
TechSpec Outlet (in): 1.57
TechSpec Core Thickness (in): 1.65
TechSpec Drain Plug Thread Size: M12 x 1.5
Inlet Location: Top Right
Outlet Diameter: 1.57
Outlet Location: Bottom Left
Overall Height: 27.7
Overall Length: 17.4
Overall Width: 2.2
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
TechSpec DPI: 2812
TechSpec Material: N/A
TechSpec Applications: N/A
TechSpec Engine Codes: EJ255
TechSpec Chassis Codes: SG5
TechSpec Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.--Caution--The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).--It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact support@mishimoto.com.
TechSpec Includes: (1) Mishimoto Radiator--(1) Mishimoto Two-Way Radiator Cap--(1) Mishimoto One-Way Radiator Cap--(1)1/16-inch NPT Plug--(1) Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 2004-2008 Subaru Forester XT
SellingPoint02: Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03: Features a two-row, 1.65” thick efficient brazed aluminum core, providing ideal fluid temperature reduction
SellingPoint04: Increased fluid capacity and superior heat dissipation
SellingPoint05: Perfect upgrade to the failure-prone stock plastic end tank radiator
