Mishimoto MMRAD-FIR-67X - 67-69 Pontiac Firebird X-Line Performance Aluminum Radiator

Mishimoto MMRAD-FIR-67X - 67-69 Pontiac Firebird X-Line Performance Aluminum Radiator

Mishimoto | MMRAD-FIR-67X
SKU: MMRAD-FIR-67X
Regular price $457.95 USD
Regular price $504.00 USD Sale price $457.95 USD
Sale Sold out
Shipping calculated at checkout.

13 in stock

Quantity

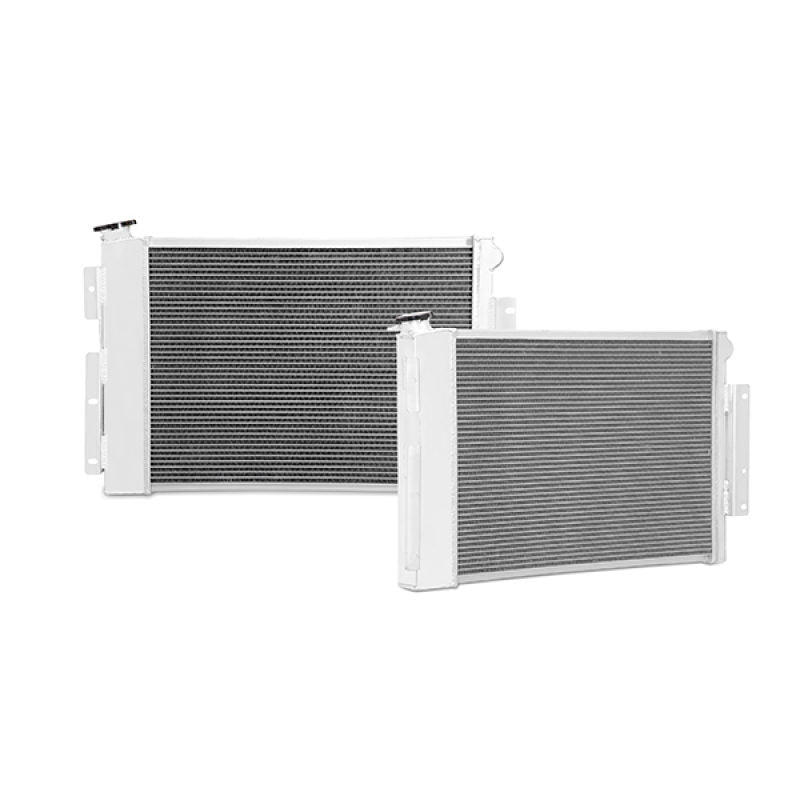

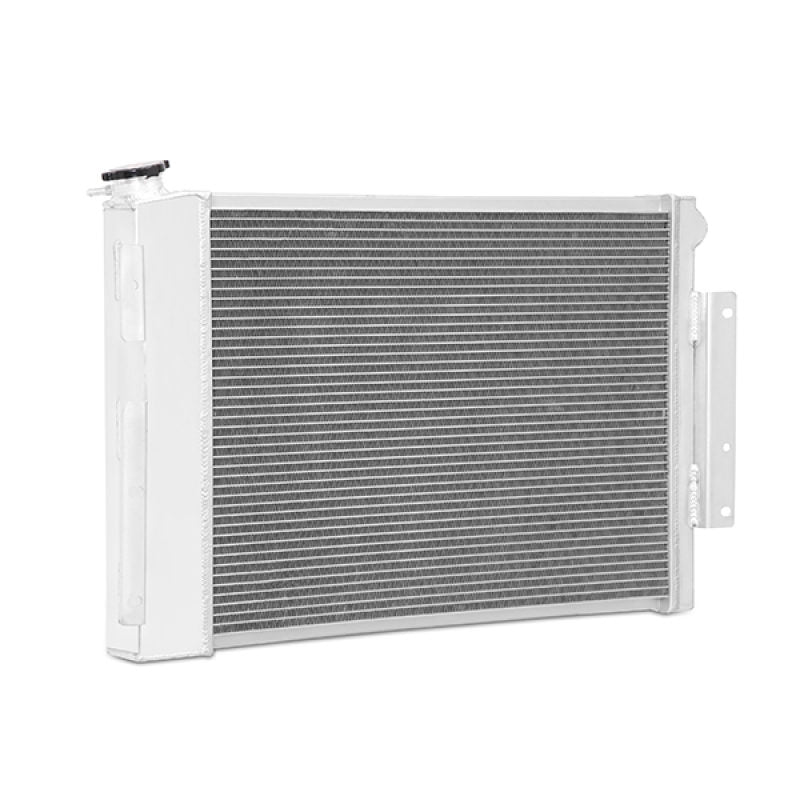

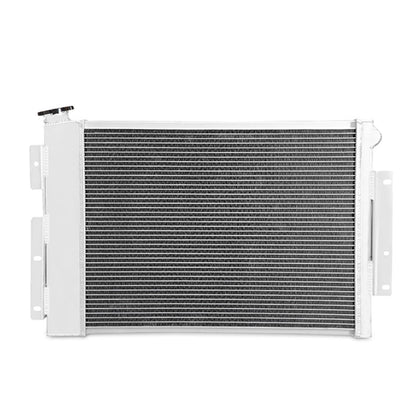

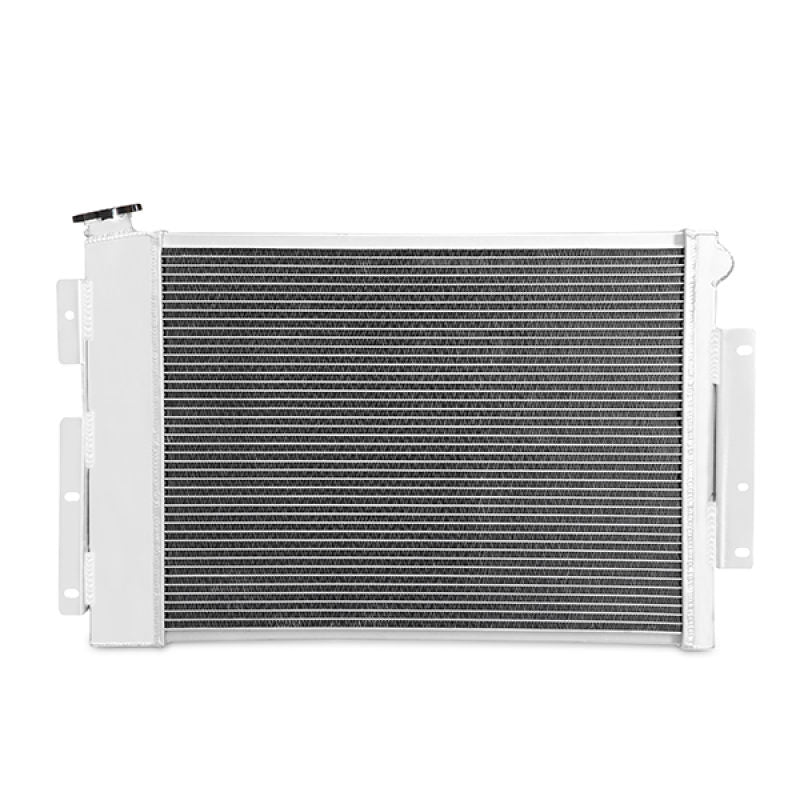

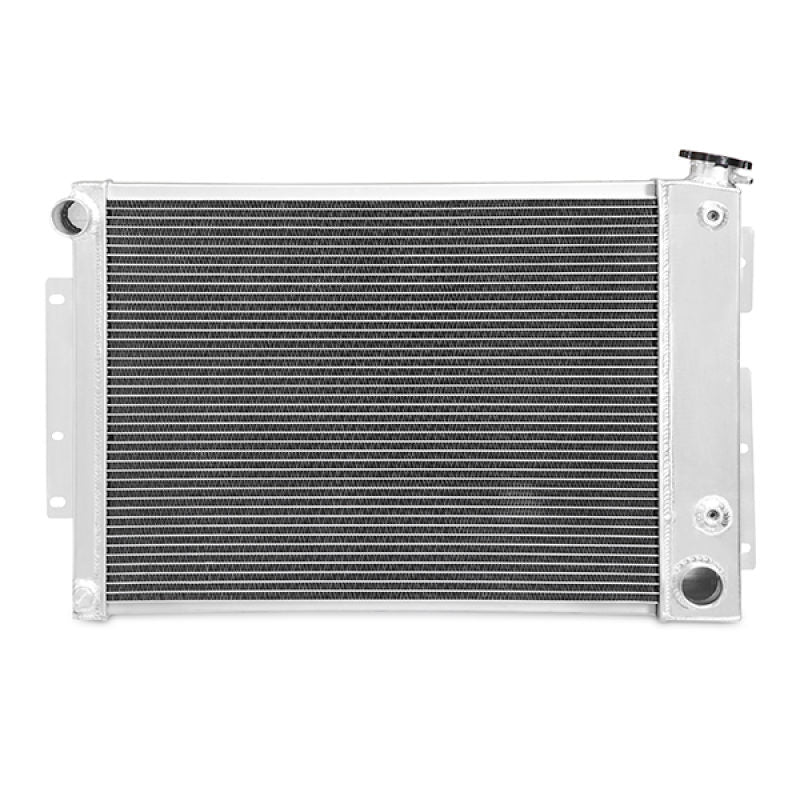

Mishimoto MMRAD-FIR-67X - 67-69 Pontiac Firebird X-Line Performance Aluminum Radiator

3-Row Performance Aluminum Radiator, fits Chevrolet Camaro 1967-1969

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

An ideal upgrade for the brittle stock radiator, the Mishimoto 1967--1969 Pontiac Firebird X-Line Performance Aluminum Radiator provides your car with enhanced reliability and improved cooling efficiency. Whether you want an all-aluminum 1968 Firebird radiator for daily driving or the extra cooling power from a 3-row 1969 Firebird radiator to take to the track, don't overlook the importance of installing an upgraded radiator in your engine. A stock classic car radiator cannot handle the heat that comes along with impressive horsepower. This Firebird radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. Each Firebird radiator also includes a magnetic oil drain plug, which effectively removes metal fragments circulating in the cooling system. As with all our products, every classic car radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

  • All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
  • 3-row core

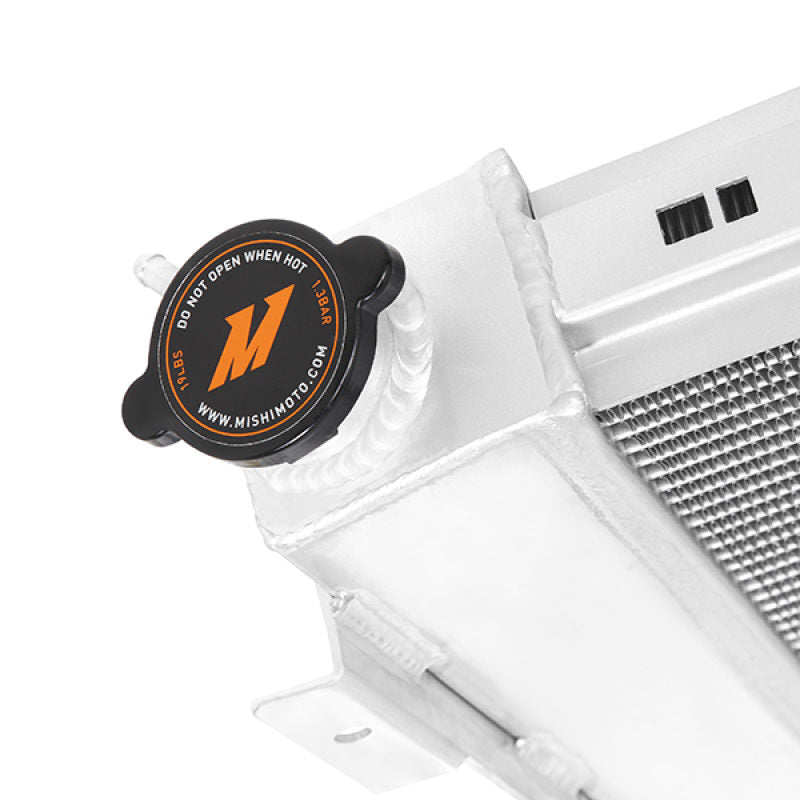

  • Billet aluminum fill neck
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: N/A
Core Finish: Uncoated
Core Height: 16.9
Core Length: 22.8
Core Material: Aluminum
Core Row Quantity: 3
Core Thickness: 2.5
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 6.51
Inlet Diameter: 1.5
Inlet Location: Top Left
Outlet Diameter: 1.75
Outlet Location: Bottom Right
Overall Height: 30.2
Overall Length: 19.3
Overall Width: 5
Radiator Cap Included: Yes
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: Yes
TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 19.3
TechSpec Overall Width (in): 5
TechSpec Core Length (in): 22.8
TechSpec Core Height (in): 16.9
TechSpec Fluid Capacity (gal): 6.51
TechSpec Rows: 3
TechSpec Inlet (in): 1.5
TechSpec Outlet (in): 1.75
TechSpec Core Thickness (in): 2.5
TechSpec Drain Plug Thread Size: 1/4-18 NPT
TechSpec DPI: 370
TechSpec Material: Aluminum
TechSpec Applications: 1967-1969 Pontiac Firebird 326ci (5.3L) V8, 350ci (5.7L) V8, 400ci (6.6L) V8
TechSpec Engine Codes: 326ci (5.3L) V8--350ci (5.7L) V8--400ci (6.6L) V8
TechSpec Chassis Codes: N/A
TechSpec Note: Transmission Cooler Thread Info:--On Radiator: Female 1/4-inch BSPP
TechSpec Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01: All-aluminum construction provides increased heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
SellingPoint02: 3-row core
SellingPoint03: Billet aluminum fill neck
SellingPoint04: Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
SellingPoint05: Brazed aluminum core
SellingPoint06: Features an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
SellingPoint07: Includes magnetic drain plug
SellingPoint08: Mishimoto Lifetime Warranty
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
