Mishimoto MMRAD-F2D-11V2 - 11-16 Ford 6.7L Powerstroke Aluminum Primary Radiator

Mishimoto MMRAD-F2D-11V2 - 11-16 Ford 6.7L Powerstroke Aluminum Primary Radiator

Mishimoto | MMRAD-F2D-11V2
SKU: MMRAD-F2D-11V2
$1,199.95 USD
$1,320.00 USD $1,199.95 USD
Sale Sold out
Shipping calculated at checkout.

27 in stock

Mishimoto MMRAD-F2D-11V2 - 11-16 Ford 6.7L Powerstroke Aluminum Primary Radiator

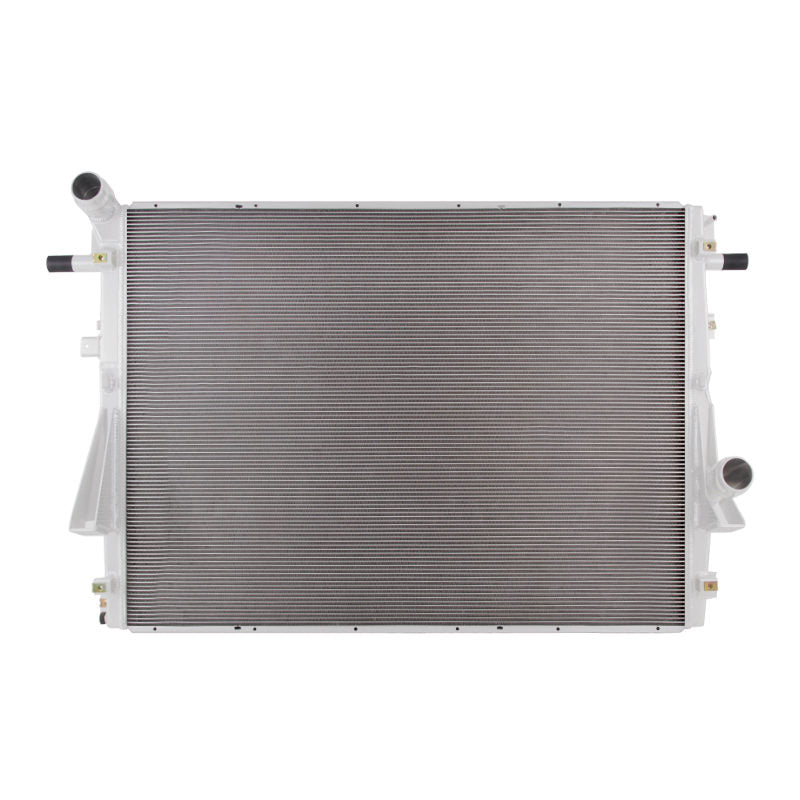

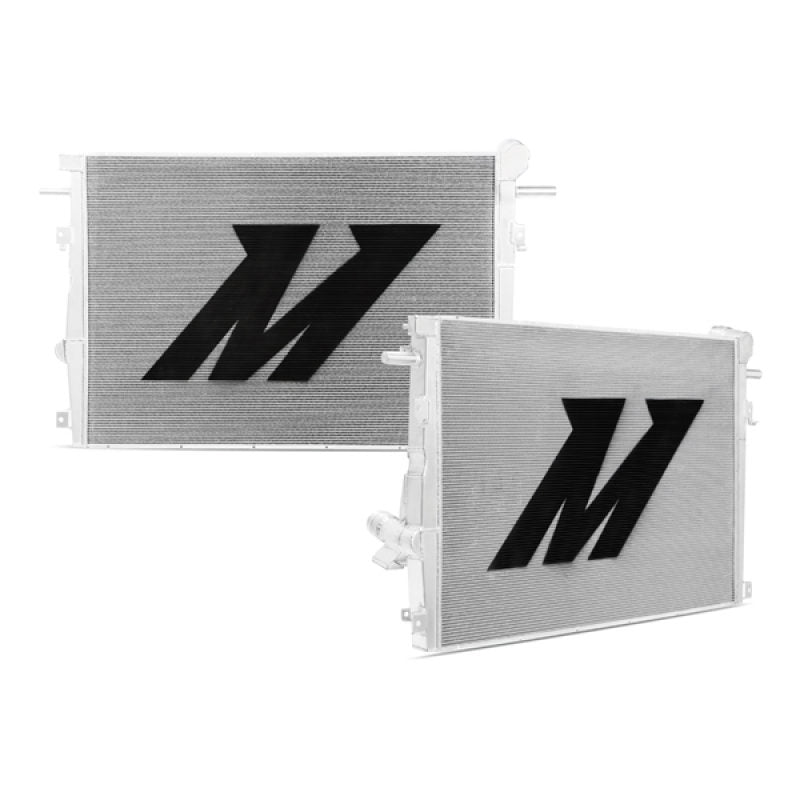

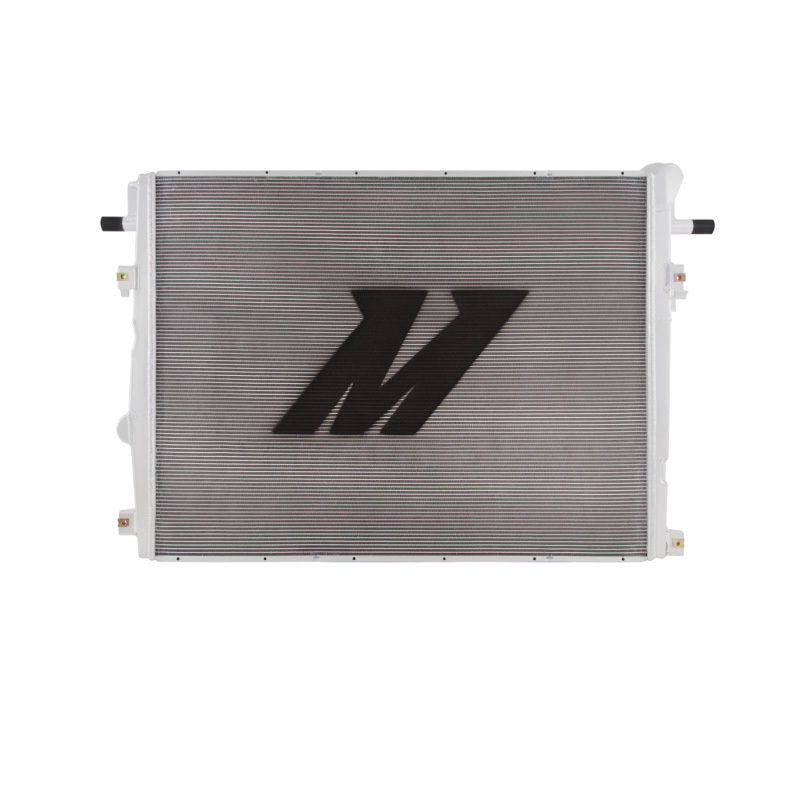

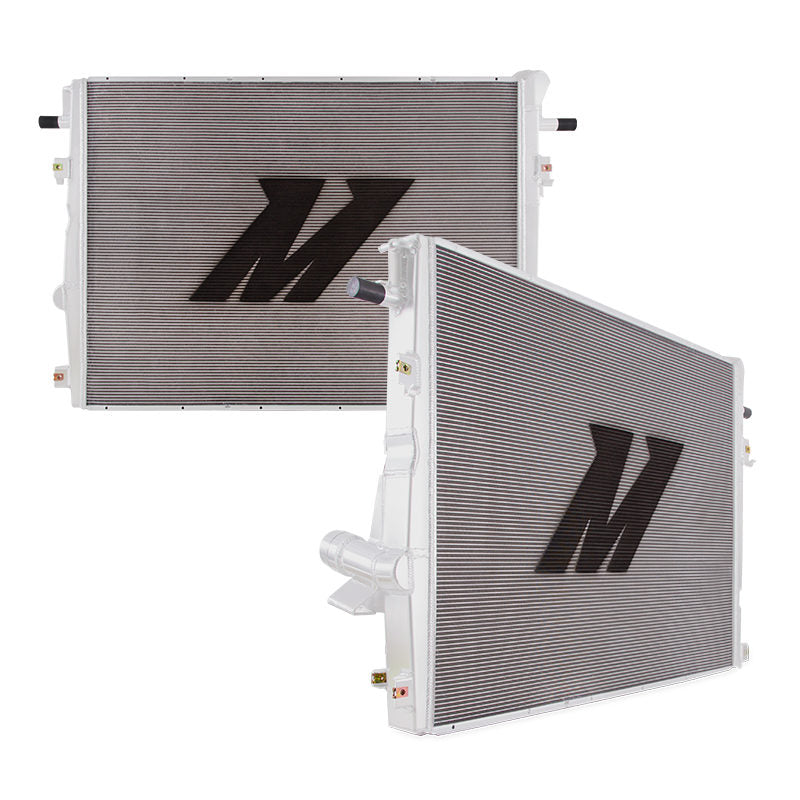

Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2011-2016

Aluminum radiator engineered for efficient heat dissipation and optimal engine cooling. Precision-fit design ensures easy installation, corrosion resistance, and reliable performance across varied driving conditions.

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

  • 37-percent increase in coolant capacity
  • 20-percent increase in fin area
  • 10-percent thicker core than factory
TechSpec Overall Height (in): 30.2
TechSpec Overall Length (in): 48.9
TechSpec Overall Width (in): 8
TechSpec Core Length (in): 27.76
TechSpec Core Height (in): 38.39
TechSpec Fluid Capacity (gal): 11.61
TechSpec Rows: 2
TechSpec Inlet (in): N/A
TechSpec Outlet (in): N/A
TechSpec Core Thickness (in): 1.89
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec DPI: 13230
TechSpec Material: Aluminum
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Engine Codes: N/A
TechSpec Chassis Codes: N/A
TechSpec Note: N/A
TechSpec Includes: Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
SellingPoint01: Direct fit for the 6.7L Powerstroke, 2011-2016
SellingPoint02: 37-percent increase in coolant capacity
SellingPoint03: 20-percent increase in fin area
SellingPoint04: 10-percent thicker core than factory
SellingPoint05: 100-percent brazed aluminum core

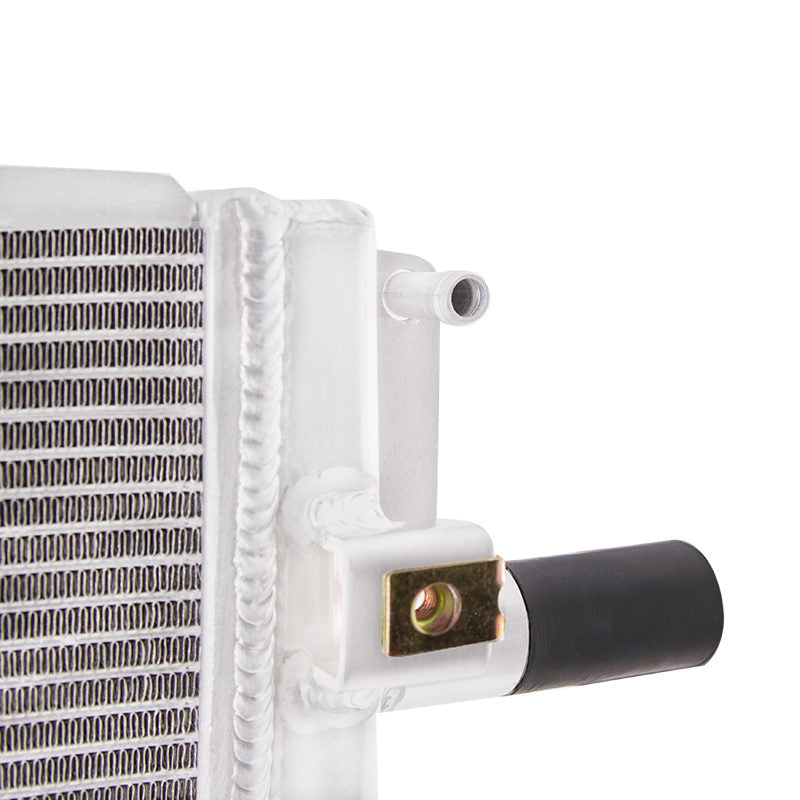

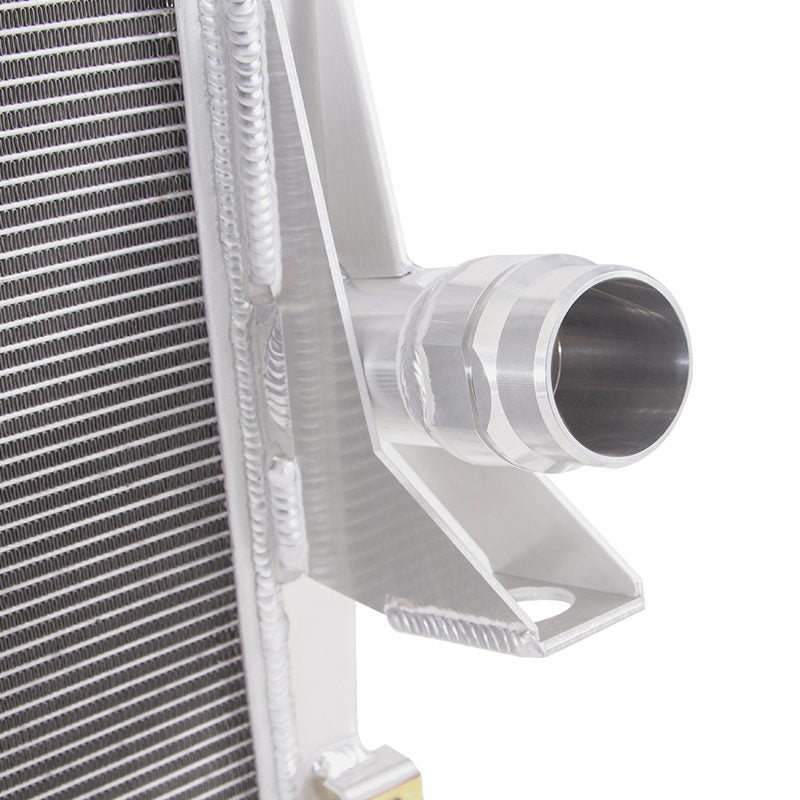

SellingPoint06: CNC-machined, factory-style, quick-disconnect inlet and outlet

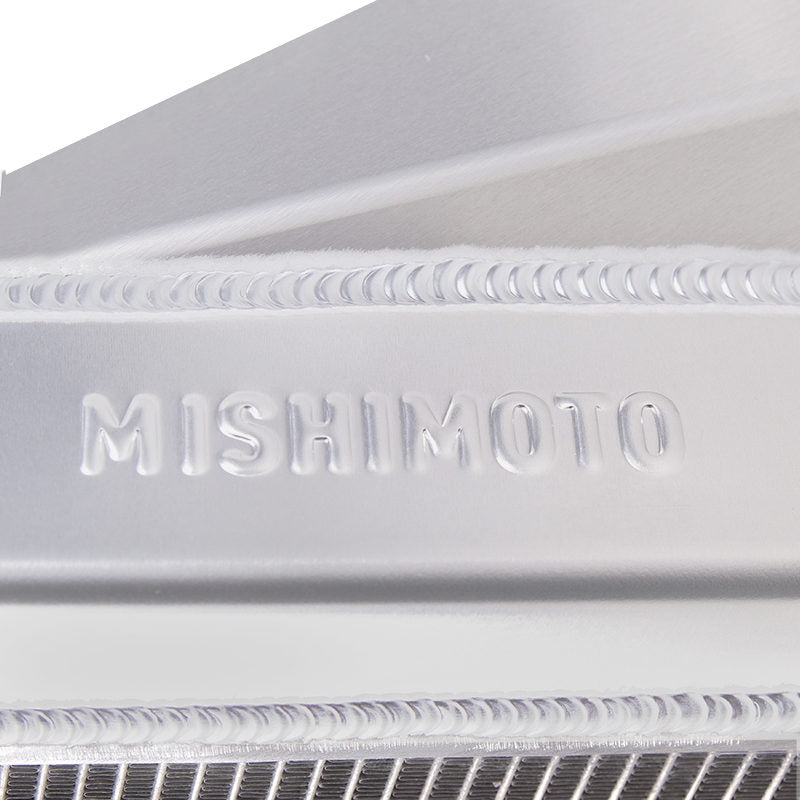

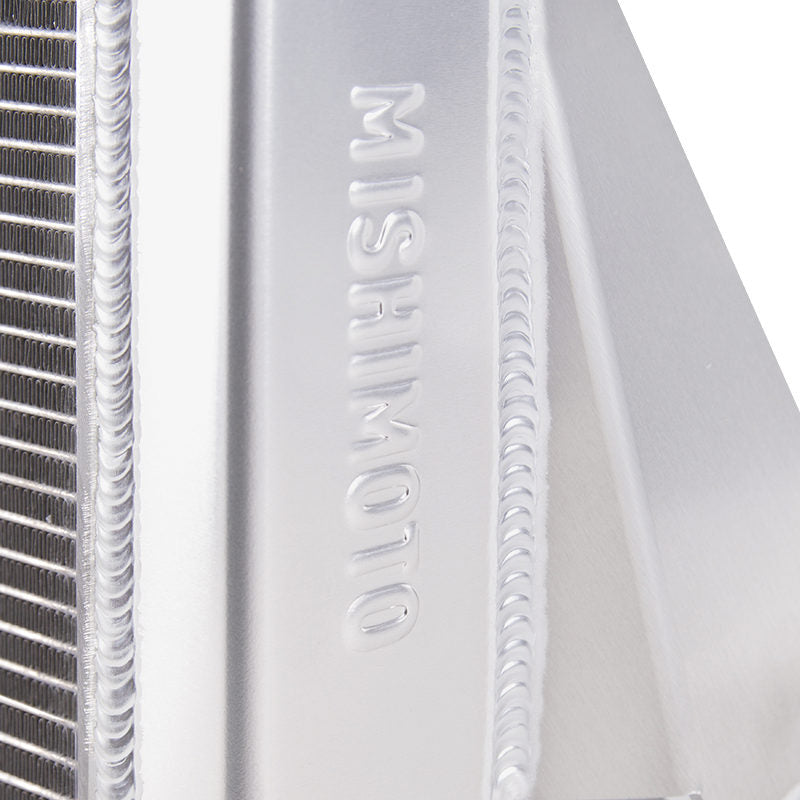

SellingPoint07: TIG-welded to perfection
SellingPoint08: Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09: Patent numberD717,218

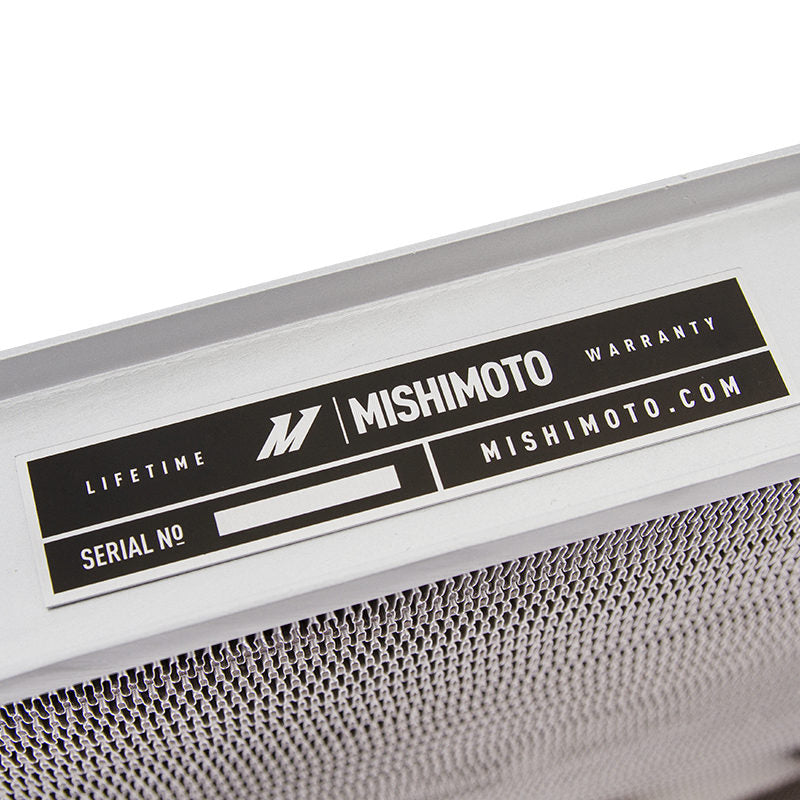

SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
Install Difficulty: 4
Core Finish: Uncoated
Core Height: 38.39
Core Length: 27.76
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.89
Down Flow Or Cross Flow Type: Cross Flow
Drain Plug Included: Yes
Drain Plug Thread Size: M12 - 1.5
Fluid Capacity: 11.61
Inlet Diameter: 0
Inlet Location: Top Left
Outlet Diameter: 0
Outlet Location: Bottom Right
Overall Height: 30.2
Overall Length: 48.9
Overall Width: 8
Radiator Cap Included: No
Transmission Oil Cooler Fitting Type: N/A
Transmission Oil Cooler Included: No
